2-Port USB HDMI/Audio KVMP™ Switch

Name: 2-Port USB HDMI/Audio KVMP™ Switch
Brand: ATEN
SKU: CS1792

CS1792

HDMI KVMP превключвател — една USB конзола управлява 2 компютъра и две допълнителни USB устройства. Вграден 2-портов USB 2.0 хъб и аудио.

Характеристики

2-port HDMI USB 2.0 KVMP™ Switch
One USB console controls two HDMI-interface computers and two additional USB devices
2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
Dolby True HD and DTS HD Master Audio support
Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
Supports widescreen resolutions
Multiplatform support - Windows, Linux,and Mac
Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Complete keyboard emulation for error-free booting
Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers and HDMI devices
Firmware Upgradable * 1. PC keyboard combinations emulate Mac Keyboards 2. Mac keyboards only work with their own computers

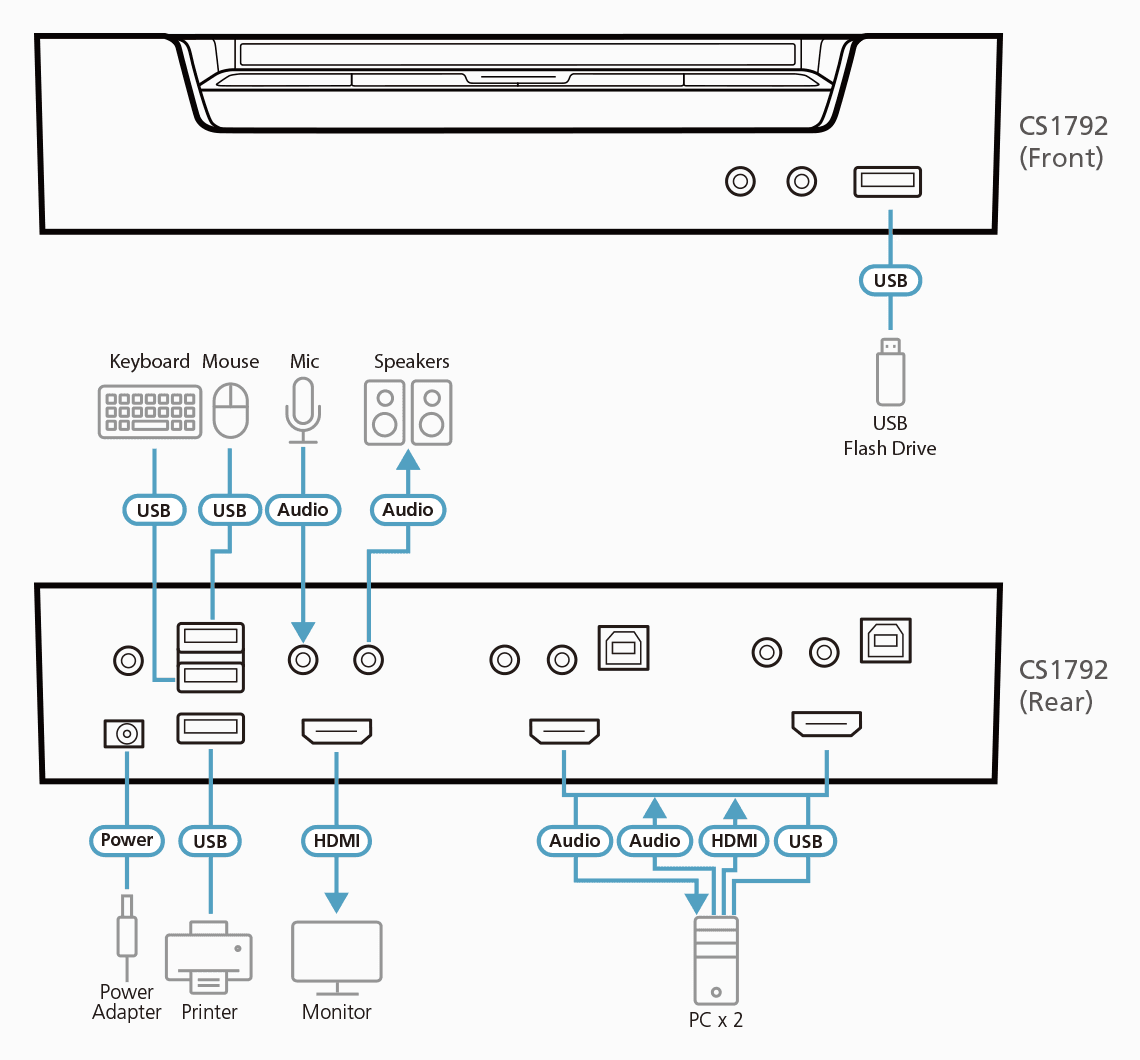

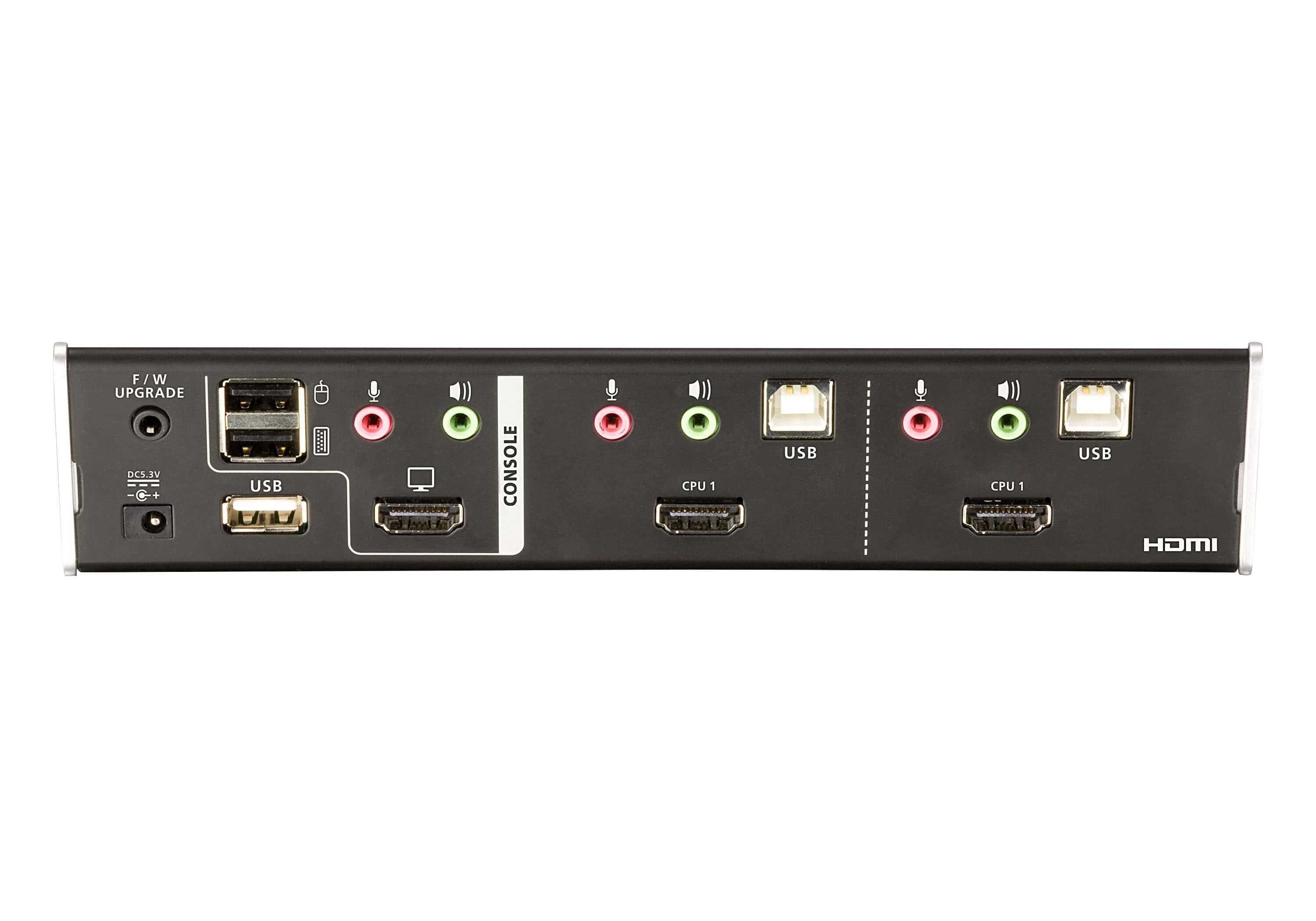

Конзолни портове: 2 x USB Type A Female (rear panel) 1 x HDMI Female (Black) 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM портове: 2 x USB Type B Female 2 x HDMI Female (Black) 2 x 3.5 mm Audio Jack Female (Green) 2 x 3.5 mm Audio Jack Female (Pink)
Обновяване на фърмуера: 1 x 3.5 mm Audio Jack Female (Black)
Захранване: 1 x DC Jack
USB хъб: 2 x USB Type A Female (1 x front panel; 1 x rear panel)

Клавиатура / мишка: USB
Видео: 1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz
Интервал на сканиране: 1-99 seconds (default: 5 sec.)
Консумация: DC5.3V:2.7W:28BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal, Plastic
Тегло: 0.42 kg ( 0.93 lb )
Размери (Д x Ш x В): 20.63 x 7.24 x 4.40 cm (8.12 x 2.85 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
