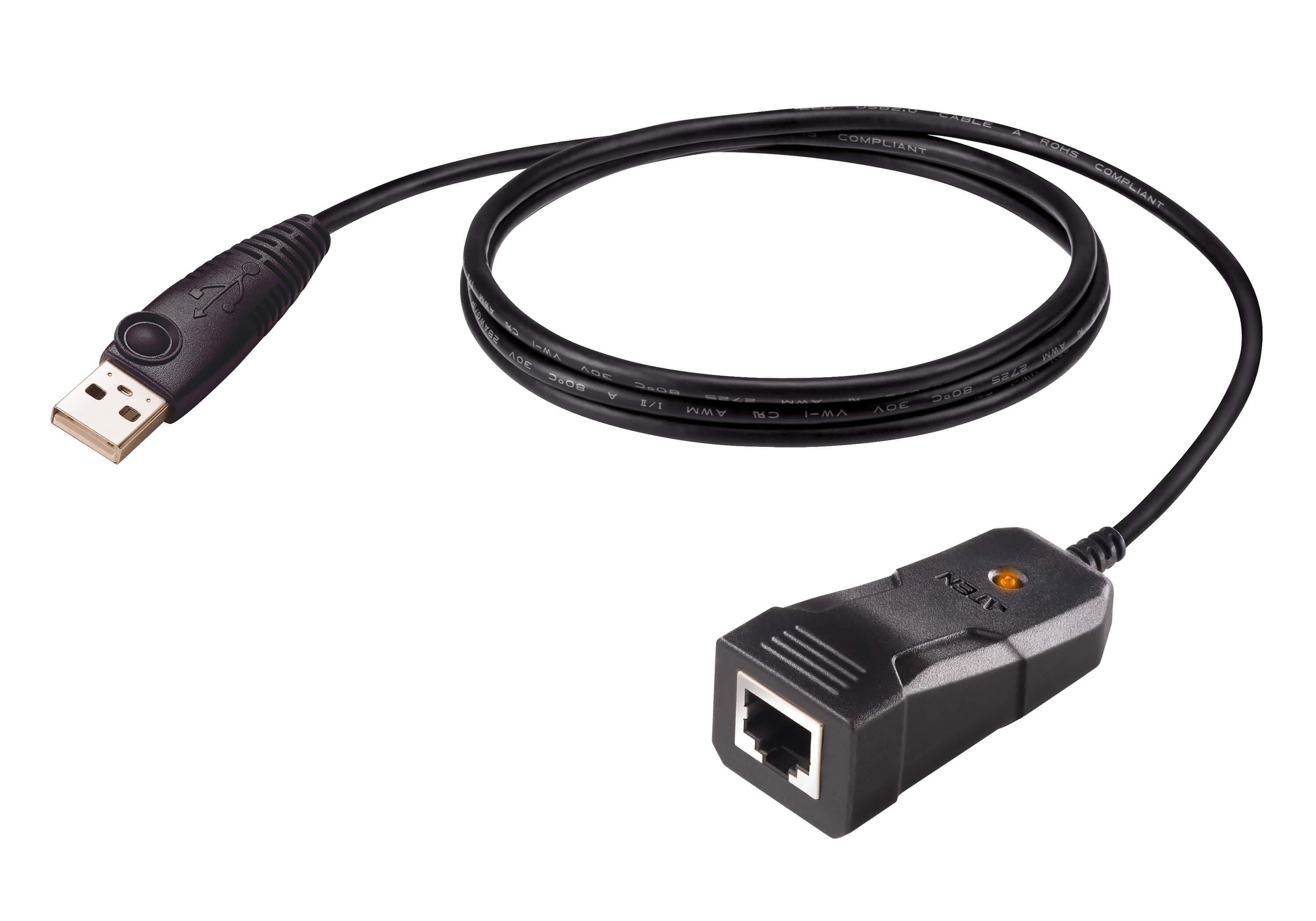

USB to RJ-45 (RS-232) Console Adapter (FTDI/1.2 m)
UC232BF
Преобразува USB порт в RJ-45 конзолен порт RS-232 за директен достъп до рутери и модеми с прав RJ-45 кабел. FTDI чип, скорост до 921.6 Kbps, кабел 1.2 m.
Характеристики
- Converts a USB port to RJ-45 Console port (RS-232)
- Adopts FTDI chip for enhanced device compatibility

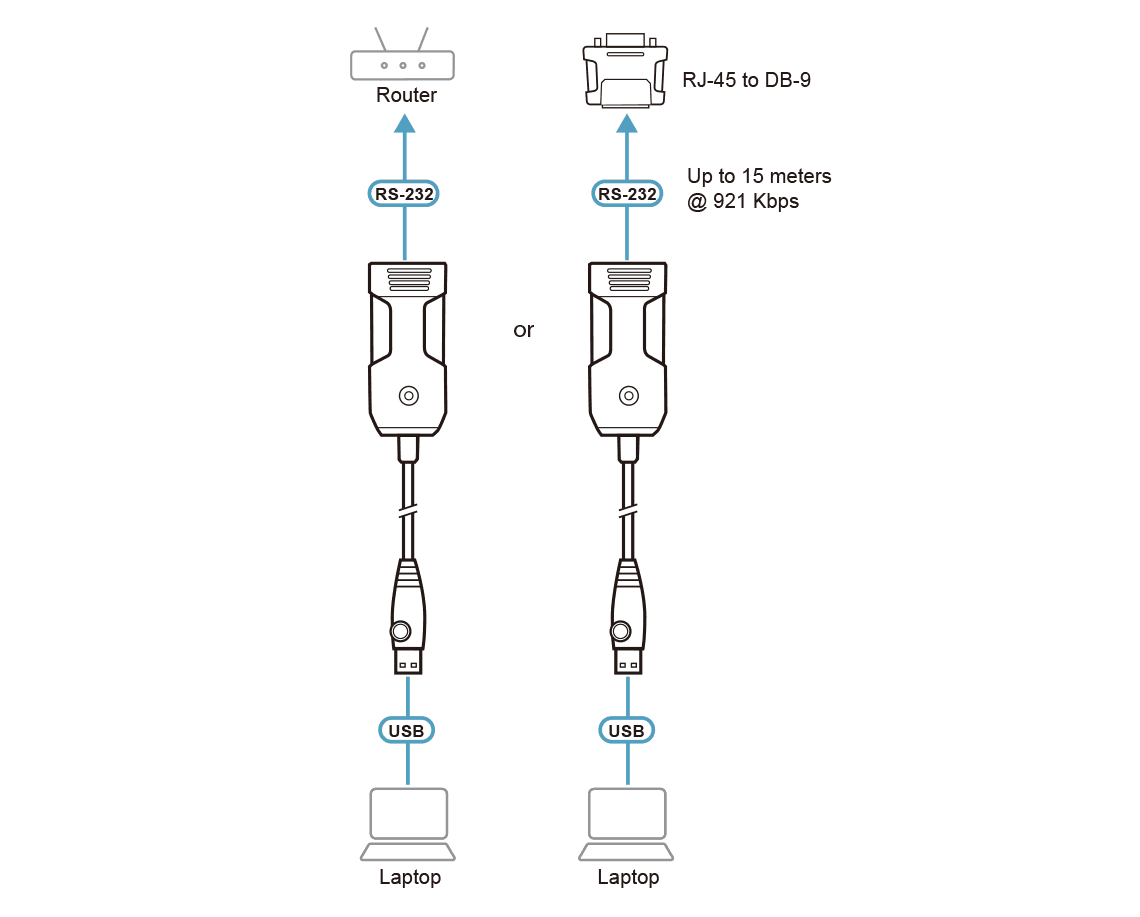

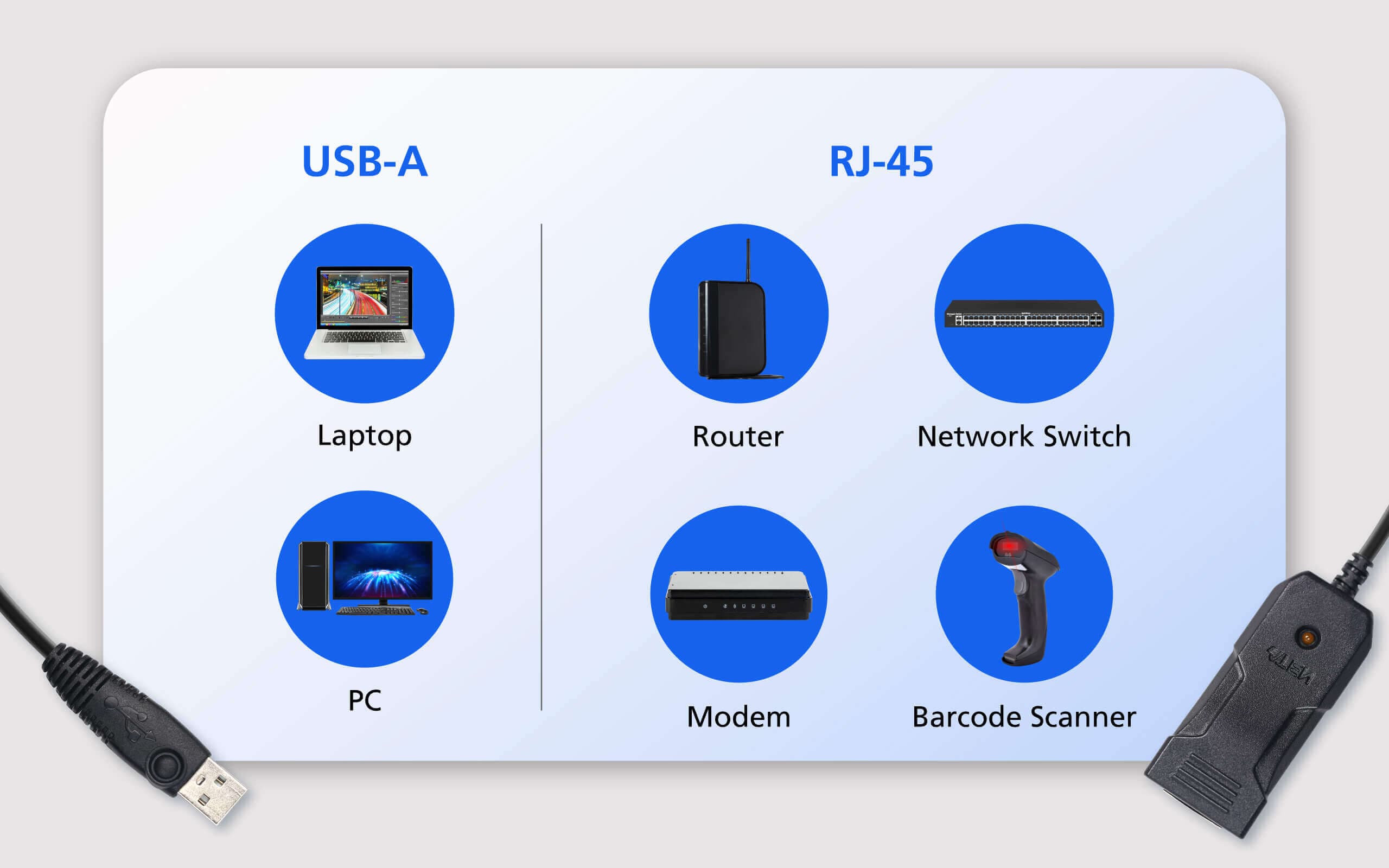

- Supports straight RJ-45 cables; no need to use Rolled RJ-45 cables for connecting Networking Routers / modems / network switches for configuration
- Fast COM port Transmission – up to 921.6 Kbps data transfer rate
- COM retention saves the assigned port settings for the device
- Proven performance in anti-electromagnetic interference (anti-EMI) capability for stable transmission performance
- Plug-and-Play
- No external power supply needed
Конектори
- USB порт
- 1 x USB Type A Male
- Сериен
- 1 x RJ-45 Female
- Скорост на данните
- Up to 921.6Kbps
- Дължина на кабела
- 1.2m
- Индикатори
- Power Status
- Режим на захранване
- Bus Powered
- USB спецификация
- USB compliant
Работна среда
- Работна температура
- 0–40˚C
- Температура на съхранение
- -20–60˚C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.06 kg ( 0.13 lb )
- Размери (Д x Ш x В)
- 2.56 x 5.84 x 2.23 cm (1.01 x 2.3 x 0.88 in.)
- Консумация
- DC5V:0.11W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
