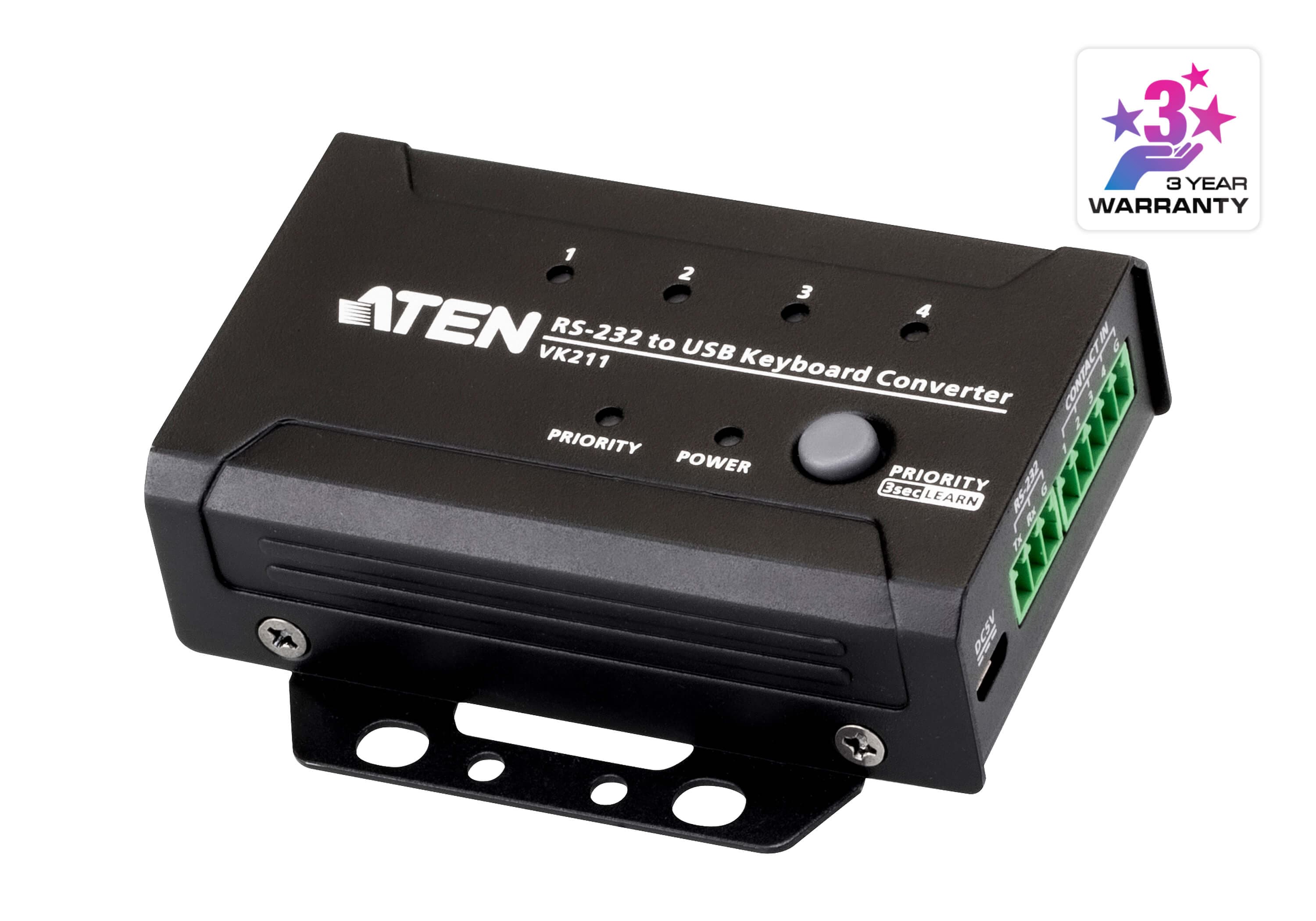

RS-232/Contact In to USB Keyboard/Mouse Converter
VK211
Преобразува RS-232 команди в USB сигнали за клавиатура и мишка, с което позволява на контролна система да управлява компютри и KVM устройства. Съхранява до 4 действия, задействани през контактните (Contact In) входове.
Характеристики
- Converts RS-232 commands to full-range USB keyboard / mouse signals for remote control over PC-based devices / KVM Switches
- Recalls the stored key codes and allows storage of up to 4 preset actions triggered via Contact In signals
- Local USB console ports for keyboard / mouse connection
- On-panel priority control push button for local operators to manage remote access in case of emergencies
- LEDs indicate the status of digital input signals, priority control, and power at a glance
- No extra power required by utilizing the connection with USB devices
- Learn mode eases the setup procedure and configurations
- Compatible with ATEN KVMs* Note: Please click here to see the supported ATEN KVM models
Конектори

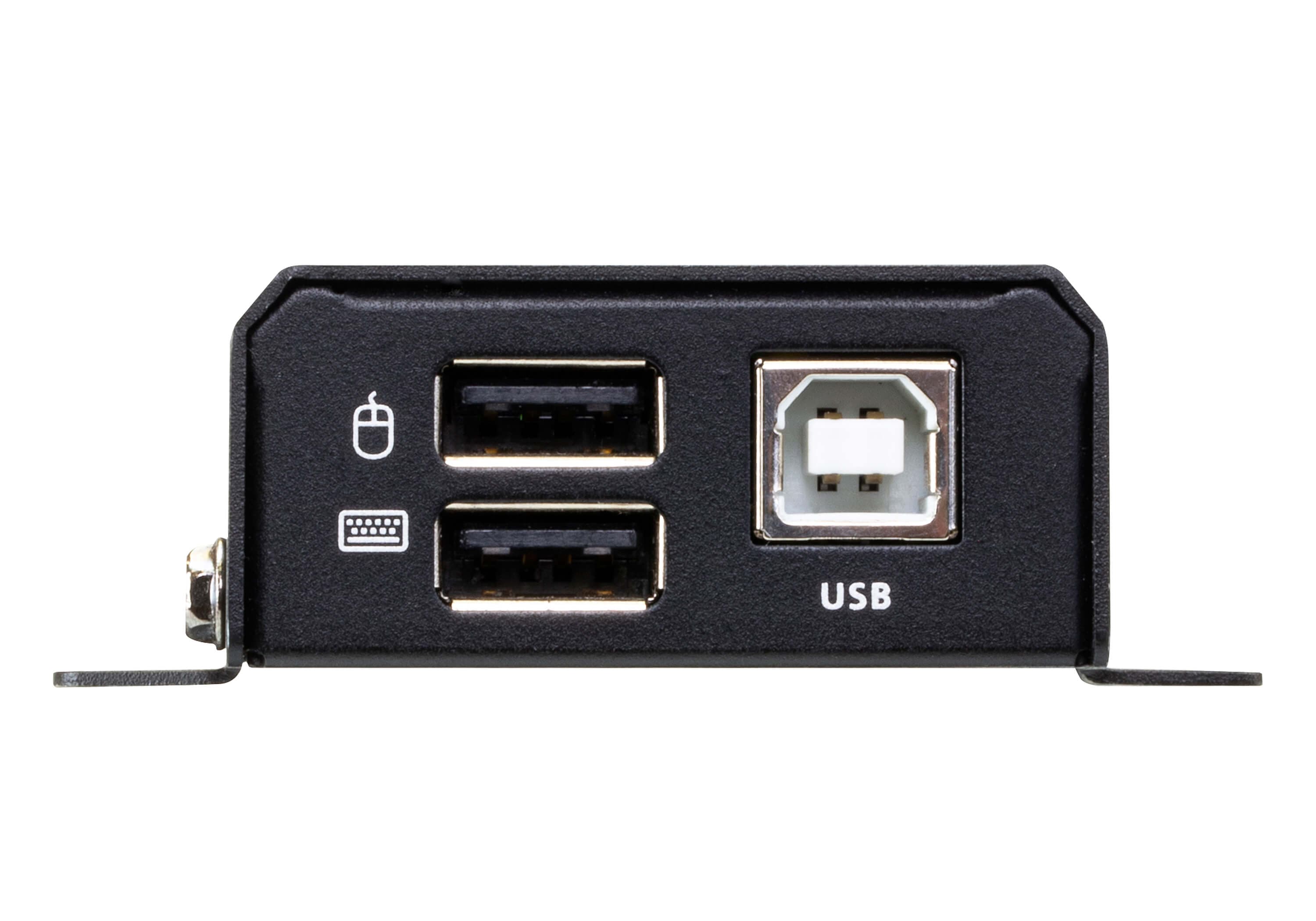

- Конзолни портове
- 2 x USB Type A Female
- Портове за устройства
- 1 x USB Type B Female

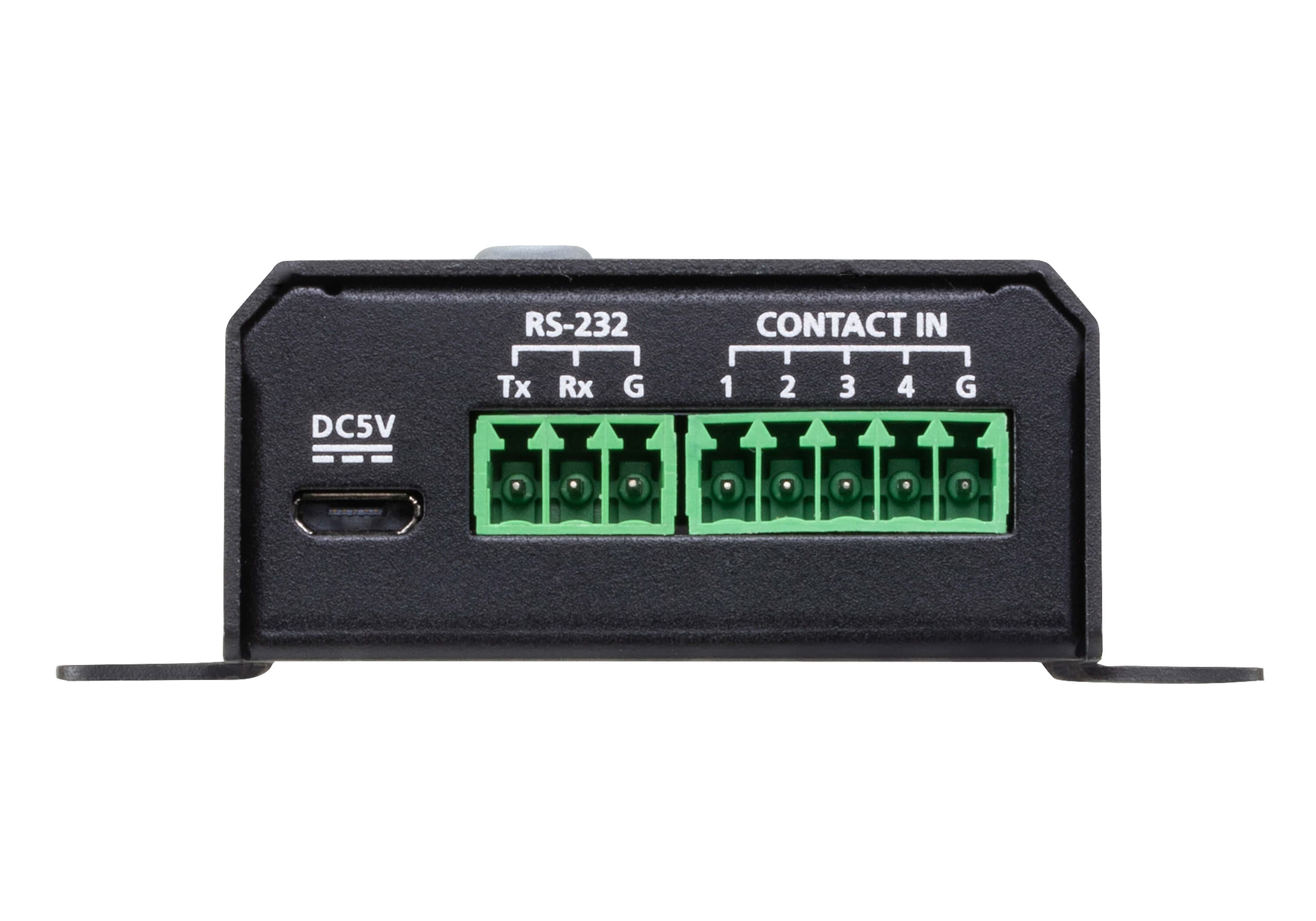

- RS-232
- 1 x Bi-directional RS-232 port (1 x 3-Pole Terminal Block) Baud Rate: 19200 Data Bit: 8 Stop Bit: 1 Parity: None
- Контактен вход
- 4 x Contact Closure Input ports (1 x 5-Pole Terminal Block) Approx. 3V when open; pulled to ~0 V when closed
- Захранване (опция)
- 1 x USB Micro B Female
- Бутон за приоритет
- 1 x Pushbutton Toggle switch for remote control. Press and hold for 3 seconds to enter learning mode
Индикатори
- Контактен вход
- 4 (Green)
- Захранване
- 1 (Green)
- Приоритет
- 1 (Orange)
- Консумация
- DC5V:0.69W:7BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.15 kg ( 0.33 lb )
- Размери (Д x Ш x В)
- 8.20 x 7.30 x 2.62 cm (3.23 x 2.87 x 1.03 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
