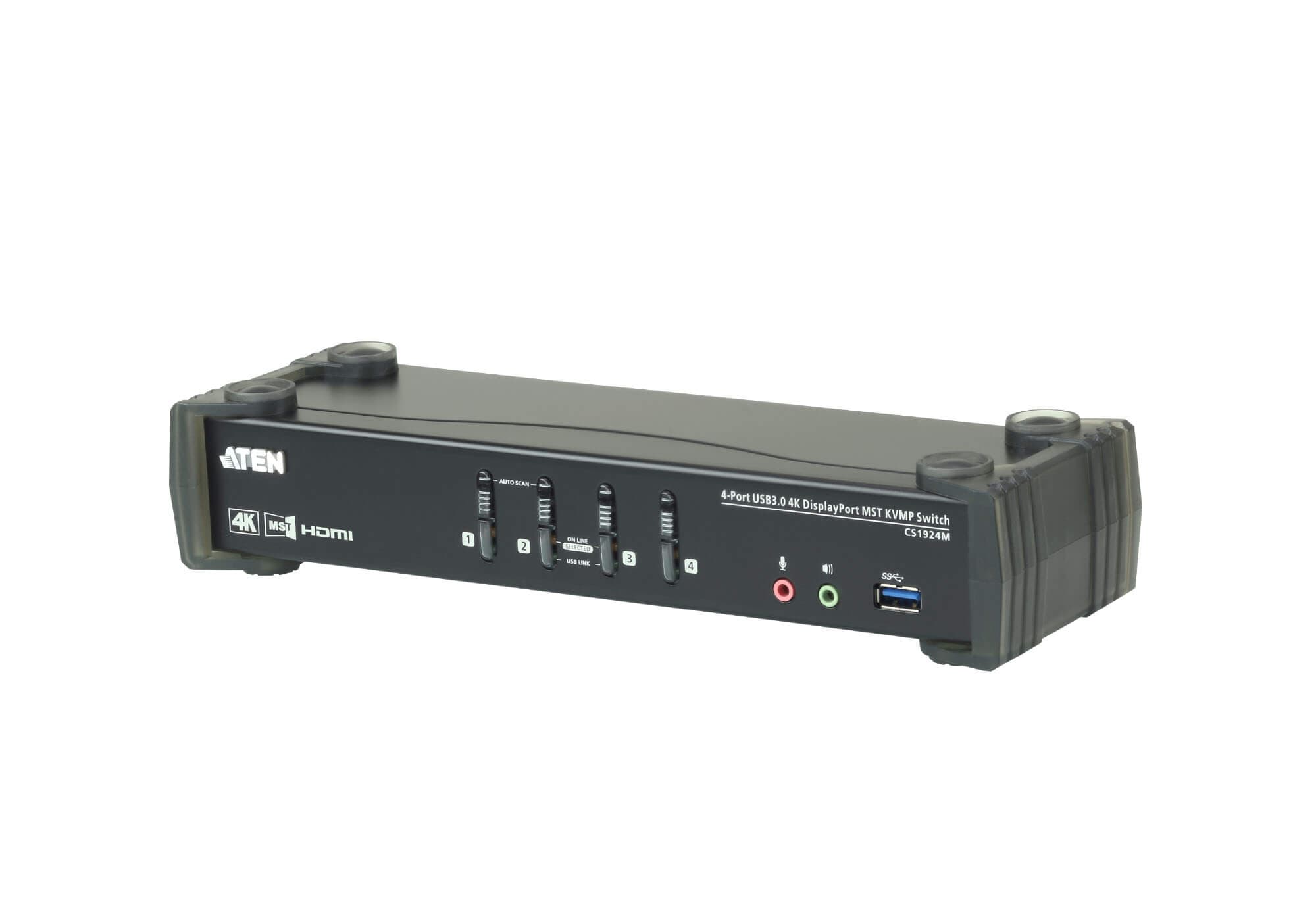

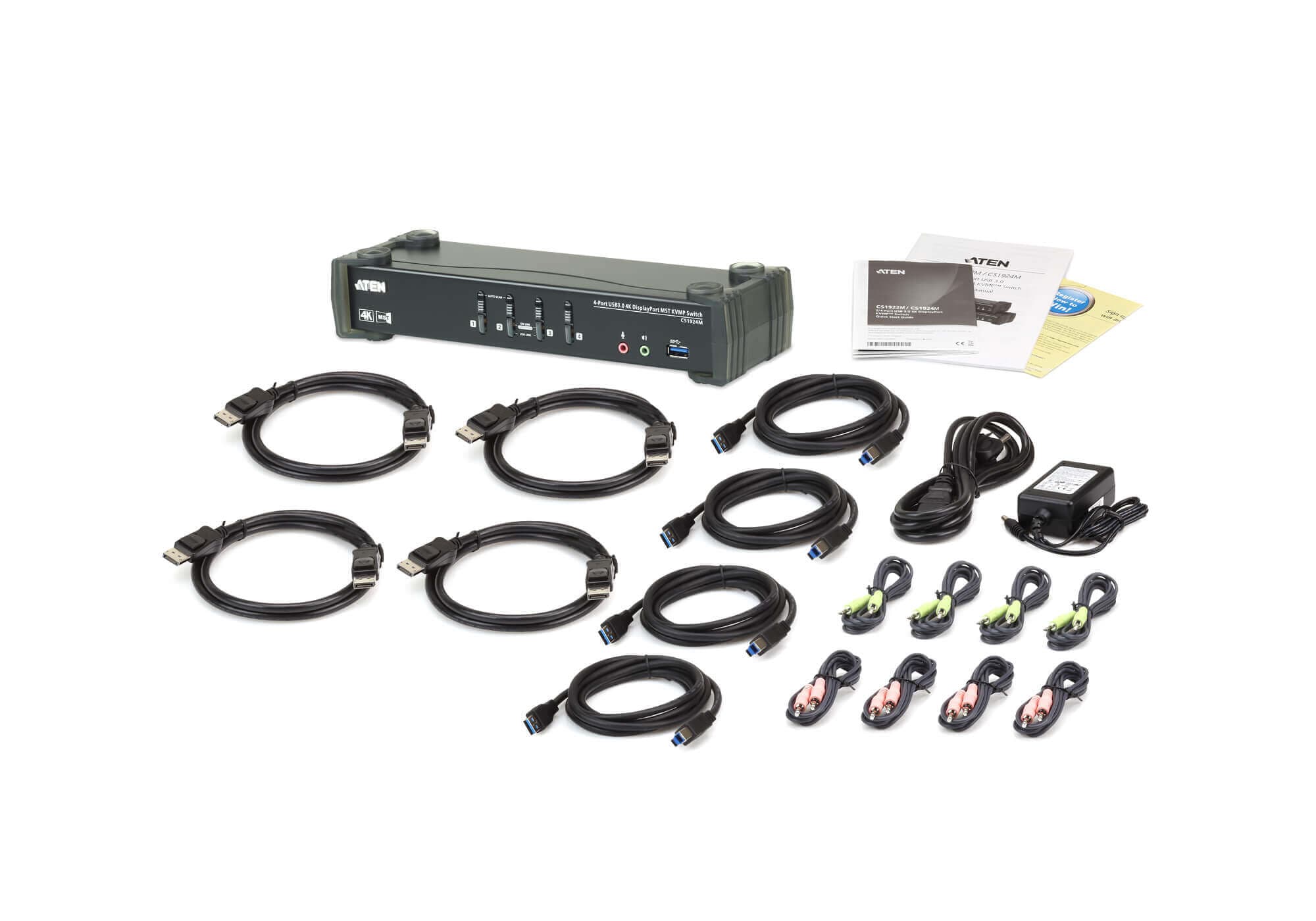

4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch (Cables included)

Name: 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch (Cables included)
Brand: ATEN
SKU: CS1924M

CS1924M

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

Switch controlling 4 DisplayPort computers from one console; a built-in MST hub outputs dual displays (DisplayPort and HDMI) from a single source. USB 3.1 Gen 1 hub at 5 Gbps; cables included.

Features

One USB keyboard/mouse and DisplayPort or HDMI monitor control 4 computers and 2 USB peripherals
Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source1
Supports MST Mode, Splitter Mode, and Single Port Mode.
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter2
Firmware upgradeable
Hot pluggable – add or remove computers without powering down the switch
Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
DisplayPort 1.2 compliant, HDCP 1.3 compliant3
Supports HD audio through DisplayPort4
Full bass response for high-quality 2.1 channel surround sound systems
Computer selection via front panel pushbuttons, hotkeys, mouse5, and RS-232 commands
Independent switching of KVM, USB hub, and Audio focus
Power On Detection – if a computer is powered off, the CS1924M automatically switches to the next powered-on computer
Auto Scan Mode for monitoring all computers
Keyboard emulation/bypass feature supports most gaming keyboards
Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows, Mac and Linux
Multilingual keyboard mapping supports English, Japanese, French and German keyboards Note: 1. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant 2. DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility. 3. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue. 4. HD audio through DisplayPort cannot be switched independently. 5. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.

Specifications

Computer Connections: 4
Port Selection: Hotkey, Pushbutton, Mouse, RS-232 Commands

Connectors

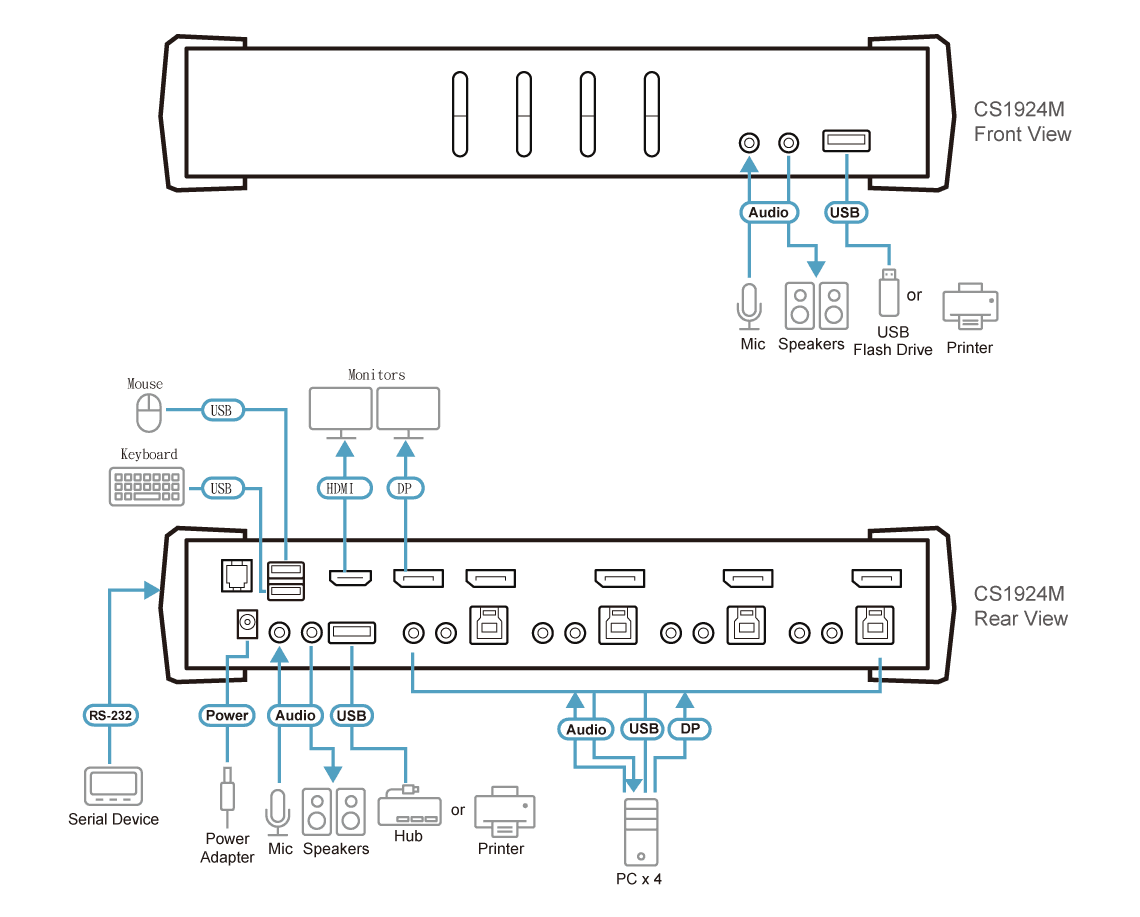

Console Ports: 2 x USB Type A Female 1 x DisplayPort Female (Black) 1 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) 1 x RJ-11 Female

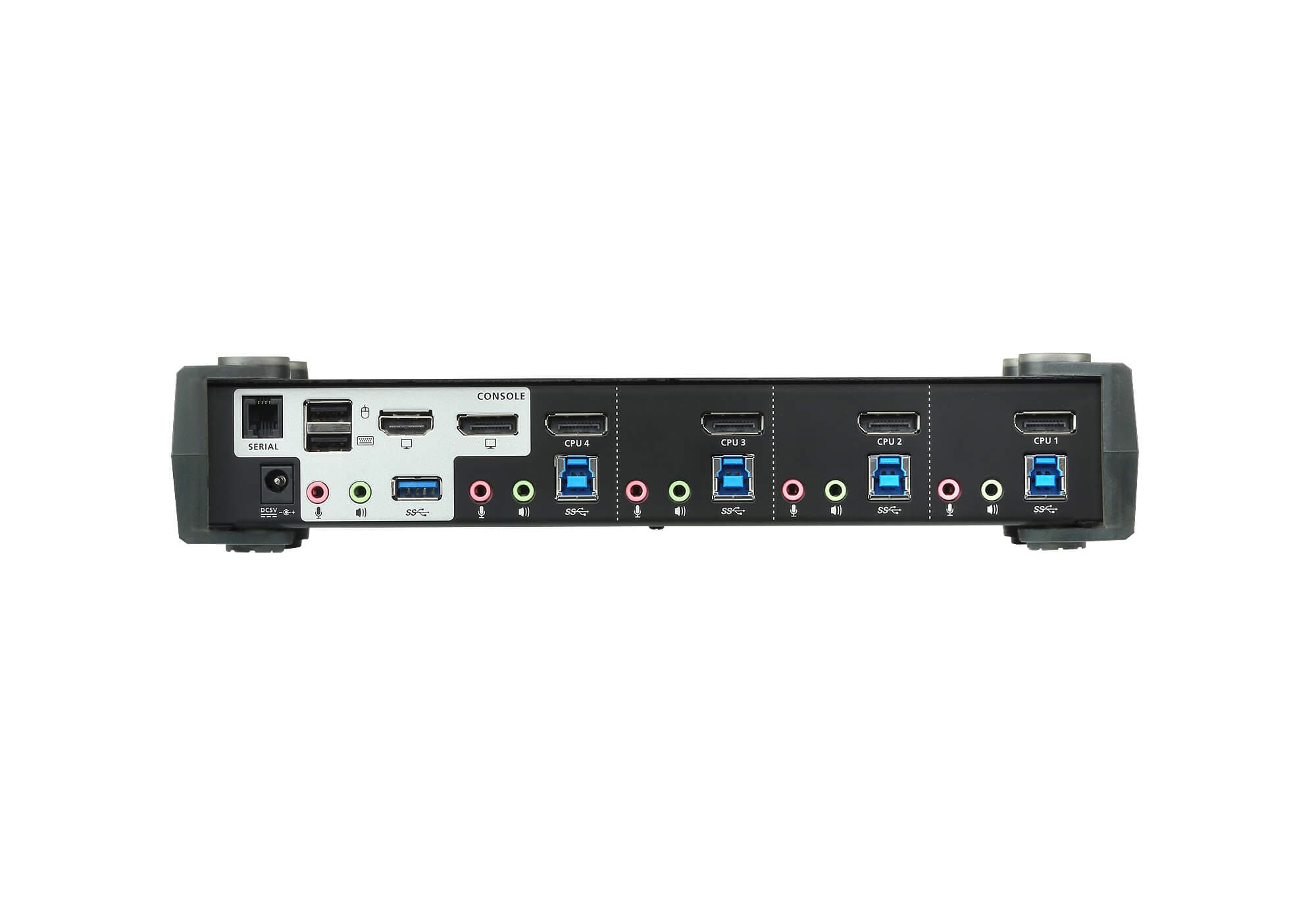

KVM (Computer) Ports: 4 x USB3.1 Gen1 Type B Female (Blue) 4 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Power: 1 x DC Jack
USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)

Switches

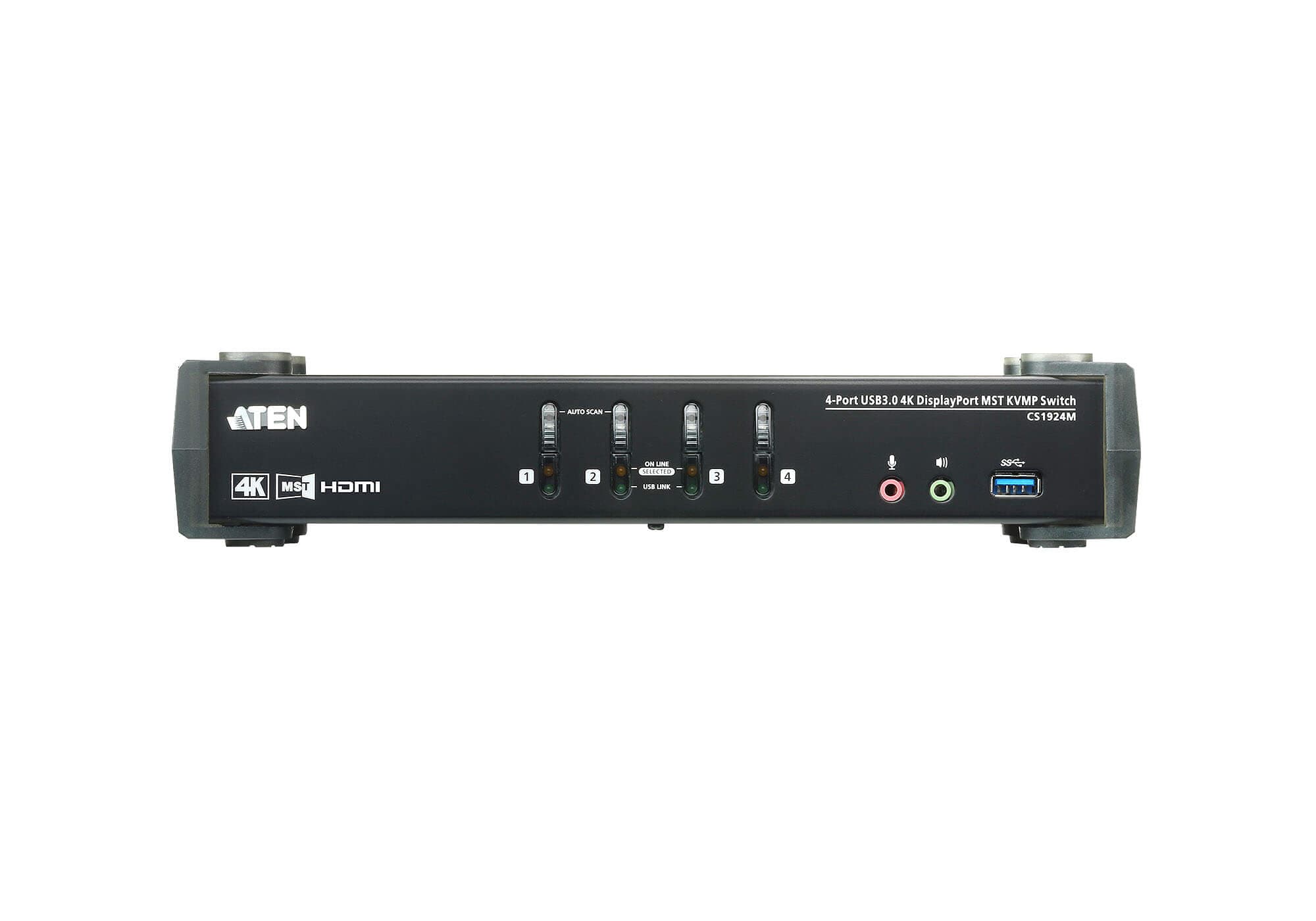

Selected: 4 x Pushbutton

LEDs

On Line /Selected: 4 (Orange)
USB Link: 4 (Green)

Emulation

Keyboard / Mouse: USB
Video: Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Scan Interval: 1-99 seconds (Default: 5 seconds)
Power Consumption: DC5V:4.89W:66BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0-50°C
Storage Temperature: -20-60°C
Humidity: 0-80% RH, Non-condensing

Physical Properties

Housing: Metal, Plastic
Weight: 0.92 kg ( 2.03 lb )
Dimensions (L x W x H): 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
