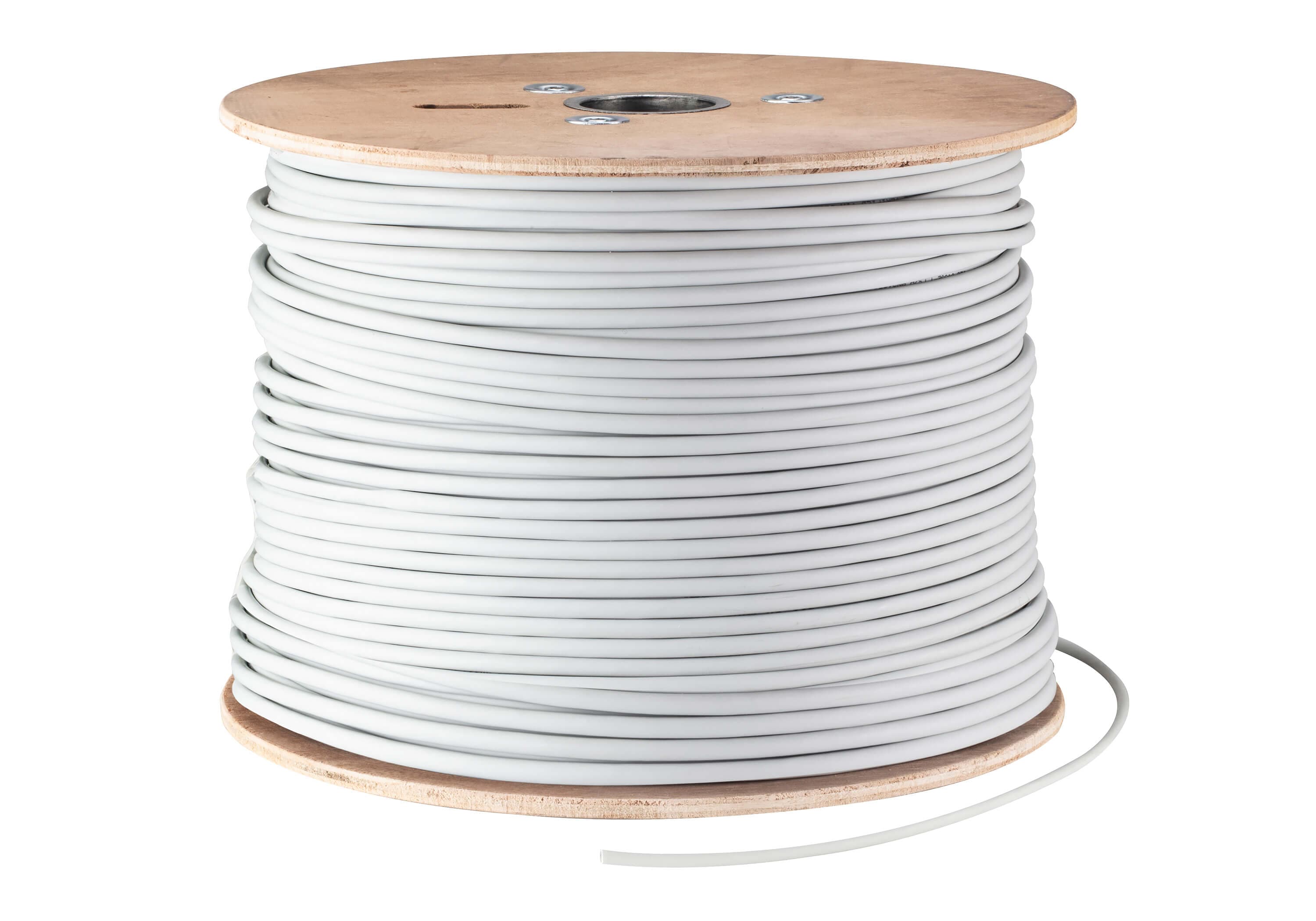

Cat 6A U/FTP cable on a 300 m reel, meeting the HDBaseT 3.0 standard for uncompressed multi-signal transmission up to 16 Gbit/s, including True 4K video. Individually shielded 23AWG pairs resist EMI and RFI.
Features
- 2L-29330 is HDBaseT Recommended Cable
- Meets HDBaseT 3.0 standard for uncompressed multi-signal transmission up to 16 Gbit/s bandwidth, including True 4K video, audio, Ethernet, power, and control
- The length of a reel of 2L-29330 is 300 m – tailored to specific lengths up to 100 m based on practical usage
- Resistant to electromagnetic interference (EMI) and radio frequency interference (RFI) brought by walkie-talkies or any other radio devices to prevent AV signal disturbance
- Conductor material: 23 AWG solid bare copper
- Tested transmission up to 500 MHz, according to ISO 11801 class EA, ANSI/TIA-568.2-D, and IEC 60332-1 standards
- Outer shielded material: AI Mylar tape and braid
- Low Smoke Zero Halogen (LSZH) copper cable – eco-friendly material design for better safety
- Compatible with ATEN’s HDBaseT extenders, splitters, and matrix switches
Specifications
- Cable Type
- Cat 6A U/FTP
- Cable Length
- 300m / 990ft

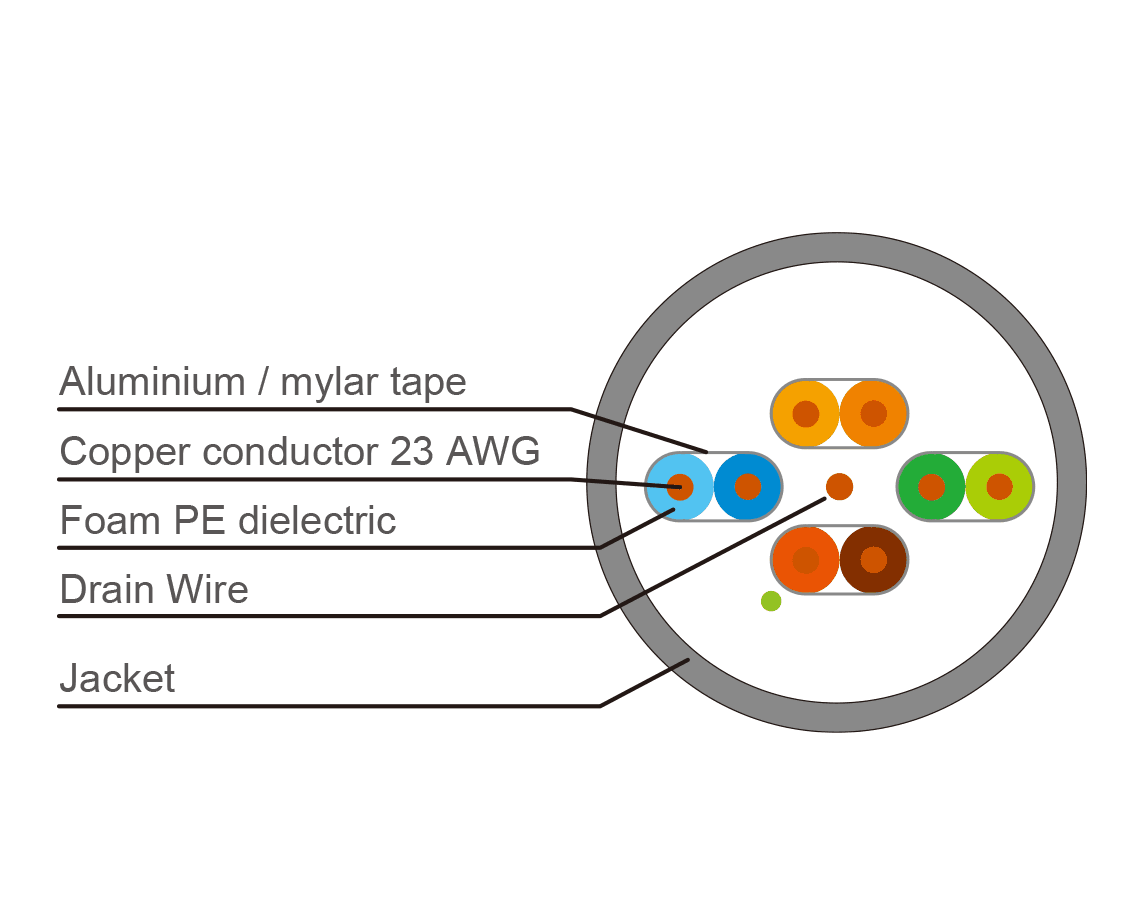

Conductor
- Size
- 23AWG
- Construction
- Individual shielded pair
- Material
- Solid plain annealed bare copper wire
- Number of Pairs
- 4 twisted pairs, 2 single conductors paired
Insulation
- Material
- Foamed PE , 1.46 +/- 0.1mm
- Color codes
- Twisted pair color code: Light Blue / Blue Light Orange / Orange Light Green / Green Light Brown / Brown
Binder
- Material
- Polyester
Shield
- Material
- A layer of aluminum-foil laminated tape
Drain Wire
- Construction
- 26AWG
Jacketed
- Material
- LSZH (Low Smoke Zero Halogen)
- Diameter
- 7.2+/-0.5 mm
- Color
- Gray
Electrical
- DC Resistance
- 9.38 Ω (max.) / 100m at 20 °C
- Propagation Delay
- 535.6ns (max.) / 100m at 500Mhz
- Propagation Delay Skew
- 45ns Max./100m
- Insertion Loss
- 45.3 dB (max.) / 100m at 500Mhz
- Impedance
- 100+/-15 Ω
Environmental
- Temperature (Operating / Storage)
- -20°C to 60°C
Physical Properties
- Weight
- 17.00 kg ( 37.44 lb )
- Standard Support
- ANSI/TIA-568.2-D HDBaseT 3.0 Premium cable
