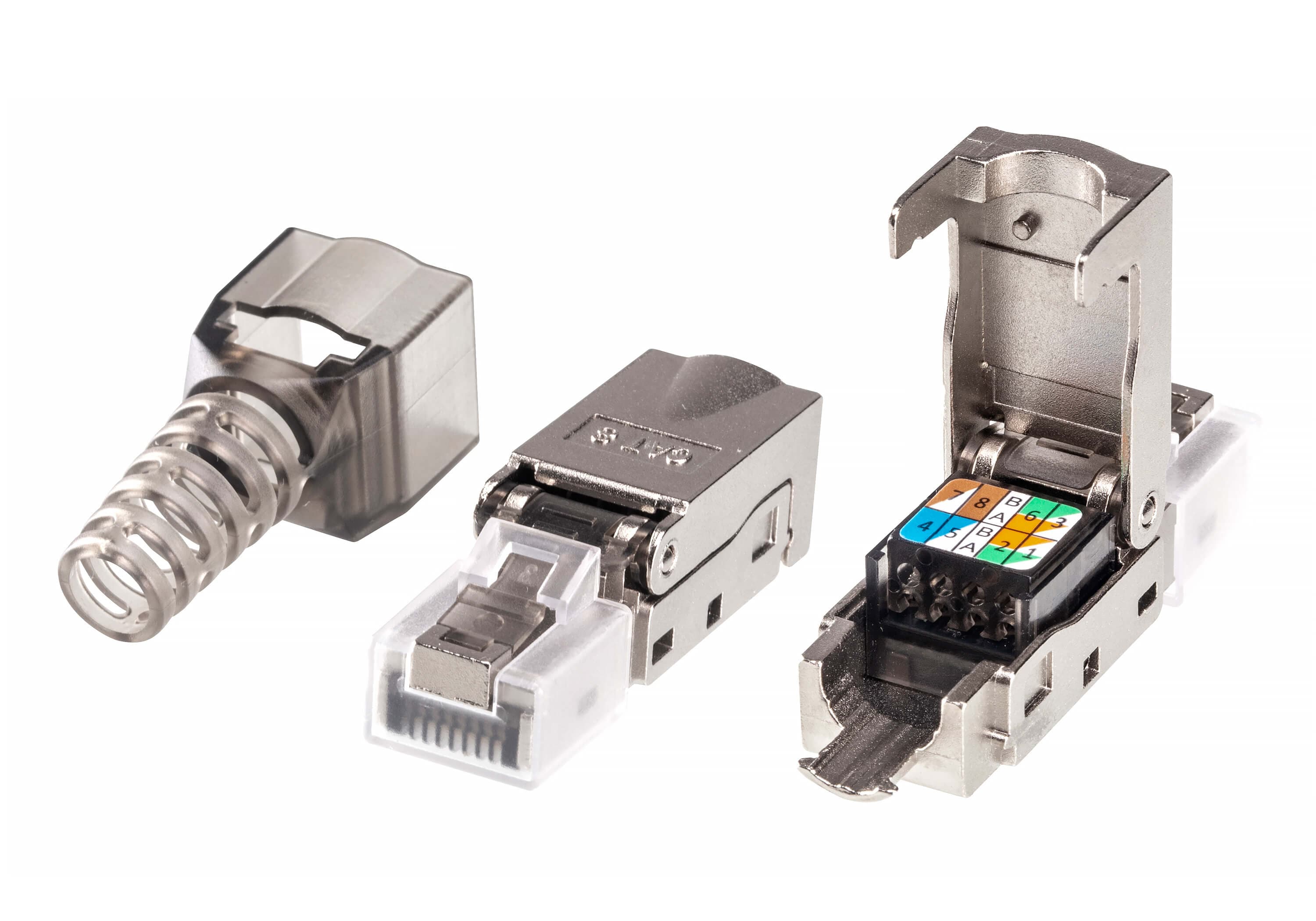

Екраниран RJ-45 конектор Cat 6A за проводници 22–26 AWG, който се монтира без кримпващ инструмент и може да се използва повторно. Препоръчан за кабели ATEN 2L-29330.
Характеристики
- Metal shielded crystal heads (Cat 6A) and one-piece die-cast RJ-45 connectors offer protection against electromagnetic crosstalk and external interference,ensuring stable data transmission
- No crimping tools are required to install the connector with color-coded cable holders for quick and easy assembly
- Re-installable design enables re-use without compromising performance
- Specifically recommended for use with 2L-29330 Cat 6A cables
- Supports over 10G transfer rate and FCC Part 68 standards compliant
- Suitable for Cat 6A to Cat 8 solid or stranded cables with wire gauges from 22 to 26 AWG, ensuring compatibility with different network environments
- Jack insertion life exceeds 750 mating cycles, ensuring long-term durability.
- Screw-on plastic strain relief boot prevents over-bending for increased reliability
- Materials are RoHS / REACH compliant, ensuring adherence to environmental regulations
Спецификация
- Тип кабел
- RJ45 complies with FCC part 68 standard, provides termination for 22 ~ 26 AWG wire
Електрически характеристики
- DC съпротивление
- Max. 0.1Ω
- Изолационно съпротивление
- 500 MΩ
- Контактно съпротивление
- 20 mΩ
- Номинален DC ток
- 1.5Amps
- Диелектрична якост
- Dielectric withstanding voltage 1000V
Работна среда
- Работна температура
- -40°C- +60°C
Физически характеристики
- Материал
- Housing: ABS + PC, UL94V-0 Contact: 0.35mm Thickness Phosphor Bronze Gold Plated over Nickel
- Тип
- Gun shield: Zinc Alloy, nickel plated
- Тегло
- 0.01 kg ( 0.04 lb )
- Размери (Д x Ш x В)
- 4.56 x 1.38 x 1.25 cm (1.8 x 0.54 x 0.49 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
