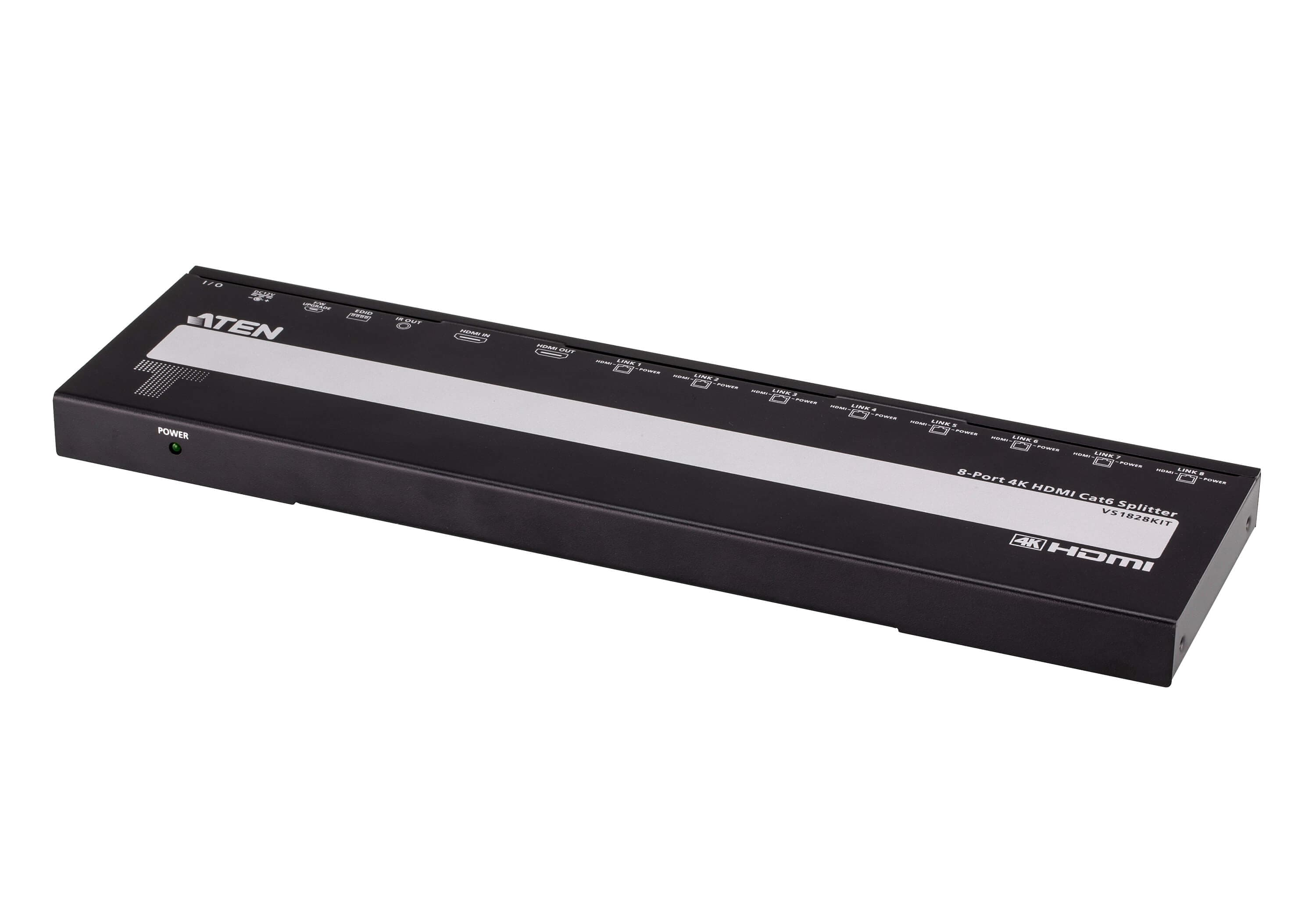

8-Port 4K HDMI Cat 6 Splitter with Receivers

Name: 8-Port 4K HDMI Cat 6 Splitter with Receivers
Brand: ATEN
SKU: VS1828KIT

VS1828KIT

Комплект от сплитер и 8 приемника, който разпределя един HDMI източник към 8 дисплея на до 40 m по Cat 6 кабел; поддържа 4K @ 30 Hz (4:4:4).

Характеристики

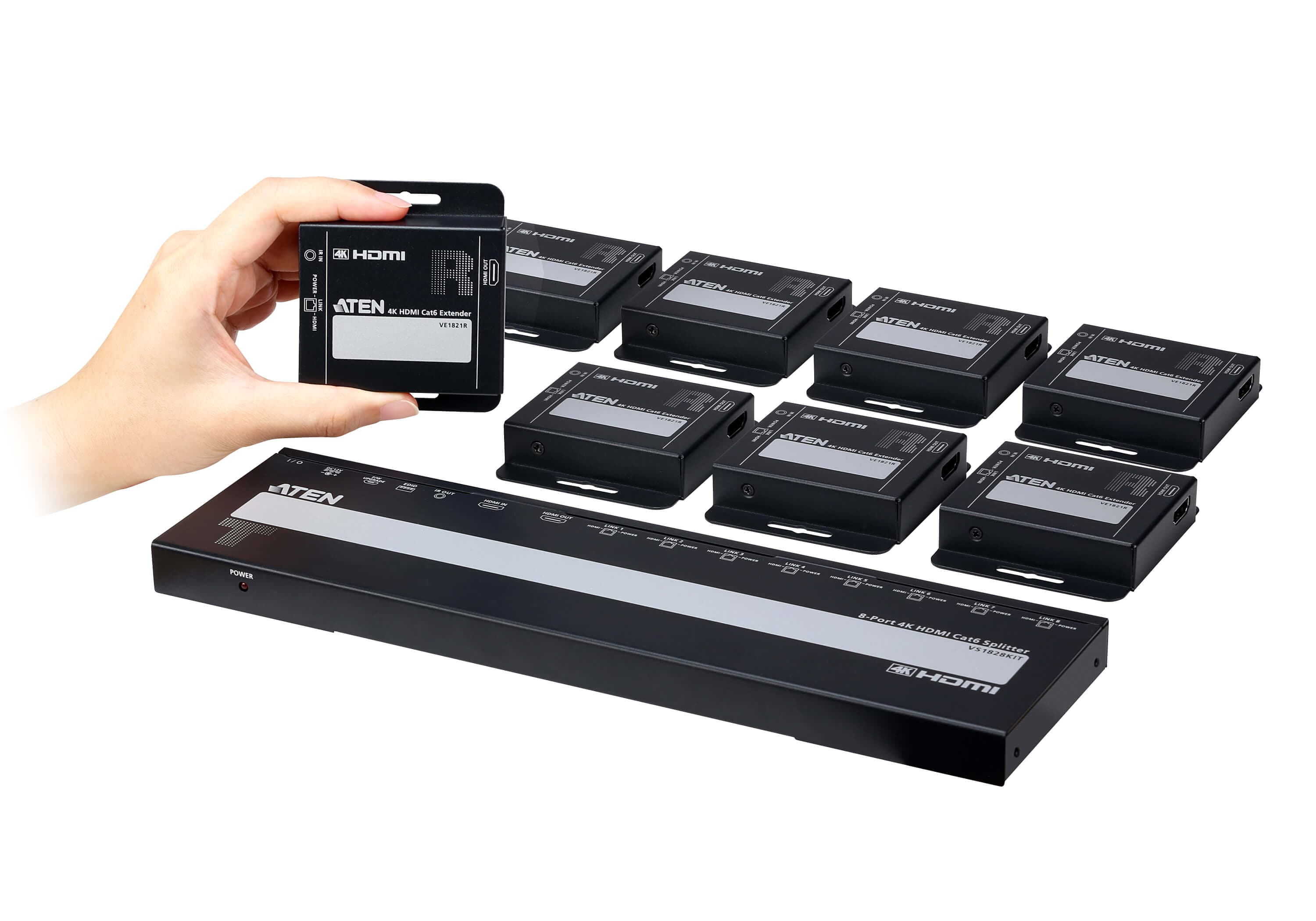

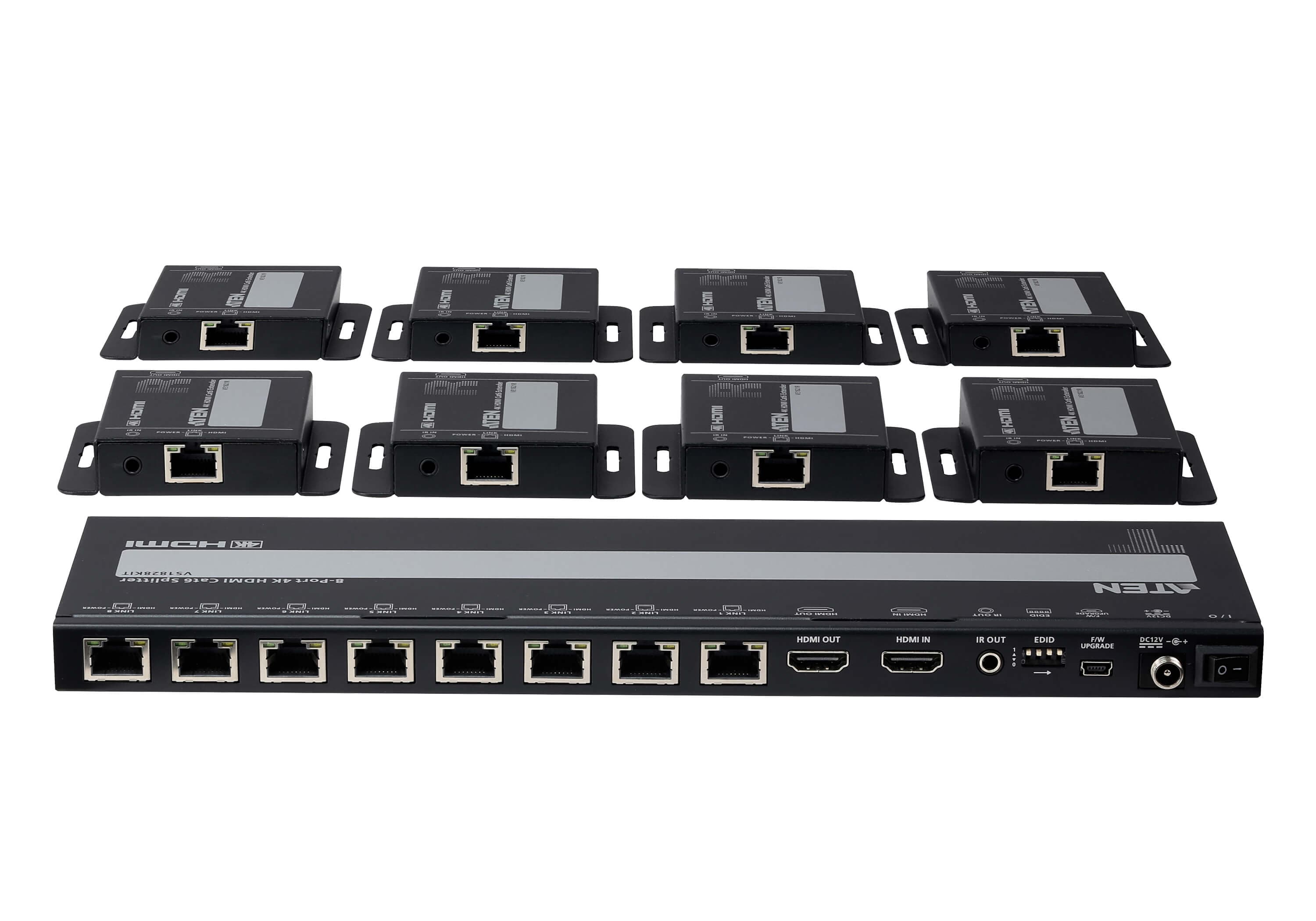

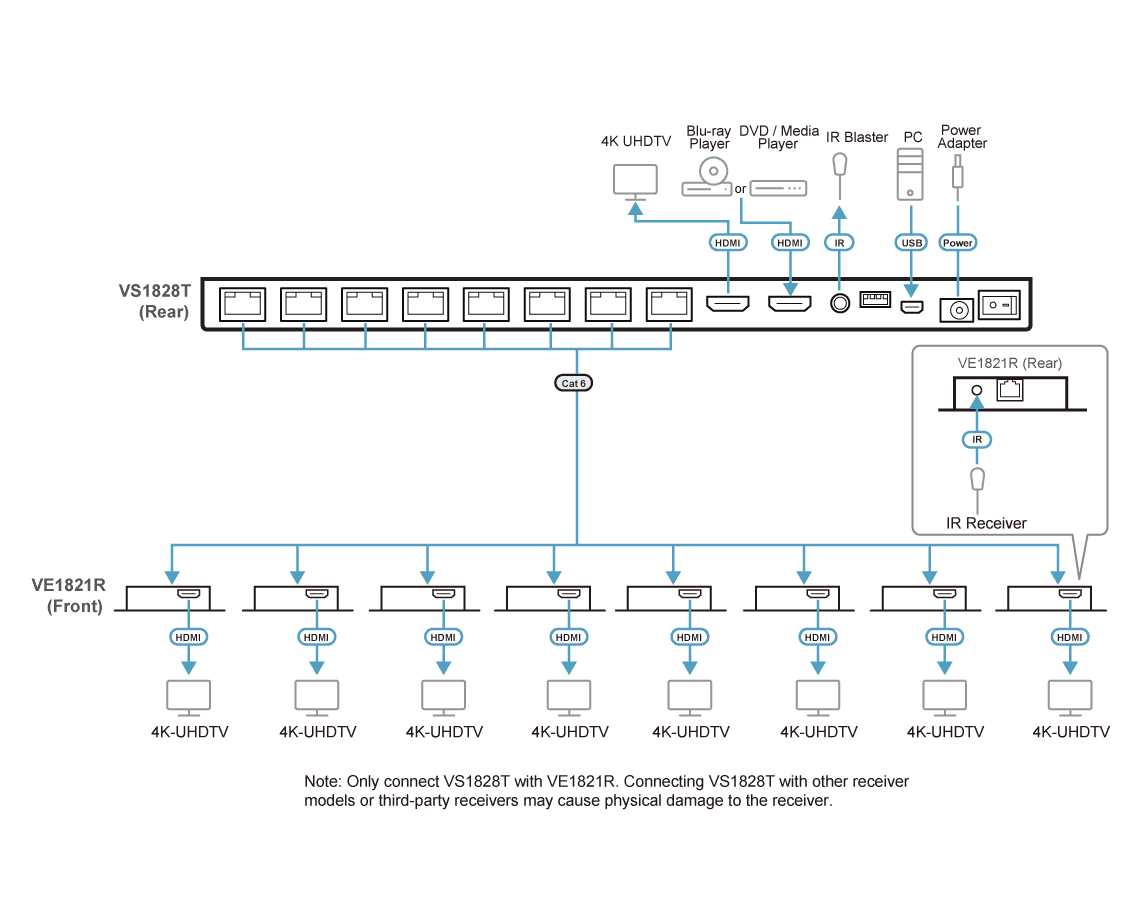

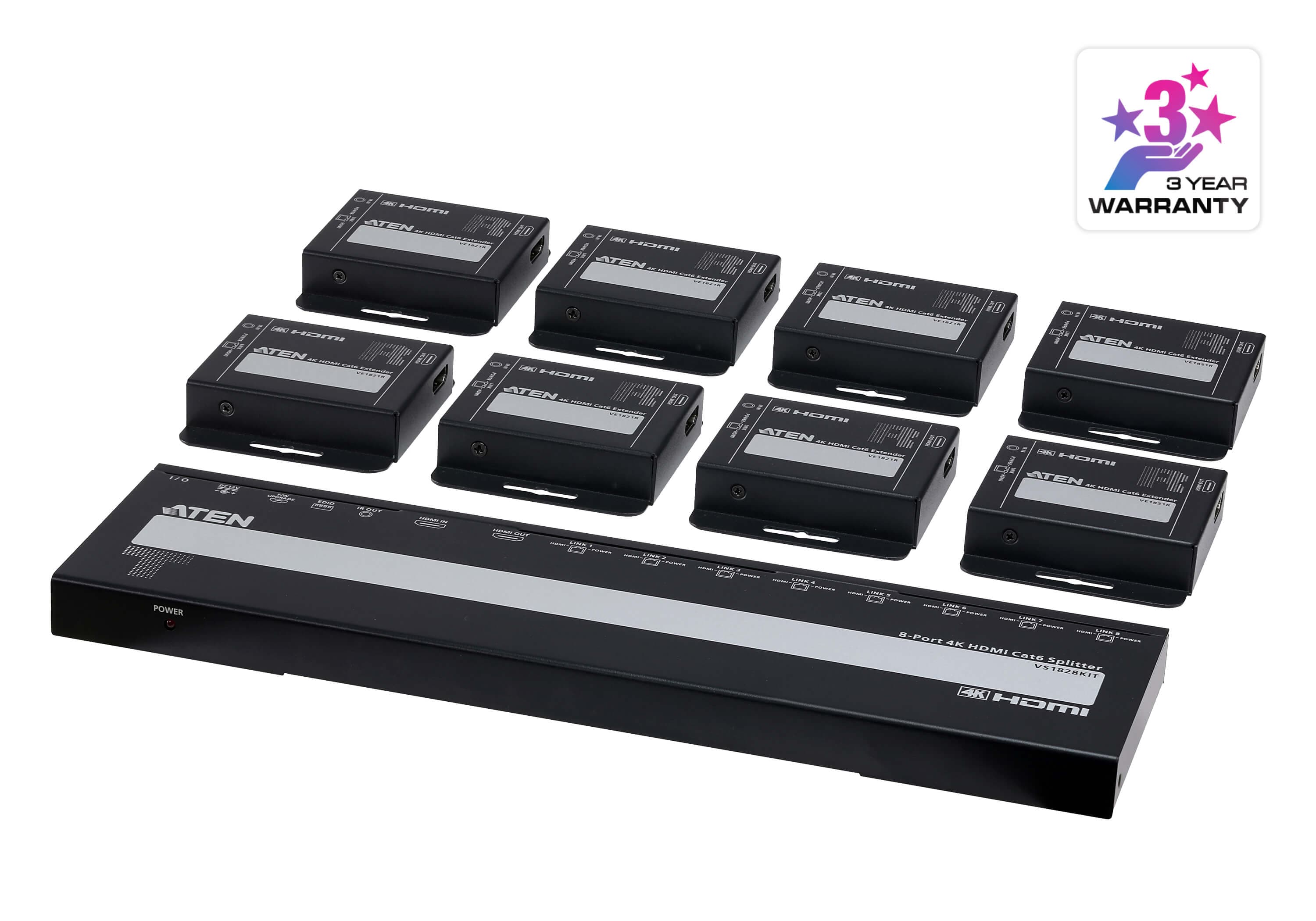

A kit that includes 1 splitter and 8 receivers to distribute 1 HDMI source to 8 displays up to 40m away via a single Cat 6 cable
Supports up to 4K @ 30 Hz (4:4:4) for crystal-clear video presentation
Supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus & DTS-HD Master Audio
HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
Power over Cable (PoC) functionality from splitter to receivers to avoid cluttered cable installation

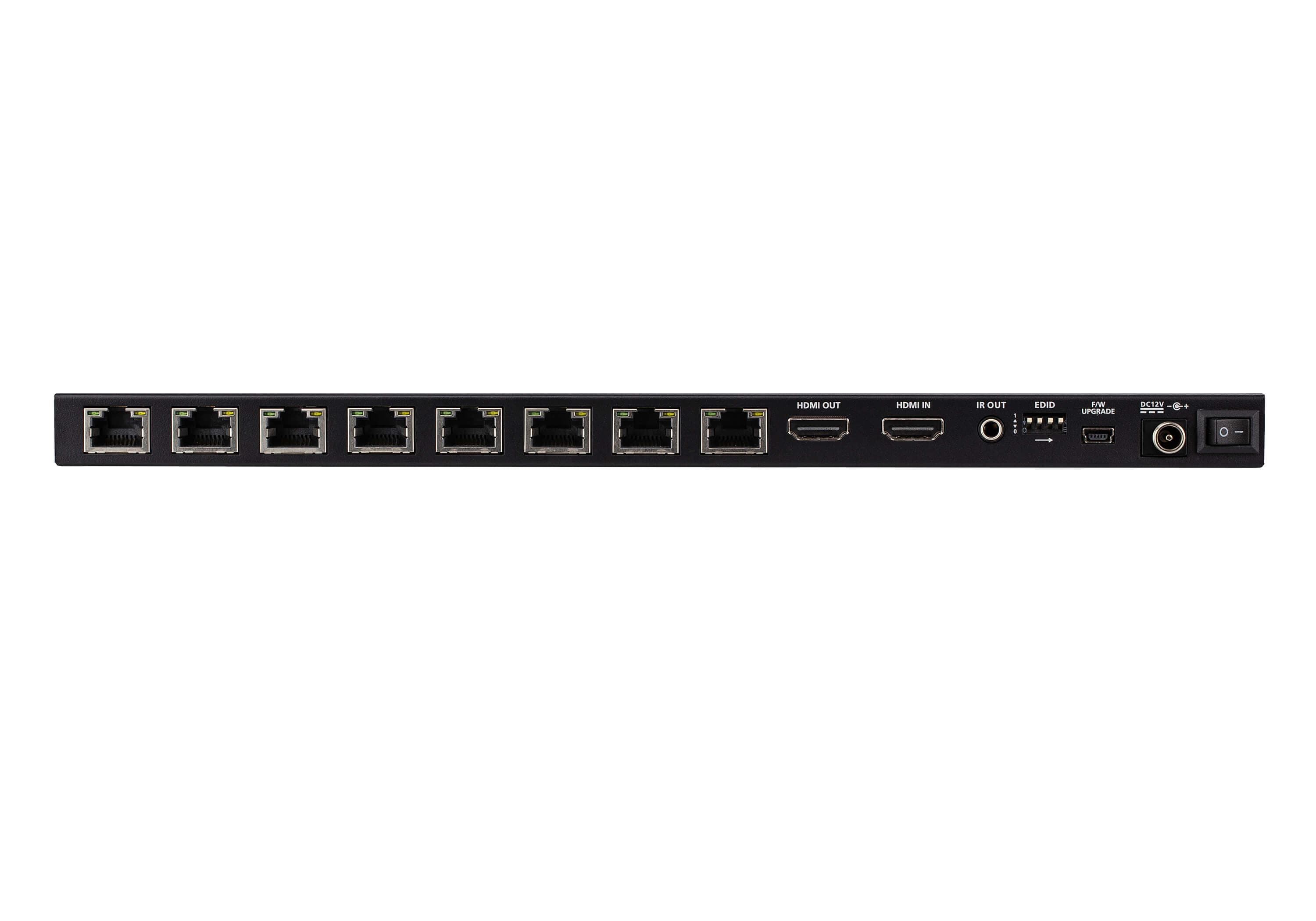

HDMI local output port on splitter for content monitoring or cascading purposes
User-adjustable EDID switch on splitter for output video resolutions and audio capabilities configuration

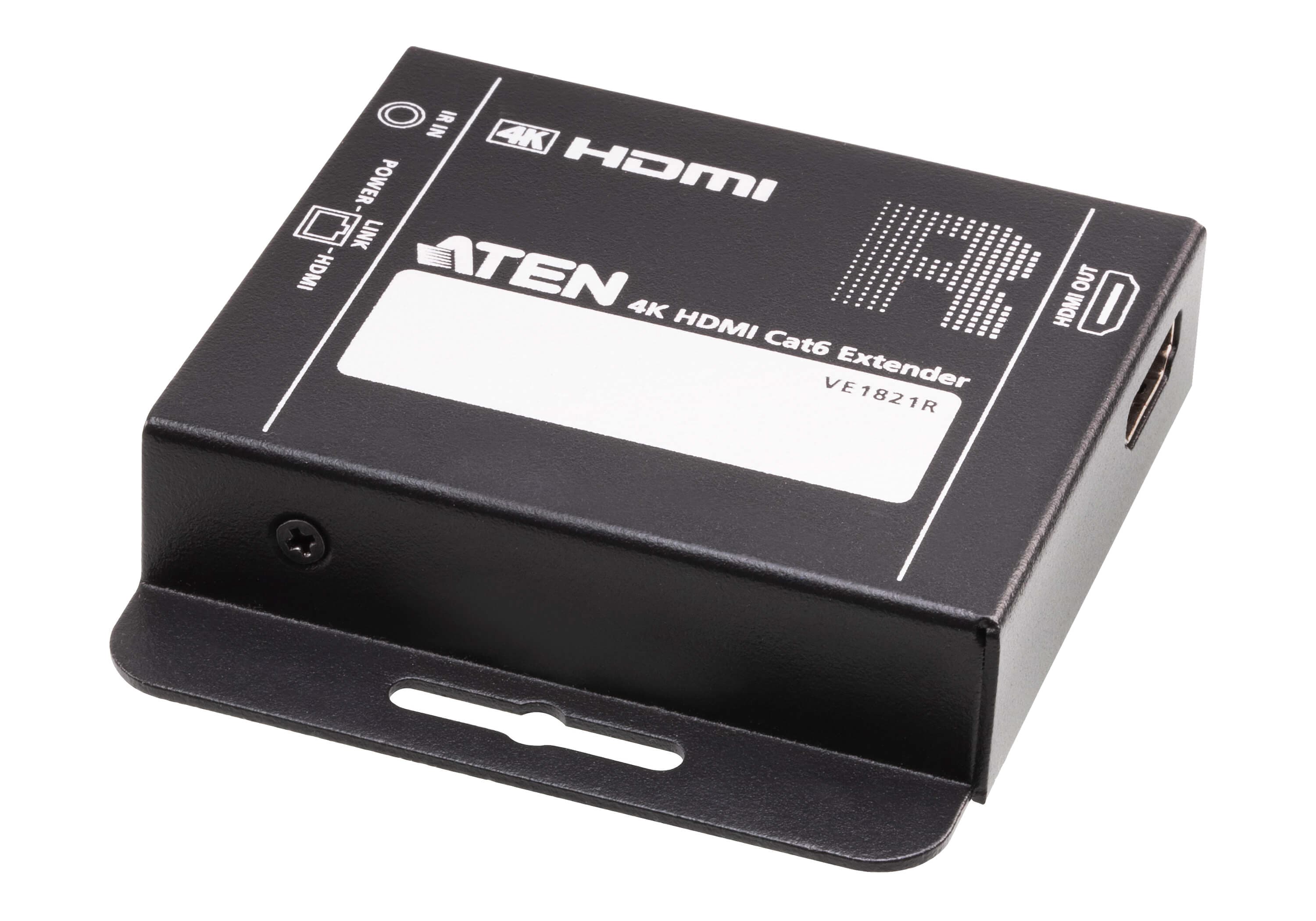

VE1821R's ultra lightweight, palm-sized case enables flexible installation including mounting and placement in tight spaces
One-way IR channel for remote control of the source device from the receiver side
Built-in 4KV/8KV ESD protection
Plug-and-play – no additional software needed

Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. пикселна честота: 340 MHz
Макс. пикселна честота: 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP1.4 Compatible
Съответствие: HDMI (3D, Deep Color, 4K) HDCP1.4 Compatible
Макс. резолюция / разстояние: Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Макс. резолюция / разстояние: Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Превключвател на режим: N/A
Превключвател на режим: EDID Mode Selection
Захранване: N/A
Захранване: Power ON/OFF
Консумация: 19.2WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: 19.2WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Корпус: Metal
Тегло: 0.12 kg ( 0.28 lb )
Тегло: 0.56 kg ( 1.24 lb )
Размери (Д x Ш x В) със скоба: 7.95 x 6.80 x 1.65 cm (3.13 x 2.68 x 0.65 in.)
Размери (Д x Ш x В) със скоба: N/A (Housing comes without bracket)
Размери (Д x Ш x В) без скоба: 5.75 x 6.80 x 1.65 cm (2.26 x 2.68 x 0.65 in.)
Размери (Д x Ш x В) без скоба: 29.50 x 8.20 x 1.80 cm (11.61 x 3.23 x 0.71 in.)
Забележка: NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter. NOTE 2: The maximum power consumption assumes that all receivers in the package are installed.
Забележка: NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter. NOTE 2: The maximum power consumption assumes that all receivers in the package are installed.
Входни резолюции: 640x480 @ 60/67/72/75 Hz
Входни резолюции: 1080p 60 Hz
720x400 @ 70 Hz: 480p 60 Hz (4:3)/(16:9)
1024x768 @ 60/70/75 Hz: 720p 60 Hz
1280x800 @ 60 Hz: 1080i 60 Hz
1280x1024 @ 60/75 Hz: 640x480 60Hz (4:3)
1400x1050 @ 60 Hz: 576p 50 Hz (4:3)/(16:9)
1440x900 @ 60 Hz: 720p 50 Hz
1600x1200 @ 60 Hz: 1080i 50 Hz
1680x1050 @ 60 Hz: 1080p 24/25/30/50 Hz
1920x1080 @ 60 Hz: 3840x2160p 24/25/30 Hz
1920x1200@ 60 Hz: 4096x2160p 24/25/30 Hz
