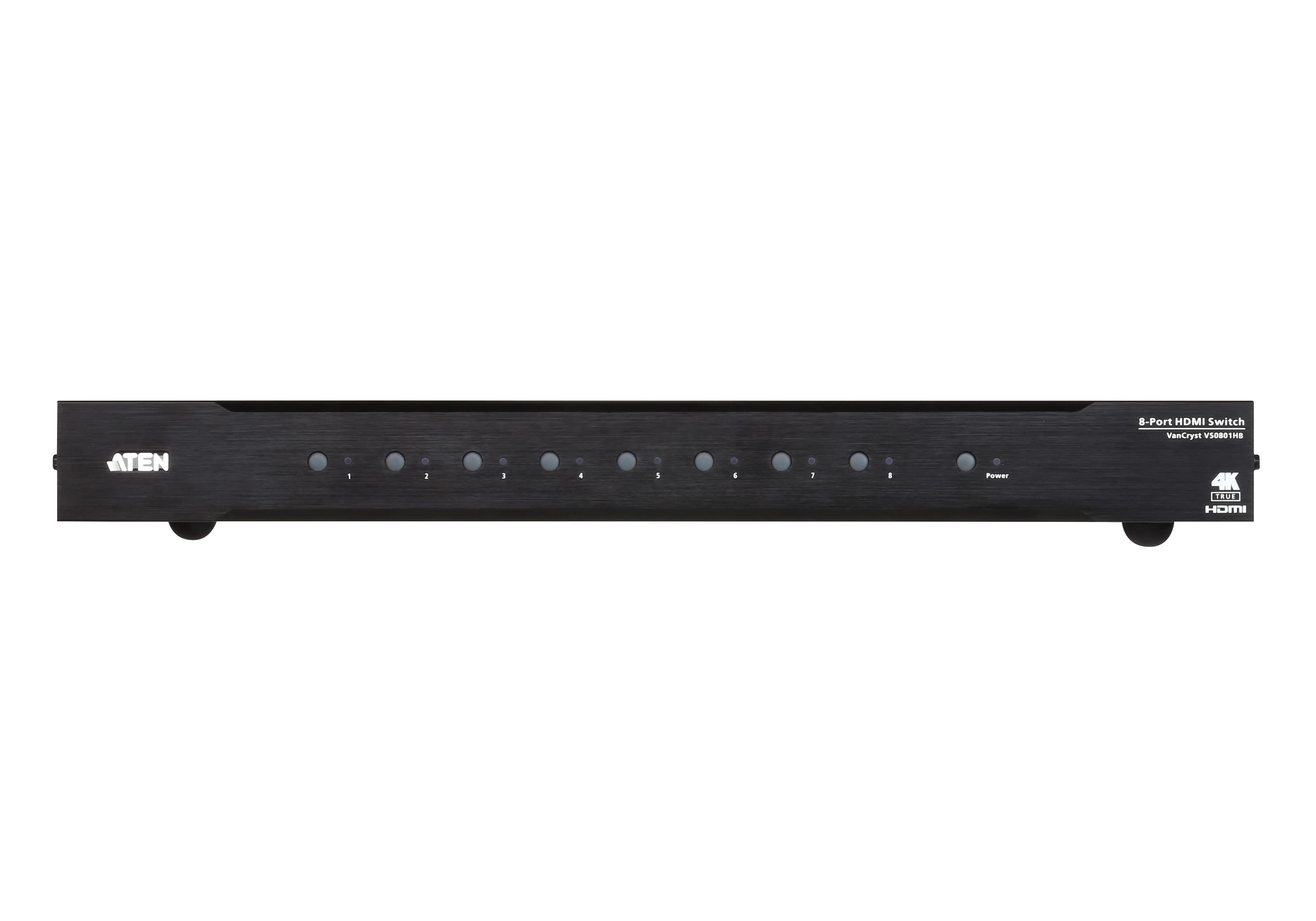

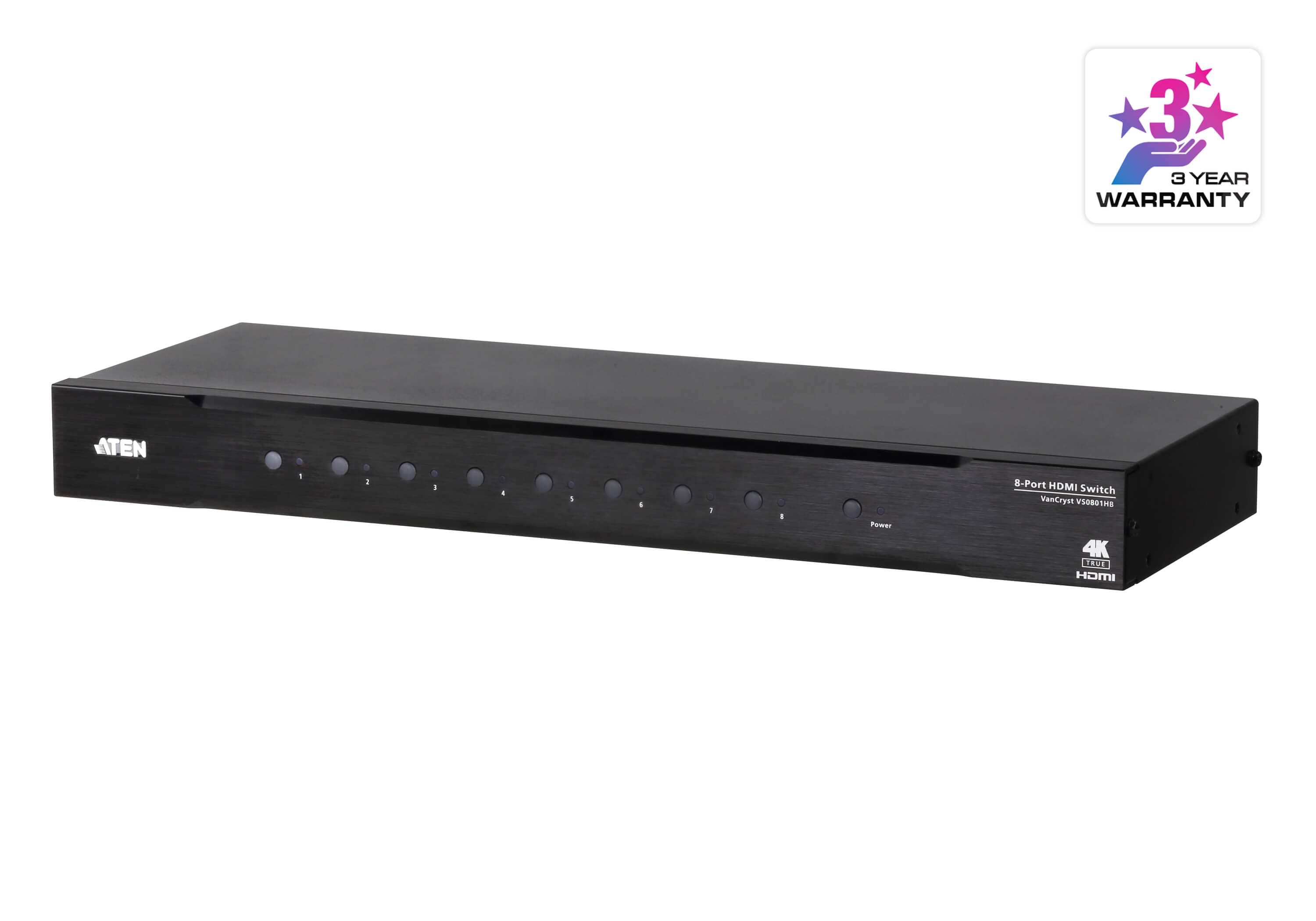

Превключвател, който събира до 8 HDMI източника към един дисплей. True 4K до 4096x2160@60Hz (4:4:4) на разстояние до 5 m; поддържа HDR10+.
Характеристики
- Allows up to 8 HDMI sources to be connected to one HDMI display
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
- Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)
- Supports HDR10+
- Built-in bi-directional RS-232 serial port for high-end system control
- Auto switching modes for auto port selection
- Supports IR extension
- Clear LED indication of device status
- Plug-and-play
- Rack mountable
Бутони и превключватели
- DIP превключвател
- 1 x Auto Switch ON / OFF
Видео вход
- Интерфейси
- 8 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Видео
- Макс. скорост на данните
- 18 Gbps (6 Gbps Per Lane)
- Макс. пикселна честота
- 600 MHz
- Съответствие
- HDMI 2.0 (3D, Deep Color) HDCP 2.2 Consumer Electronics Control (CEC)
- Макс. резолюция
- Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
- Макс. разстояние
- 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
- IR
- 1 x Mini Stereo Jack Female (Black)

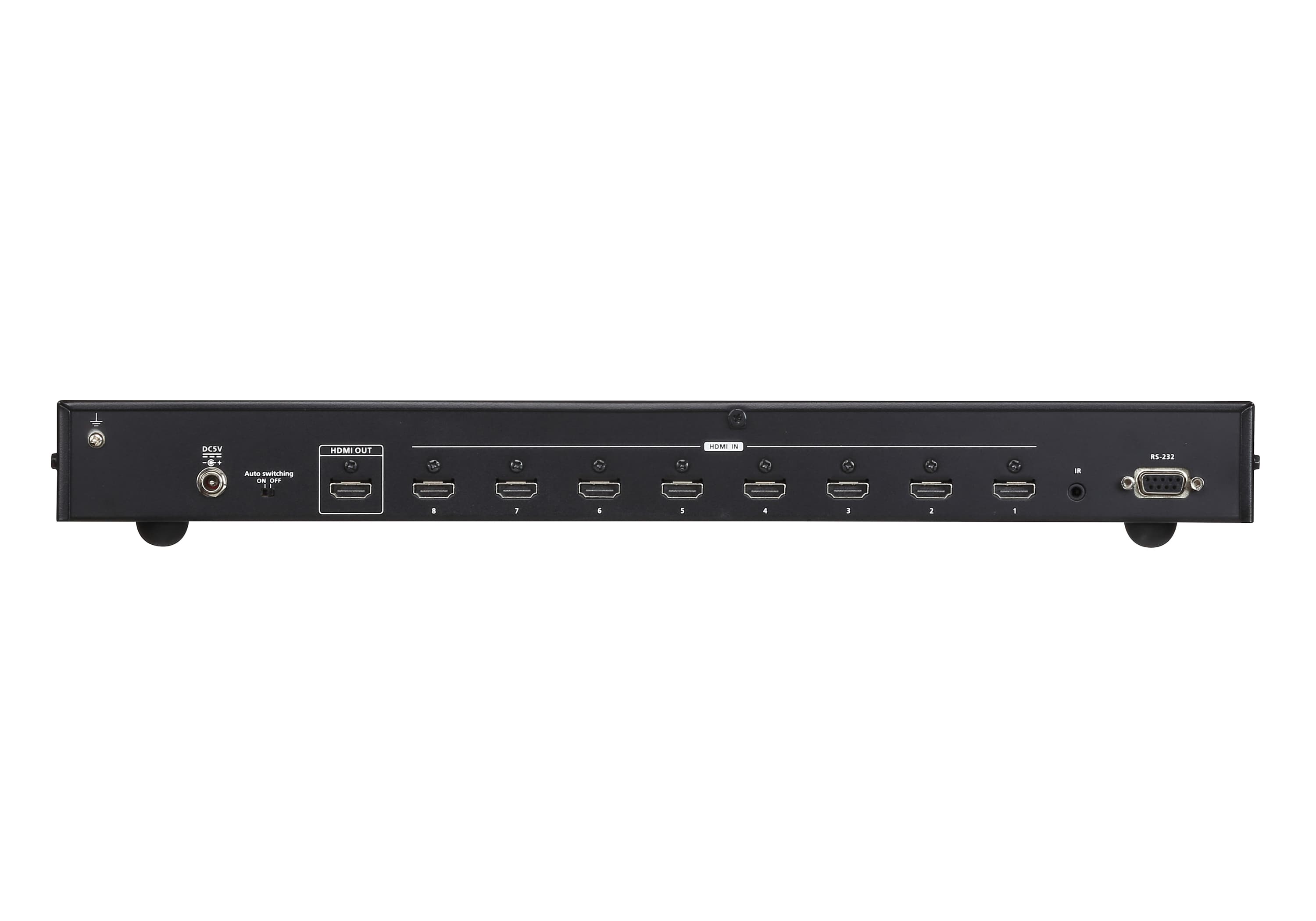

Конектори
- Захранване
- 1 x DC Jack (with locking)
- Консумация
- DC5V:0.94W:4BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.14 kg ( 4.71 lb )
- Размери (Д x Ш x В)
- 43.72 x 15.83 x 4.40 cm (17.21 x 6.23 x 1.73 in.)
- Брой в кашон
- 3 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
