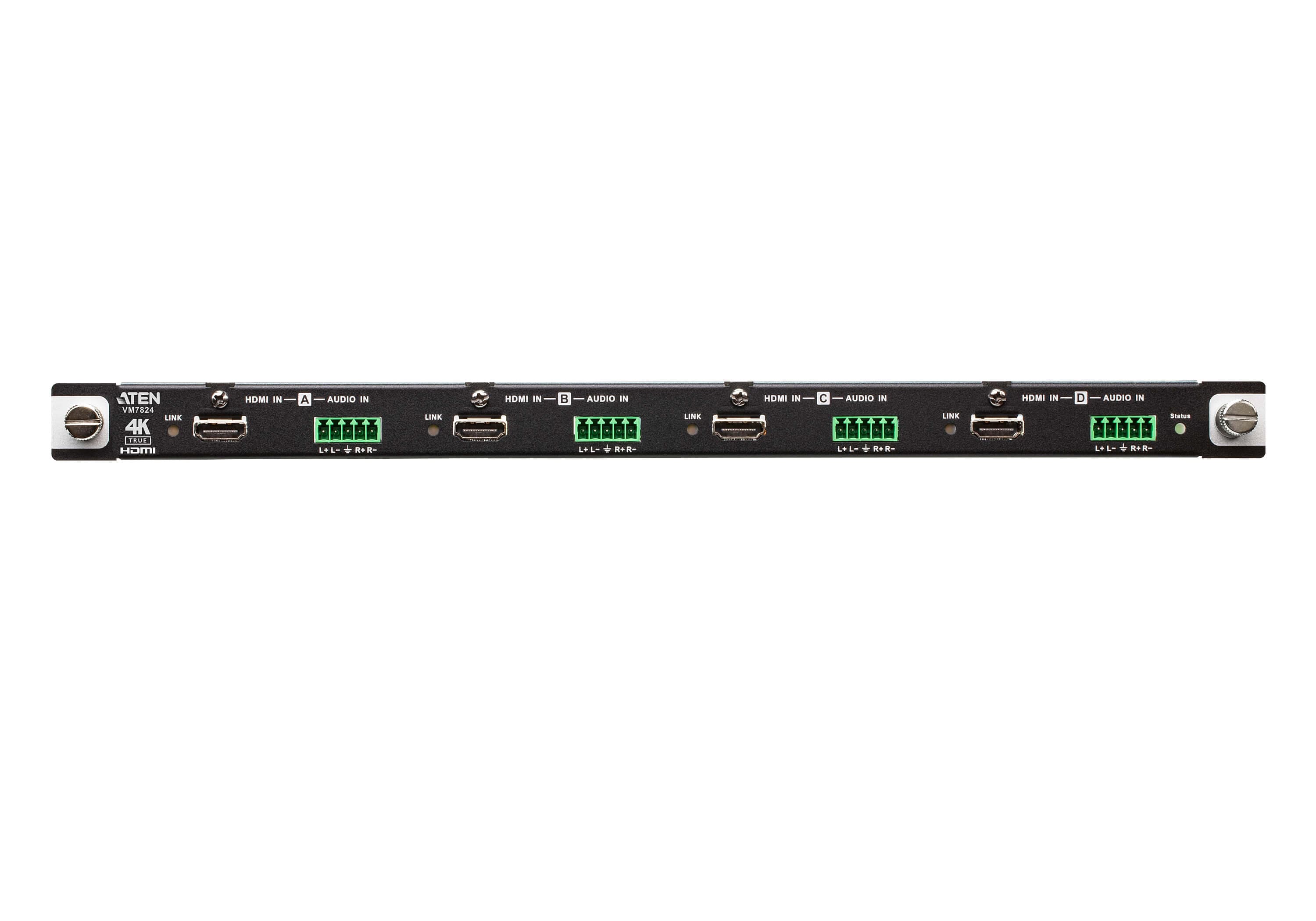

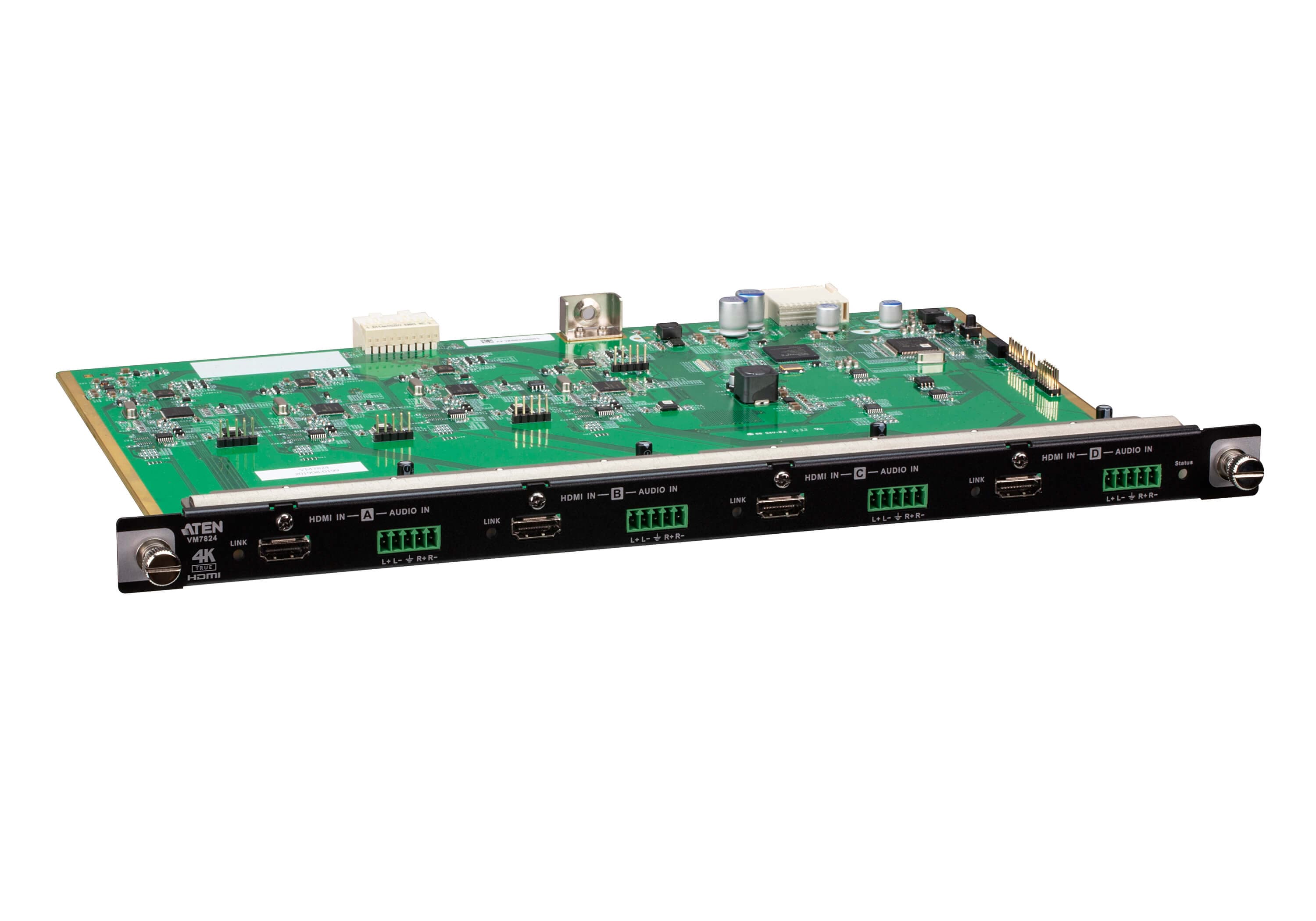

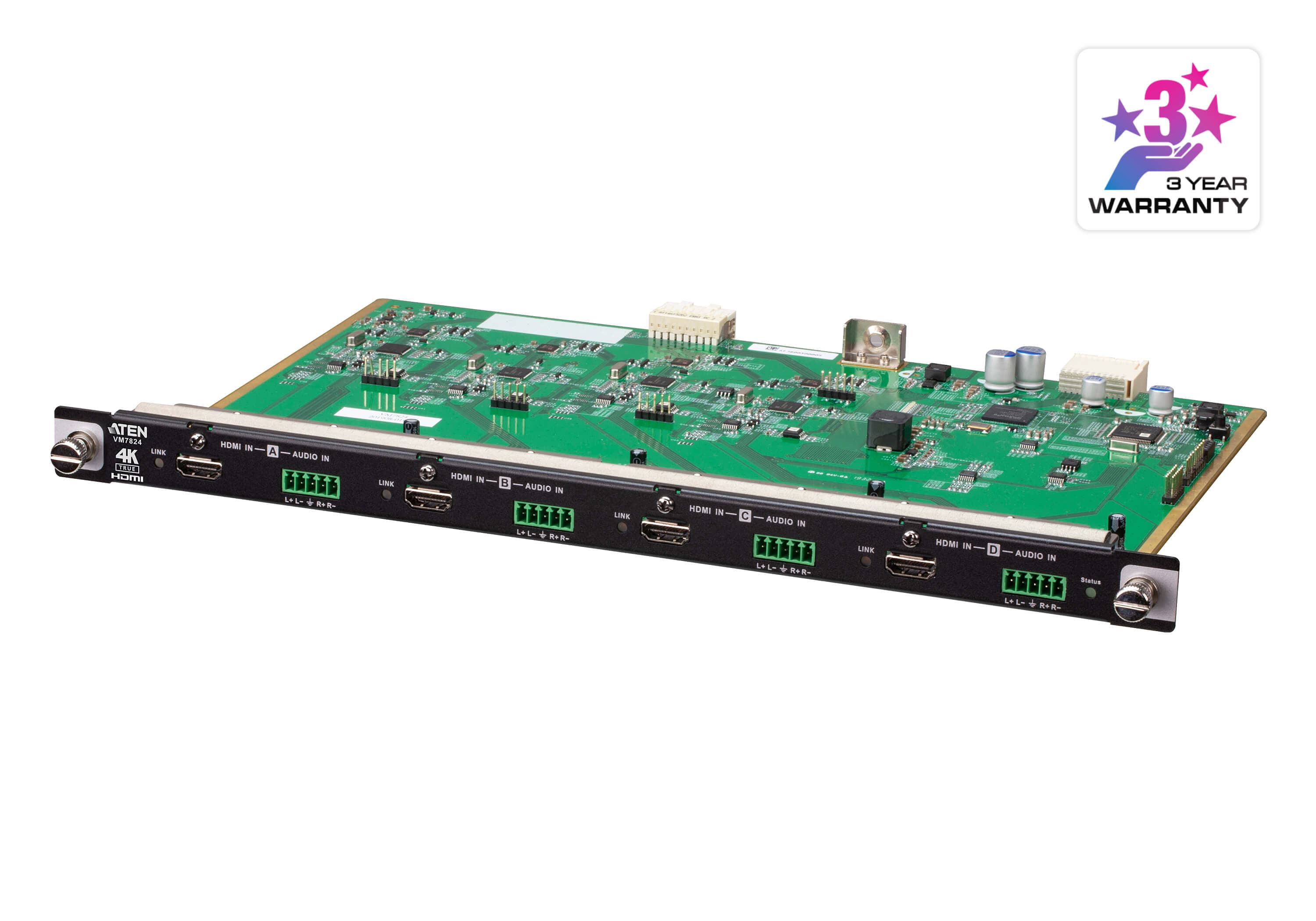

Входна платка с 4 HDMI порта за модулните матрици VM — некомпресирано True 4K видео до 4096 x 2160 @ 60 Hz (4:4:4), 18.0 Gbps. Поддържа EDID Expert и вграждане или извличане на аудио.
Характеристики
- Compatible with the VM Modular Matrix Switches; mix and match with modular I/O boards of any type for optimum flexibility
- True 4K Resolutions – handles uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 @ 60Hz (4:4:4)*
- True 4K EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
- Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
- Cable Quality Tester – examines the HDMI cable quality
- HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
- Consumer Electronics Control (CEC) support
Видео вход
- Интерфейси
- 4 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- Up to 5.0m
Видео
- Макс. скорост на данните
- 18.0 Gbps (6.0 Gbps Per Lane)
- Макс. пикселна честота
- 600 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция
- 4096x2160/3840x2160@60Hz (4:4:4)
Аудио
- Вход
- 4 x Captive Screw Connector, 5 Pole (Green) *Audio signal type: stereo, balanced/unbalanced.
- Консумация
- 11.33W:53BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.55 kg ( 1.21 lb )
- Размери (Д x Ш x В)
- 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
- Брой в кашон
- 2 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
