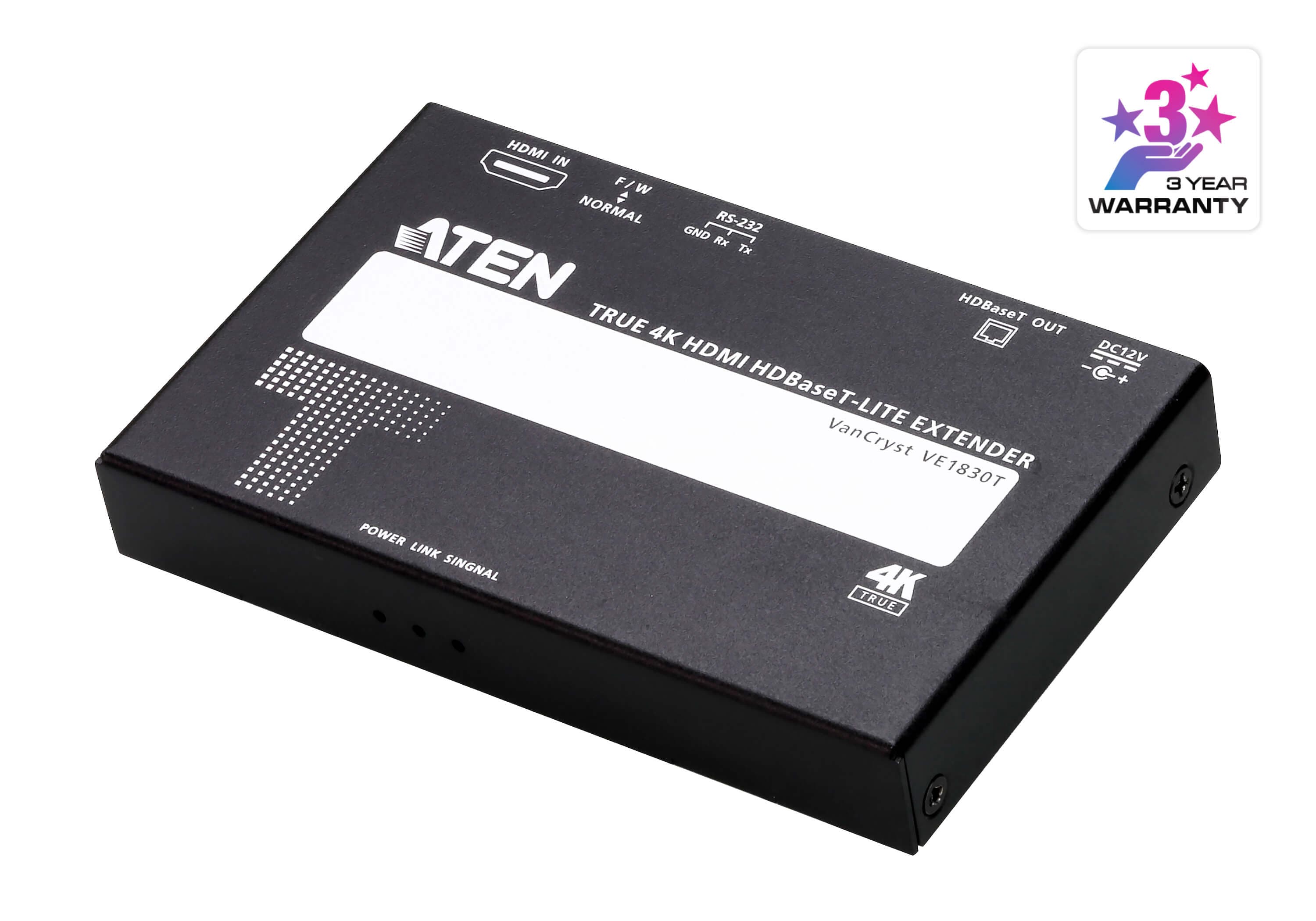

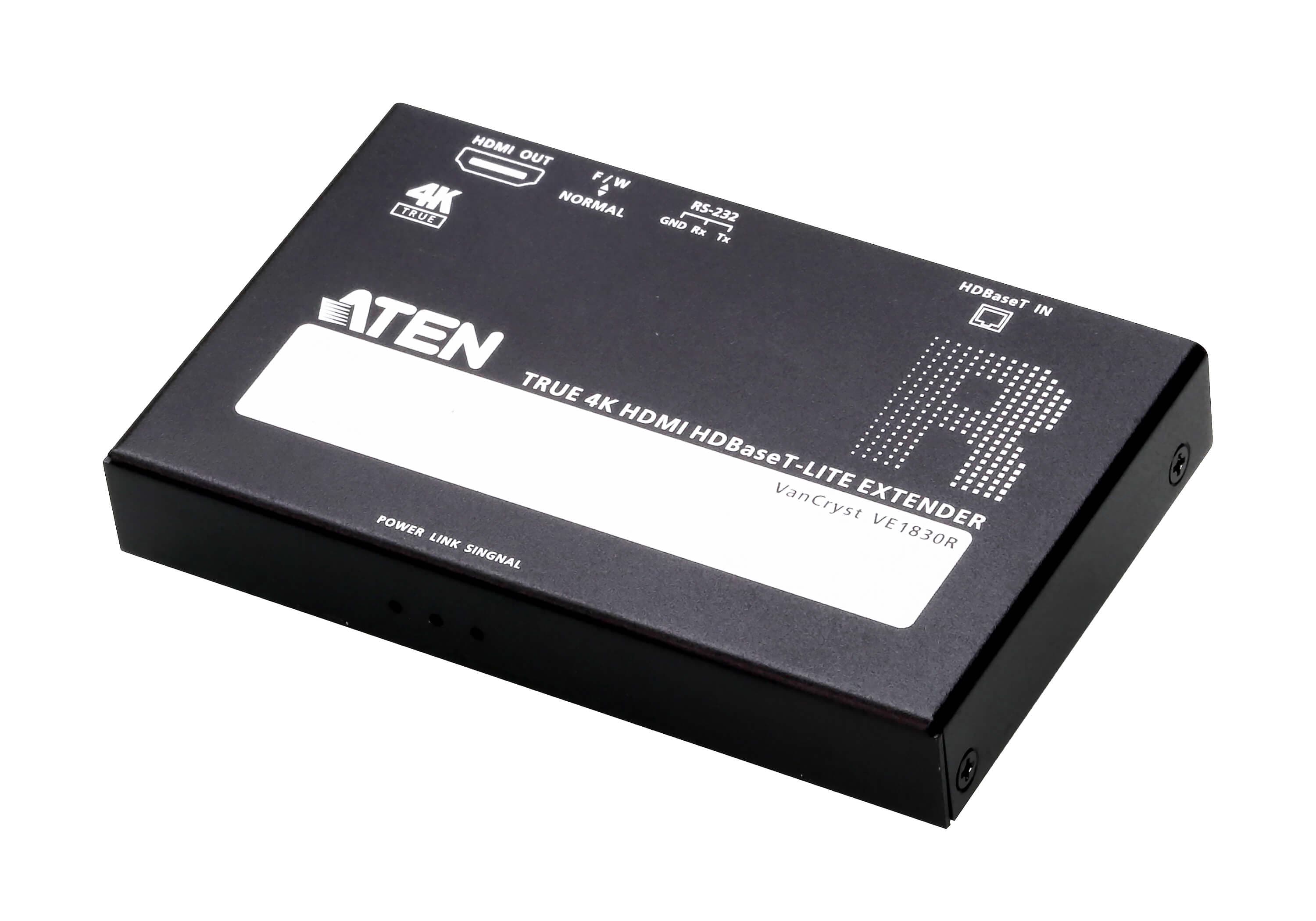

True 4K HDMI HDBaseT-Lite Extender (True 4K@35m) (HDBaseT Class B)
VE1830Снет от производство
HDBaseT-Lite удължител, който пренася True 4K HDMI сигнал 3840x2160@60Hz (4:4:4) до 35 m. Поддържа HDR10+ и PoC — приемникът се захранва от предавателя по същия кабел.
Характеристики
- HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Superior video quality • Extends True 4K HDMI signals (3840 x 2160 @ 60Hz 4:4:4) up to 35 m • Extends Full HD 1080p signals up to 70 m
- Supports HDR10+

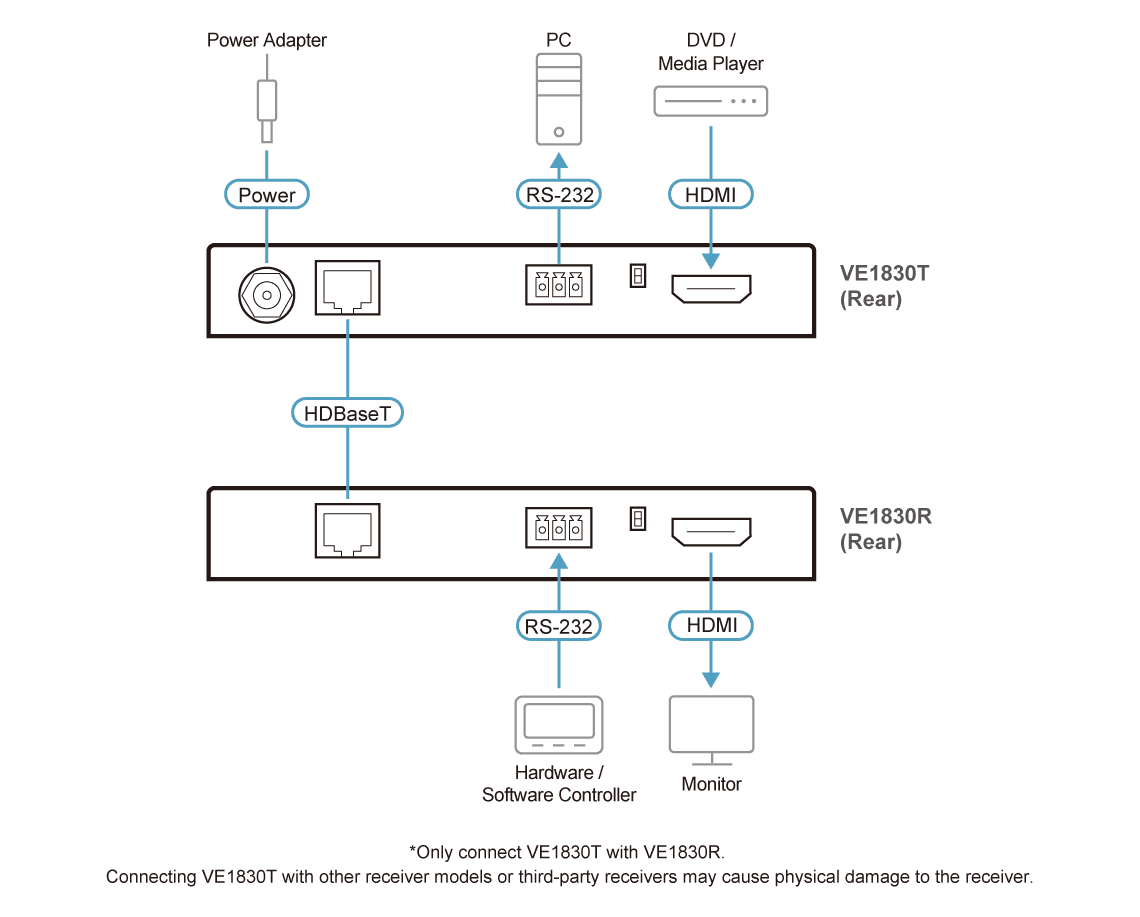

- Features PoC (Power over Cable) – supplies power from the VE1830T unit to the VE1830R unit
- Features RS-232 serial port for connecting peripherals such as touch screens, and barcode scanners
- Plug-and-play
- Compact size for space saving
- Rack-mountable with attached rack mounting kit in the package
Видео вход
- Интерфейси
- N/A
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- N/A
- Импеданс
- 100 Ω
- Макс. разстояние
- N/A
- Макс. разстояние
- 5 m
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Интерфейси
- N/A
- Импеданс
- 100 Ω
- Импеданс
- N/A
- Макс. разстояние
- 5 m
- Макс. разстояние
- N/A
Видео
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. скорост на данните
- 10.2Gbps (3.4Gbps per lane)
- Макс. пикселна честота
- 594 MHz
- Макс. пикселна честота
- 594 MHz
- Съответствие
- HDMI 2.0 (3D, Deep Color, 4K); 4K HDR HDCP2.2 Compatible Consumer Electronics Control (CEC)
- Съответствие
- HDMI 2.0 (3D, Deep Color, 4K); 4K HDR HDCP2.2 Compatible Consumer Electronics Control (CEC)
- Макс. резолюция / разстояние
- Up to True 4K: 3840 x 2160 @ 60Hz (4:4:4) @35m (Cat 5e/6); Up to 1080p@70m (Cat6a/ATEN 2L-2910 Cat6)
- Макс. резолюция / разстояние
- Up to True 4K: 3840 x 2160 @ 60Hz (4:4:4) @35m (Cat 5e/6); Up to 1080p@70m (Cat6a/ATEN 2L-2910 Cat6)
- Поддържани резолюции
- 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) @35m (Cat5e/6); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) @35m (Cat5e/6); 1080P@60m (Cat 5e/6)
- Поддържани резолюции
- 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) @35m (Cat5e/6); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) @35m (Cat5e/6); 1080P@60m (Cat 5e/6)
Аудио
- Вход
- N/A
- Вход
- 1 x HDMI Type A Female (Black)
- Изход
- 1 x HDMI Type A Female (Black)
- Изход
- N/A

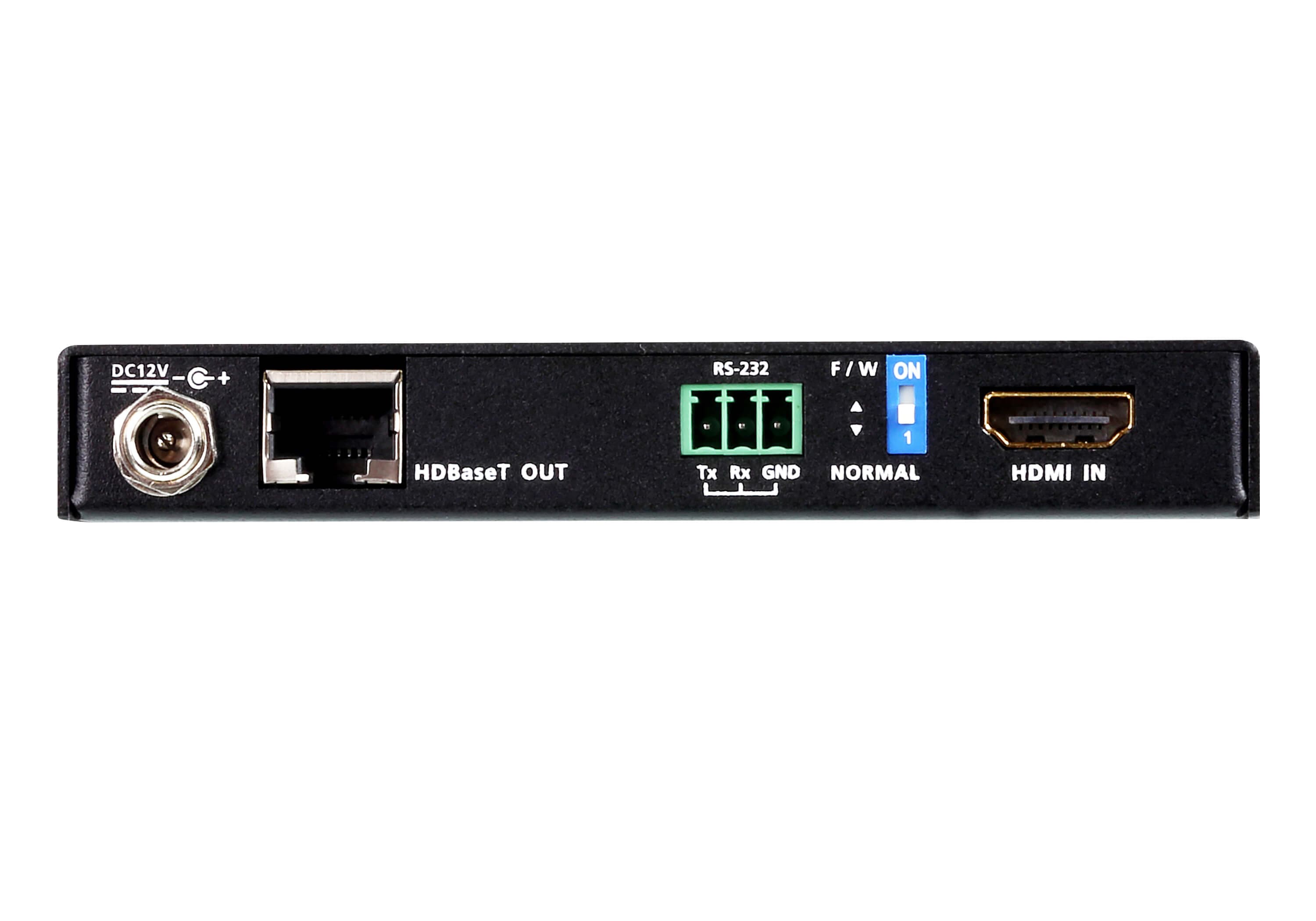

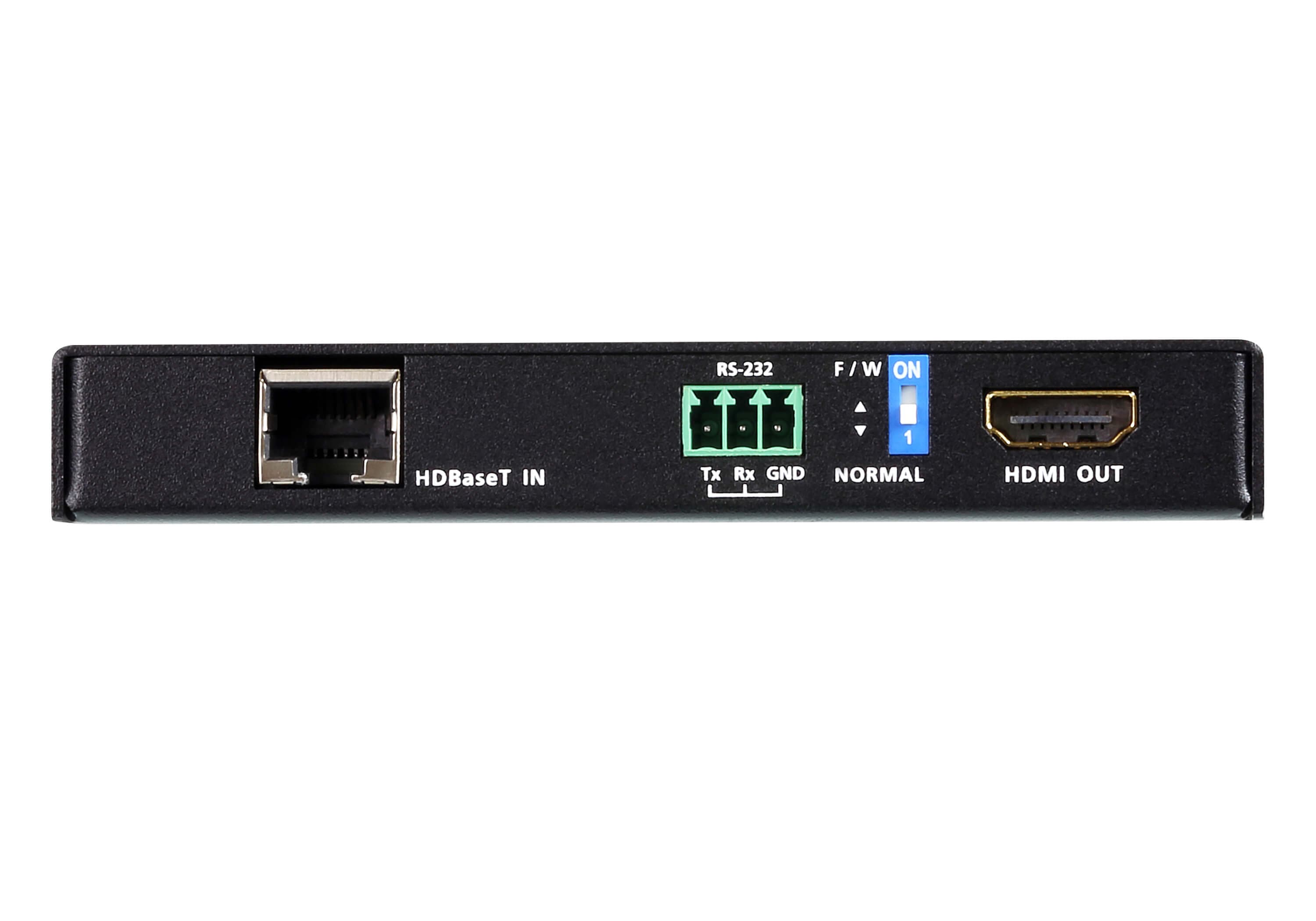

Конектори
- Между устройства
- 1 x RJ-45 Female
- Между устройства
- 1 x RJ-45 Female
- Захранване
- 1 x RJ-45 Female (Power over Cable, power supply from VE1830T)
- Захранване
- 1 x DC Jack (Black) with locking
Управление
- RS-232 канал
- Connector: 1 x Terminal Block, 3 pole
- RS-232 канал
- Connector: 1 x Terminal Block, 3 pole
- Консумация
- POC 8W: 38BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC12V:4W: 19BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Бутони и превключватели
- Обновяване на фърмуера
- 1 x Slide Switch - ON/OFF
- Обновяване на фърмуера
- 1 x Slide Switch - ON/OFF
Работна среда
- Работна температура
- 0 - 40°C
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.12 kg ( 0.28 lb )
- Тегло
- 0.15 kg ( 0.35 lb )
- Размери (Д x Ш x В)
- 11.86 x 7.19 x 1.68 cm (4.67 x 2.83 x 0.66 in.)
- Размери (Д x Ш x В)
- 11.86 x 7.19 x 1.68 cm (4.67 x 2.83 x 0.66 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
