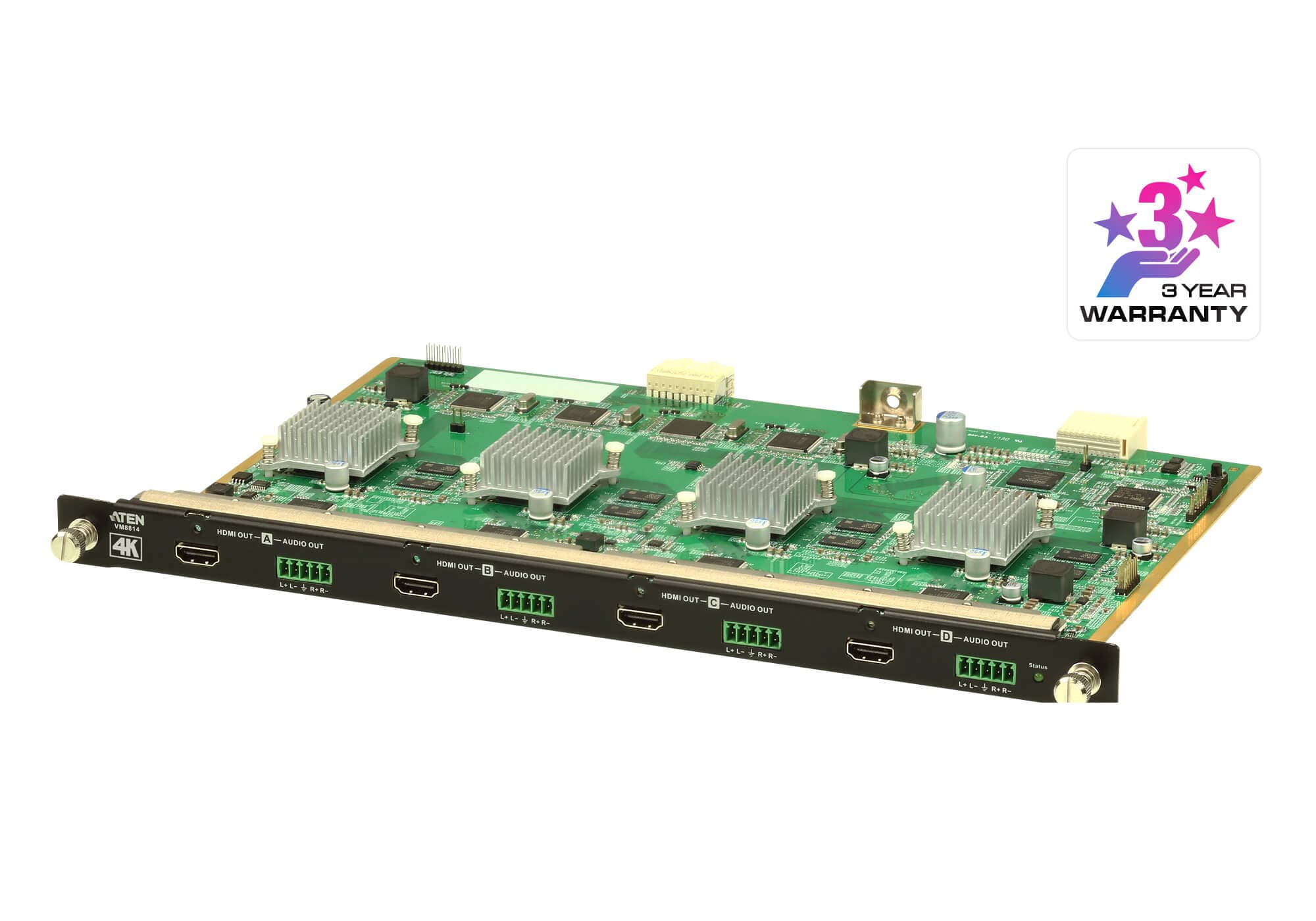

4-Port 4K HDMI Output Board with Scaler

Name: 4-Port 4K HDMI Output Board with Scaler
Brand: ATEN
SKU: VM8814

VM8814

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

Изходна платка с 4 HDMI порта и скалер за матриците VM1600 и VM3200. Преобразува сигнала към резолюцията на дисплея, поддържа 4K до 4096 x 2160 и извличане на HDMI аудио.

Характеристики

4-port HDMI Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); 4K2K@60 (4:2:0)
Audio-enabled, HDMI audio can be extracted
4K Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions
Seamless Switch™ –features close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions*
Video Wall –allows you to create custom video wall layouts via an intuitive web GUI*
EDID Expert –selects optimum EDID settings for smooth power-up and the highest quality display
HDMI (3D, Deep Color); HDCP 2.2 Compatible
Cable Quality Tester – examines the HDMI cable quality
FrameSync –prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Consumer Electronics Control (CEC) support *Note: 1. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™. 2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

Видео изход

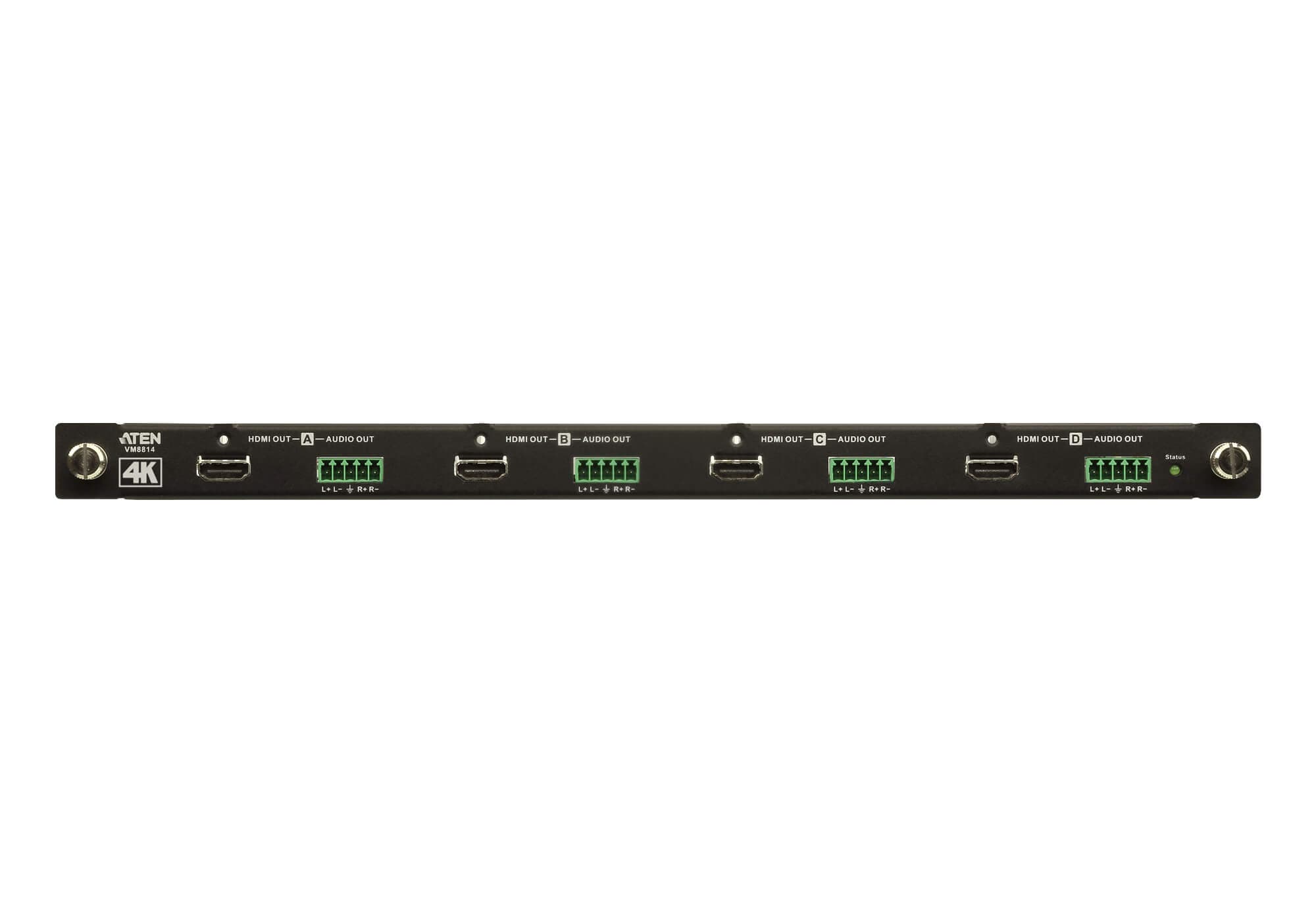

Интерфейси: 4 x HDMI Type A Female (Black)
Импеданс: 100 Ω
Макс. разстояние: Up to 15m

Видео

Макс. скорост на данните: 10.2 Gbps (3.4 Gbps Per Lane)
Макс. пикселна честота: 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
Макс. резолюция: 4096x2160/3840x2160@60Hz (4:2:0); 4096x2160/3840x2160@30Hz (4:4:4)

Аудио

Изход: 4 x Captive Screw Connector, 5 pole * Audio signal type: stereo, balanced/unbalanced.
Консумация: 20W:94BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 40°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-Condensing

Физически характеристики

Корпус: Metal
Тегло: 0.65 kg ( 1.43 lb )
Размери (Д x Ш x В): 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
Брой в кашон: 2 pcs
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
