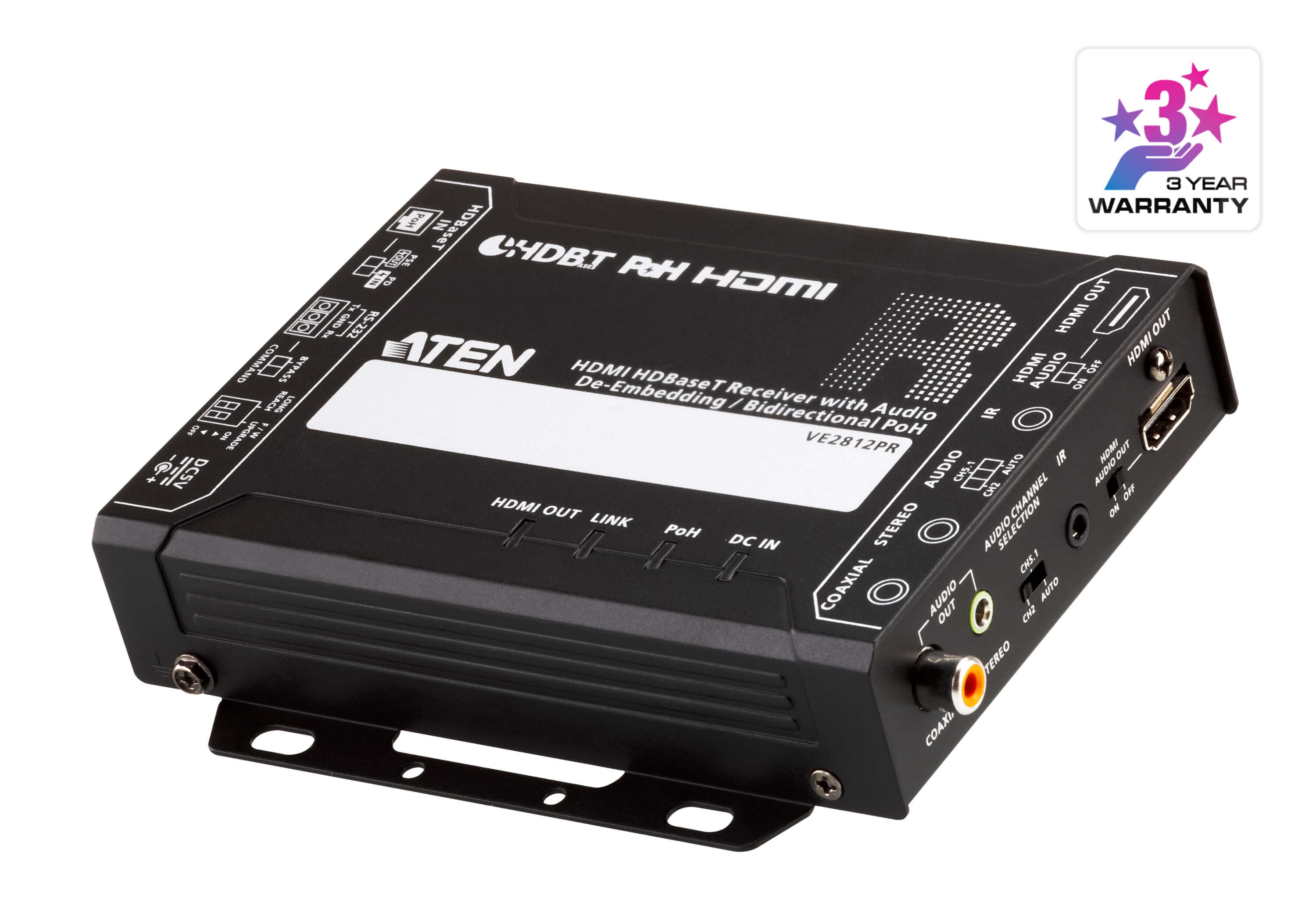

HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m) (HDBaseT Class A) (PoH PSE & PD)

Name: HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m) (HDBaseT Class A) (PoH PSE & PD)
Brand: ATEN
SKU: VE2812PR

VE2812PR

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

HDBaseT приемник за HDMI до 4K на 100 m по Cat 5e/6/6a кабел, а в Long Reach режим — 150 m при 1080p. Поддържа двупосочно PoH захранване и извличане на аудиото към отделен изход.

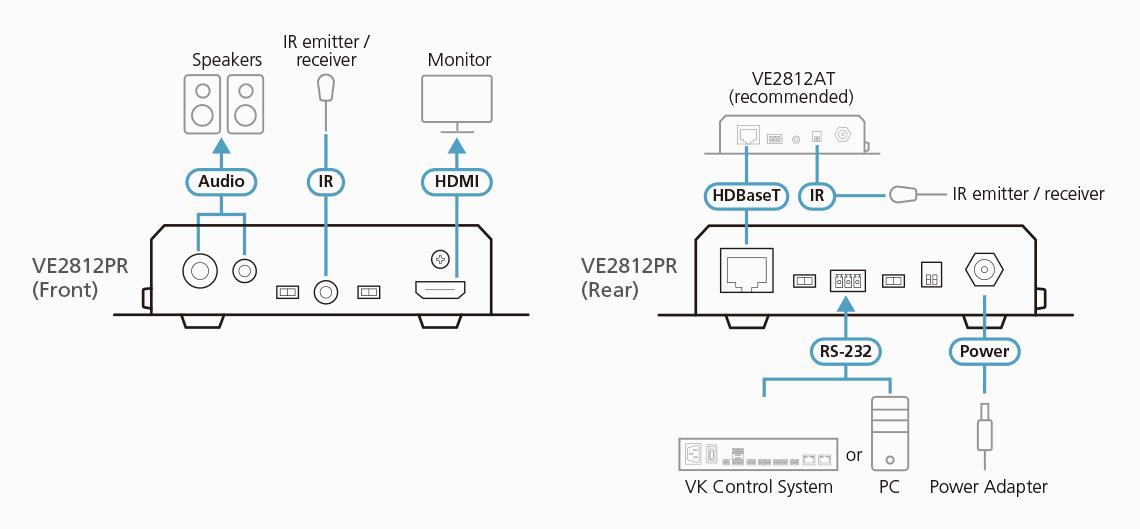

Характеристики

Transmits 4K HDMI up to 100 m / 330 ft via a Cat 5e / 6 / 6a or ATEN 2L-29330 Cat 6 cable
Transmits HDMI up to 150 m / 492 ft. @ 1080p in HDBaseT Long Reach Mode
Bi-directional PoH : - allows a PoH PD-enabled Tx to be remotely powered by the locally powered VE2812PR - enables power distribution from a PoH PSE-enabled Tx to the VE2812PR over the cable
Audio de-embedding – extracts audio stream from the HDMI source and delivers as a separate audio from HDMI to Coaxial S/PDIF, or Stereo audio output
Supports Audio EDID Switching (2ch Stereo, 5.1ch Surround sound, and AUTO)
RS-232 serial communication switch – switch between command mode and bypass mode for various application requirements
Supports bi-directional IR signal transmission (IR transmission is processed one direction at a time)
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Firmware upgradable
Built- in 8KV / 15 KV ESD protection
Plug-and-play
Rack-mountable using the VE-RMK1U

Видео изход

Интерфейси: 1 x HDMI Type A Female (Black)
Импеданс: 100 Ω
Макс. разстояние: 3 m

Видео

Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. пикселна честота: 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Макс. резолюция: *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Макс. резолюция / разстояние: Up to 4K@70m (Cat 5e/6) / 100m (HDBaseT Certified cable / ATEN’s tailor-made HDBaseT cable); 1080p@100m (Cat 5e/6/6a)

Аудио

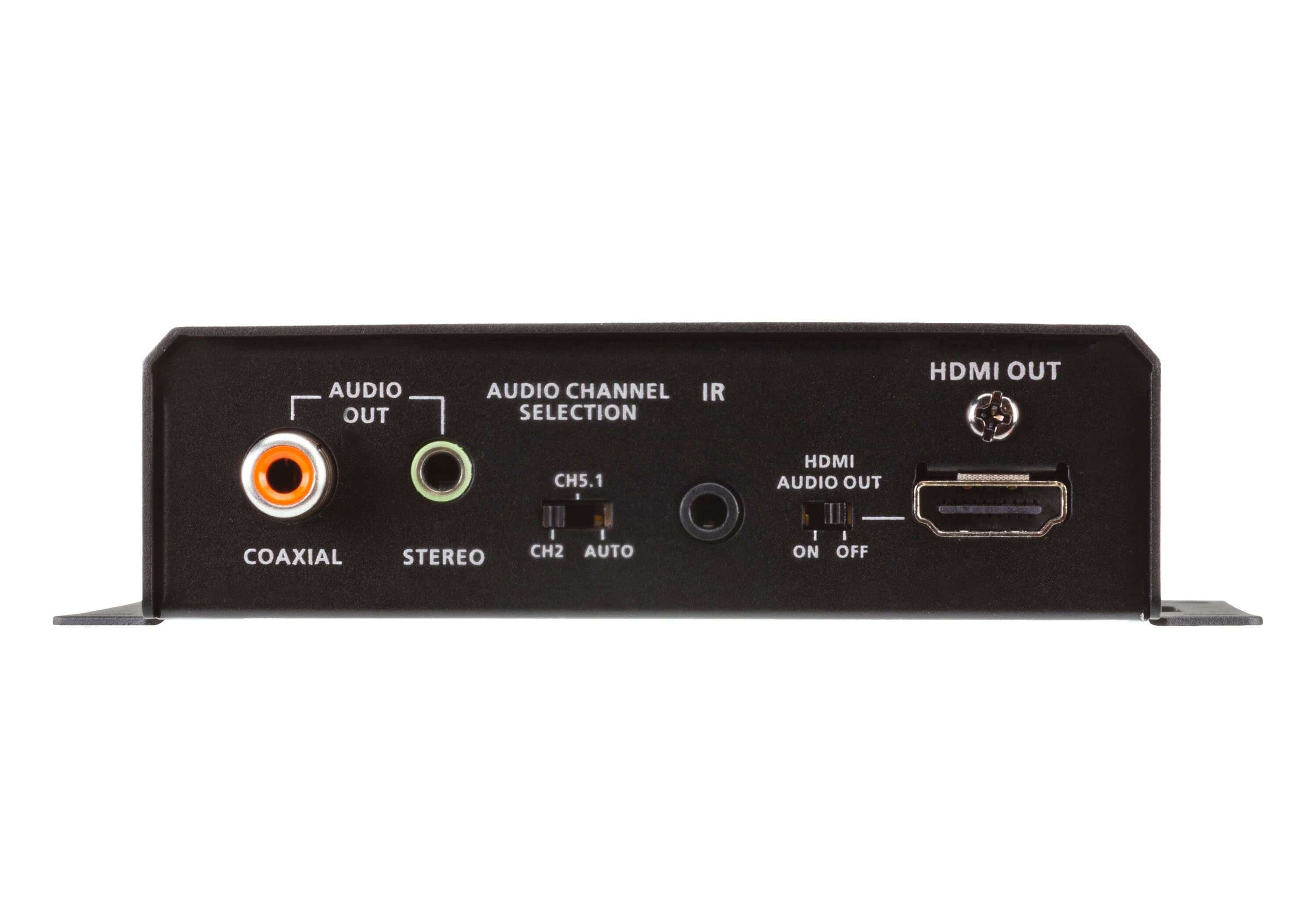

Изход: 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x SPDIF Coaxial Female (Orange)

Управление

RS-232 канал: Connector: 1 x Terminal Block, 3 pole; Type: DTE Baud Rate: 115200, Data Bits:8, Stop Bits:1, no parity and flow control
IR канал: 1 x Mini Stereo Jack Female (Black), bi-directional full range IR bypass channel

Бутони и превключватели

Избор на захранване: 1 x Slide Switch - POH Power Selection: PSE / PD
Заглушаване на HDMI аудио: 1 x Slide Switch - HDMI Audio ON/OFF
Избор на аудио EDID: 1 x Slide Switch - Audio Output Format Selection: 2ch / 5.1ch / AUTO
Избор на режим: 1 x Slide Switch - RS-232 Bypass or Command mode Selection
Превключвател Long Reach: 1 x Slide Switch - Long Reach mode ON/OFF
Обновяване на фърмуера: 1 x Slide Switch - Firmware Upgrade mode ON/OFF

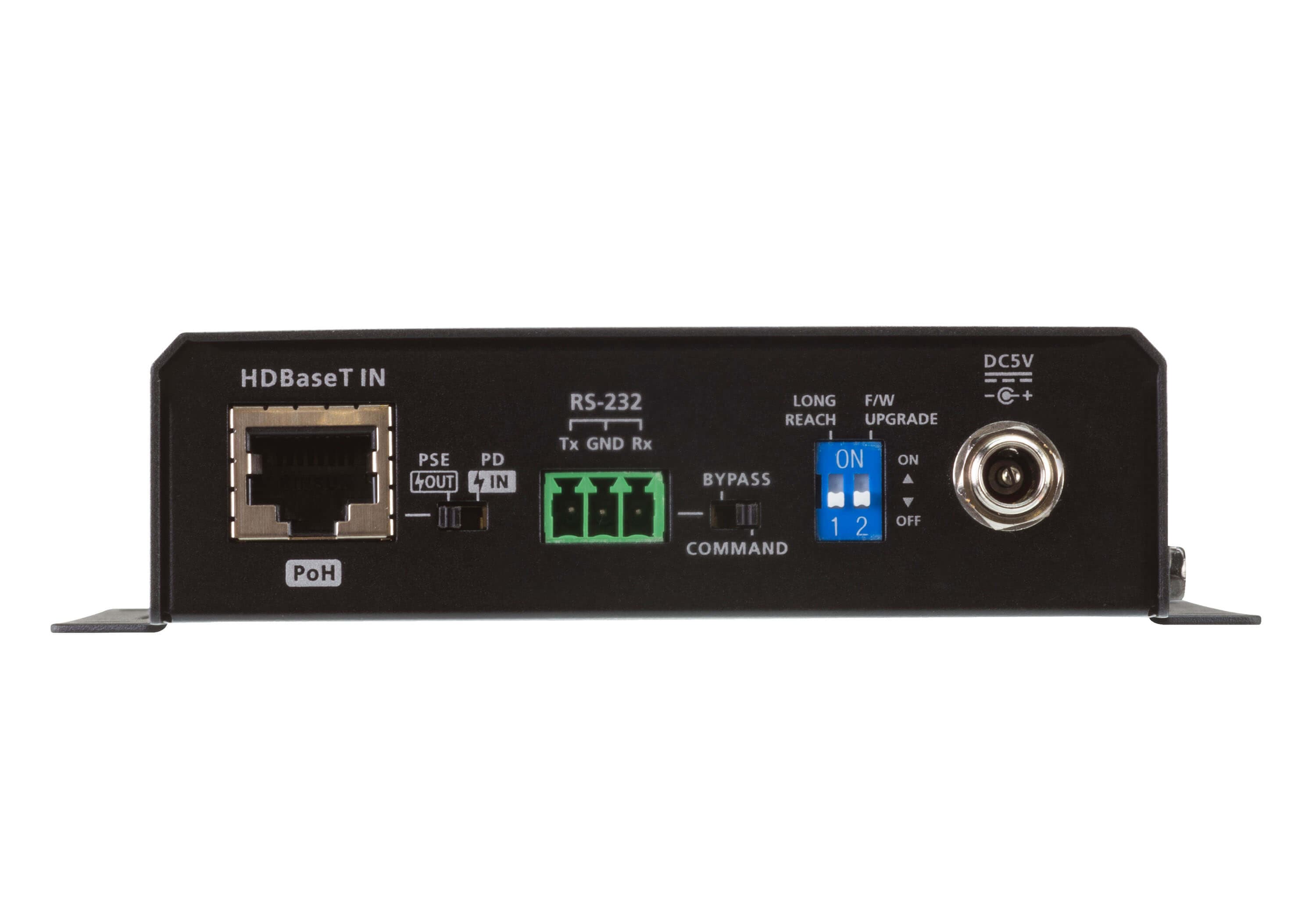

Конектори

Между устройства: 1 x RJ-45 Female
Захранване: 1 x DC Jack (Black) with locking 1 x RJ-45 Female, POH PD & PSE supported
Консумация: DC5V:5.83W:27BTU/h POH:7.28W:34BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 40°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-Condensing

Физически характеристики

Корпус: Metal
Тегло: 0.50 kg ( 1.1 lb )
Размери (Д x Ш x В) със скоба: 14.53 x 12.30 x 3.00 cm (5.72 x 4.84 x 1.18 in.)
Размери (Д x Ш x В) без скоба: 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
Входни резолюции: Video DDC
640 x 480 @ 60/67/72/75 Hz: 480p 60 Hz (4:3)
720 x 400 @ 70 Hz: 480p 60 Hz (16:9)
800 x 600 @ 56/60/72/75 Hz: 720p 60 Hz
1024 x 768 @ 60/70/75 Hz: 1080i 60 Hz
1280 x 800 @ 60 Hz: 640 x 480 60 Hz (4:3)
1280 x 1024 @ 60/75 Hz: 576p 50 Hz (4:3)/(16:9)
1400 x 1050 @ 60 Hz: 720p 50 Hz
1440 x 900 @ 60 Hz: 1080i 50 Hz
1600 x 1200 @ 60 Hz: 1080p 50/24/25/30 Hz
1680 x 1050 @ 60 Hz: 3840 x 2160p 24/25/30 Hz *
1920 x 1080 @ 60 Hz: 4096 x 2160p 24/25/30 Hz *
1920 x 1200 @ 60 Hz: 3840 x 2160p 50/60 Hz 4:2:0 *
1920 x 1200 @ 60 Hz (Reduced Blanking): 4096 x 2160p 50/60 Hz 4:2:0 *
