USB-C Dual-DisplayPort Mini Dock
UH3231Снет от производство

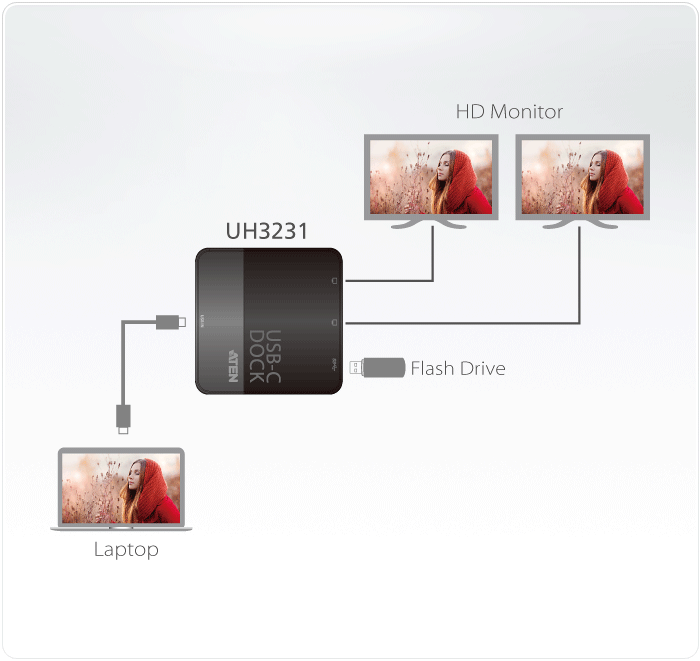

Мини док, който свързва USB-C компютър към два DisplayPort монитора: 4K (UHD) на един дисплей или 1920 x 1080 на двата едновременно; включва USB 3.2 Gen 1 порт.
Характеристики
- USB 3.2 Gen1 compliant
- Connects a computer to two DisplayPort monitors with Dual-View output
- Supports 4K (UHD) resolutions via single display output
- Supports dual-display video output up to 1920 x 1080 simultaneously*
- USB 3.2 Gen1 port with data transfer rates up to 5 Gbps
- Supports variety of video converters via Dual mode DisplayPort standard
- Plug and Play – no drivers or external power adapter needed
- Works with all major operating systems: Windows®, OS X®, Android and iPad Pro * With Intel 7th- Generation Core Processor (Kaby Lake) and above. For Dual-View to work, a computers graphics card must support MST technology. Mac computers, Android and iPad Pro only support a single-view output
Спецификация
- Връзки към компютри
- 1
Конектори
- Компютър
- 1 x USB-C Female (Black)
- Устройство
- 1 x USB 3.2 Gen1 Type A Female (Blue)
- Видео изход
- 2 x DisplayPort Female (Black)
Индикатори
- Захранване
- 1 (Blue/Orange)
- Видео резолюция
- Single-View: DisplayPort - 3840*2160@30* Dual-View:** DisplayPort - 1920*1080@60* ** With Intel 7th-Generation Core Processor (Kaby Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html For video output to work through a USB-C port, device with DP Alt Mode support is required. The UH3231 supports DP++ standard for using optional active/passive video adapter to convert DP signals to DVI/HDMI. ** For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output.
- Консумация
- DC5V:0.81W:23BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Съдържание на комплекта
- 1 x 1m USB-C Cable
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.10 kg ( 0.22 lb )
- Размери (Д x Ш x В)
- 9.37 x 9.30 x 2.68 cm (3.69 x 3.66 x 1.06 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
