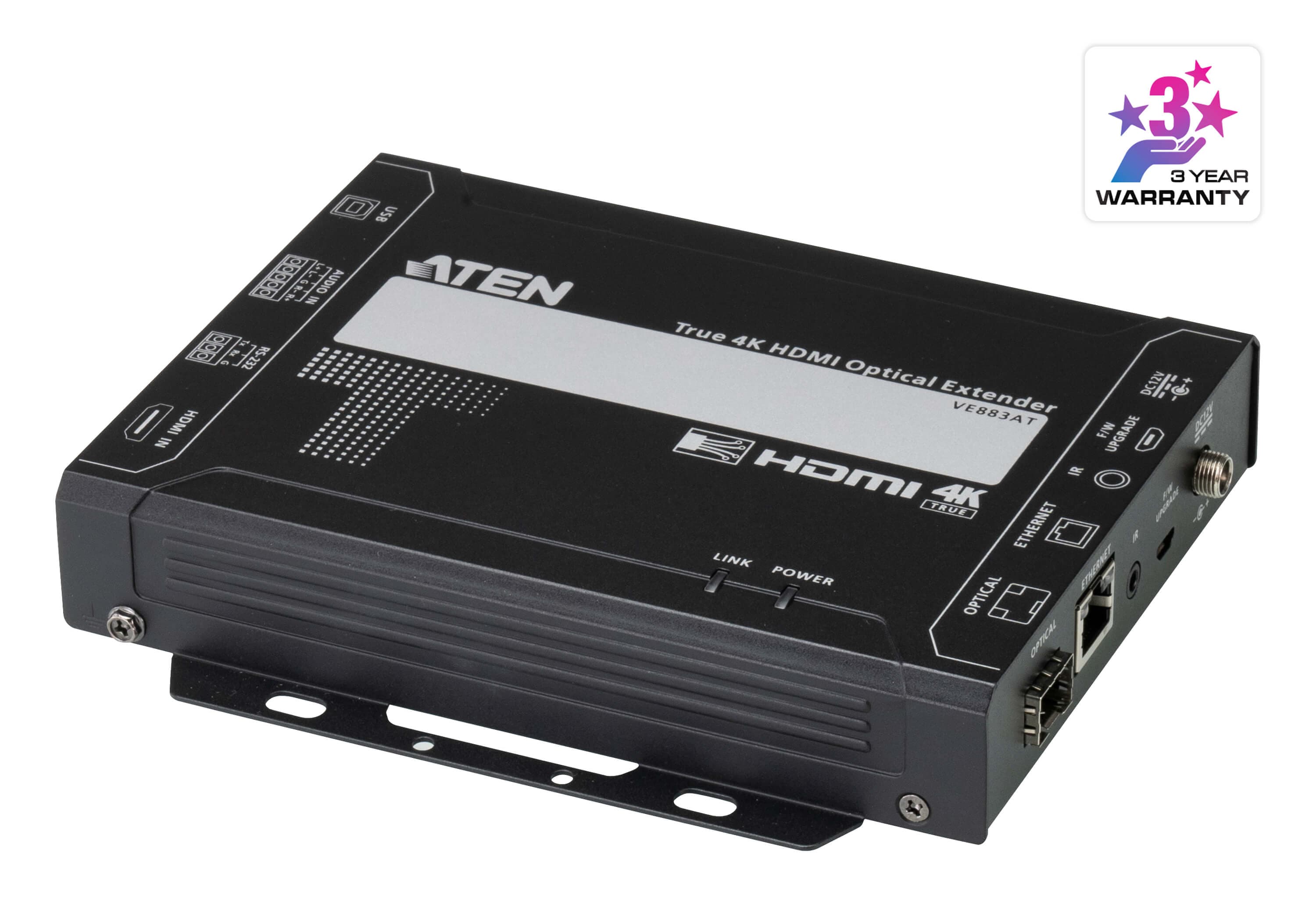

True 4K HDMI Optical Transmitter (4K@300m (K1, MM) / 10km (K2, SM))

Features

• Extends HDMI video, audio, IR, RS-232 control, and Ethernet signals over a duplex fiber optic cable across up to 10 km*
• Lossless transmission of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) signals
• HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
• ATEN’s exclusive FarSmooth technology – prevents lagging and freezing by matching the output rates to the input rates and ensures the 4K@60Hz video display to be stable, smooth and identical to the source through 10 Gbps bandwidth
• Supports transparent USB 2.0 signals for expanded connectivity with USB peripherals at a maximum transfer rate of 25MB/s
• Bi-directional IR signal transmission – IR transmission is processed one direction at a time, ranged from 30 kHz to 56 kHz
• Features RS-232 serial port for connecting peripherals such as touch screens, and barcode scanners
• Supports batch upgrades using Firmware Upgrade Utility
• Built-in 8 kV / 15 kV ESD protection
• Plug-and-play
• Hot-pluggable
• Rack-mountable Note: • The maximum transmission distance may vary depending on the fiber type, bandwidth, connector splicing, losses, model, chromatic dispersion, environmental factor, and kinks. • For long distance transmissions, ATEN recommends using SFP+ modules to allow compatibility with single or multi mode fibers. Depending on the chosen package (VE883AK1 or VE883AK2), different SFP+ modules are supplied: • VE883AK1: 10 Gbps/300m SFP+ Duplex Multi Mode Transceiver • VE883AK2: 10 Gbps/10 km SFP+ Duplex Single Mode Transceiver • ATEN recommends using Single Mode fibers that conform to IEC 11801 (OS1, OS1a, OS2), and Multi Mode fibers that conform to IEC 11801 (OM3, OM4) specifications. • The Device is class 1 laser product. It meets the safety regulations of IEC/EN 60825-1, 21 CFR 1040.10, and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
