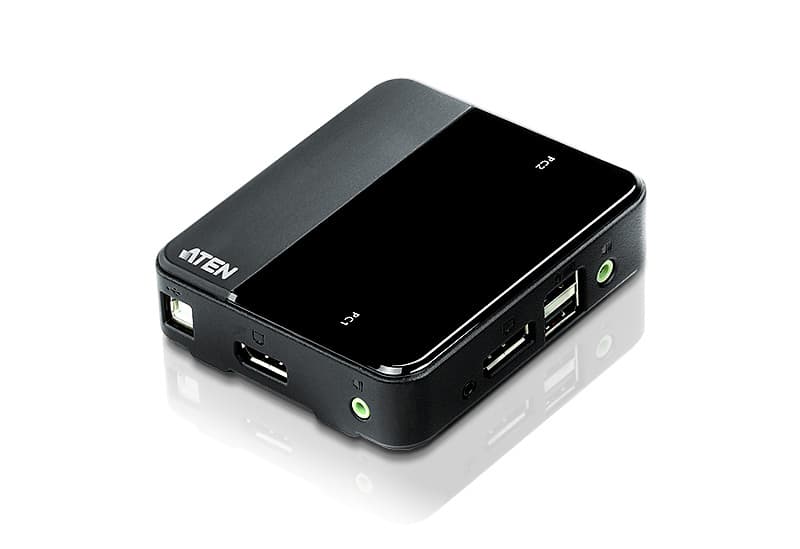

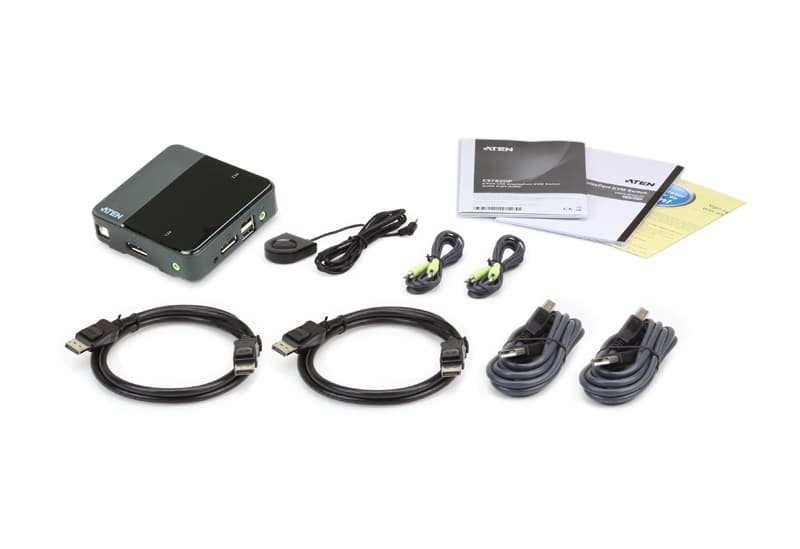

2-Port USB DisplayPort / Audio KVM Switch (4K Supported and Cables included)

Name: 2-Port USB DisplayPort / Audio KVM Switch (4K Supported and Cables included)
Brand: ATEN
SKU: CS782DP

CS782DP

Request a quote Datasheet PDF Manual Quick start guide CAD drawing

With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to

Features

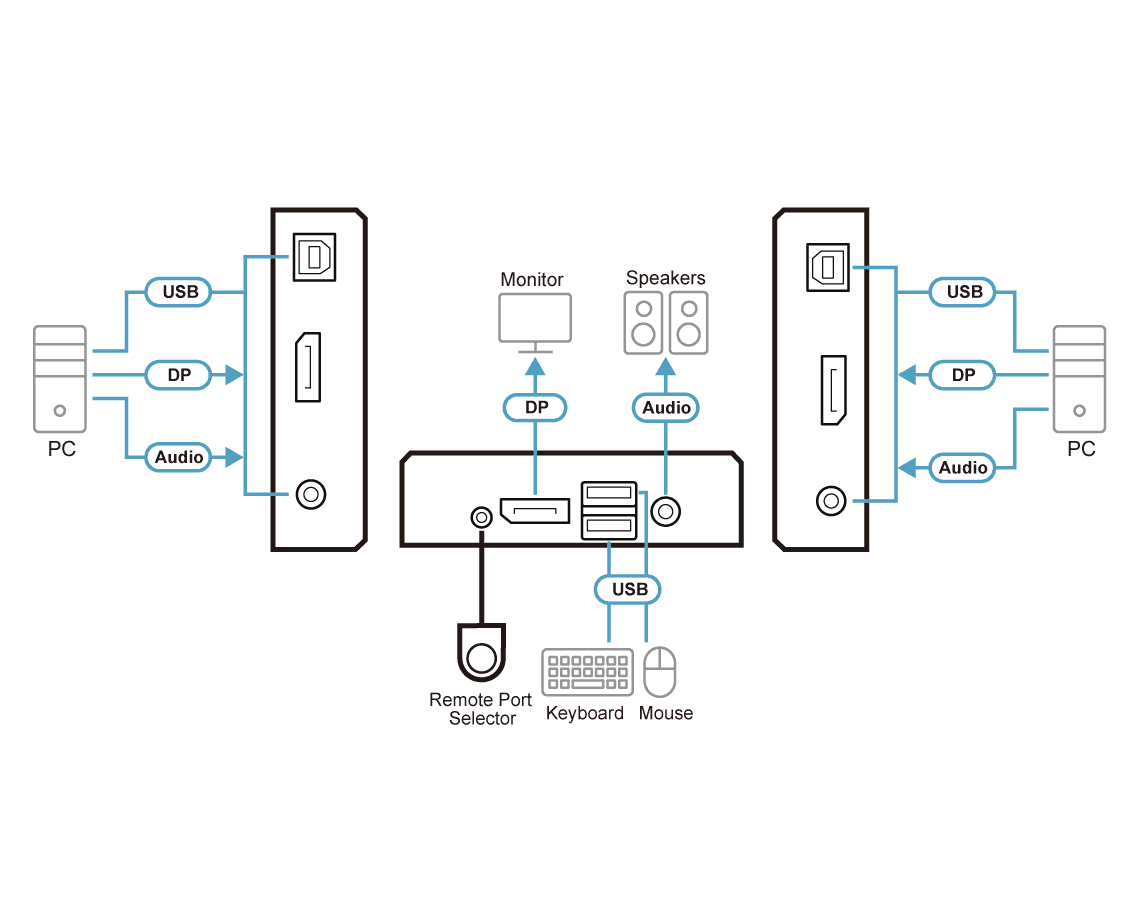

One DisplayPort video console controls two USB computers
DisplayPort 1.2 compliant; HDCP compliant1
Computer selection via remote port selector, hotkeys, and USB mouse2
Superior video quality – 4K UHD (3840 × 2160 @ 60 Hz), 4K DCI (4096 x 2160 @ 60 Hz) and 2560 x 1440 @144Hz
Supports MST (Multi-Stream Transport)3, enabling multiple monitors to be used via a single DisplayPort connector
Multiplatform support – Windows, Mac, Sun, and Linux
Compatible with widescreen LCD monitors
Power on detection – if either of the computers is powered off, the CS782DP will automatically switch to the other computer
Audio-enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
Supports HD Audio4 through DisplayPort playback
Independent switching of the KVM and Audio focus4 allows convenient multi-tasking
Supports multimedia keyboards
Supports wireless keyboards and mice
Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
Mac / Sun keyboard support and emulation5
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing6
Bus-Powered
Firmware upgradable Note: 1. 1. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.2 to avoid compatibility issue. 2. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice. 3. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. A DisplayPort 4. HD audio through DisplayPort cannot be switched independently. 5. (1). PC keyboard combinations emulate Mac / Sun keyboards. (2). Mac / Sun keyboards work only with their own computers. 6. This feature may require an extra power adapter to be connected to the USB hub and that the CS782DP’s Mouse Emulation Mode be disabled.

Specifications

Computer Connections: 2
Port Selection: Hotkey, Mouse, Remote Port Selector

Connectors

Console Ports: 2 x USB Type A Female 1 x DisplayPort Female (Black) 1 x 3.5mm Audio Jack Female (Green)

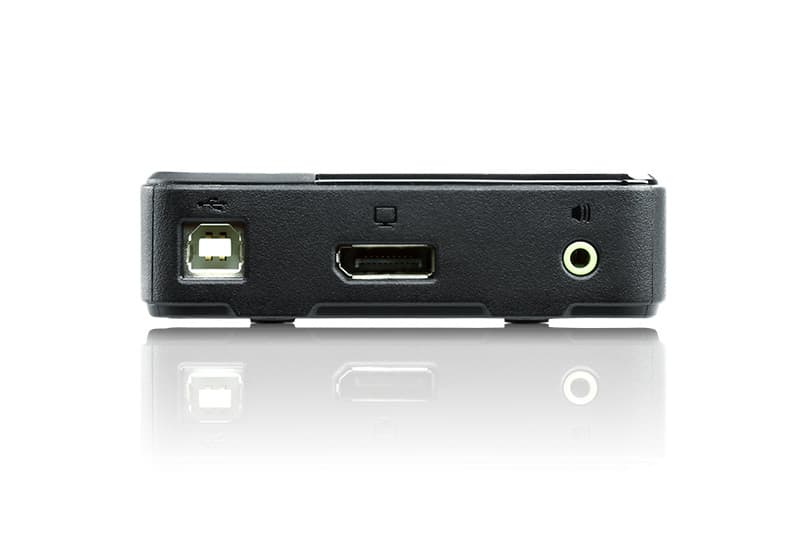

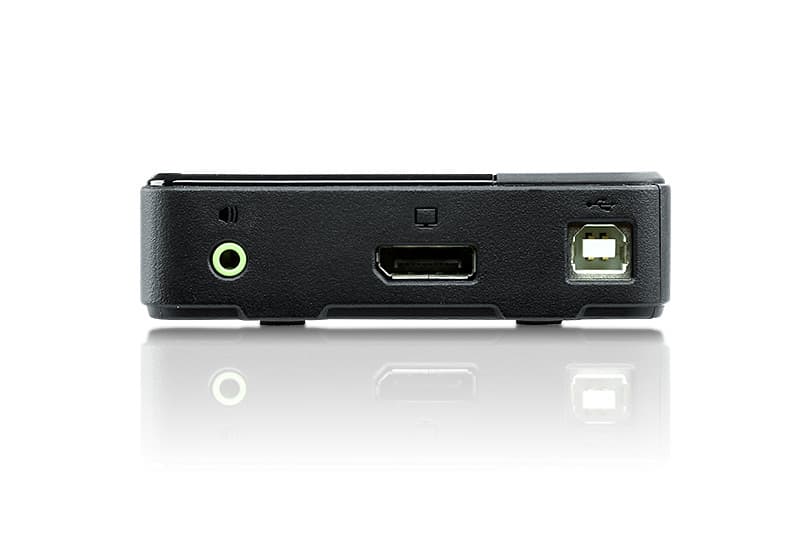

KVM (Computer) Ports: 2 x USB Type B Female 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green)
Remote Port Selector: 1 x 2.5mm Audio Jack Female

LEDs

KVM: 2 (White)

Emulation

Keyboard / Mouse: USB
Video: Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Scan Interval: 3, 5, 10, 20 seconds (Default: 5 seconds)
Power Consumption: DC5V:2.18W:23BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 – 50°C
Storage Temperature: –20 – 60°C
Humidity: 0 - 80% RH, Non-condensing

Physical Properties

Housing: Plastic
Weight: 0.12 kg ( 0.26 lb )
Dimensions (L x W x H): 9.37 x 9.30 x 2.68 cm (3.69 x 3.66 x 1.06 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
