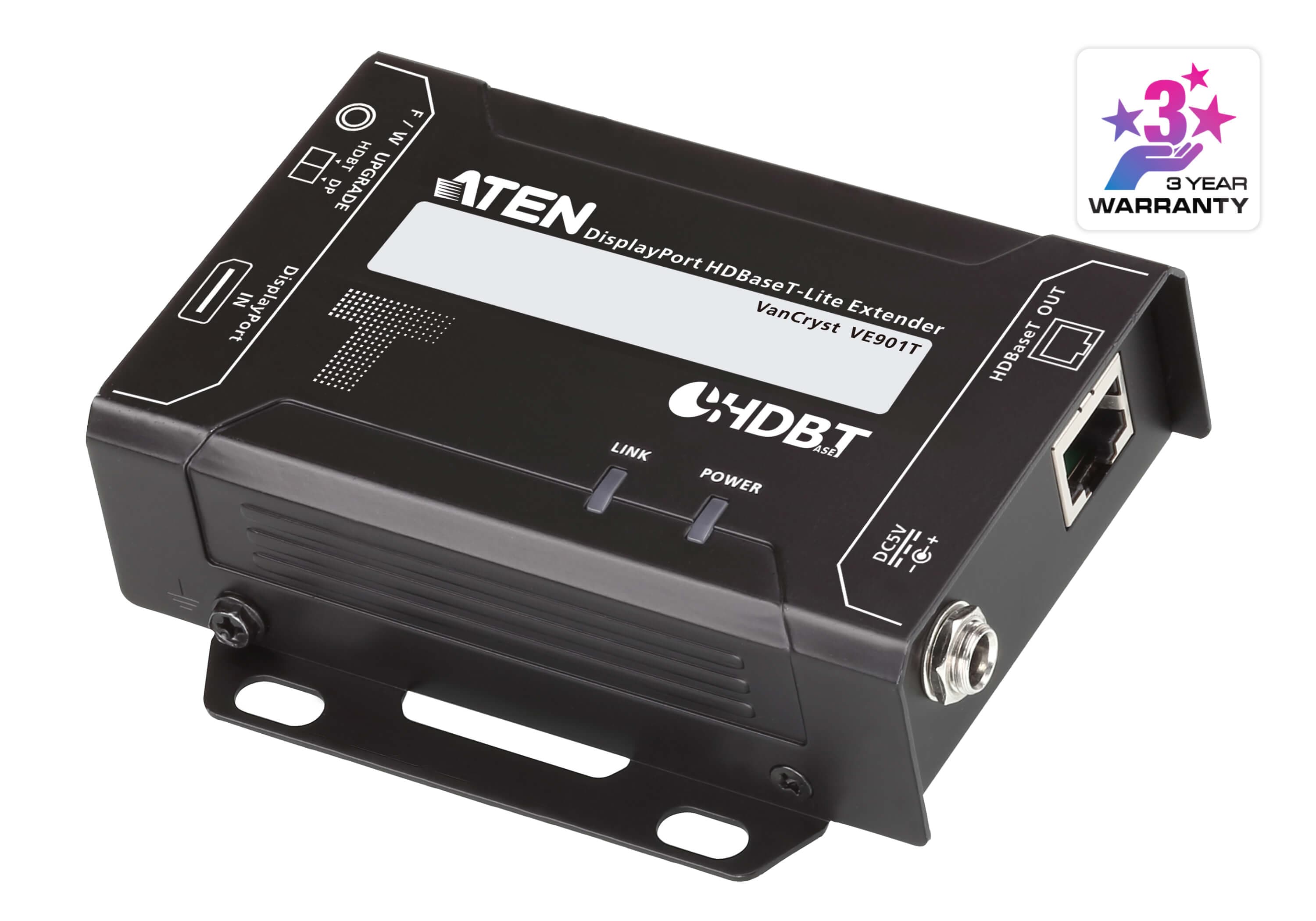

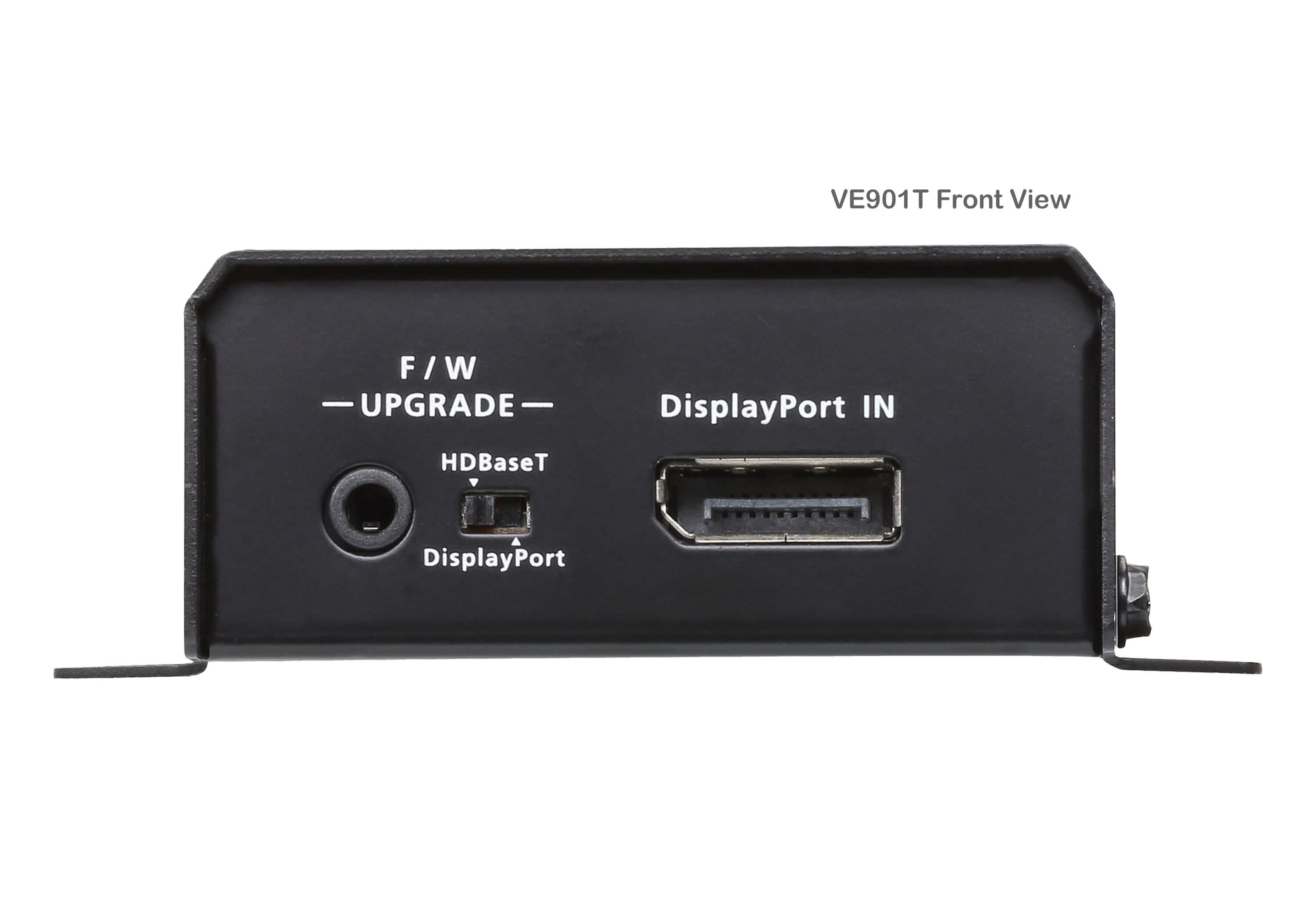

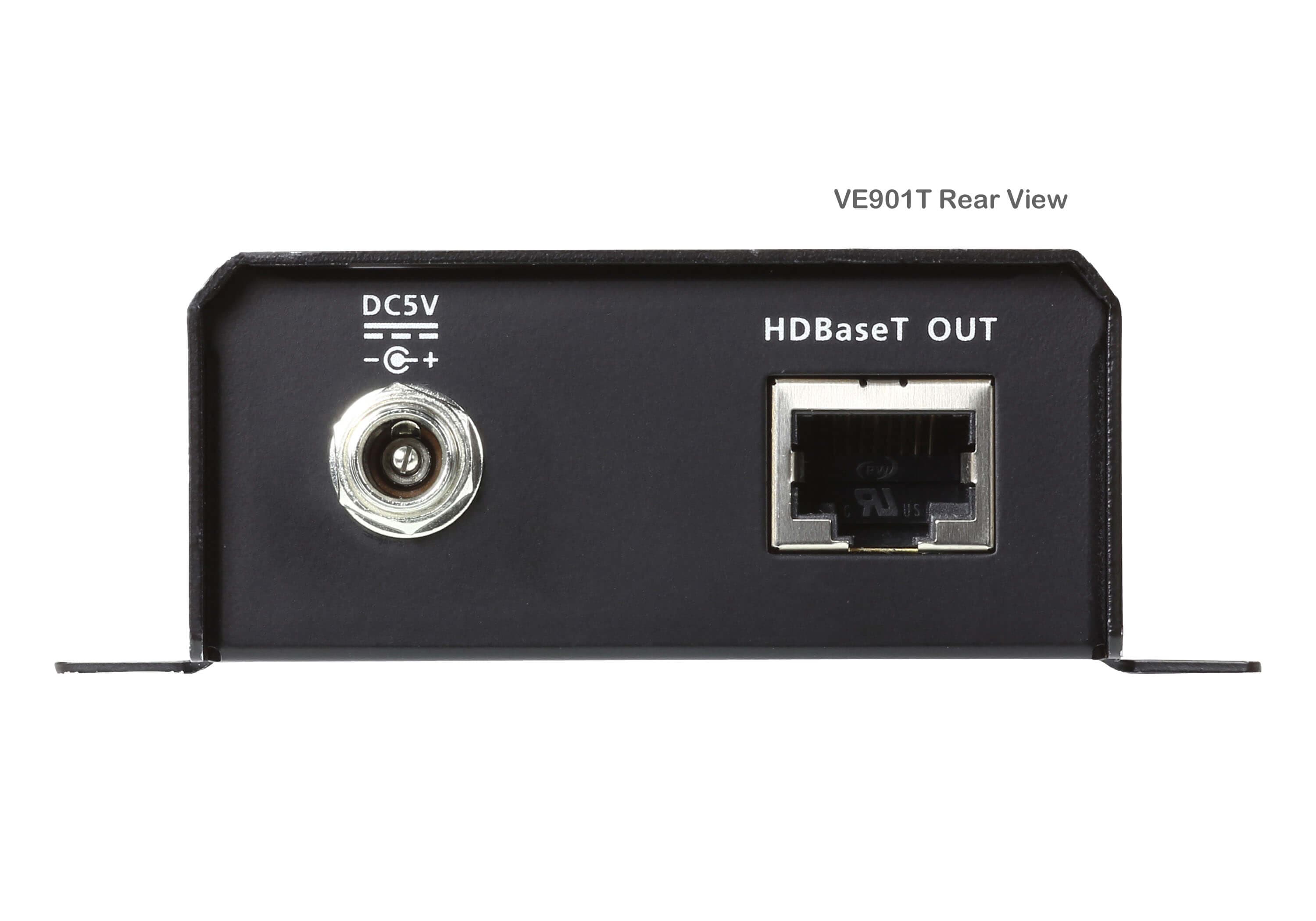

DisplayPort HDBaseT-Lite Transmitter (4K@40m; 1080p@70m)

Name: DisplayPort HDBaseT-Lite Transmitter (4K@40m; 1080p@70m)
Brand: ATEN
SKU: VE901T

VE901T

Предавател HDBaseT-Lite за DisplayPort — изпраща 4K до 40 m по Cat 6a (35 m по Cat 5e/6) и 1080p до 70 m към съответния приемник по един Cat кабел.

Характеристики

HDBaseT Connectivity – extends a DisplayPort connection up to 70 meters via a single Cat 6a cable or ATEN 2L-2910 Cat 6 cable
DisplayPort v1.1*; HDCP 1.4 compliant
Superior video quality – 4K @ 35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat 6 cable) and 1920 x 1080 @ 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6 cable)
HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
Featuring 3.3V / 500mA power output for powering auxiliary devices
Plug-and-play
Rack-Mountable *Note: DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.

Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. пикселна честота: 297 MHz
Съответствие: DisplayPort (Deep Color, 4K) HDCP Compatible
Макс. резолюция / разстояние: Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Захранване: 1 x DC Jack (Black) with locking
Между устройства: 1 x RJ-45 Female
Консумация: DC5V:2.84W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.24 kg ( 0.53 lb )
Размери (Д x Ш x В) със скоба: 9.77 x 8.70 x 3.00 cm (3.85 x 3.43 x 1.18 in.)
Размери (Д x Ш x В) без скоба: 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.)
