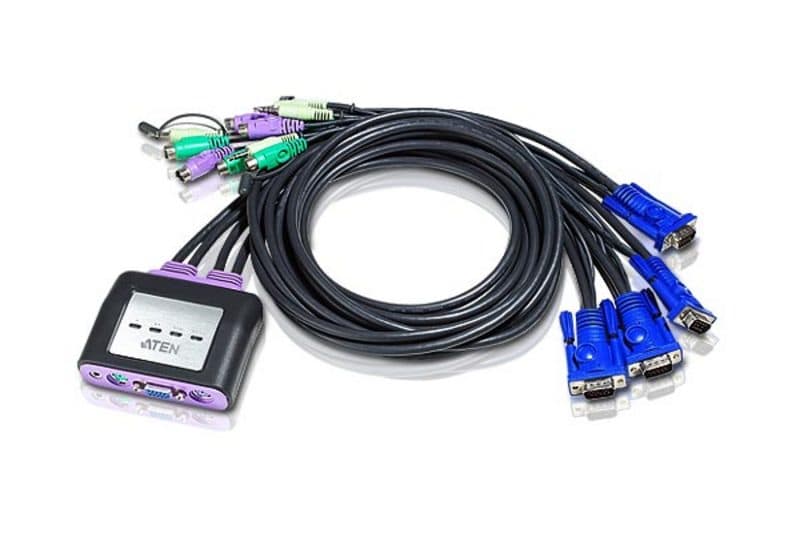

4-Port PS/2 VGA/Audio Cable KVM Switch (1.8m)
CS64ADiscontinued

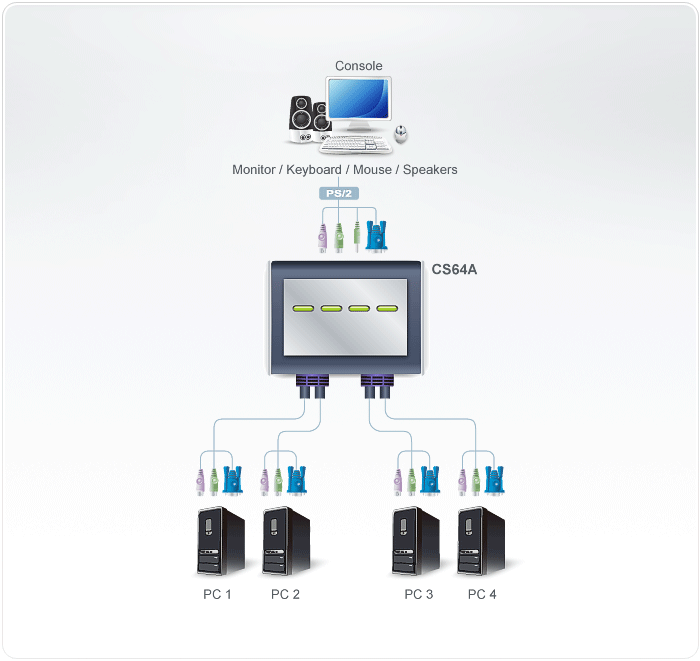

CS64A KVM Switch has a handy design integrating with 6 feet of cables and built-in PS/2. It can control 4 servers via a single console.
Features
- One PS/2 console controls four computers
- Compact design, built in 1.8m (6 feet) cables
- All-in-one design
- With speaker support
- Superior video quality- up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Bus-Powered
- Multiplatform support – Windows, Linux
Specifications
- Computer Connections
- 4
- Port Selection
- Hotkey
Connectors
- Console Ports
- 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x 3.5mm Audio Jack Female (Green)
- KVM Ports
- 4 x HDB-15 Male (Blue) 4 x 6-pin Mini-DIN Male (Purple) 4 x 6-pin Mini-DIN Male (Green) 4 x 3.5mm Audio Jack Male(Green)
LEDs
- Selected
- 4 x Green
Cable Length
- Computer
- 4 x 1.8 m
Emulation
- Keyboard / Mouse
- PS/2
- Video
- 2048 x 1536; DDC2B
- Scan Interval
- 5 seconds
- Power Consumption
- DC5V:0.41W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0-50°C
- Storage Temperature
- -20-60°C
- Humidity
- 0-80% RH, Non-condensing
Physical Properties
- Housing
- Plastic
- Weight
- 0.67 kg ( 1.48 lb )
- Dimensions (L x W x H)
- 7.86 x 7.86 x 3.06 cm (3.09 x 3.09 x 1.2 in.)
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
