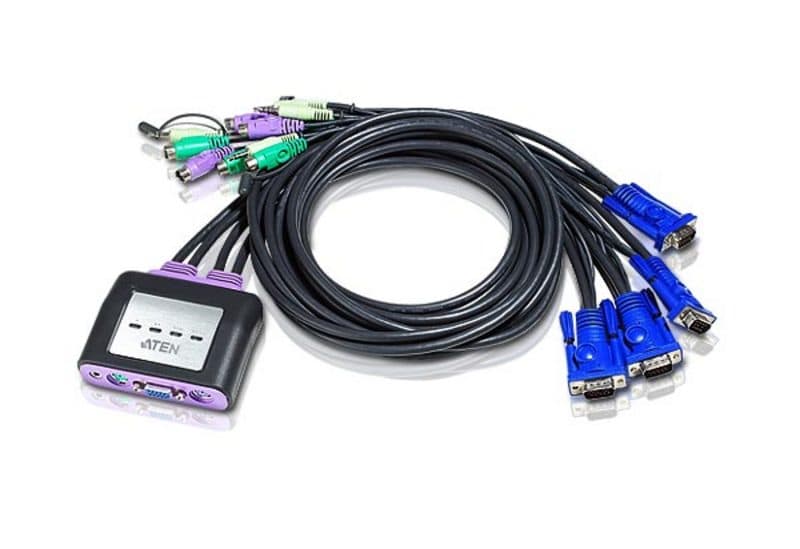

4-Port PS/2 VGA/Audio Cable KVM Switch (1.8m)
CS64AСнет от производство
Кабелен KVM превключвател: една PS/2 конзола управлява 4 компютъра, с VGA и аудио. Вградени кабели 1.8 m; избор на порт с горещи клавиши.
Характеристики

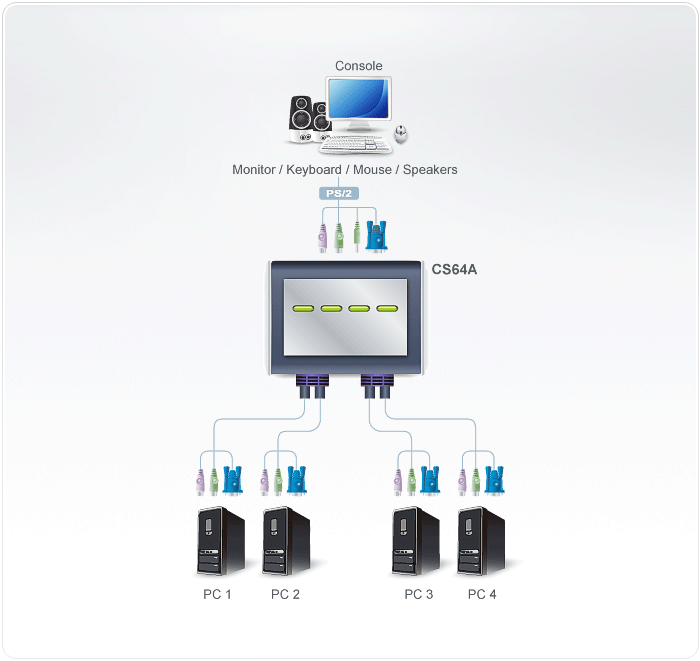

- One PS/2 console controls four computers
- Compact design, built in 1.8m (6 feet) cables
- All-in-one design
- With speaker support
- Superior video quality- up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Bus-Powered
- Multiplatform support – Windows, Linux
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Hotkey
Конектори
- Конзолни портове
- 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x 3.5mm Audio Jack Female (Green)
- KVM портове
- 4 x HDB-15 Male (Blue) 4 x 6-pin Mini-DIN Male (Purple) 4 x 6-pin Mini-DIN Male (Green) 4 x 3.5mm Audio Jack Male(Green)
Индикатори
- Избран
- 4 x Green
Дължина на кабела
- Компютър
- 4 x 1.8 m
Емулация
- Клавиатура / мишка
- PS/2
- Видео
- 2048 x 1536; DDC2B
- Интервал на сканиране
- 5 seconds
- Консумация
- DC5V:0.41W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.67 kg ( 1.48 lb )
- Размери (Д x Ш x В)
- 7.86 x 7.86 x 3.06 cm (3.09 x 3.09 x 1.2 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
