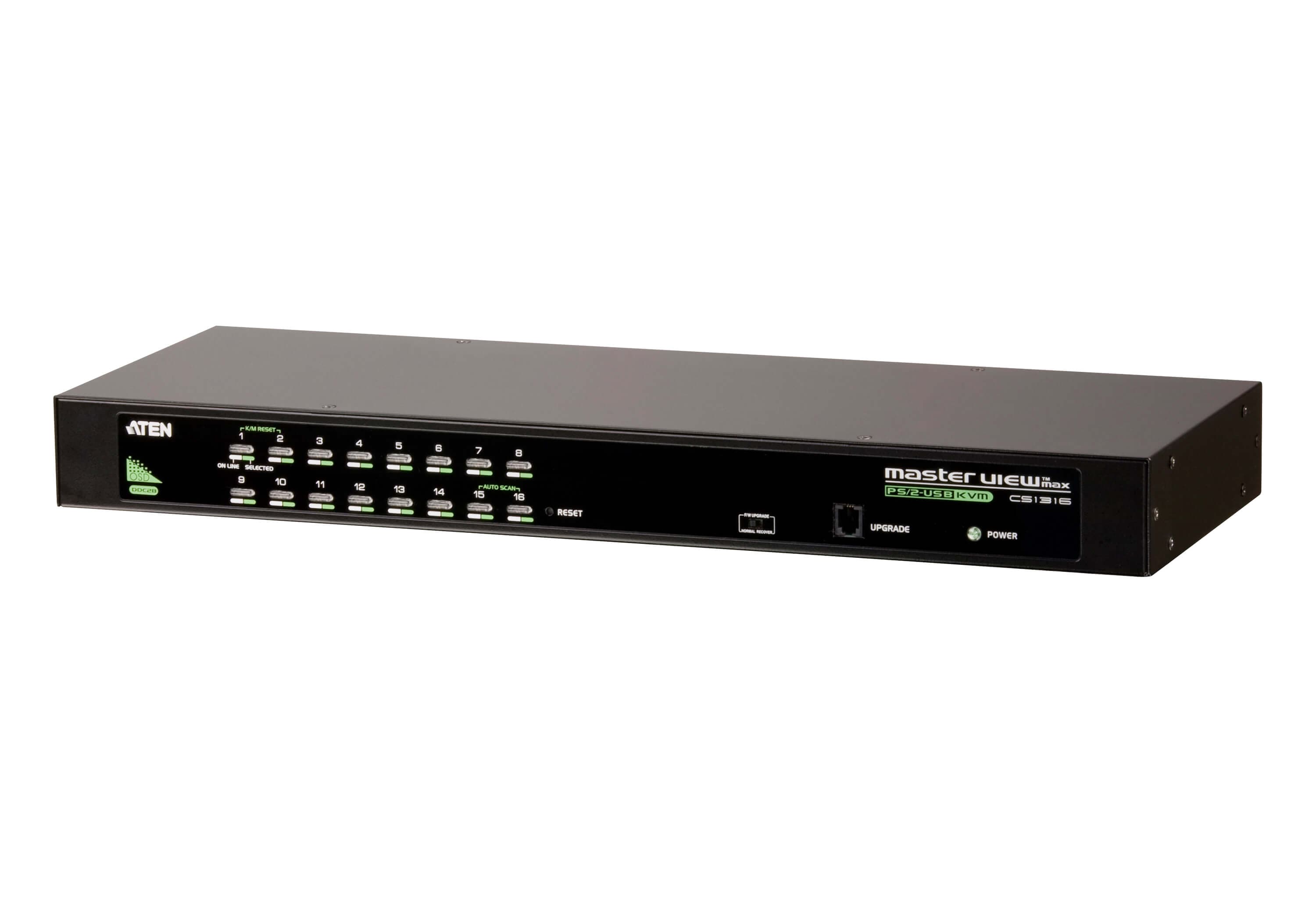

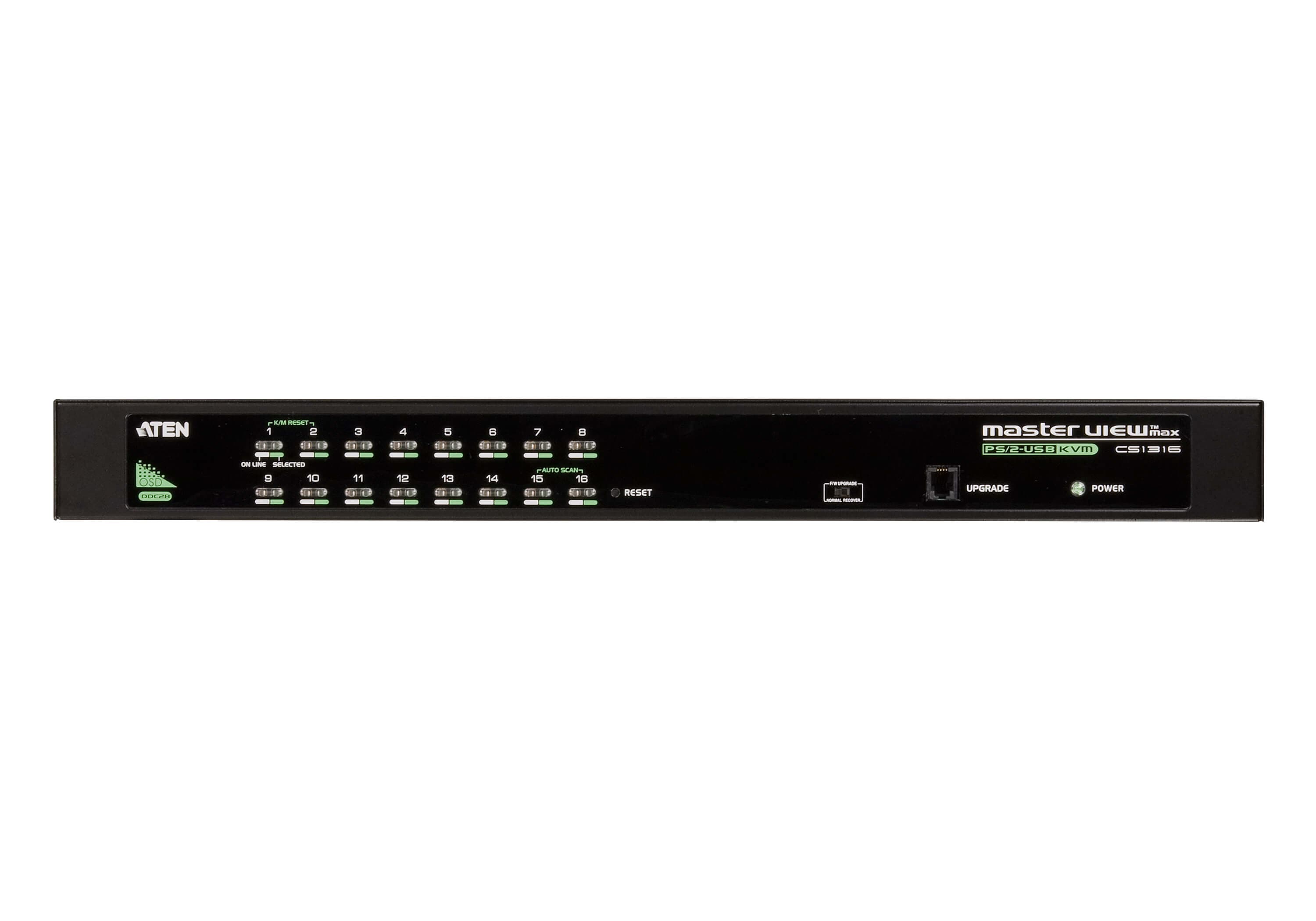

Управлява 16 компютъра от една конзола (клавиатура, мишка, VGA монитор) с PS/2 или USB връзка. Каскадира се до 2 нива за контрол на общо 256 компютъра.
Характеристики
- One USB-PS/2 console controls 16 computers
- Cascade up to 2 levels - control up to 256 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
Връзки към компютри
- Директно
- 16
- Максимум
- 256 (via Cascade)
- Избор на порт
- OSD, Hotkey, Pushbutton
Конектори
- Конзолни портове
- 1 x SPHD-18 Male (Yellow)
- Обновяване на фърмуера
- 1 x RJ-11 Female (Black)
- Захранване
- 1 x DC Jack
- KVM портове
- 16 x SPHD-18 Female (Yellow)
Бутони и превключватели
- Портове
- 16 x Pushbutton
- Обновяване на фърмуера
- 1 x Slide
Индикатори
- Онлайн
- 16 (Orange)
- Избран
- 16 (Green)
- Захранване
- 1 (Dark Green)
Емулация
- Клавиатура / мишка
- PS/2, USB
- Видео
- 2048 x 1536; DDC2B
- Интервал на сканиране
- 1-255 Seconds
- Консумация
- DC5.3V:3.83W:26BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50˚C
- Температура на съхранение
- -20-60˚C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.10 kg ( 4.63 lb )
- Размери (Д x Ш x В)
- 43.72 x 16.13 x 4.40 cm (17.21 x 6.35 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
