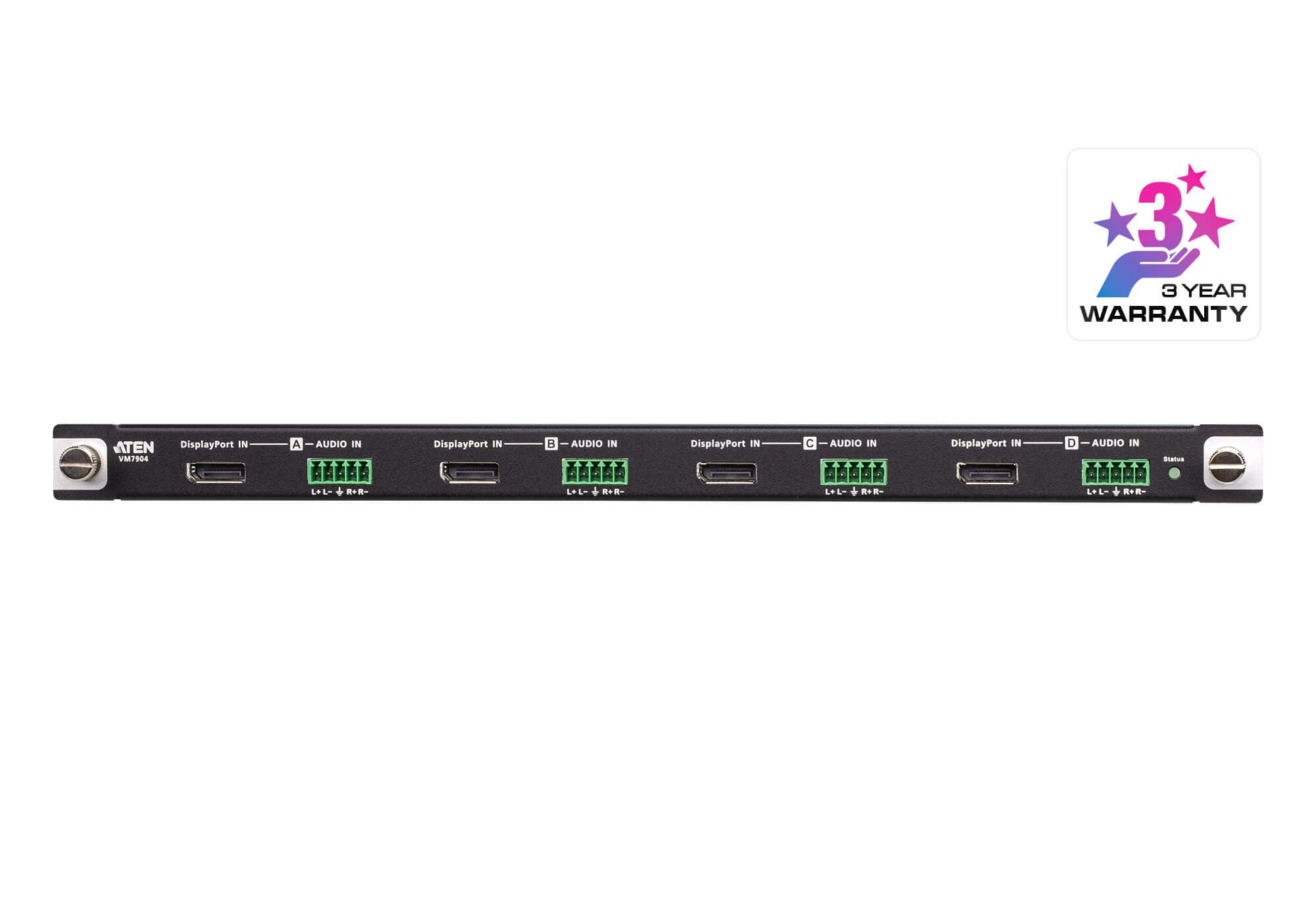

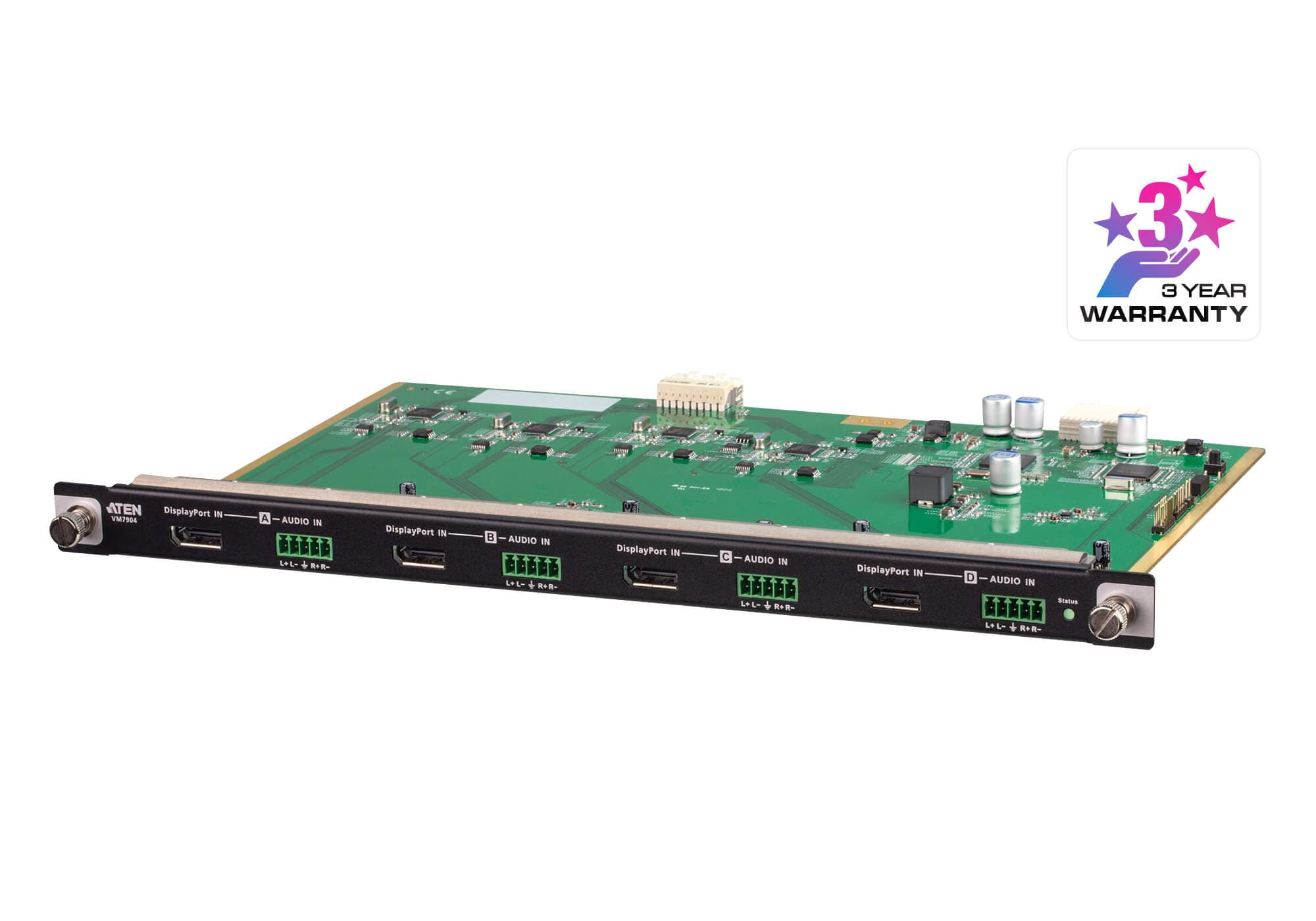

Входна платка с 4 DisplayPort порта за матриците VM1600A и VM3200, с резолюция до 4096 x 2160 @ 30 Hz (4:4:4). Подава източниците към до 16 или 32 дисплея; извлича DisplayPort аудио и вгражда стерео звук.
Характеристики
- Compatible with the VM1600A / VM3200; mix and match with modular I/O boards of any type for optimum flexibility

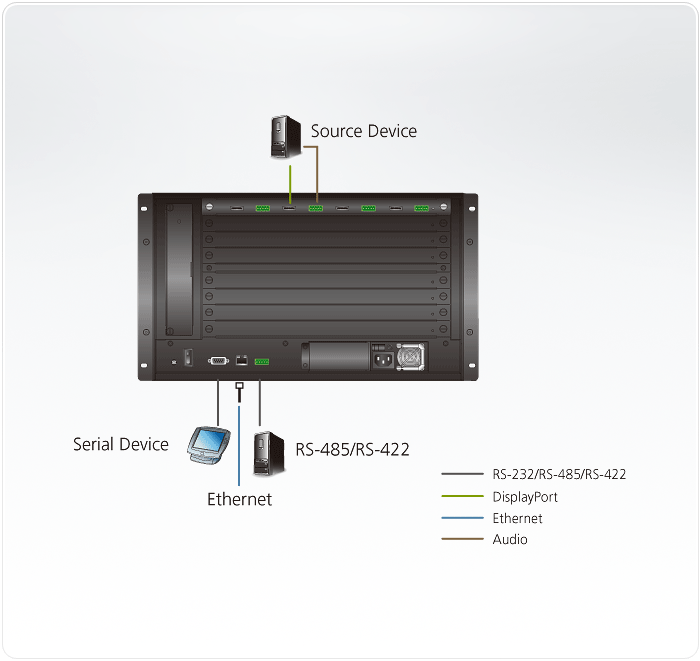

- Connects up to 4 DisplayPort inputs to up to 16 (VM1600A) or 32 (VM3200) displays
- Superior video quality – up to 4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4)
- Audio-enabled - DisplayPort audio can be exracted and stereo audio can be embedded
- EDID Expert –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- Support DP1.1 with data rate up to 10.8 Gbps (2.7 Gbps per lane)
- HDCP 2.2 Compliant
- Hot-swappable design for easy integration and maintenance
Видео вход
- Интерфейси
- 4 x DisplayPort Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- Up to 3m
Видео
- Макс. скорост на данните
- 10.8 Gbps (2.7 Gbps Per Lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDCP Compatible
- Макс. резолюция
- 4096x2160@30Hz(4:4:4) 3840x2160@30Hz(4:4:4)
Аудио
- Вход
- 4 x Captive Screw Connector, 5 Pole (Green) *Audio signal type: stereo, balanced/unbalanced.
- Консумация
- 7.18W:34BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.55 kg ( 1.21 lb )
- Размери (Д x Ш x В)
- 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
- Брой в кашон
- 2 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
