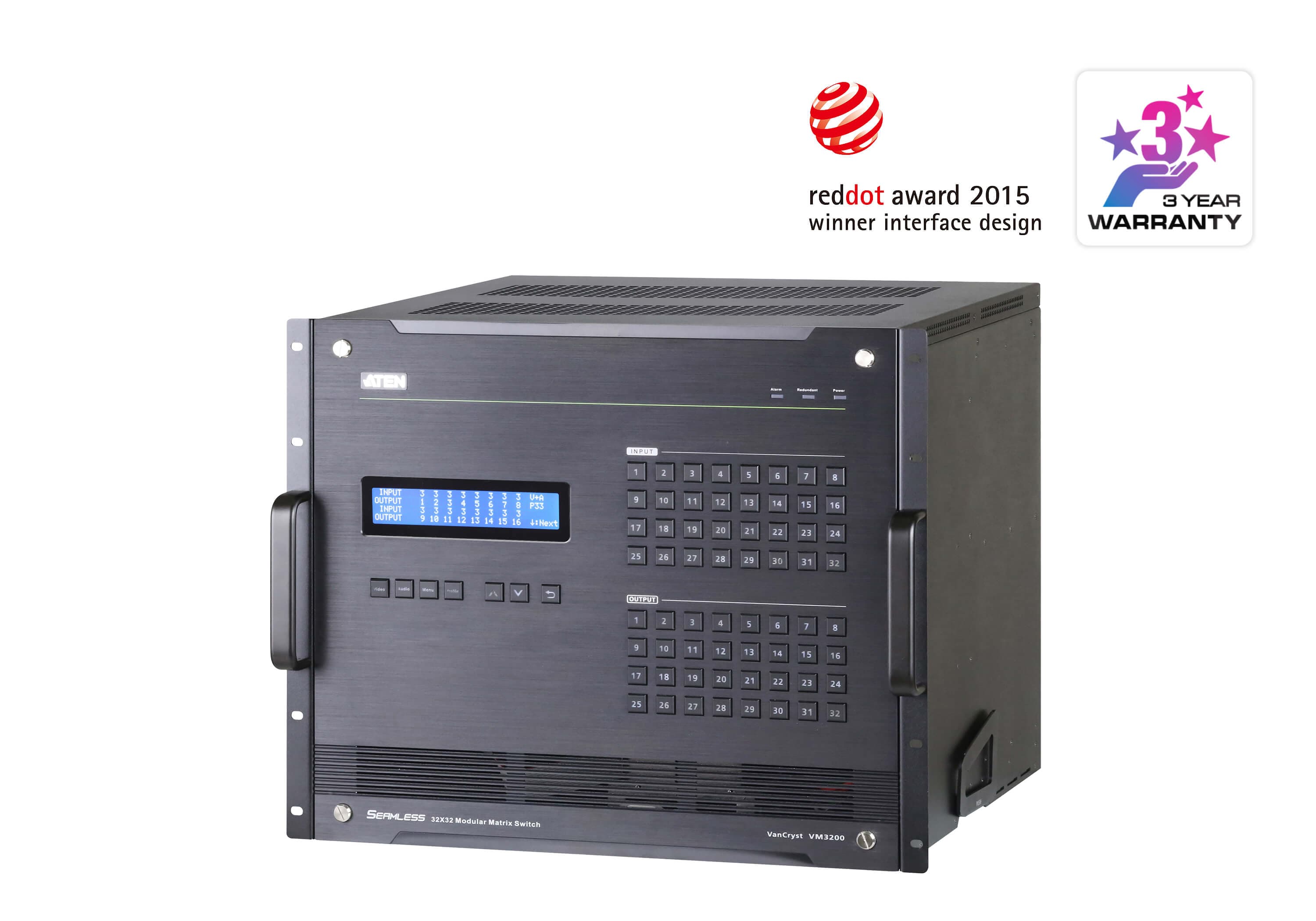

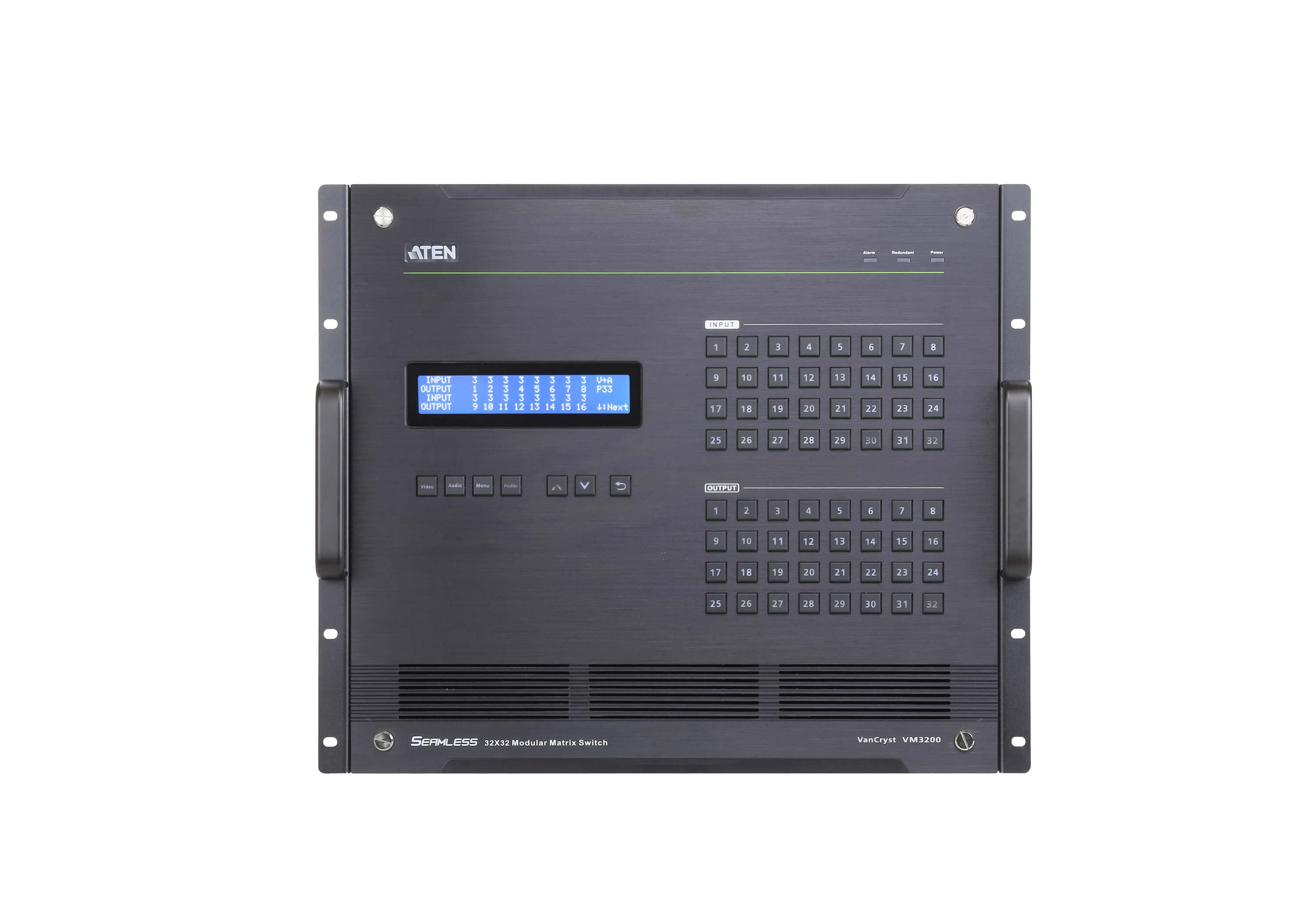

Модулен матричен превключвател 32x32 с по 8 слота за входни и изходни платки. Поддържа 4K; вграденият скалер напасва резолюцията към всеки дисплей, а Seamless Switch превключва без прекъсване на видеопотока.
Характеристики
- Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix Solutions
- Supports 4K resolutions – up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
- Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions
- Seamless Switch™ – features close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
- Video Wall – allows you to create custom video wall layouts via intuitive web GUI
- Live Streaming – supports single source live streaming via web GUI for convenient evaluation of display output
- Content and Layout Preview – displays thumbnails of source media in web GUI, simplifying profile configuration
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens
- Audio-enabled – HDMI audio can be extracted, and stereo audio can be embedded (HDMI I/O boards)
- Calendar-based scheduling – allows profile playing based on the pre-set schedule and RTC

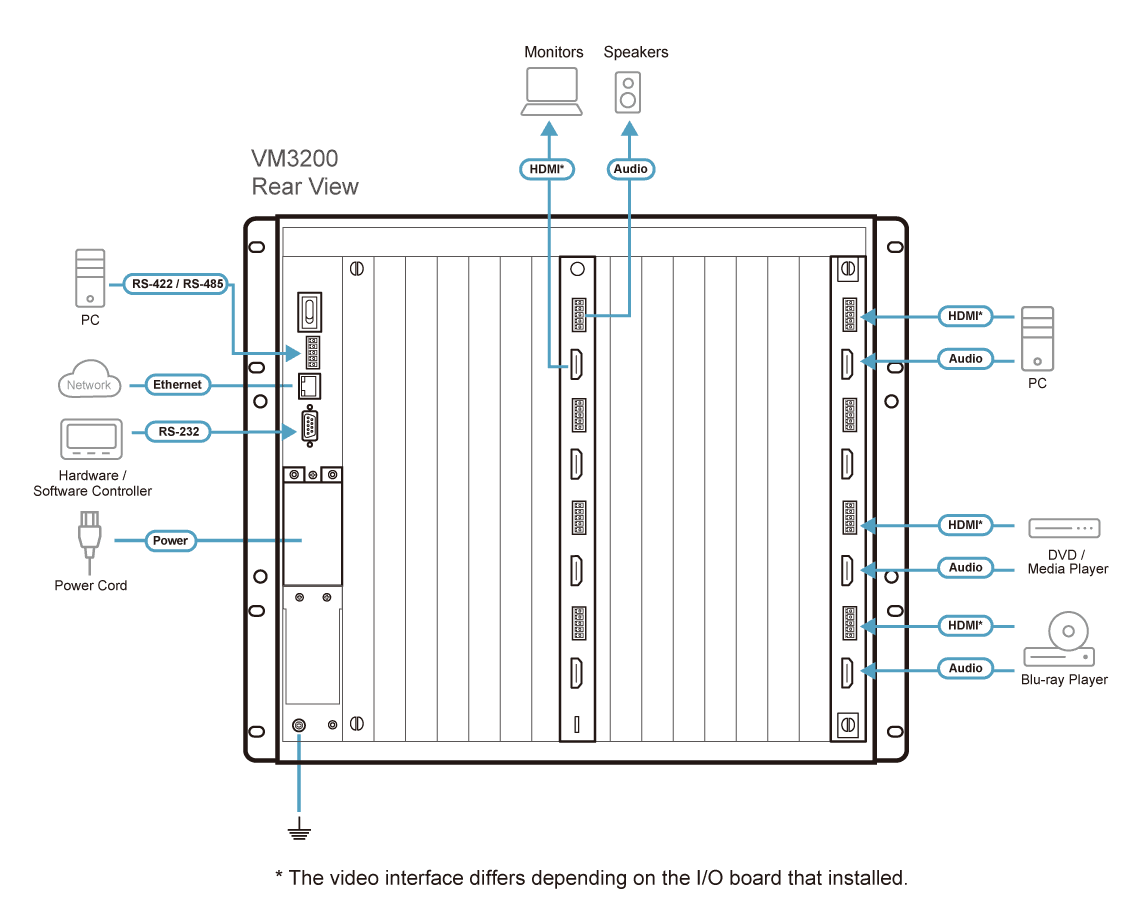

- Multiple Control Methods – system management via front-panel pushbuttons, RS-232, RS-485/422, and Ethernet (Telnet / Web GUI) connections
- View and control via ATEN Video Matrix Control App in a swift and agile way
- Hot-swappable design for I/O boards, fan module, and power supplies for easy maintenance and higher reliability

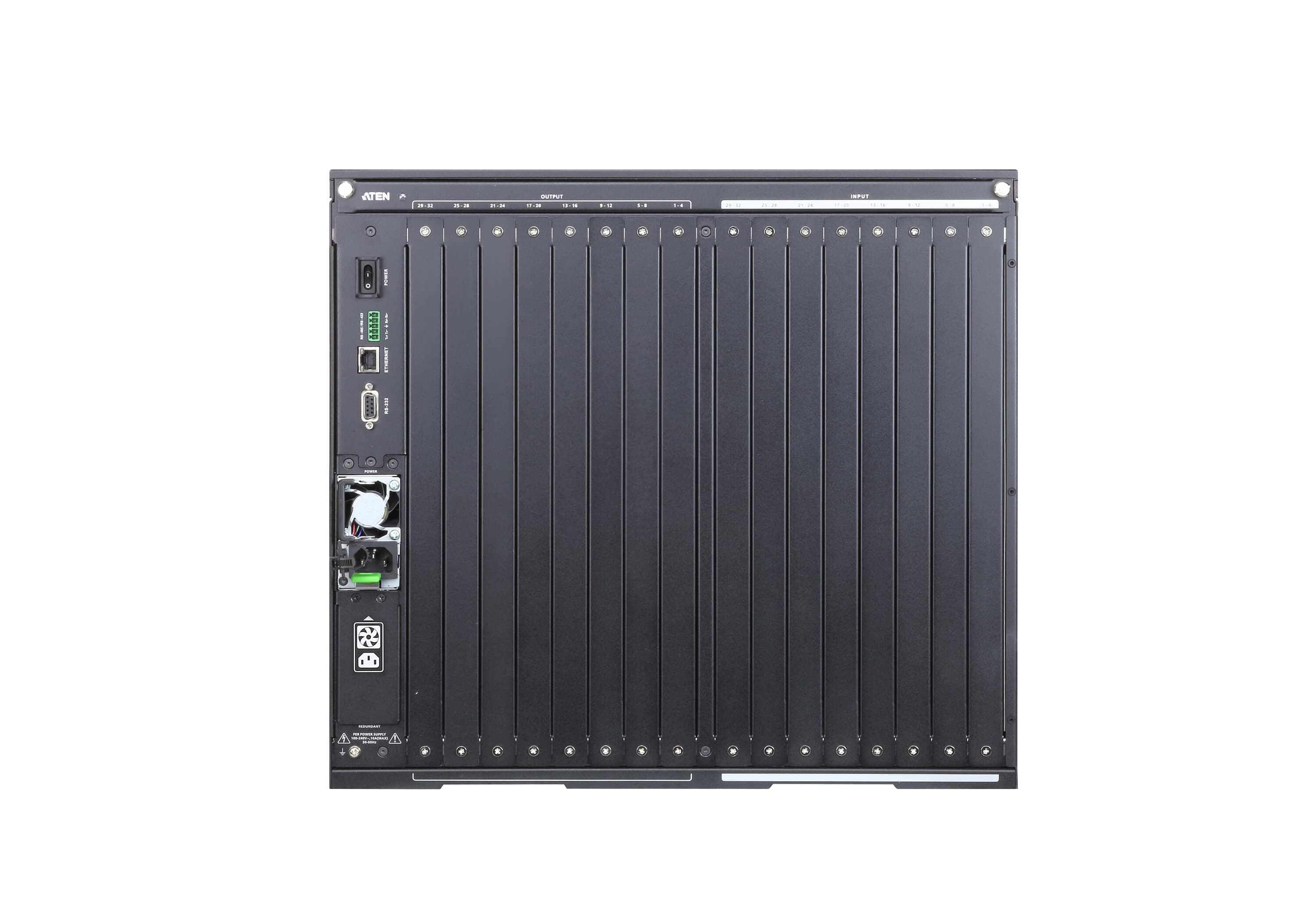

- Flexible system expandability via hot-swappable tool-free installation of I/O boards

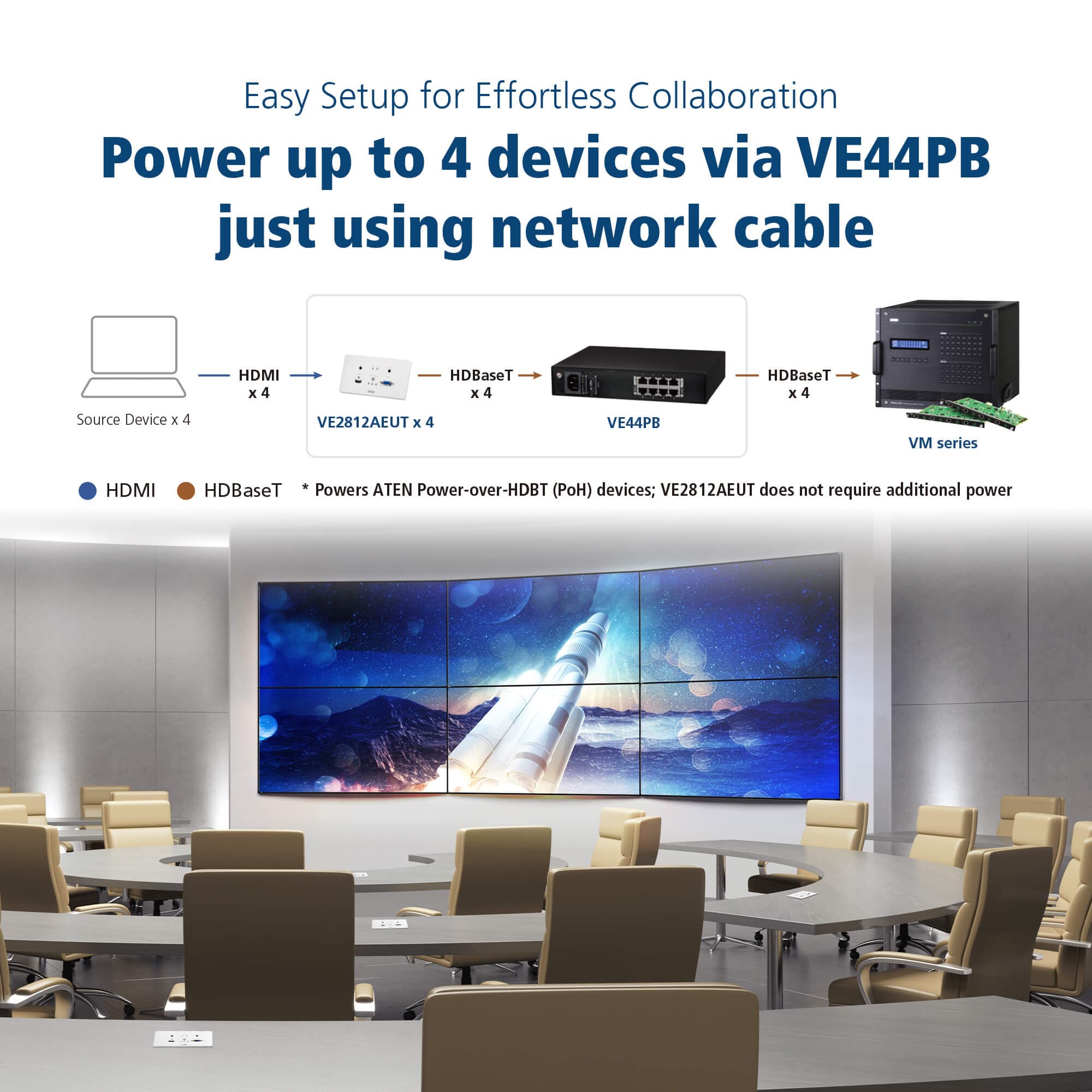

- Enables power supply via HDBaseT with installation of I/O boards and power injectors (VE44PB recommended), eliminating the need for separately installing power infrastructures to save overall cost
- Optional redundant power supply – ensures reliability for mission-critical applications
- Long-Reach mode up to 1080p@150m – enables extended AV transmission using the HDBaseT™ Input/Output board with ATEN HDBaseT™ Class A Video Extenders
- HDCP 2.2 Compatible*
- HDMI: 3D, Deep Color, 4K*
- Consumer Electronics Control (CEC) supported*
- ESD protection for HDMI
- Rack mountable (9U design) Note: 1. The availability of the features with “*” depends on which I/O board is inserted. 2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™. 3. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
Спецификация
- Входни платки
- 8 x Slot
- Изходни платки
- 8 x Slot
Видео вход
- Интерфейси
- Depends on which I/O board is inserted
- Макс. скорост на данните
- 15.2 Gbps (3.8Gbps per Lane)
Аудио
- Вход
- Depends on which Input board is inserted
- Изход
- Depends on which Output board is inserted
Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
- RS-485/RS-422
- Connector: 1 x Captive Screw Connector, 5 Pole
- Ethernet
- Connector: 1 x RJ-45 Female
- EDID настройки
- EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Конектори
- Захранване
- 1 x 3-Prong AC Socket
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60Hz; 10A
- Консумация
- AC110V:800W:239BTU/h AC220V:800W:236BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Размери (Д x Ш x В)
- 48.20 x 47.19 x 39.90 cm (18.98 x 18.58 x 15.71 in.)
- Тегло
- 18.20 kg ( 40.09 lb )
- Височина (U)
- 9U
- Брой в кашон
- 1 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
