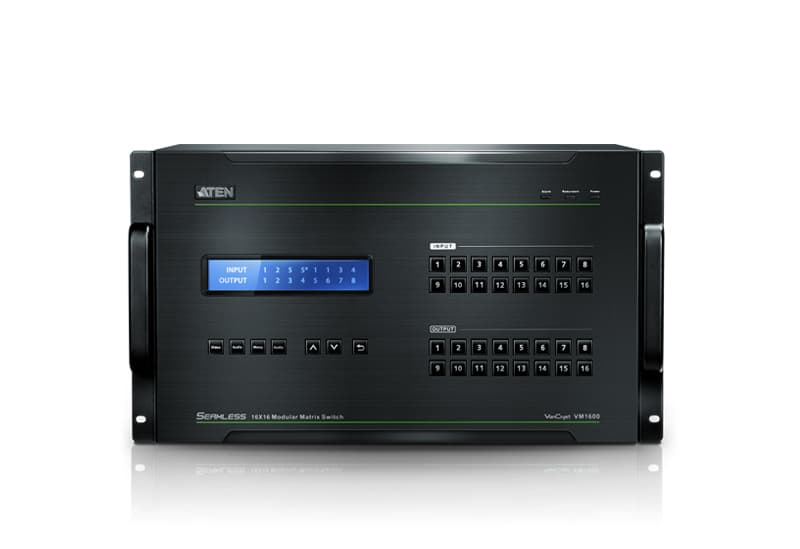

16x16 Modular Matrix Switch
VM1600Снет от производство
Модулен матричен превключвател — комутира 16 видеоизточника към 16 дисплея чрез сменяеми I/O платки. Поддържа 4K до 4096 x 2160, управление от предния панел, по RS-232 или Ethernet.
Характеристики

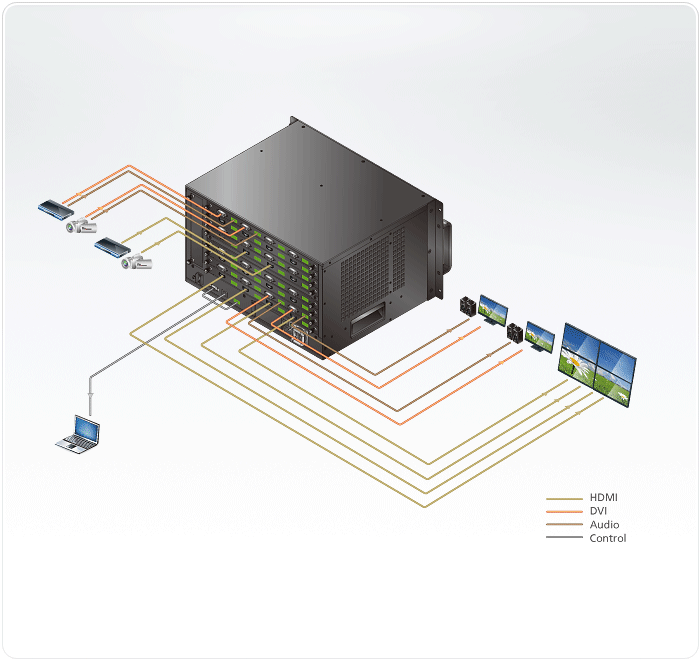

- Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix I/O Boards
- Multiple means for system configuration including front-panel pushbuttons, RS-232/422/485 control, and Ethernet connections for web GUI or Telnet
- 4K resolutions – up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)*
- Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
- Scaler – features a (4K) video scaling function to convert input resolutions to the display’s native resolutions*
- Video wall – allows you to create custom video wall layouts via intuitive web GUI*
- EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- Audio-enabled – HDMI audio can be extracted and stereo audio can be embedded*
- Bi-directional RS-232 channel – allows you to control the connected serial devices simultaneously through the web GUI
- Supports redundant power module for higher reliability
- Hot-swappable design for easy integration of I/O boards, fan module, and power supplies
- HDCP 2.2 Compatible*
- HDMI: 3D, Deep Color, 4K*
- Consumer Electronics Control (CEC) supported*
- ESD protection for HDMI
- Rack mountable (6U design) * Note: 1. The availability of the features with “*” depends on which I/O board is inserted. 2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™. 3. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
Видео вход
- Интерфейси
- Depends on which I/O board is inserted
- Импеданс
- 100 Ω
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps per lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP Support depends on the boards selected Consumer Electronics Control (CEC) HDBaseT Compatible
Аудио
- Вход
- Depends on which Input board is inserted
- Изход
- Depends on which Output board is inserted

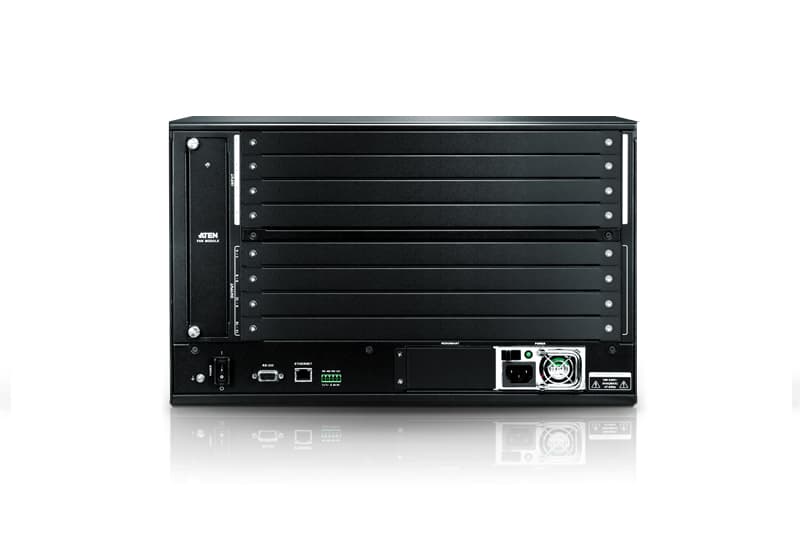

Управление
- RS-232
- Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
- RS-485/RS-422
- Connector: 1 x Captive Screw Connector, 5 Pole
- Ethernet
- Connector: 1 x RJ-45 Female
- EDID настройки
- EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Конектори
- Захранване
- 1 x 3-Prong AC Socket
Захранване
- Макс. входна мощност
- 100-240 VAC; 50-60Hz; 1.0A
- Консумация
- 378W (Max.) *A power module can be purchased for power redundancy. Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Вентилатор
- Airflow: 60 cfm Operating Voltage: 10.8 - 13.8 VDC Operating Temp: -10 - 70°C
Работна среда
- Работна температура
- 0 - 40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 17.00 kg ( 37.44 lb )
- Размери (Д x Ш x В)
- 48.22 x 39.90 x 26.59 cm (18.98 x 15.71 x 10.47 in.)
- Височина (U)
- 6U
- Брой в кашон
- 1 pc
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
