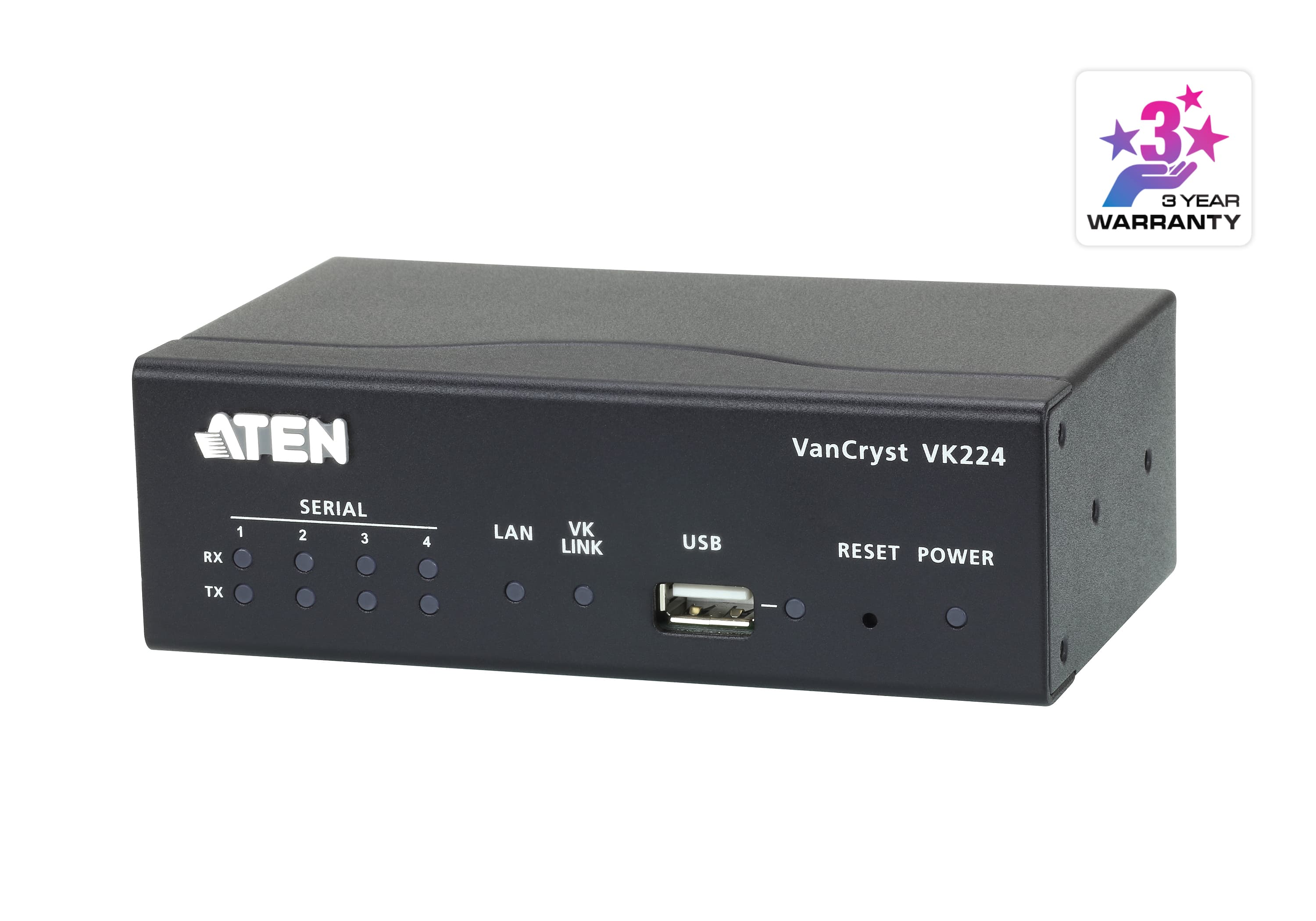

Разширителен модул Ethernet-към-сериен с 4 двупосочни RS-232/422/485 порта за свързване на серийни устройства към контролната система. Захранва се по PoE или DC; поддържа протокола Modbus.
Характеристики
- An Ethernet-to-serial box ships with 4 bi-directional RS-232/422/485 serial ports
- Supports Power over Ethernet (PoE) or DC power supply
- Supports IEEE 802.1x authentication protocol for enhanced network security
- Supports Modbus protocol - enables integration with Modbus devices, including TCP, RTU and its checksum data
- Supports Telnet CLI (command-line interface) mode for third-party system integration
- WebUI provides VK224 system information, including firmware upgrade
- An expansion solution for connecting more serial devices to ATEN Control System

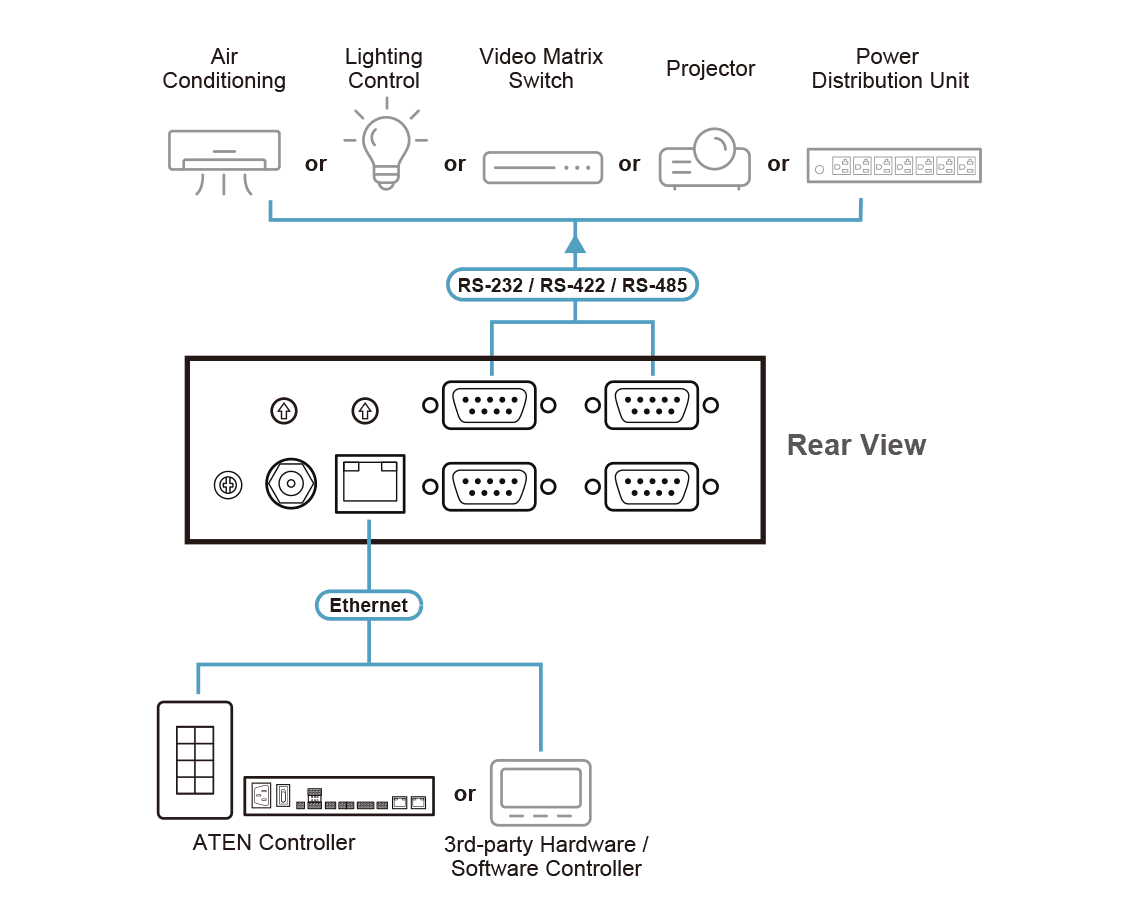

- Flexible deployment via Ethernet connection
- Works with a connected ATEN controller with ID Switch through instant configuration

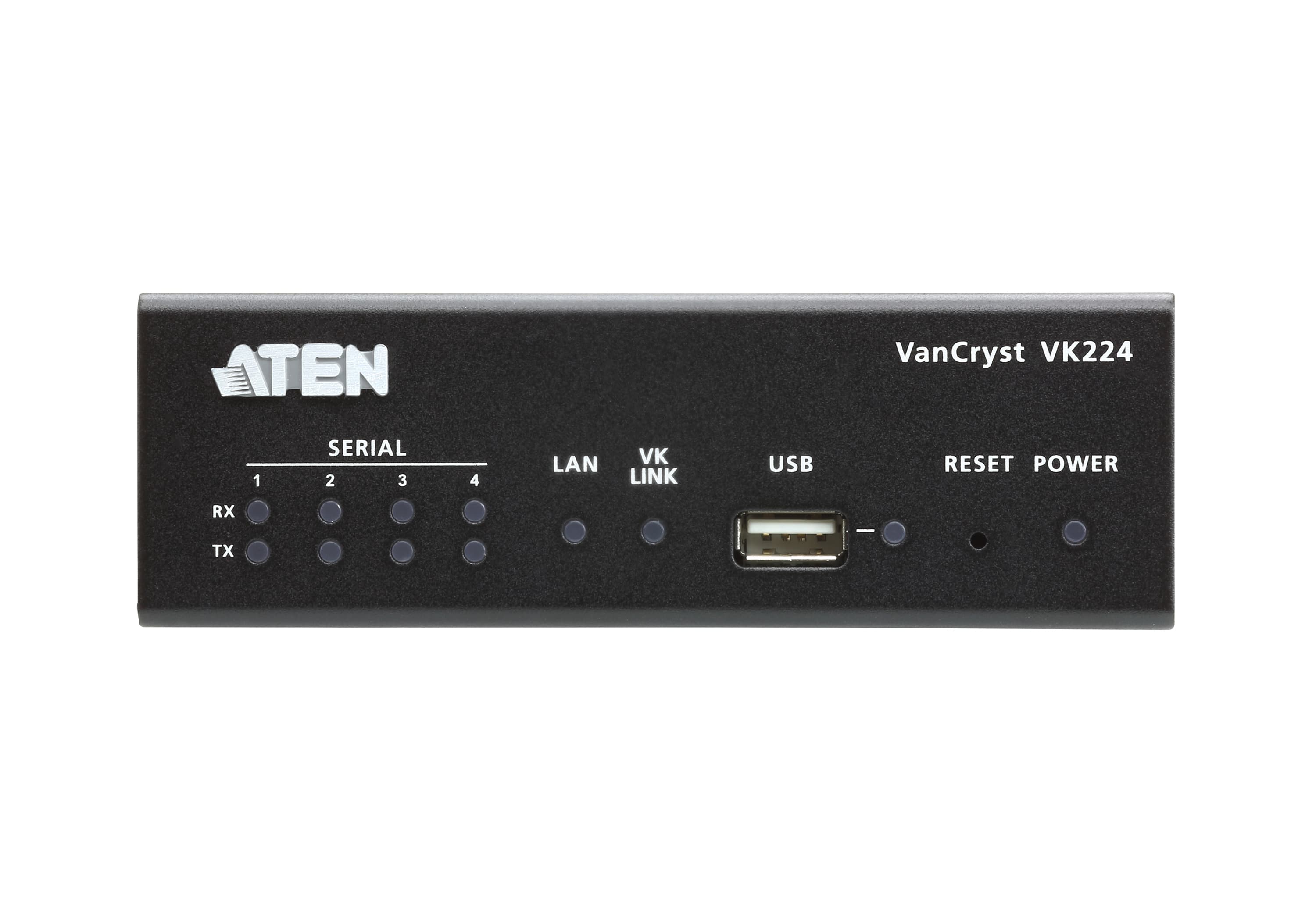

Интерфейси
- Сериен

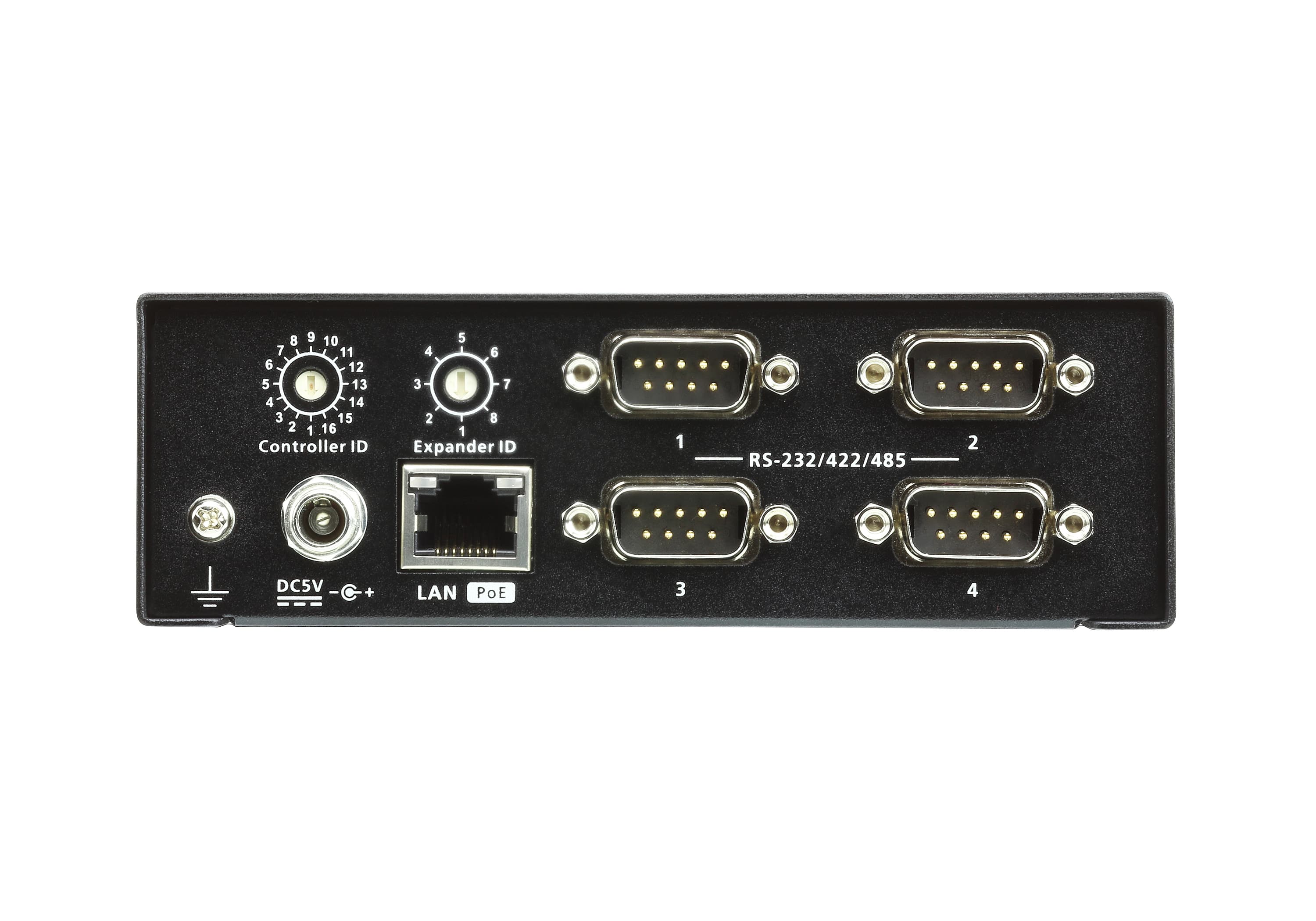

- • 4 x Programmable Bi-directional RS-232/422/485 Port (4 x DB9 Male Connector, configurable via pin assignments); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd; – Flow Control: None (default) RTS/CTS RS-232RS-422RS-485Pin2: RXPin 1:RX-Pin3:D+Pin3: TXPin 2: RX+Pin 4:D-Pin 5: GNDPin 3: TX+Pin 5: GND (Highly recommended for long-distance connectivity.)Pin 7: RTSPin 4: TX-Pin 8: CTSPin 5: GND
- Пин 2: RX
- Pin 1:RX-
- Пин 3: TX
- Pin 2: RX+
- Пин 5: GND
- Pin 3: TX+
- Пин 7: RTS
- Pin 4: TX-
- Пин 8: CTS
- Pin 5: GND
- Ethernet
- • 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
Бутони и превключватели
- ID на контролера
- 1 x 16-segment Switch
- ID на разширителя
- 1 x 8-segment Switch
- Бутон за нулиране
- 1 x Semi-recessed Pushbutton
- USB
- 1 x USB Type A
- Консумация
- DC5V:3.8W:28BTU/h DC48V:4.75W:33BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 – 50°C
- Температура на съхранение
- –20 – 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.45 kg ( 0.99 lb )
- Размери (Д x Ш x В)
- 13.00 x 7.58 x 4.20 cm (5.12 x 2.98 x 1.65 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
