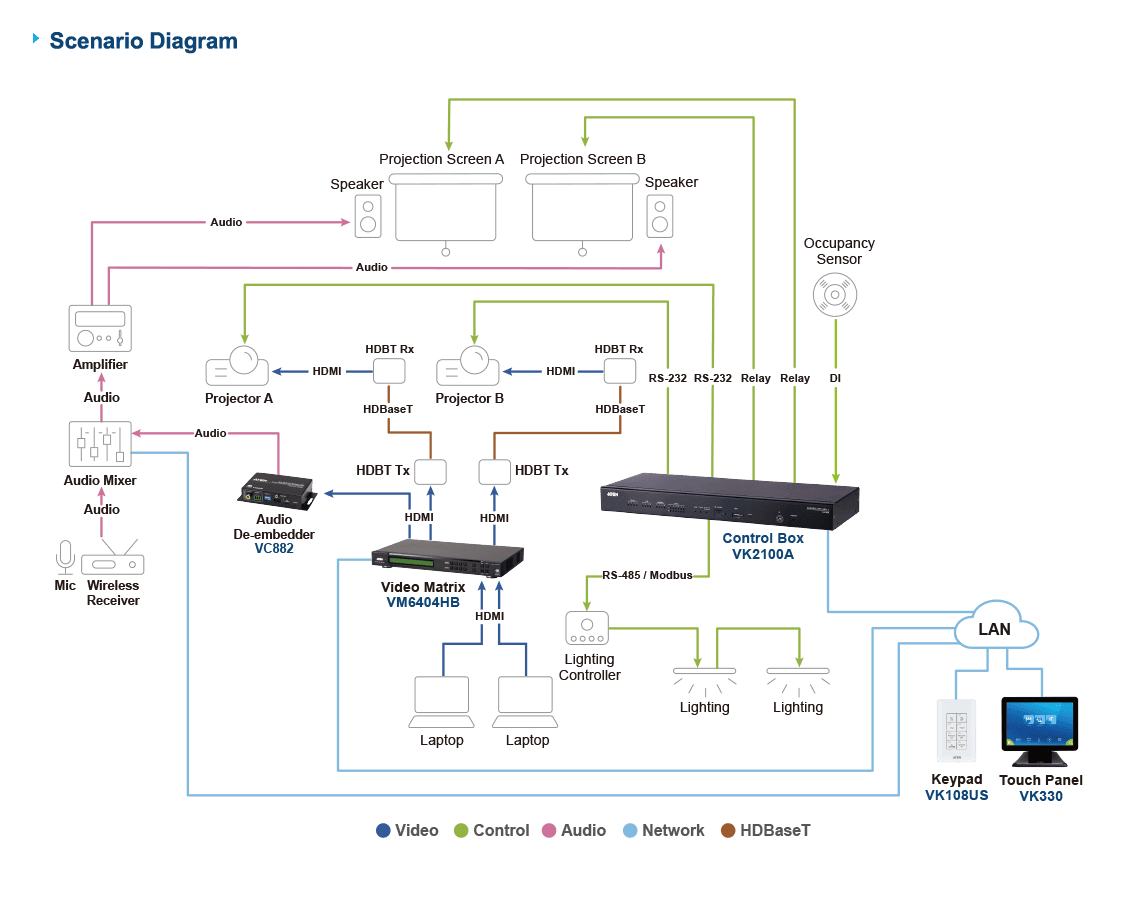

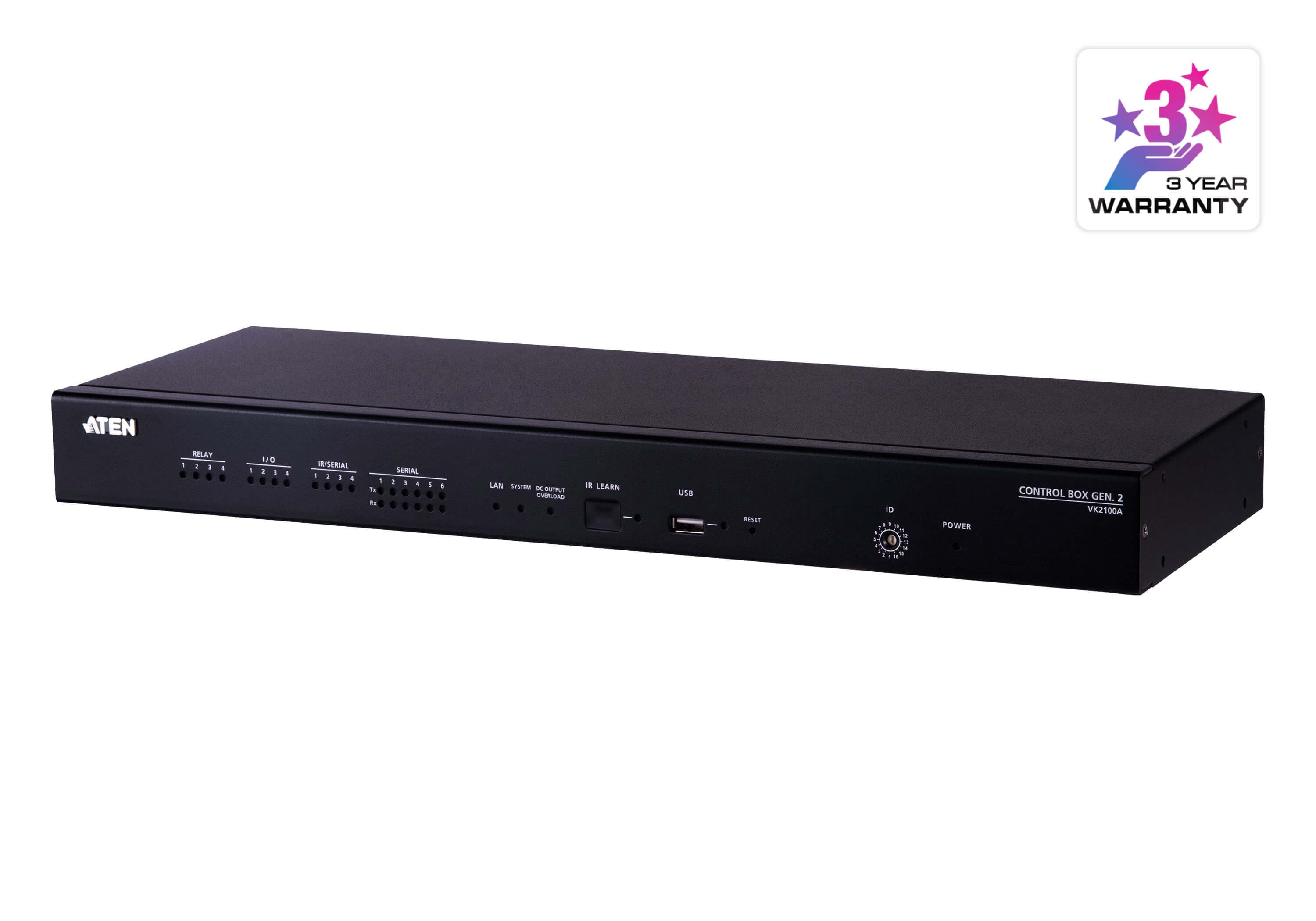

Контролен бокс с четириядрен процесор и 1 GB памет за управление на комплексни AV проекти. Интерфейси: 2 серийни RS-232/422/485, 4 IR/серийни порта, 4 релейни канала, 4 цифрови I/O и Ethernet.
Характеристики
- High-performance processor embedded with quad-core CPU and 1GB memory for designing and controlling complex projects
- Supports various interface connections for hardware-software integration and mobile device control
- DC outputs for power supply connections
- USB port for easy project upload
- IR learning function for adding IR device drivers
- Web Viewer – integrated with 3rd-party systems or any web-based console for easier room equipment management
- Supports IEEE 802.1x authentication protocol for enhanced network security
- Supports SNMP and enables IT management software to retrieve information from ATEN controllers
- Supports native KNX IP for building management systems
- TCP, UDP, Telnet, SSH, HTTP, HTTPS, WebSocket, ONVIF, and PJLink compliant
- Supports Pronto formatted IR codes – IR command codes can be entered in Hex format
- Supports Modbus protocol – enables integration with Modbus devices, including TCP, RTU and its checksum data
- Supports Telnet CLI (command-line interface) mode for third-party system integration
- Supports centralized control and management by ATEN Unizon™
- Supports project file backup
- Web GUI for easy system configuration
- Supports SSH communication for convenient data monitoring
- LED indication of connection and hardware status
- 2 free licenses for mobile control* Note: If you require more than 2 licenses, contact the local sales representative. For more information on licenses, please see Specifications.
Памет
- SDRAM
- 1GB
- Flash памет
- 8GB

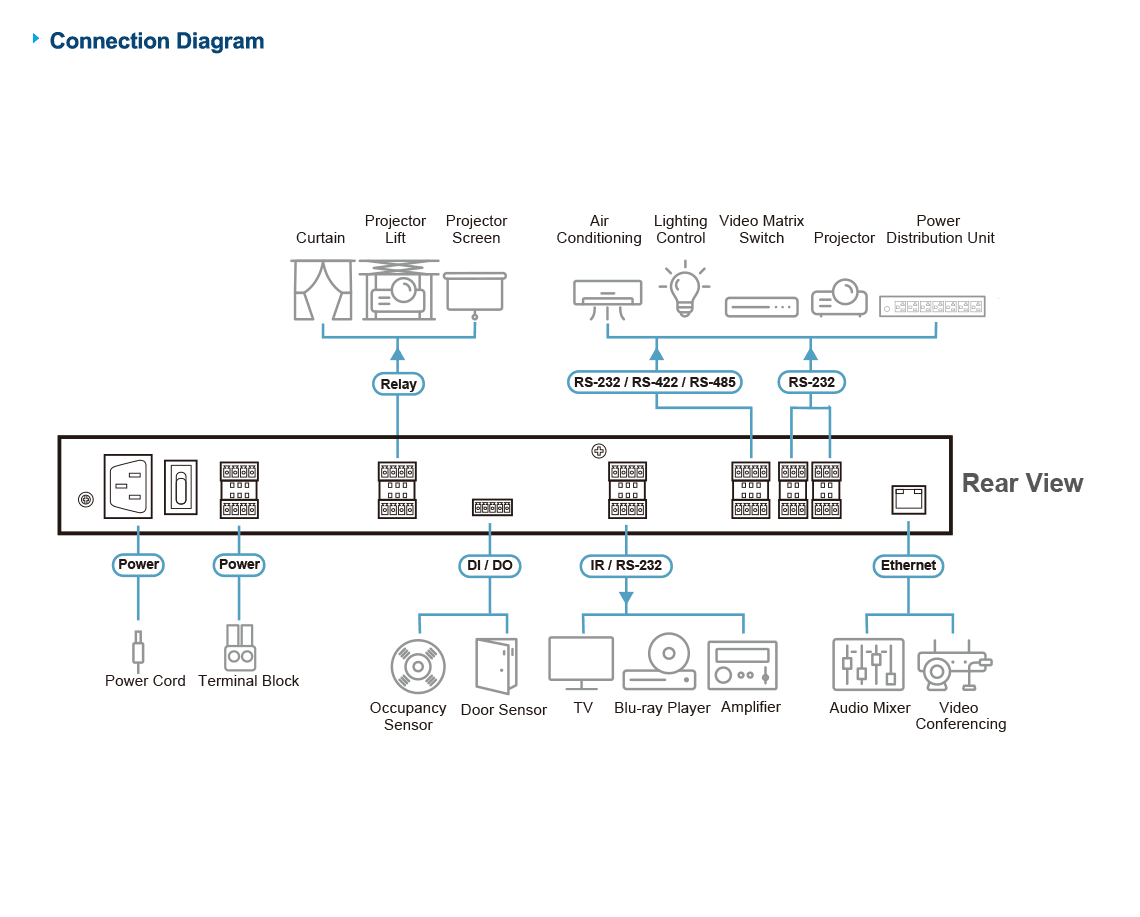

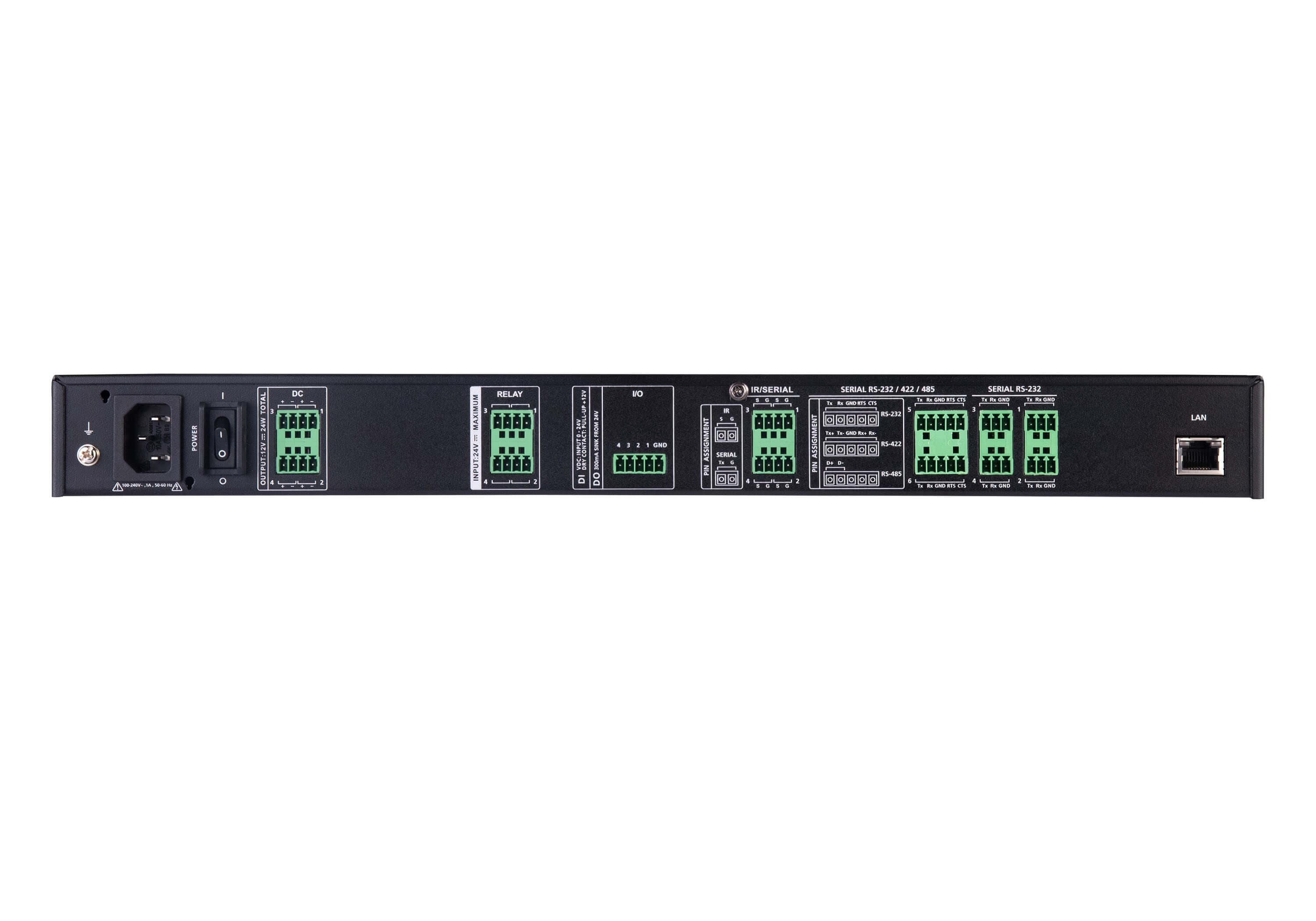

Интерфейси
- Сериен
- • 2 x Programmable Bi-directional RS-232/422/485 Port (2 x 5-Pole Terminal Block Connector, configurable via pin assignments); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd; – Flow Control: None (default) or RTS/CTS • 4 x Bi-directional RS-232 Port (4 x 3-Pole Terminal Block Connector); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd
- IR / сериен
- • 4 x Programmable IR / Uni-directional RS-232 Port (2 x 4-Pole Terminal Block Connector); IR: TTL level (0 to 5 V) – Carrier Frequency: 10KHz~455KHz; Serial: Uni-directional RS-232 (0 to 5 V) – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd
- Реле
- • 4 x Relay Channel (2 x 4-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 2A
- I/O
- • 4 x Programmable Digital Input / Output Channel (1 x 5-Pole Terminal Block Connector); Digital Output: 300 mA sink from 24 VDC Digital Input: – VDC Mode Input Voltage Range: 0 to 24 VDC; Programmable Range: 1 to 24 VDC; – Dry Contact Mode Pull-up 2k ohms to + 12 VDC
- Ethernet
- •1 x RJ-45 Female, 10/100/1000Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
- VDC
- • 4 x 12 VDC Output Port (2 x 4-Pole Terminal Block Connector); • Power Supply: 12 VDC, 2A Max (shared by 4 ports)
- USB
- 1 x USB Type A

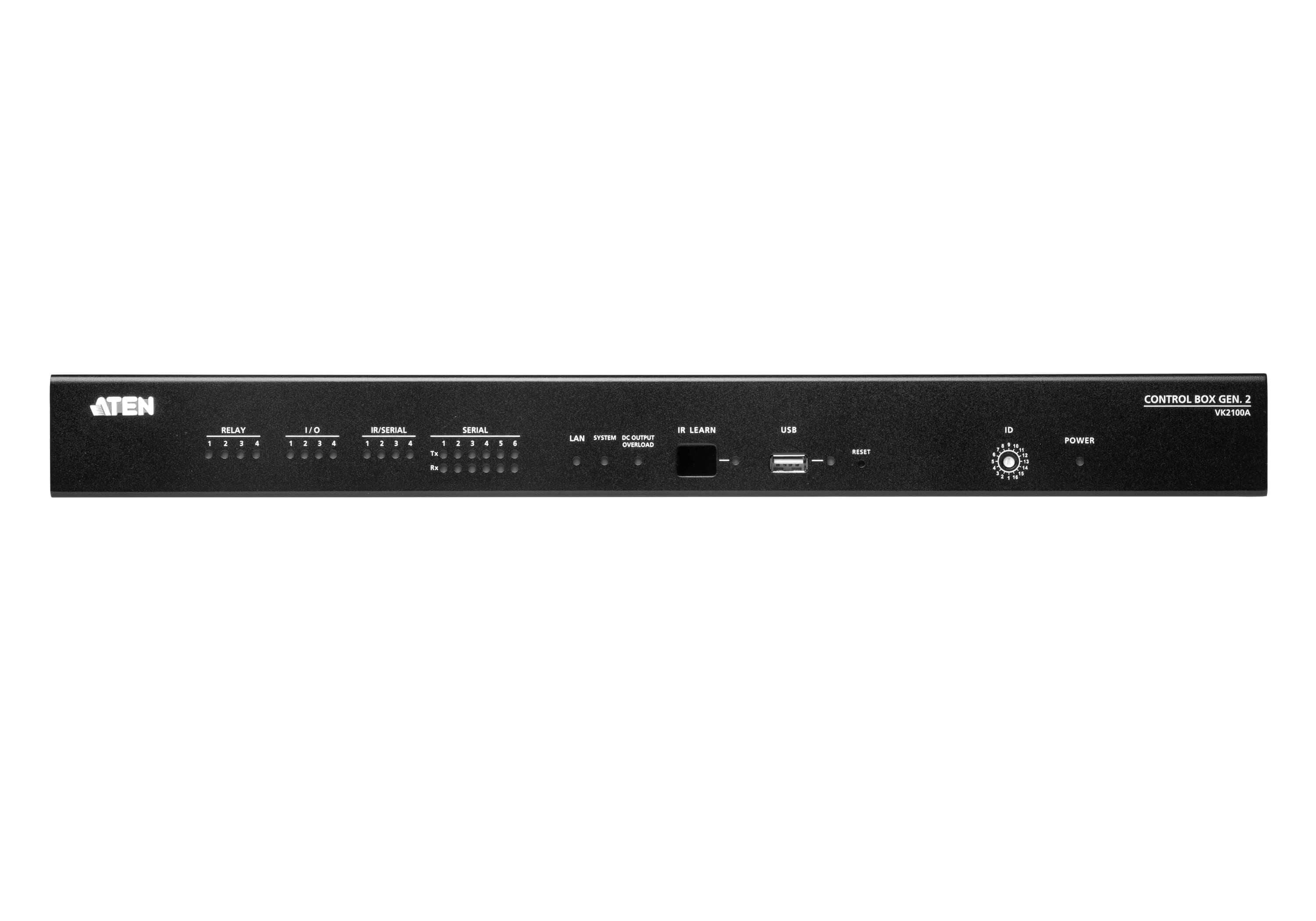

Бутони и превключватели
- Захранване
- 1 x On/Off Switch
- IR обучение
- 1 x IR Receiver LED
- Бутон за нулиране
- 1 x Semi-recessed Pushbutton
- Консумация
- AC110V:5.2W:137BTU/h AC220V:6.5W:143BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Захранване
- Макс. входна мощност
- 100-240 V AC, 50-60 Hz, 1A
Работна среда
- Работна температура
- 0 – 50°C
- Температура на съхранение
- –20 – 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.59 kg ( 5.7 lb )
- Размери (Д x Ш x В)
- 43.24 x 16.32 x 4.40 cm (17.02 x 6.43 x 1.73 in.)
Лиценз
- Базов (безплатен)
- 2 free licenses
- Макс. допустим брой
- 16 licenses
- Забележка
- The ATEN Control Box comes with two free licenses which are stored in the device itself. Each time a mobile device connects to an ATEN Control Box for remote control, one license on the Control Box will be occupied. To purchase and add additional licenses to your ATEN Control Box, contact your local sales representative for more information.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
