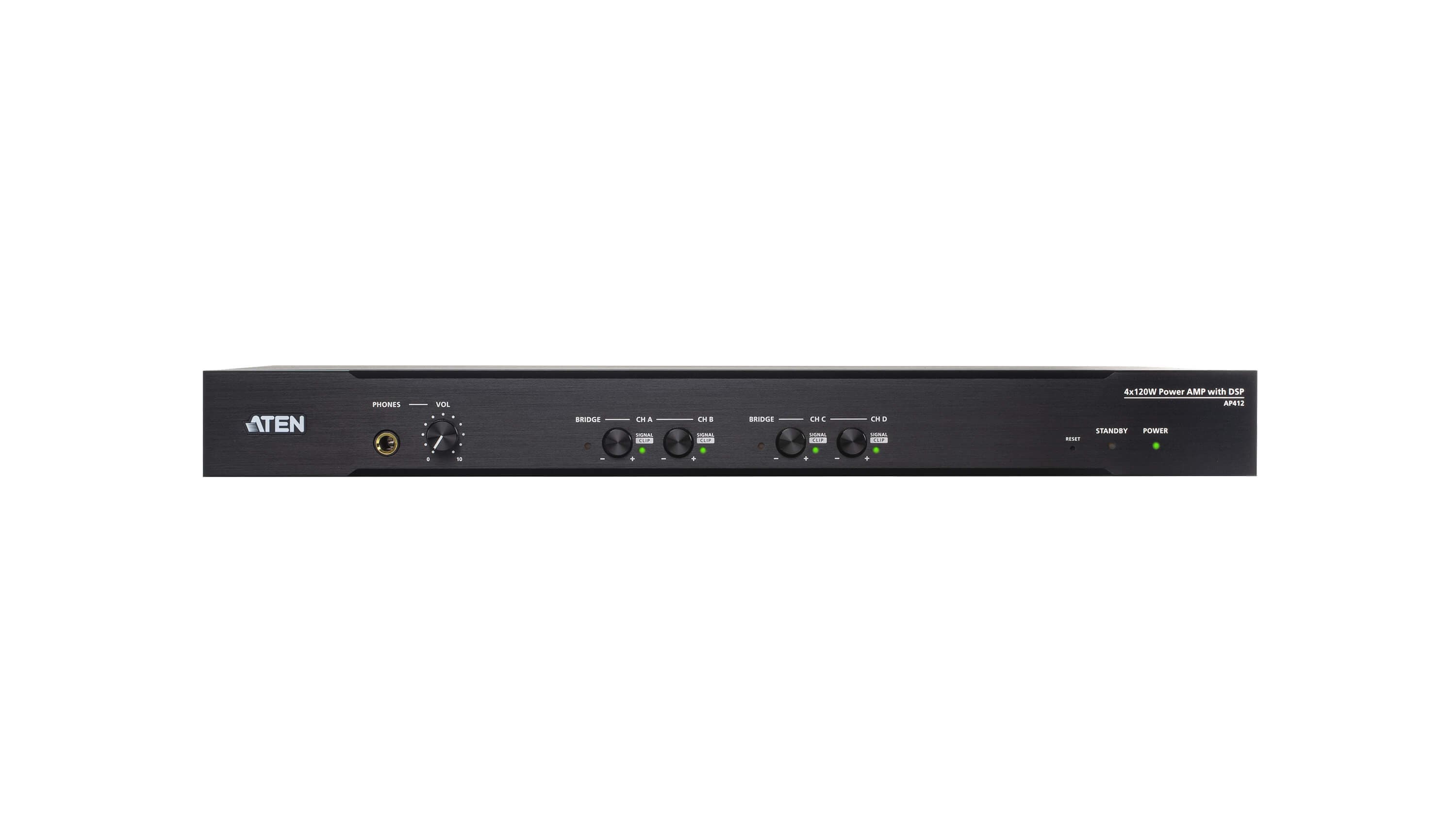

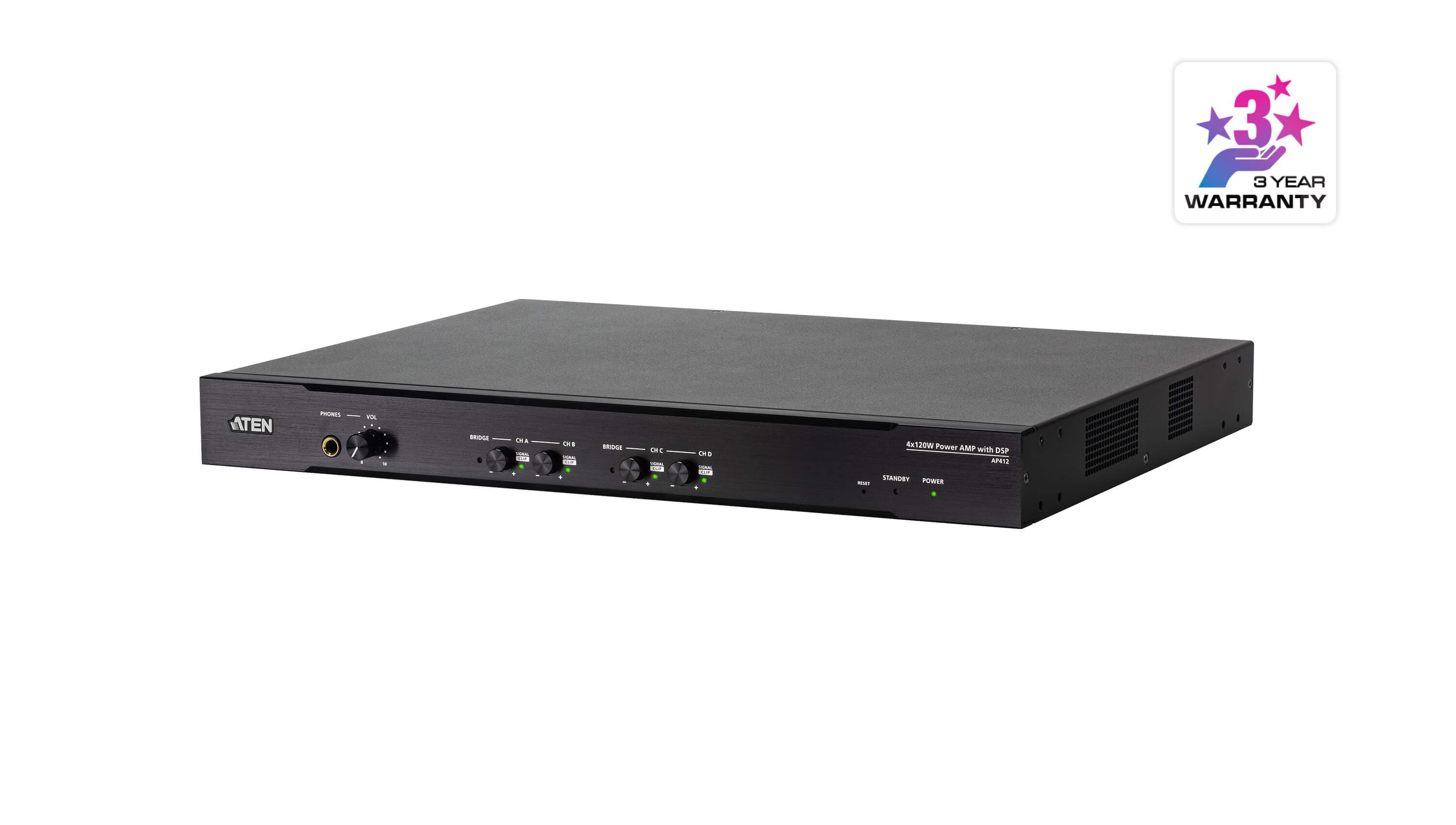

Четириканален усилвател Class D с DSP: 120 W на канал към 4 или 8Ω, 240 W в Bridge режим към 8Ω или 70/100V линия. Mic/line входове с +48V фантомно захранване; Sigma DSP с WebGUI.
Характеристики
- A 4-channel DSP-equipped amplifier that delivers 120W per channel
- Supports balanced / unbalanced mic / line-level inputs and drives 4 / 8-ohm low impedance or 70 / 100V line (in Bridge mode) loudspeaker systems
- +48V phantom power supply
- Built-in WebGUI-configurable Sigma® DSP allows speaker EQ, 5-band EQ, compressor, delay, limiter, and up to 20 presets for precise tuning and system protection
- Class D design assures high power efficiency
- PFC (Power Factor Correction) Power Supply – Fly-back power supply design with PFC ensures efficient operation while reducing energy consumption
- Integrated protection circuit – Protects the system from damages caused by Amp short circuit, Amp output over/under voltage, high-frequency overload, and overtemperature
- Customizable Auto Standby mode – Amplifier automatically switches to “sleep” when the signal level falls lower than -40 / -50 dBu for 10 / 15 / 25 minutes
- Solo function – Allows users to isolate and monitor a particular input / output
- Expansion slot for add-on expansion card – Install AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two more channels of mic / line input signals
- Fanless – Avoids fan noise and prevents dust from building up
- Supports VK Control System via RS-232 and Ethernet connection
- 1U rack mountable enclosure
- Firmware upgradable
Системни характеристики
- Тип усилвател
- Class D
- Номинална мощност
- 120W per Channel @4Ω or 8Ω 240W per Channel @8Ω Bridge or 70/100V Hi-Z Bridge
- Чувствителност
- Balanced: +4dBu Unbalanced: -10dBV (0dBu=0.775Vrms, 0dBV=1Vrms)
- Изкривявания
- THD+N: <0.1%, 1kHz, 3dB before clipping
- Честотна характеристика
- 50~20kHz, +/-2.5dB @4Ω, 1W, MIC/Line Input to SPK Output
Микрофонни входове
- Диапазон на усилване
- 0~+36dB
- Импеданс
- 3kΩ
- Фантомно захранване
- +48V
Линейни входове
- Диапазон на усилване
- Bal: -6~+4dB UnBal: -6~+10dB
- Импеданс
- Bal: 5kΩ UnBal: 2.5kΩ
- Макс. входно ниво
- +19dBu / Nominal: +4dBu
Линейни изходи
- Импеданс
- 200Ω
- Макс. изходно ниво
- +10dBu / Nominal: +4dBu
Аудио изходи
- Импеданс
- Lo-Z: 4/8Ω Lo-Z Bridge: 8Ω Hi-Z: 70V (20Ω), 100V (40Ω)
Изходи за слушалки
- Честотна характеристика
- 50~20kHz, -3dB @10mW
- Макс. изходно ниво
- >30mW @32Ω
- Аудио ефекти
- Built-In DSP (COMP, EQ, Delay, Priority, Limiter)
- Защита
- Output Shortcut AMP Output over/under voltage High Frequency Overload Thermal Protect
Комуникация
- RS-232
- Connector: 3-pin, 3.5mm, Terminal Block Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Съответствие
- Сертификация
- FCC, CE, UKCA, IEC62368-1:2018
Захранване
- Макс. входна мощност
- 100-240V~, 50/60Hz, 4A with PFC
- Консумация
- AC110V:81W:380BTU AC220V:76.7W:360BTU
- Забележка
- 1/8 Max. Power Output
Работна среда
- Работна температура
- 0~50℃
- Влажност
- 0-80% RH, Non-Condensing
- Температура на съхранение
- -20~60℃
Физически характеристики
- Тегло
- 5.21 kg ( 11.48 lb )
- Корпус
- Metal
- Размери (Д x Ш x В)
- 43.24 x 33.97 x 4.40 cm (17.02 x 13.37 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
