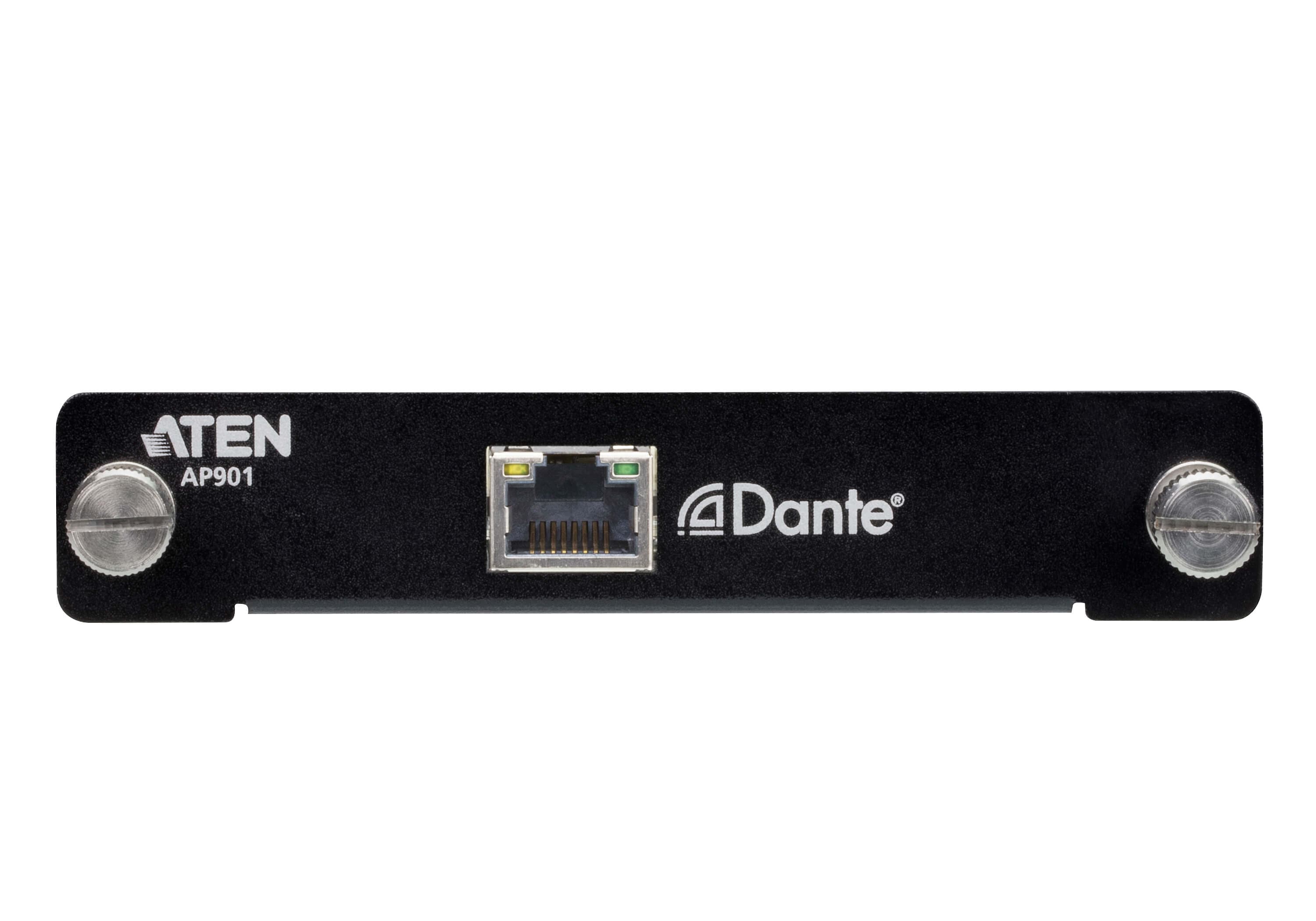

Разширителна карта, която добавя 2 входа за Dante AoIP аудио към усилвателите от серията AP. Работи с 24-bit при 44.1/48 kHz и се свързва през RJ45.
Характеристики
- Dedicated for use with ATEN’s AP DSP Power Amplifier series
- Allows AP power amplifiers to receive 2 inputs of highquality, low-latency digital audio via Dante AoIP solution
- Enables AP power amplifiers to easily integrate with Dante-enabled devices, such as digital mixers, processors, and media players
- Supports 24-bit and sampling rates of 44.1 / 48 kHz
- Compatible with Dante Controller software to achieve streamlined workflow
- Easy to be installed into the AP power amplifiers’ expansion slot
- Firmware upgradable via Dante LAN
Мрежов протокол
- 1000/10000 Mbps
- Dante Ultimo
- Конектор
- RJ45
- Аудио дискретизация
- 24-bit, 44.1/48kHz
Съответствие
- Сертификация
- FCC, CE, UKCA Tested with AP2 Amplifier
Работна среда
- Работна температура
- 0~50℃
- Влажност
- 0-80% RH, Non-Condensing
- Температура на съхранение
- -20~60℃
Физически характеристики
- Тегло
- 0.12 kg ( 0.27 lb )
- Корпус
- Metal Panel
- Размери (Д x Ш x В)
- 11.50 x 2.20 x 11.00 cm (4.53 x 0.87 x 4.33 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
