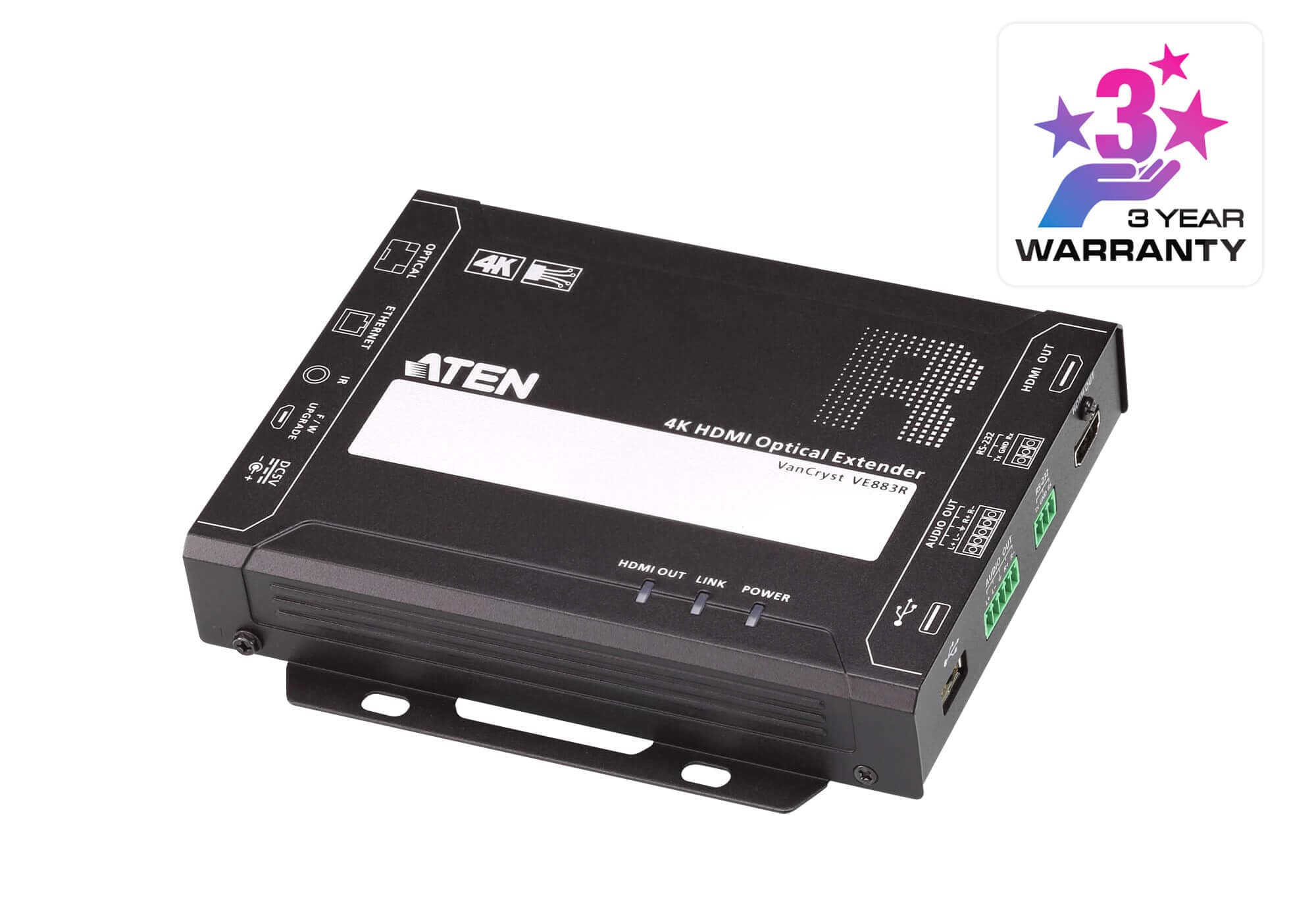

4K HDMI Optical Receiver (4K@300m (K1, MM) / 10km (K2, SM))
VE883R
Оптичен приемник за 4K HDMI, който приема и стерео аудио, IR, RS-232 и Ethernet по дуплексен оптичен кабел — до 300 m в многомодов (K1) или до 10 km в едномодов (K2) вариант.
Характеристики
- Extends HDMI video, stereo audio, IR, RS-232 control, and Ethernet signals over duplex fiber optic cabling
- Applies duplex fiber optic cables to connect the transmitter and the receiver
- Supports ultra long distance transmission up to 10 km*
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
- Supports lossless 4K video up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0)
- FarSmooth – ATEN’s exclusive FarSmooth technology prevents lagging and freezing by matching the output rates to the input rates and ensures the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required.
- Supports Gigabit Ethernet Channel
- Supports USB 2.0, with a maximal transfer rate of 25MByte/s
- Bi-directional IR signal transmission – IR transmission is processed one direction at a time, ranged from 30 kHz to 56 kHz
- Features RS-232 serial port for connecting peripherals such as touch screens, and barcode scanners
- Supports batch upgrades using Firmware Upgrade Utility
- Built-in 8 kV / 15 kV ESD protection
- Plug-and-play
- Hot-pluggable
- Rack-mountable Note: • The maximum transmission distance may vary depending on the fiber type, bandwidth, connector splicing, losses, model, chromatic dispersion, environmental factor, and kinks. • For long distance transmissions, ATEN recommends using SFP+ modules to allow compatibility with single or multi mode fibers. Depending on the chosen package (VE883RK1 or VE883RK2), different SFP+ modules are supplied: • VE883RK1: 10 Gbps/300m SFP+ Duplex Multi Mode Transceiver • VE883RK2: 10 Gbps/10 km SFP+ Duplex Single Mode Transceiver • ATEN recommends using Single Mode fibers that conform to IEC 11801 (OS1, OS1a, OS2), and Multi Mode fibers that conform to IEC 11801 (OM3, OM4) specifications. • The Device is class 1 laser product. It meets the safety regulations of IEC/EN 60825-1, 21 CFR 1040.10, and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- Up to 10 m
Видео
- Макс. скорост на данните
- 10.2 Gbps (3.4 Gbps Per Lane)
- Макс. пикселна честота
- 340 MHz
- Съответствие
- HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible
- Макс. резолюция
- 4096x2160/3840x2160@60Hz (4:2:0); 4096x2160/3840x2160@30Hz (4:4:4)
- Макс. разстояние
- 1 x SFP Module (*Note) VE883RK1: up to 300m (MM, OM3, Black) VE883RK2: up to 10km (SM, Blue)
Аудио
- Вход
- N/A
- Изход
- 1 x Terminal Block, 5 pole (Green)
Конектори
- Между устройства
- 1 x bi-directional SFP (LC)
- Обновяване на фърмуера
- 1 x Micro USB (Type B) Female (Black)
- Захранване
- 1 x DC Jack with locking
Оптични влакна
- Скорост на данните
- 10.3 Gbps
- Дължина на вълната
- VE883RK1: 850 nm VE883RK2: 1310 nm
- Тип оптично влакно
- VE883RK1: Multimode(MM), OM3, LC Duplex Type VE883RK2: Singlemode(SM), LC Duplex Type
Управление
- USB канал
- 1 x USB Type A Female (White)
- RS-232 канал
- 1 x Terminal Block, 3 pole (Green)
- IR канал
- 1 x Mini Stereo Jack Female (Black); 30~56 KHz full range transmission
- Ethernet канал
- 1 x RJ45 Female
Индикатори
- Захранване
- 1 (Green)
- Връзка
- 1 (Orange)
- Видео изход
- 1 (Orange)
- Консумация
- DC5V:6.77W:42BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.64 kg ( 1.41 lb )
- Размери (Д x Ш x В) със скоба
- 16.94 x 14.69 x 3.00 cm (6.67 x 5.78 x 1.18 in.)
- Размери (Д x Ш x В) без скоба
- 16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.)
- Брой в кашон
- 5 pcs
- Забележка
- 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications; Use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.
Фърмуер
