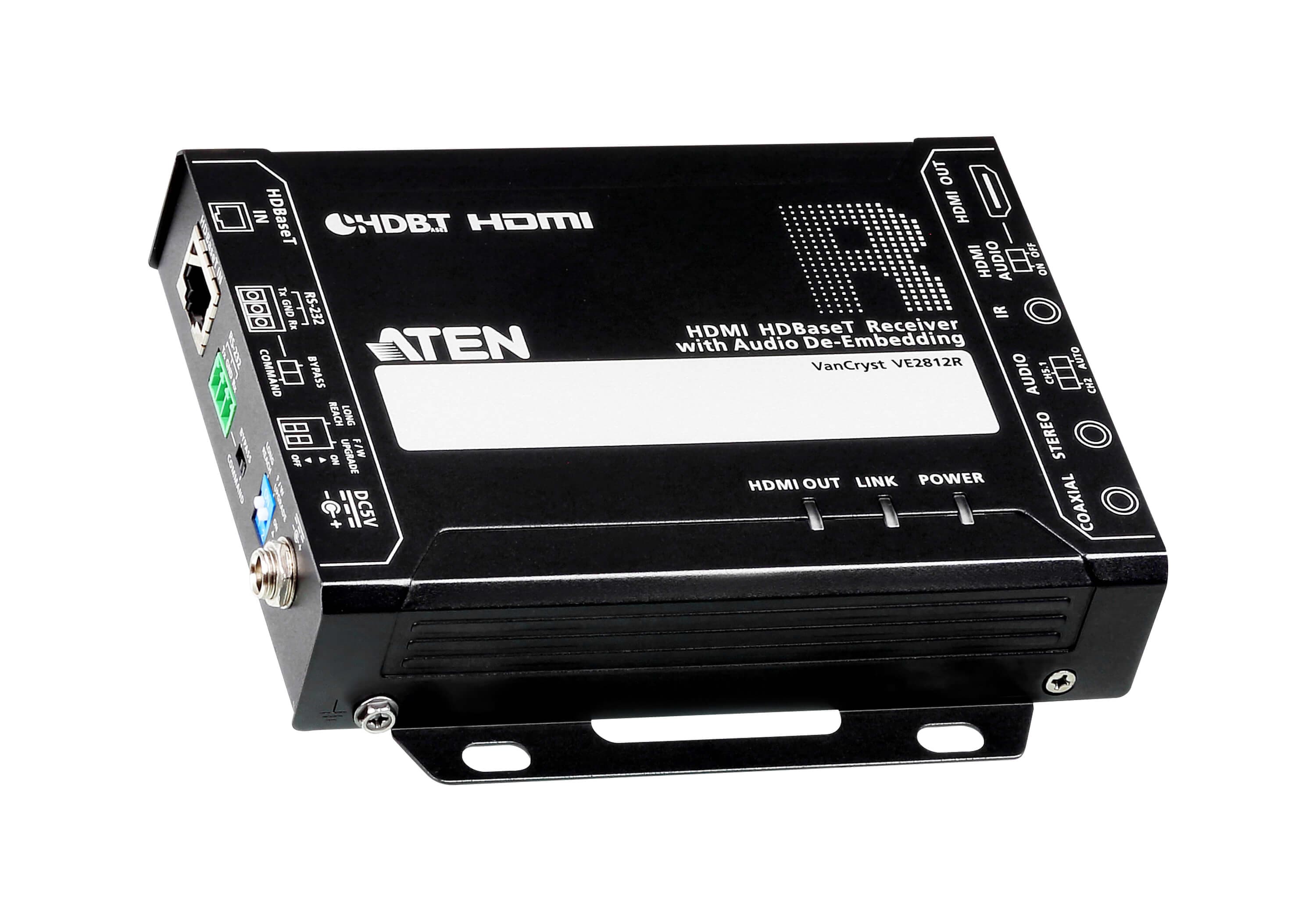

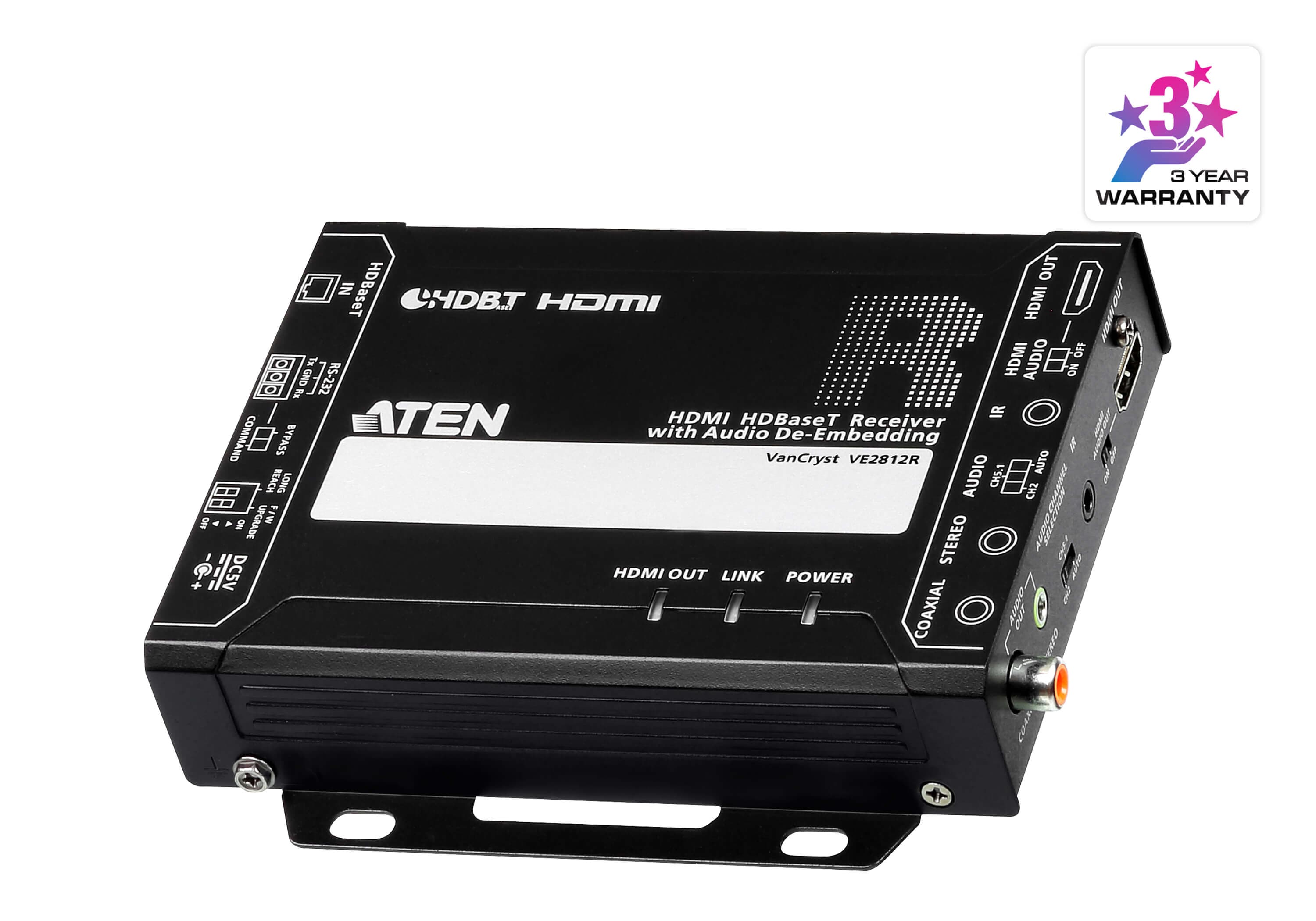

HDMI HDBaseT Receiver with Audio De-Embedding (4K@100m) (HDBaseT Class A)

Name: HDMI HDBaseT Receiver with Audio De-Embedding (4K@100m) (HDBaseT Class A)
Brand: ATEN
SKU: VE2812R

VE2812RСнет от производство

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

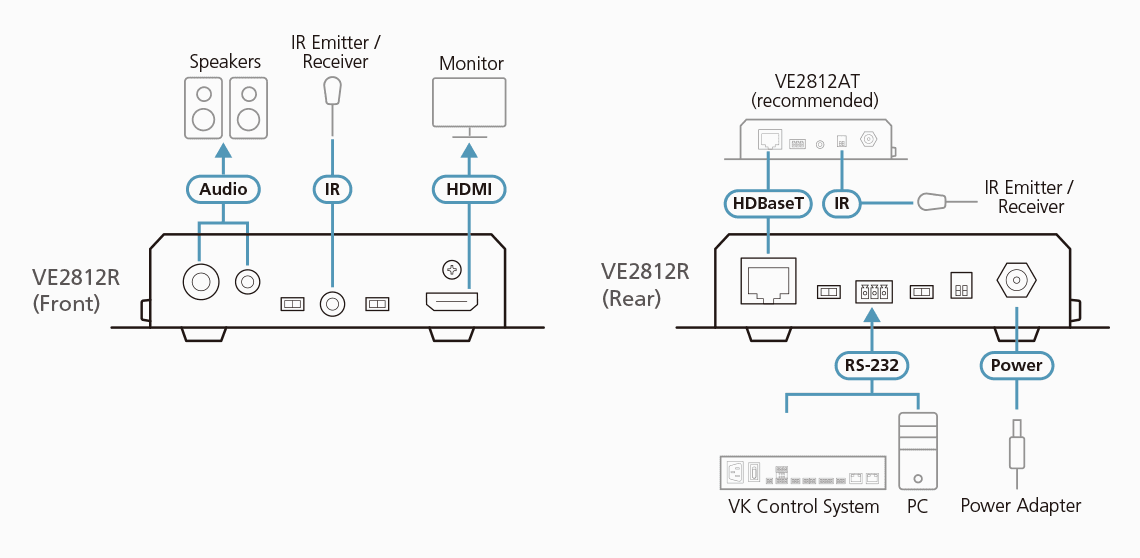

HDBaseT приемник, който приема 4K HDMI до 100 m (1080p до 150 m) по един Cat 5e/6/6a кабел. Функцията Audio De-Embedding извлича аудио потока от HDMI и го подава като отделен изход.

Характеристики

Superior video quality • 4K HDMI up to 100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable • 1080p up to 150 m via a single Cat 5e/6 cable in HDBaseT Long Reach Mode
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Supports Audio EDID Switching (2ch Stereo, 5.1ch Surround sound, and AUTO)
Supports Audio De-Embedding – extracts audio stream from an HDMI source and delivers as a separate audio from HDMI, Coaxial S/PDIF, or Stereo audio output
Features RS-232 Serial Communication Switch – Command mode and Bypass mode to meet application requirements
Supports bi-directional IR signal transmission - two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
Firmware upgradable
Built- in 8KV / 15 KV ESD protection
Plug-and-play
Rack-mountable using the VE-RMK1U

Видео изход

Интерфейси: 1 x HDMI Type A Female (Black)
Импеданс: 100 Ω
Макс. разстояние: 3 m (2L-7D03H)

Видео

Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. пикселна честота: 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Макс. резолюция: *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Макс. резолюция / разстояние: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)

Аудио

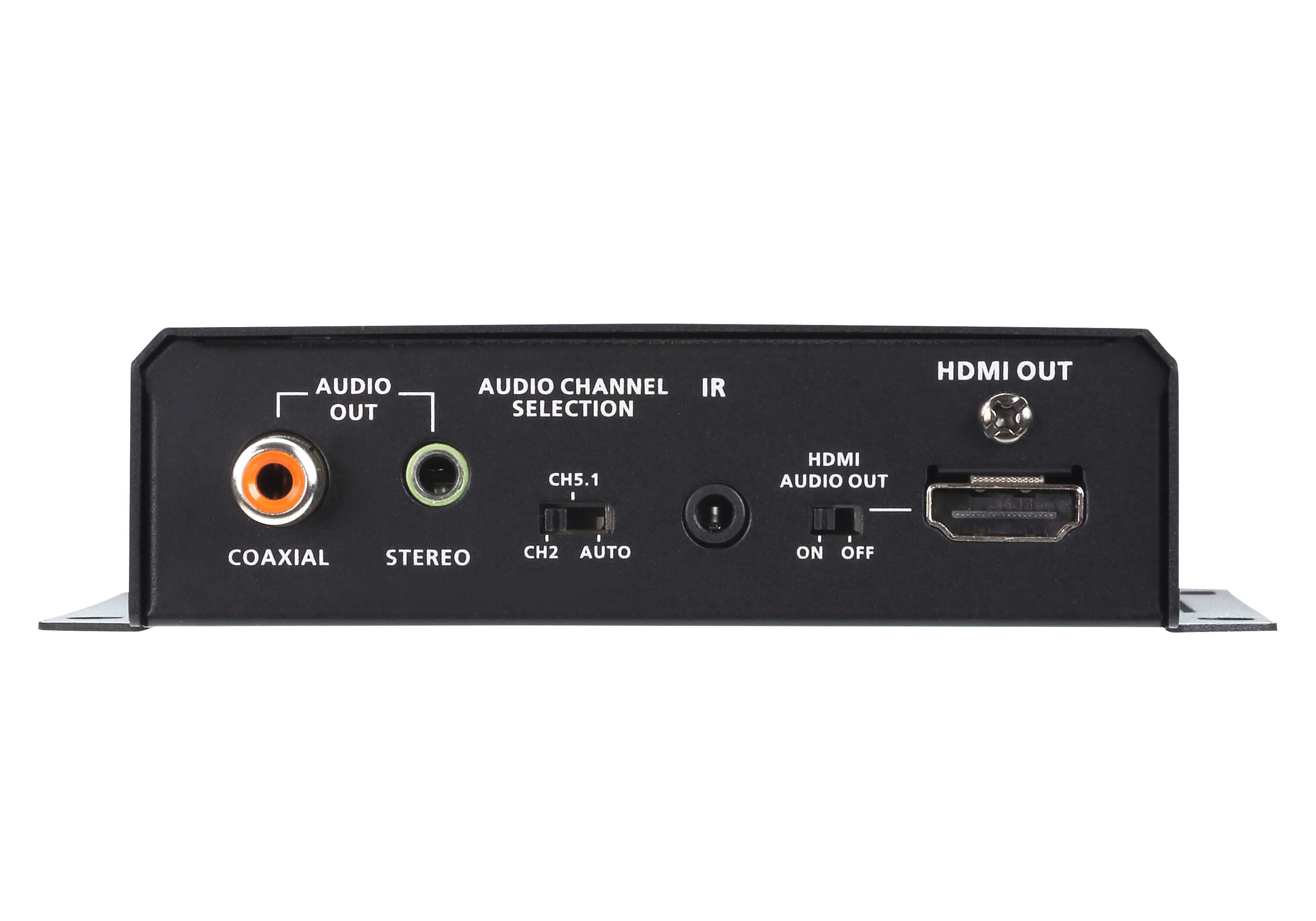

Изход: 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x SPDIF Coaxial Female (Orange)

Конектори

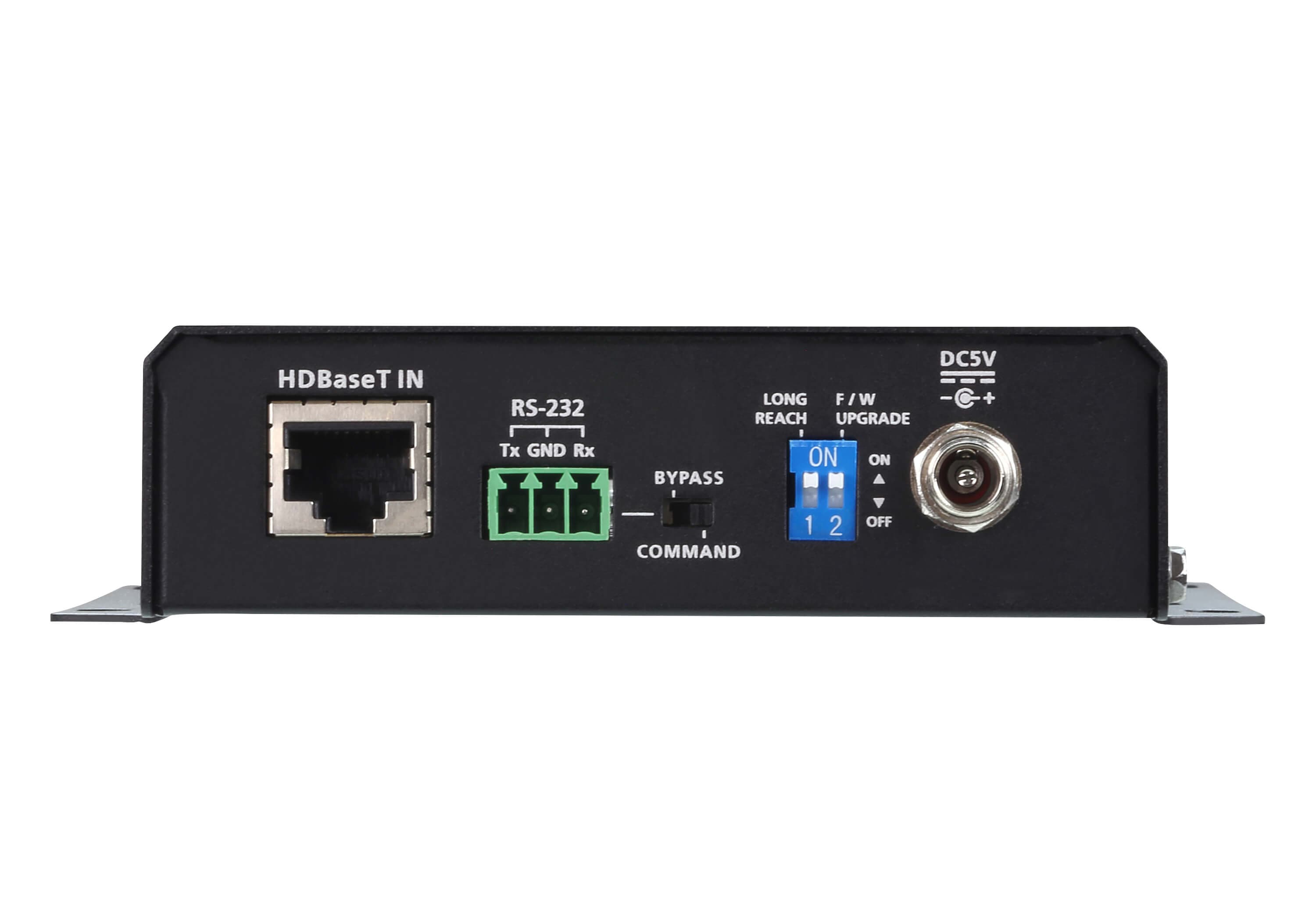

Между устройства: 1 x RJ-45 Female
Захранване: 1 x DC Jack (Black) with locking

Управление

RS-232: Connector: 1 x Terminal Block, 3 pole; Type: DTE Baud Rate: 115200, Data Bits:8, Stop Bits:1, no parity and flow control
IR: 1 x Mini Stereo Jack Female (Black)
Консумация: DC5V:4.98W:43BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Бутони и превключватели

Заглушаване на HDMI аудио: 1 x Slide Switch - HDMI Audio ON/OFF
Избор на аудио EDID: 1 x Slide Switch - Audio Output Format Selection: 2ch / 5.1ch / AUTO
Избор на режим: 1 x Slide Switch - RS-232 Bypass or Command mode Selection
Превключвател Long Reach: 1 x Slide Switch - Long Reach mode ON/OFF
Обновяване на фърмуера: 1 x Slide Switch - Firmware Upgrade mode ON/OFF

Работна среда

Работна температура: 0 - 40°C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-Condensing

Физически характеристики

Корпус: Metal
Тегло: 0.46 kg ( 1.01 lb )
Размери (Д x Ш x В) със скоба: 14.53 x 12.30 x 3.00 cm (5.72 x 4.84 x 1.18 in.)
Размери (Д x Ш x В) без скоба: 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
