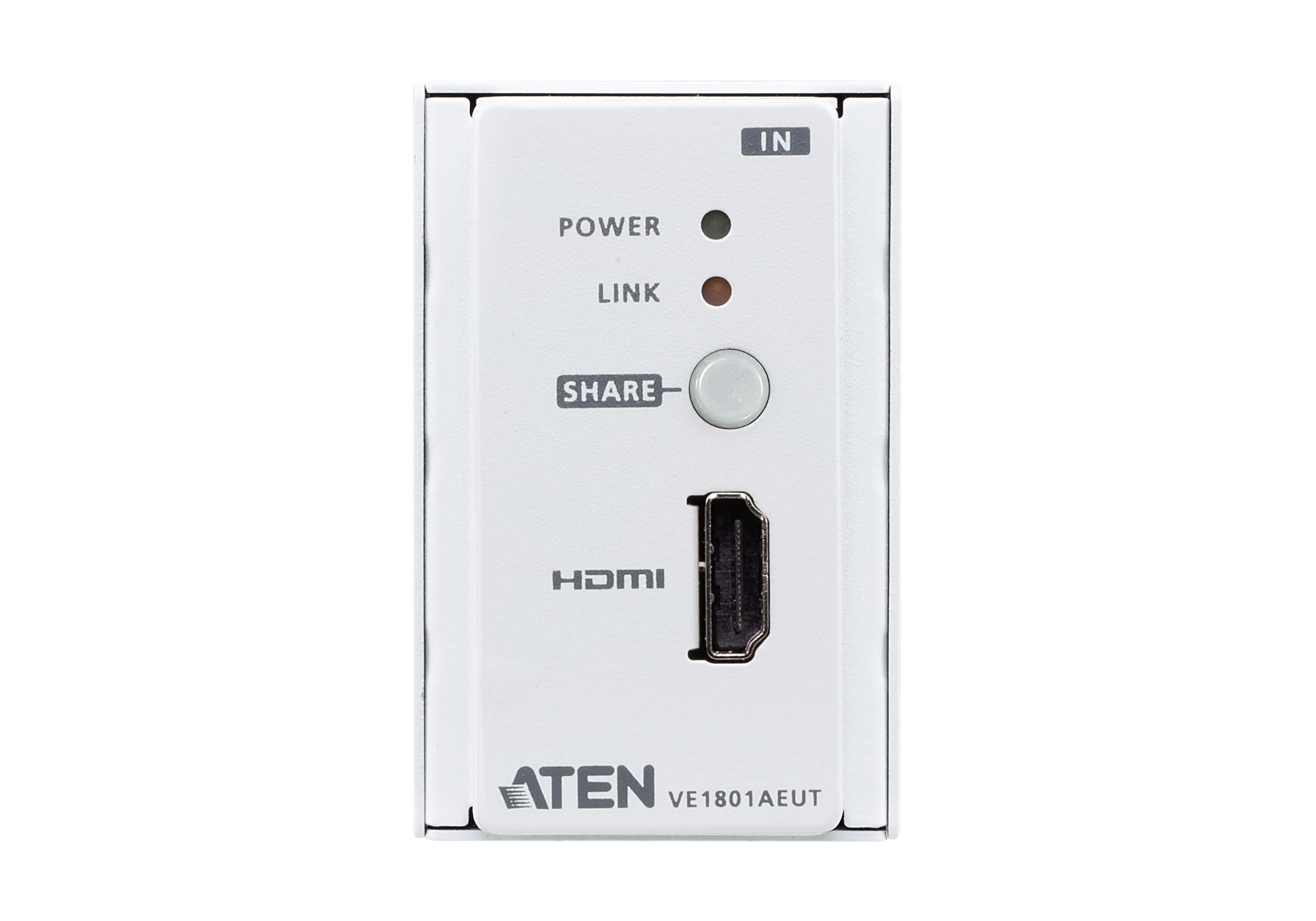

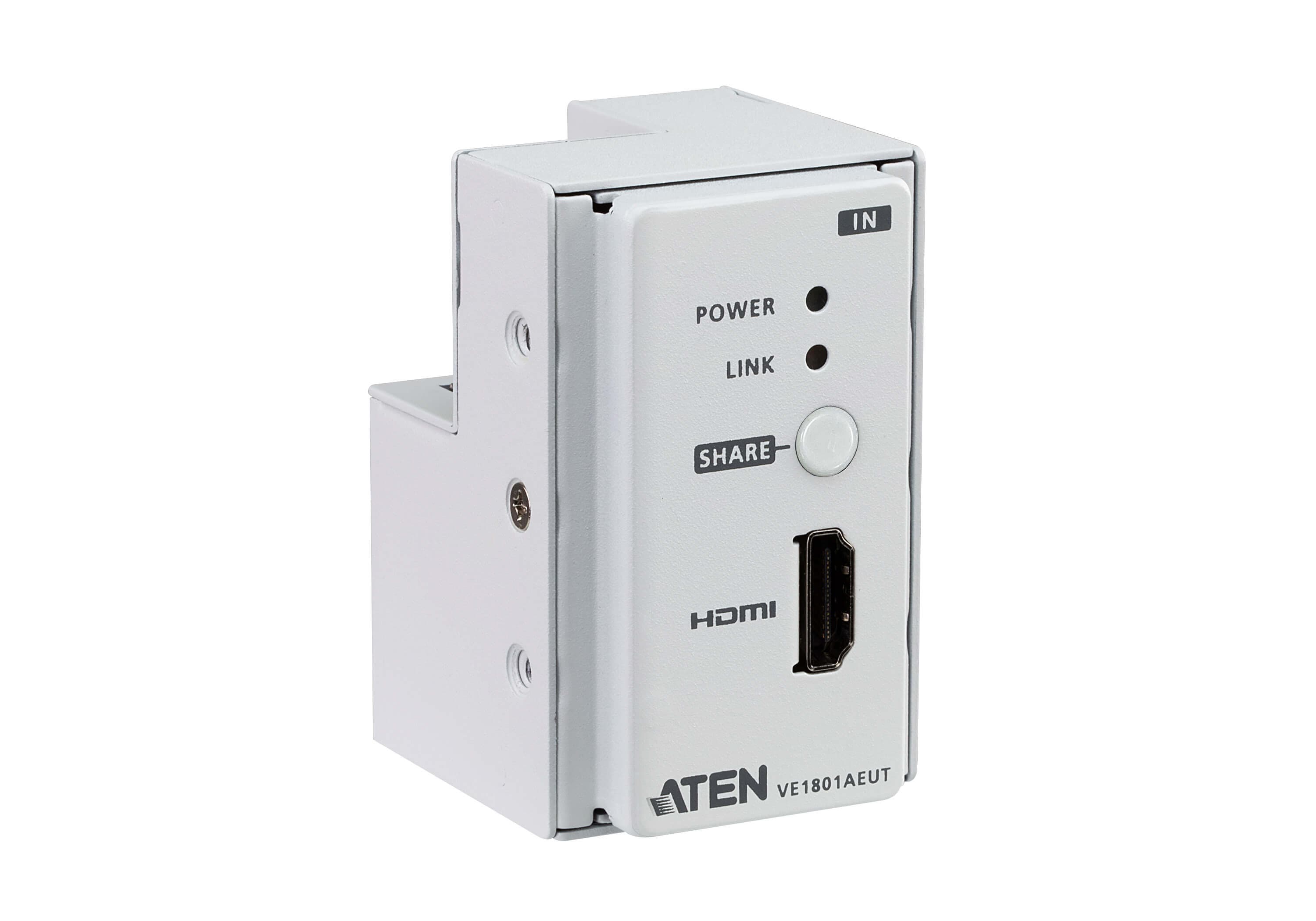

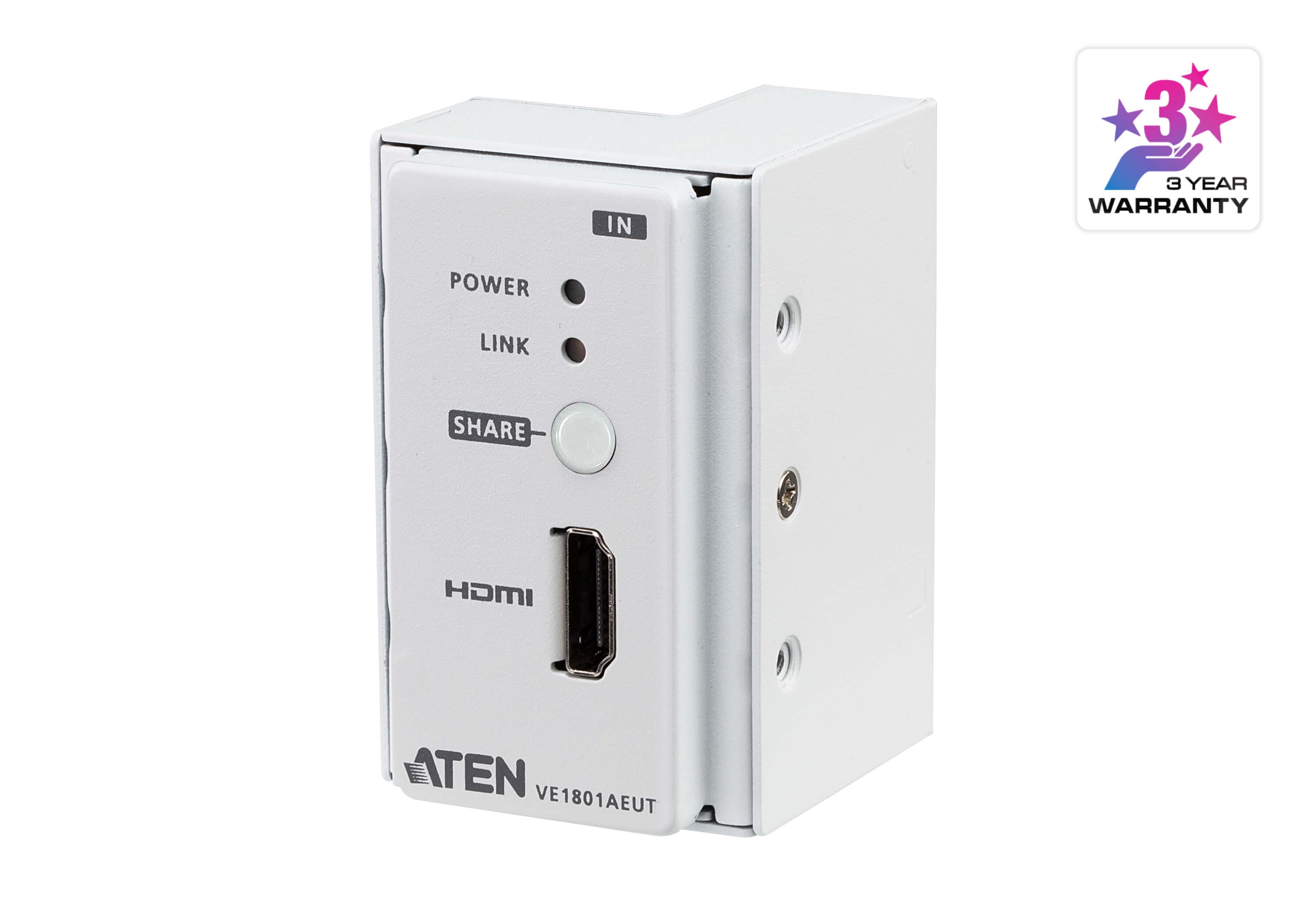

HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH (PoH PD)

Name: HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH (PoH PD)
Brand: ATEN
SKU: VE1801AEUT

VE1801AEUT

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

HDBaseT-Lite предавател за HDMI, вграден в EU стенна планка за 1-gang конзолна кутия. Пренася 4K до 35 m по Cat 5e/6 (40 m със сертифициран кабел) и се захранва по PoH.

Характеристики

Extends HDMI signals with superior video quality over a single Cat 5e/6/6a cable or ATEN 2L-29330 Cat 6 cable • 4K up to 40 m • 1080p up to 70 m
Built-in PoH (Power over HDBaseT) function – the VE1801AEUT receives power supply from the HDBaseT output port
HDMI (3D, Deep color, 4K); HDCP 2.2 compliant

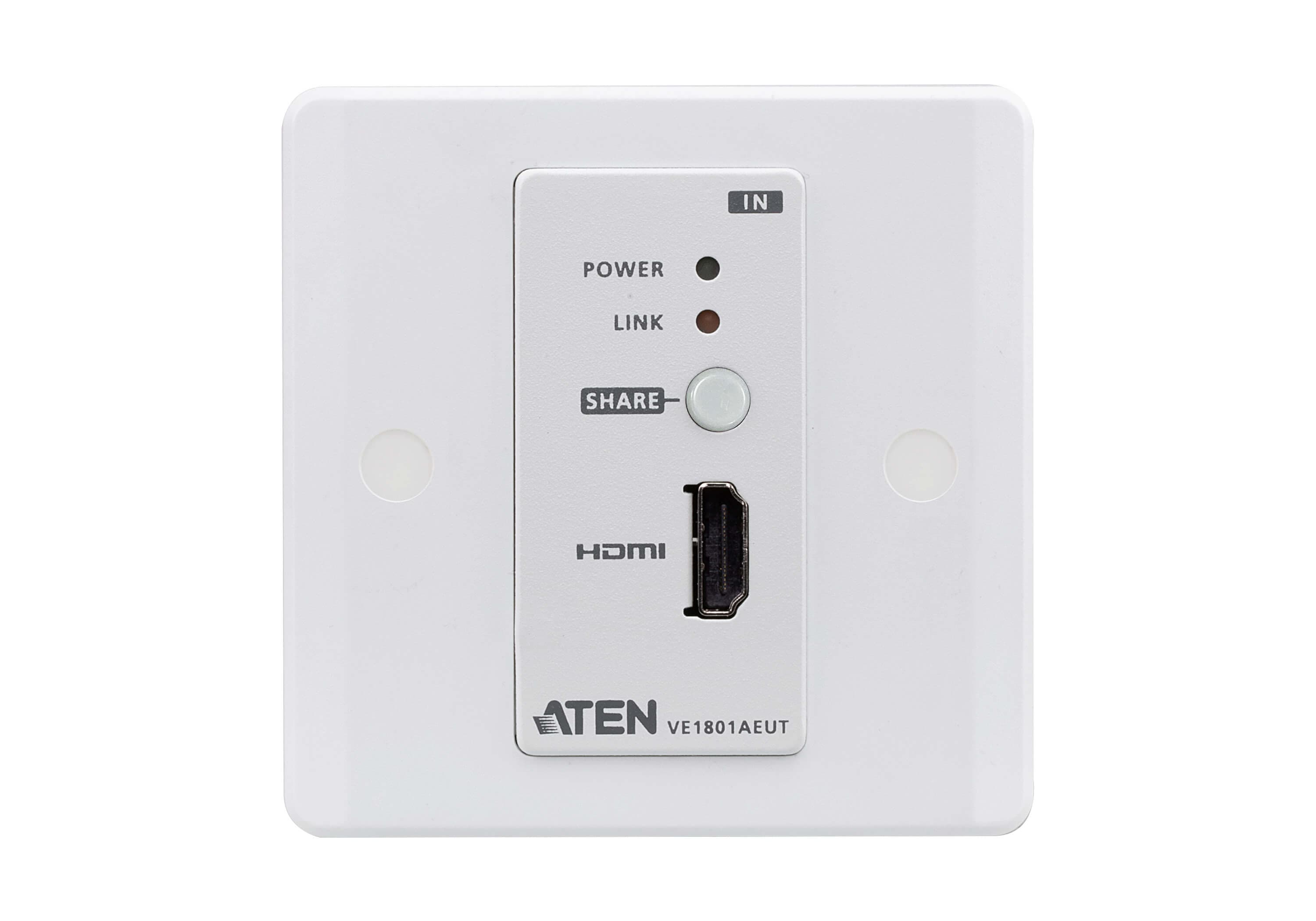

Designed to mount in a 1-gang junction box with EU wall plate
Supports RS-232 channel transmission
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Share function – the VE1801AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421
LED indication of device status
Supports wide screen format
Built-in 8KV / 15KV ESD protection
Plug-and-play

Видео вход

Интерфейси: 1 x HDMI Type A Female (Black)
Импеданс: 100Ω
Макс. разстояние: 3 m

Видео

Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. пикселна честота: 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Макс. резолюция / разстояние: Up to 4K@35m (Cat 5e/6) / 40m (HDBaseT Certified cable / ATEN’s tailor-made HDBaseT cable); 1080p@60m (Cat 5e/6) / 70m (HDBaseT Certified cable / ATEN’s tailor-made HDBaseT cable) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Аудио

Вход: 1 x HDMI Type A Female (Black)

Управление

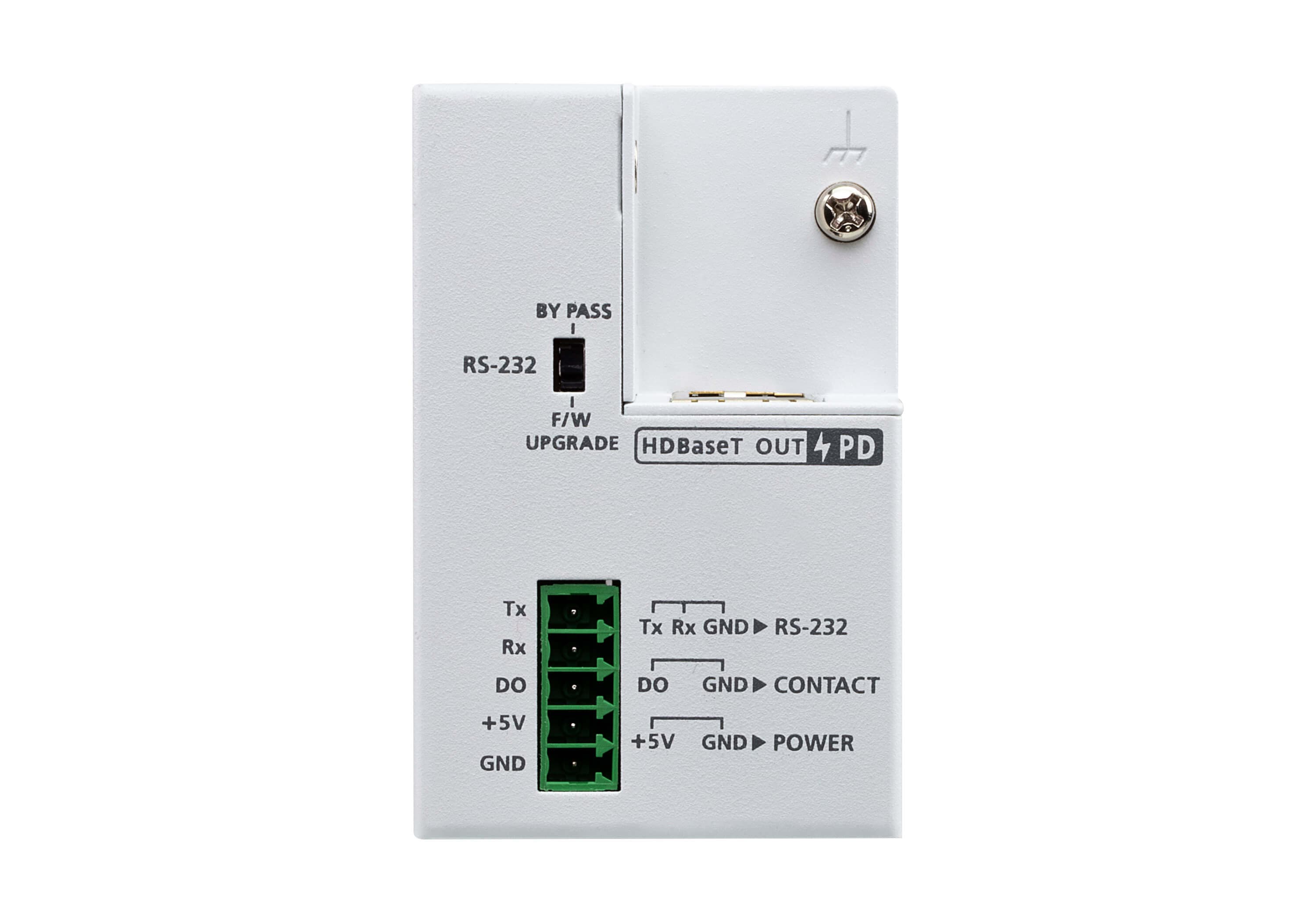

RS-232 канал: 1 x Terminal Block (3 pole, TX/RX/GND, Green)
Контактен изход: 1 x Terminal Block (2 pole, DO/GND, Green)

Конектори

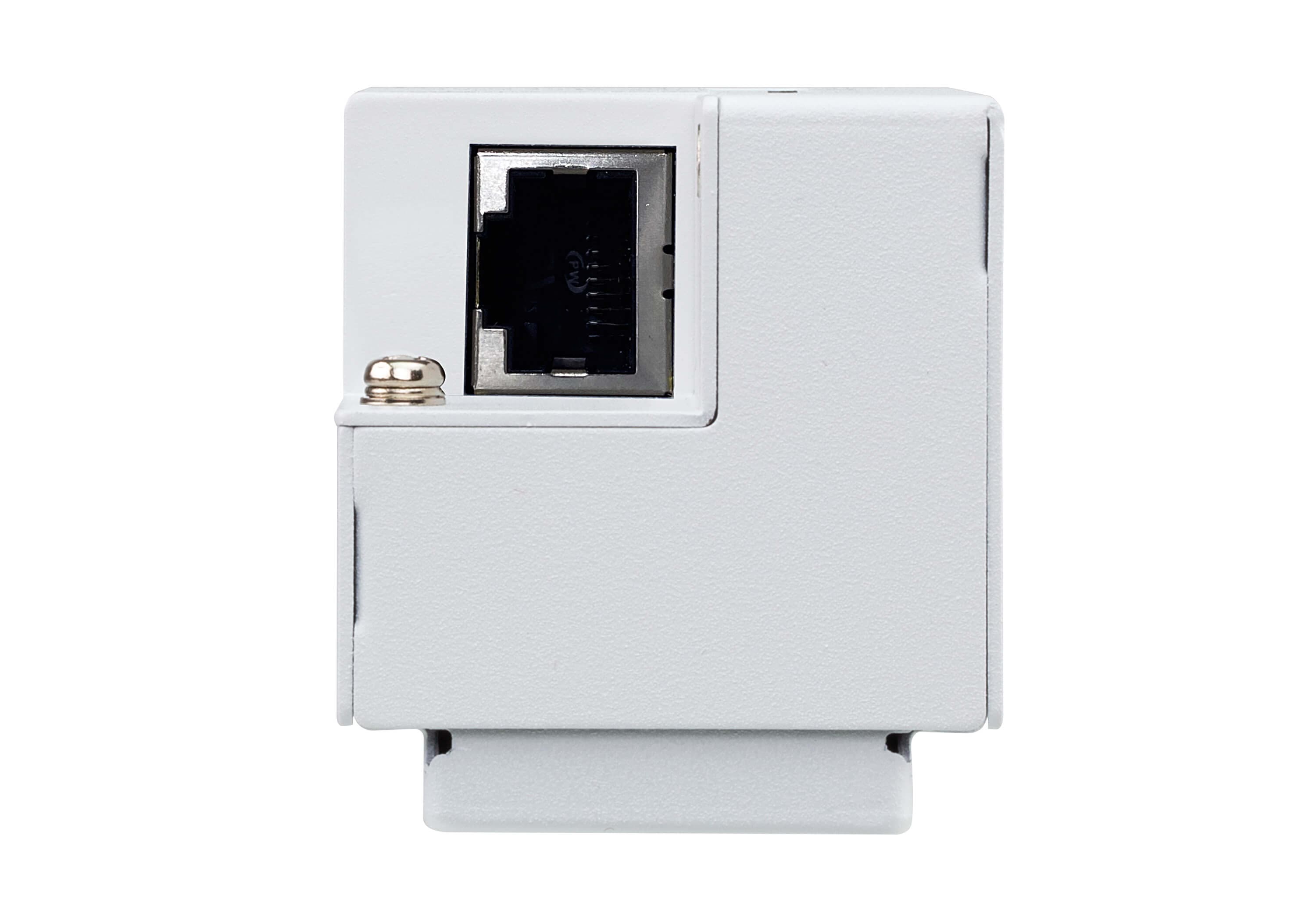

Между устройства: 1 x RJ-45 Female
Захранване: 1 x Terminal Block (2 pole, +5V/GND, Green) or 1 x RJ-45 Female (POH)
Консумация: DC5V:3.26W:15BTU/h POH:4W:19BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 40°C
Температура на съхранение: -20 - 60°C
Влажност: 0% - 80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 0.20 kg ( 0.44 lb )
Размери (Д x Ш x В): 6.86 x 4.44 x 5.00 cm (2.7 x 1.75 x 1.97 in.)
Размери на лицевия панел (Д x Ш x В): 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
