HDMI HDBaseT Receiver with PoH (4K@100m) (HDBaseT Class A) (PoH PD)

Name: HDMI HDBaseT Receiver with PoH (4K@100m) (HDBaseT Class A) (PoH PD)
Brand: ATEN
SKU: VE1812R

VE1812R

HDBaseT приемник за HDMI: 4K до 70 m по Cat 5e/6 и до 100 m по Cat 6a, а 1080p — до 150 m в режим Long Reach. Захранва се по PoH от предавателя.

Характеристики

HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
Superior video quality: – 4K up to 100 m over a Cat 6a or ATEN 2L-2910 Cat 6 cable – 1080p up to 150 m when in HDBaseT Long Reach Mode
HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology
PoH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
Rack- Mountable

Макс. скорост на данните: 10.2Gbps (3.4Gbps per lane)
Макс. пикселна честота: 340 MHz
Съответствие: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Макс. резолюция / разстояние: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

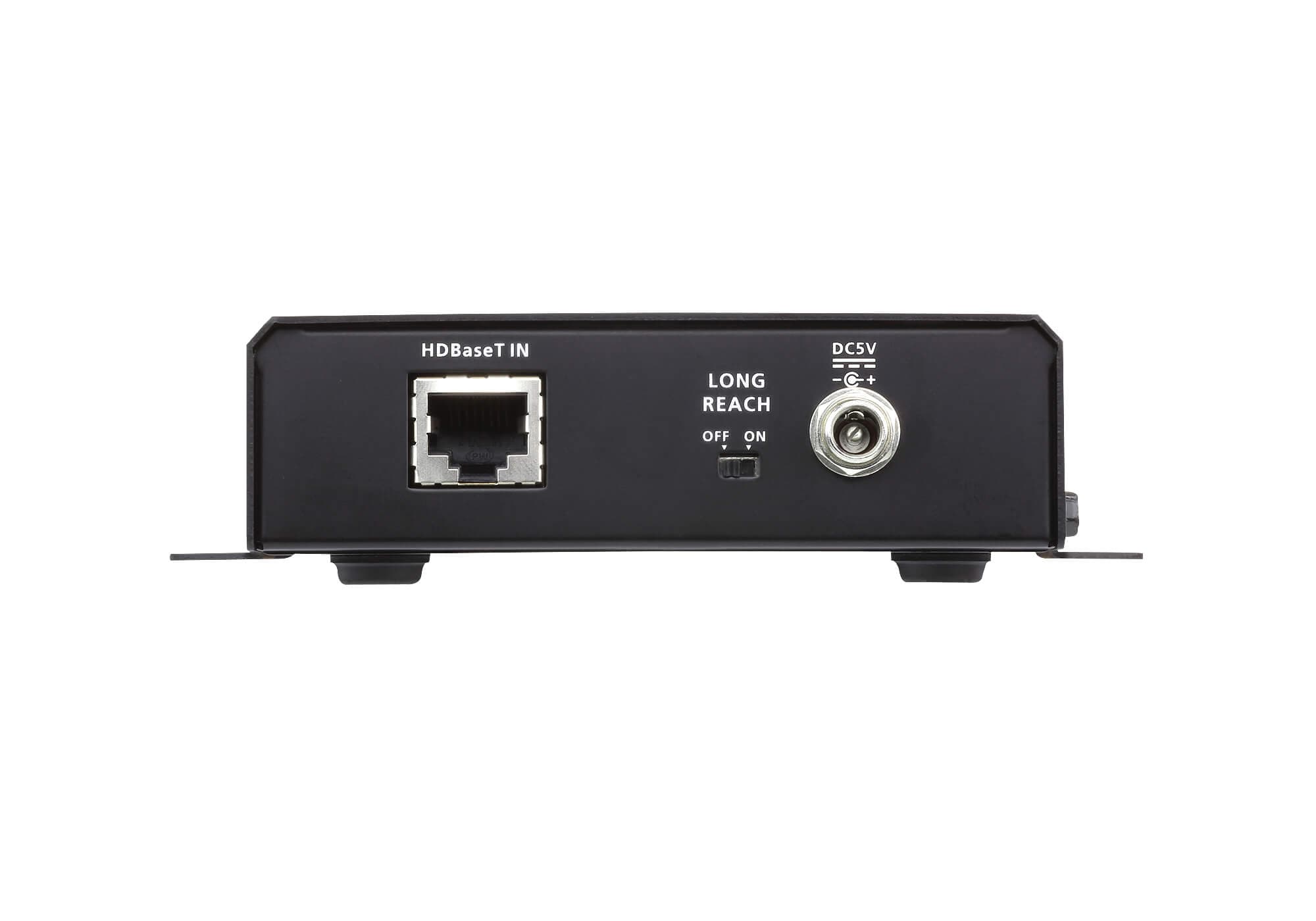

Между устройства: 1 x RJ-45 Female
Захранване: 1 x DC Jack (Black) with locking or 1 x RJ-45 (Power Over HDBaseT, POH)

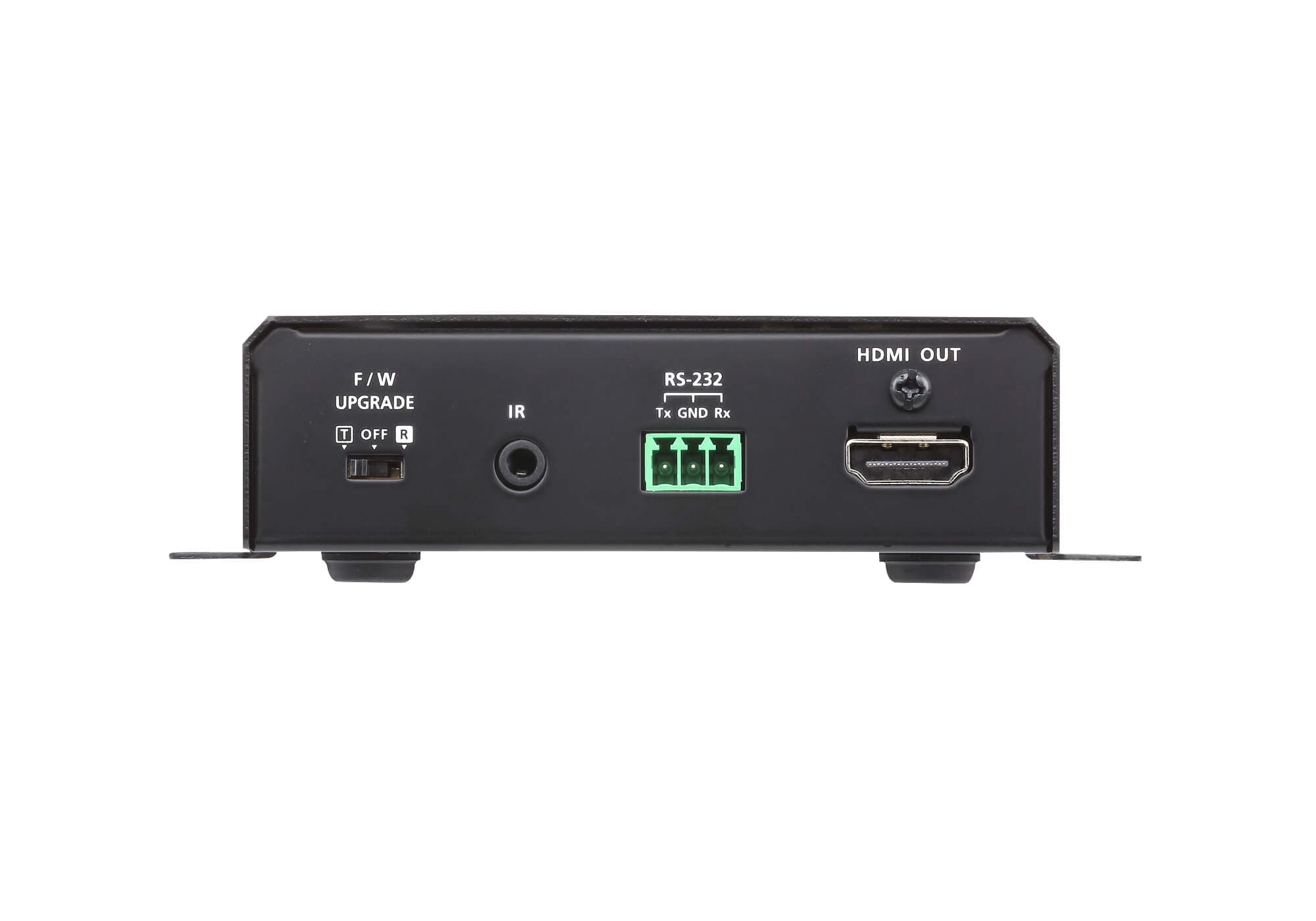

RS-232: Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
IR: 1 x Mini Stereo Jack Female (Black)

Превключвател Long Reach: 1 x Slide Switch - ON/OFF
Обновяване на фърмуера: 1 x Slide Switch - ON/OFF
Консумация: DC5V:4.26W:20BTU/h POH:5.33W:25BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Корпус: Metal
Тегло: 0.45 kg ( 0.99 lb )
Размери (Д x Ш x В) със скоба: 14.04 x 12.30 x 3.00 cm (5.53 x 4.84 x 1.18 in.)
Размери (Д x Ш x В) без скоба: 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
