1-Local/4-Remote Access 32-Port Cat 5 KVM over IP Switch (1600 x 1200)
KN4132Снет от производство
Cat 5 KVM over IP превключвател с 32 порта в 1U — една локална конзола и 4 отдалечени потребители едновременно, видео 1600 x 1200, каскадно до 512 сървъра.
Характеристики
- Hardware
- High port density - RJ-45 connectors and Cat 5e/6 cable for up to 32 ports in a 1U housing

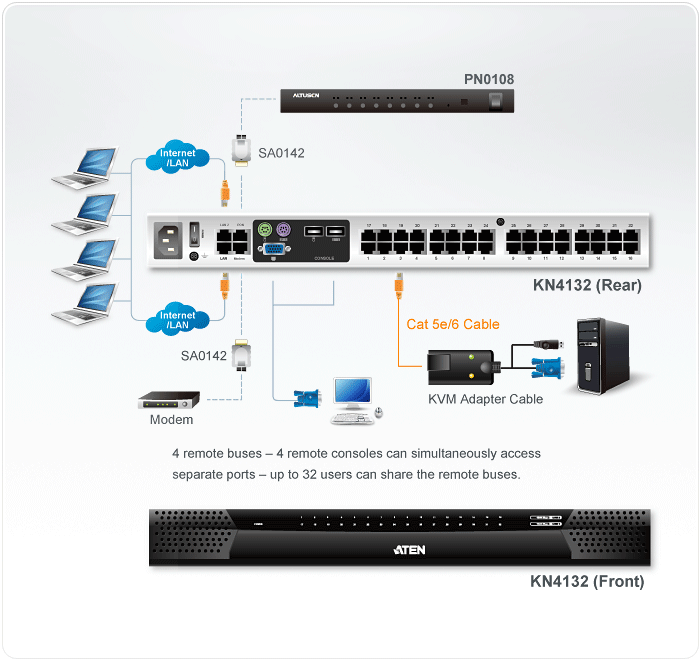

- Simultaneously share access to one local console and four remote KVM over IP switches
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
- Blade server support NEW!
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides PS/2 and USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- High video resolution - up to 1600 x 1200 @ 60Hz - 32 bit color depth for the local console; up to 1600 x 1200 @ 60Hz with 24 bit color depth for remote sessions, at up to 50 m
- Monitor and control up to 32 computers on a single level, or control up to 512 computers in a two-level cascade* * Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A. Some KVM over IP features may not be supported, depending on the functionality of the cascaded KVM switch.
- Management
- Multi Display for viewing extended monitors in a remote session
- Up to 64 user accounts
- Up to 32 concurrent logins
- End session feature - administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Critical system event notification via SMTP email; SNMP trap and Syslog support
- Customizable events notification NEW!
- Firmware upgradeable
- Out-of-Band Access-Modem dial-in/dial out/dial back support NEW!
- Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ALTUSEN CC2000 Management software
- Power Association enables the switch's KVM ports to be associated with an ATEN/ALTUSEN'S PDUs power outlets for remote power management of the servers from the switch's interface NEW!
- Manage browser access methods(Browser, http, https) NEW!
- IPv6 capable NEW!
- PadClient provides instant, convenient, and secure remote access to control servers through your iPad. Free available on Apple Store.* NEW! * PadClient works on iOS 7(and above) with ATEN KN2 and KN4 series KVM switches running on firmware 1.7.162 (and above).
- Ease-to-Use Interface
- Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
- User can launch multiple Virtual Remote Desktop to control multiple connected servers from the same login session
- Magic Panel
- Full-screen or sizable and scalable Virtual Remote Desktop
- Panel Array Mode available to both local console operators and remote access users
- Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers NEW!
- Video syncing with the local console – local console monitor's EDID information stored on the KVM Adapter Cables for display resolution optimization NEW!
- Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video, data encryption
- Support for IP/MAC Filter
- Configurable user and group permissions for server access and control
- Automated CSR creation utility and third party CA certificate authentication NEW!
- Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote usersc
- Mouse DynaSync -automatically synchronizes the local and remote mouse movements
- Exit Macros support
- On-screen keyboard with multilanguage support
- BIOS-level access
Връзки към компютри
- Директно
- 32
- Максимум
- 512
Конзолни връзки
- Локално
- 1
- Отдалечено
- 4
- Избор на порт
- Pushbutton, OSD, Hotkey

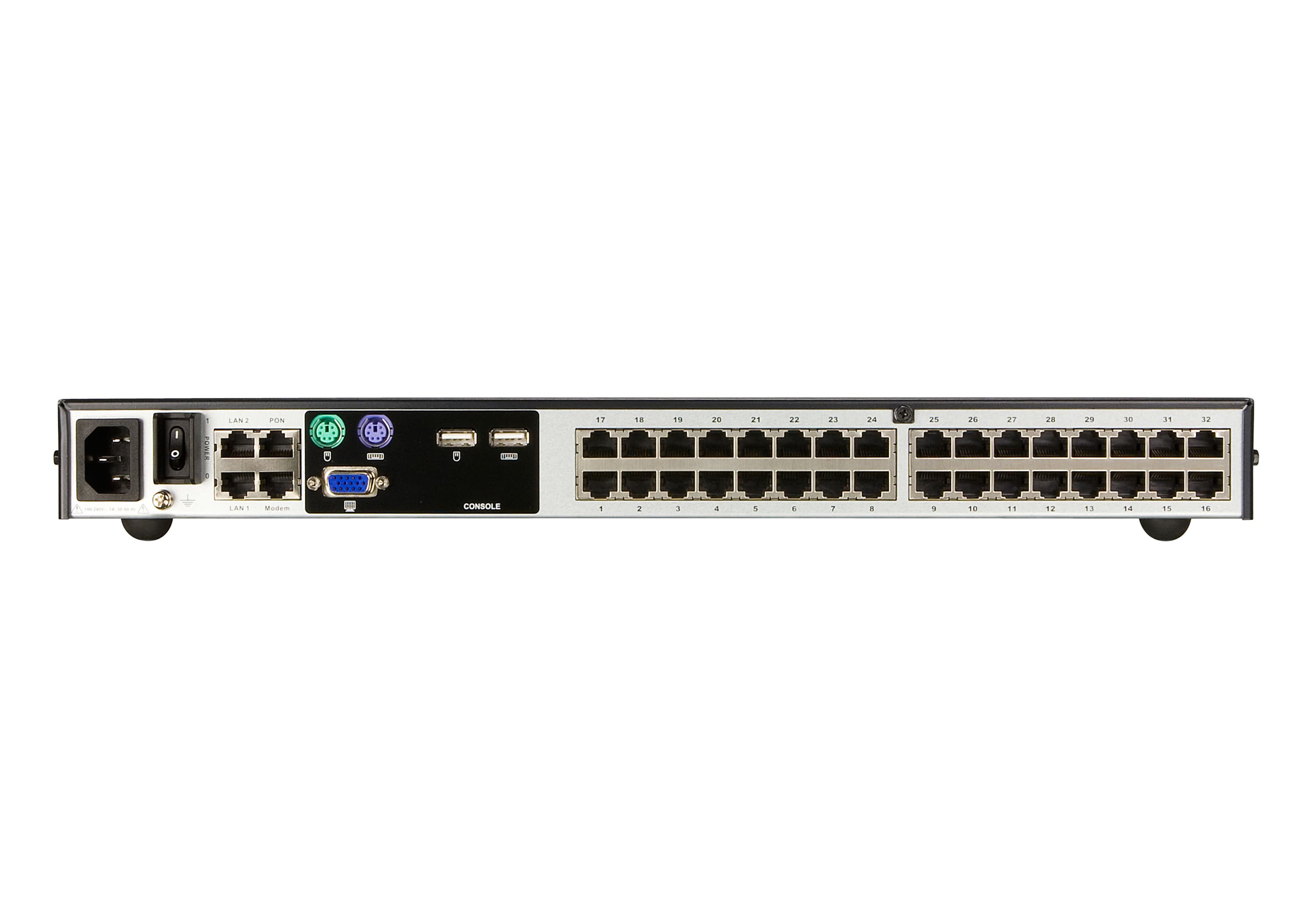

Конектори
- Конзолни портове
- 2 x USB Type A Female (White) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
- KVM портове
- 32 x RJ-45 Female (Black)
- Захранване
- 1 x 3-prong AC socket
- LAN портове
- 2 x RJ-45 Female (Black)
- PON
- 1 x RJ-45 Female (Black)
- Модем
- 1 x RJ-45 Female (Black)
- USB порт
- 3 x USB Type A Female (White)
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
- Захранване
- 1 x Slide
- Избор на порт
- 2 x Pushbutton

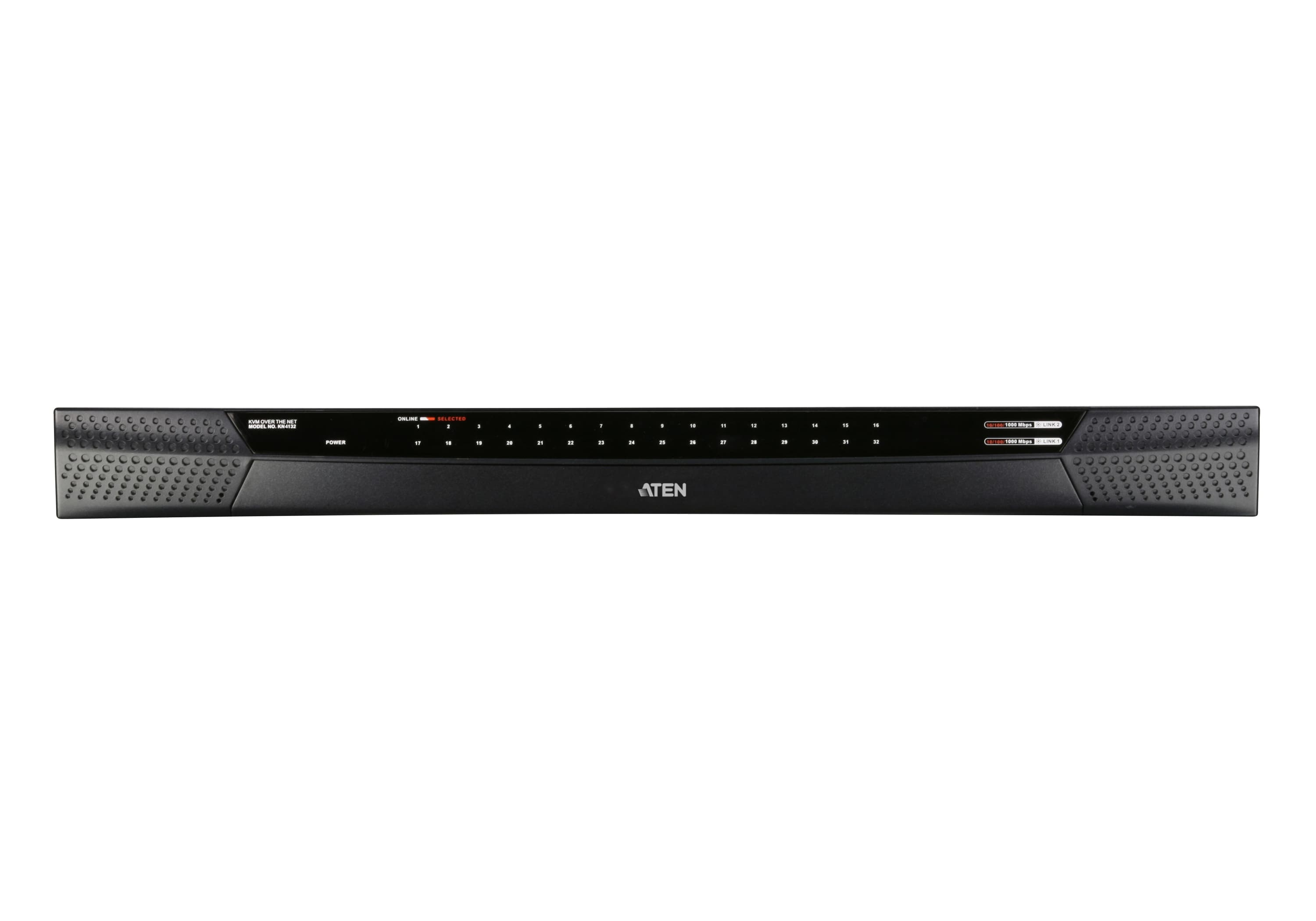

Индикатори
- Онлайн
- 32 (Green)
- Избран
- 32 (Red)
- Захранване
- 1 (Blue)
- Връзка
- 1 (Green)
- 10/100/1000 Mbps
- 1 (Red / Red + Green / Green)
Емулация
- Клавиатура / мишка
- USB; PS/2; Serial
- Видео
- 1600x1200 @ 60Hz
- Интервал на сканиране
- 1-255 Seconds
- Макс. входна мощност
- 100-240VAC; 50/60Hz; 1.0A
- Консумация
- 110V / 45.80W; 230V / 46.30W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50˚C
- Температура на съхранение
- -20 - 60˚C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 5.63 kg ( 12.4 lb )
- Размери (Д x Ш x В)
- 43.84 x 41.35 x 4.40 cm (17.26 x 16.28 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
