Video Session Recording Software

Name: Video Session Recording Software
Brand: ATEN
SKU: CCVSR

CCVSR

Заяви оферта Datasheet PDF Ръководство Бърз старт

Софтуер за запис на сесии през ATEN KVM Over-IP комутатори и серийни конзолни сървъри: видео до 4096x2160, натиснати клавиши и кликове на мишката. Използва се за одит на административния достъп.

Характеристики

Records user sessions from BIOS-level when users access ATEN KVM over IP switches and serial console servers locally1 or remotely
Simultaneously records, streams and plays the operation of multiple KVM over IP Switches
Supports high quality video recording – with video resolutions up to 4096 x 21602
Logs keystrokes, mouse clicks, and audio operations during video recording sessions
Proprietary video player with format and password-protected video export function for enhanced security
LiveView function to provide live-video surveillance for direct monitoring the operations and changes made on servers or connected devices3
Intuitive HTML5 user interface
Continuous recording even without opening WinClient / JavaClient4
Access control to grant or restrict user access with IP & MAC address filter, and configurable failed login attempts and lockout
Configurable user and group permissions
TLS v1.2 data encryption (AES-256 bit supported) and RSA 2048-bit certificates to secure user logins from browser
Port level permissions – users can only view ports they have been authorized to access
Easily search through captured sessions for incident investigation
Advanced search by time, port name, and username for precise results
Flexibility in saving recorded videos in local hard drives, secondary CCVSR servers, network attached storage (NAS) devices, or archive in Archive server
Supports up to 3 secondary CCVSR servers for storage expansion, load balance, and service failover
Supports self-signed certificates and certificates signed from third-party authorities (CA)
Third-party remote authentication supports: RADIUS, LDAP, LDAPS and Active Directory
Centralized role-based (super administrator & user) policy for user access privilege control
System event notification via SMTP email, SNMP trap and Syslog support
Supports device level event logs Note: 1. Available on specific models only, please check specification. 2. Compatible KVM with 4K support is required. 3. Up to 20 KVM sessions with resolution 1920x1080 or 4 KVM sessions with resolution 4096 x 2160 (Text Mode = On, Bandwidth = 1G, Scenario = Surveillance) can be recorded / streamed simultaneously when the hardware requirements are met (see the table below). Up to 64 KVM devices can be supported by one CCVSR. 4. CN9950, CN9850, CN9600, CN9000, CN8600, CN8000A, CN800, RCMDP101U, RCMHD101U, RCMDVI101, RCMVGA101, RCM101D, and RCM101A only.

Съвместими устройства

KVM over IP превключватели: Recordable via remote sessions or through the local console: KN2116VA, KN2124VA, KN2132VA, KN2140VA, KN4124VA, KN4116VA, KN4132VA, KN4140VA, KN4164V, KN8132V, KN8164V, KN2116VB, KN4016VB, KN2124VB, KN4024VB, KN1132VB, KN2132VB, KN4032VB, KN8032VB, KN4064VB, KN8064VB, CN8600, CN8000A, CN9000, CN9600, CN9950, CN9850, CN800, RCM101A, RCM101D, RCM464V, RCM816, RCM416, RCMDVI101, RCMVGA101, RCMDP101U, RCMDVI00AT, RCMDVI40AT, RCMDVI50T, RCMHD101U, RCMDVI00BT, RCMDVI40BT, KE6900AiT*, KE6940AiT*. * Please check CCVSR user manual for the limitation. Recordable via remote sessions: KL1108V, KL1116V, KN1108v, KN1116v, KN1132V, KN1108VA, KN1116VA, KN2116v, KN2124v, KN2132v, KN2116A, KN2132, KN2140v, KN4116, KN4116v, KN4124v, KN4132, KN4132v, KG0016, KG0032.
Серийни конзолни сървъри: SN1116CO, SN1132CO, SN1148CO, SN0108CO, SN0116CO, SN0132CO, SN0148CO, SN9108CO, SN9116CO, SN0108A, SN0116A, SN0132, SN0148, SN9108, SN9116.
Удостоверяване и оторизация: Supports local user accounts, LDAP, and RADIUS. Role-based (Super Administrator, Administrator, User) policy for access privilege control.
Сигурност: IP and MAC address blocking. Configurable failed login attempts and lockout. Support certificate self-signed or signed from third-party authorities (CA). Secure web connection with TLS v1.2 and RSA 2048-bit certificates. Strong user password authentication. Configurable user session timeout. Configurable login page URL

Видео

Поддържани резолюции: Up to 4096 x 2160 Proprietary video format
Съхранение на записите: Recorded videos can be saved in: - Local storage - Secondary CCVSR server - Network shared folder Recorded videos can be archived to: - Archive server
Възпроизвеждане: Java player: - Password protected videos - Video export - Display recorded keystrokes and mouse clicks Advanced search with a variety of criteria
Известяване: SMTP SNMP Trap (v1, v2c) Syslog
Журнали: System logs. Device logs.

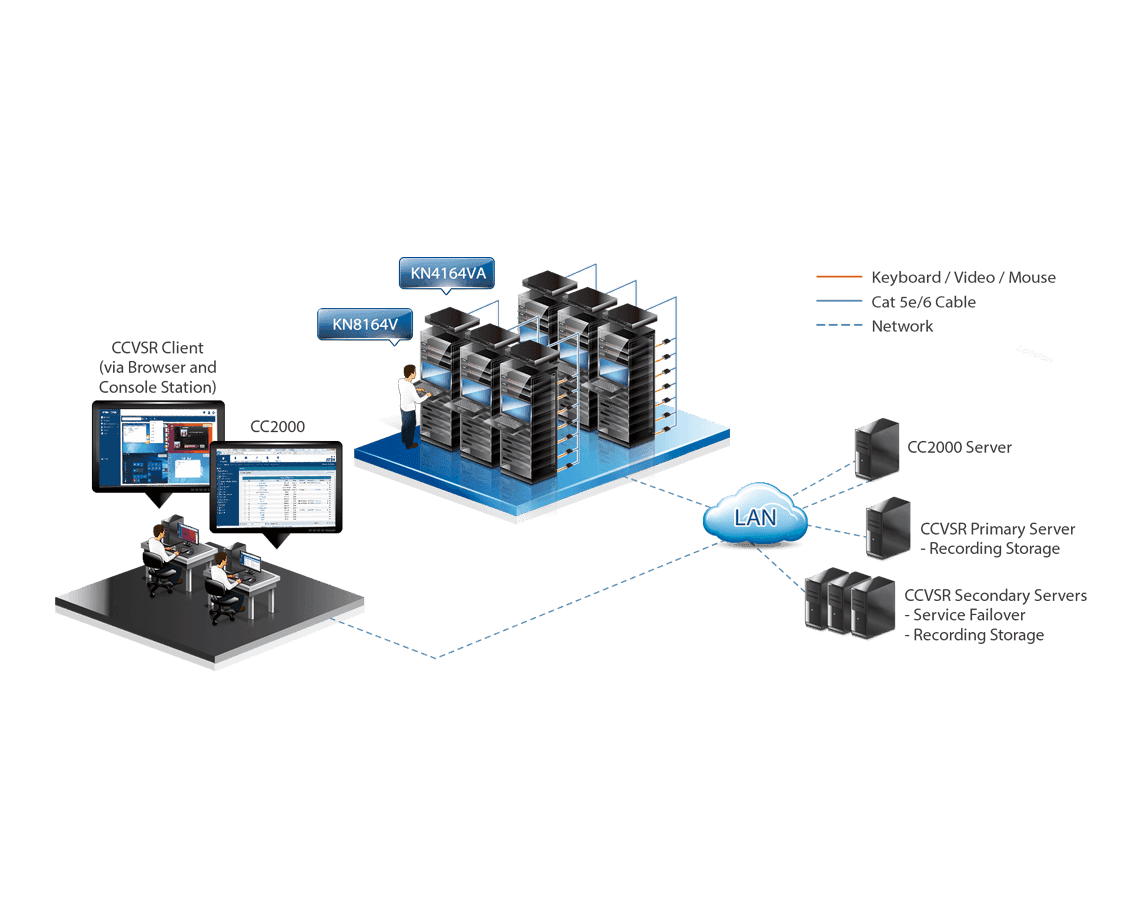

Отказоустойчивост на услугата: Primary/secondary architecture. 1 primary with maximum 3 secondary servers.
Поддържани ОС: Windows: 7, 8, 10, 11, server 2012, or server 2016 Linux: Ubuntu 16.04, CentOS 7, Fedora 24, Debian 8.8 *JAVA Runtime Environment (JRE) 1.7 Update 6 or higher is required in above OS.
Поддържани браузъри: Chrome, Firefox, Microsoft Edge.
Езикова поддръжка: English, 繁體中文, 简体中文, 日本語, 한국어.
Други: Online user management.

Лиценз

Базов (безплатен): 1 Primary/1 Nodes.
Опции за USB лиценз: CCVSR8 (8 Nodes). CCVSR16 (16 Nodes). CCVSR32 (32 Nodes). CCVSR64 (64 Nodes). CCVSR128 (128 Nodes). CCVSR256 (256 Nodes). CCVSR512 (512 Nodes). CCVSR1024 (1024 Nodes). CCVSR2048 (2048 Nodes).
Системни добавки: CCVSRN1 (Add-on 1 Node). CCVSRN8 (Add-on 8 Nodes). CCVSRN16 (Add-on 16 Nodes). CCVSRN32 (Add-on 32 Nodes). CCVSRN64 (Add-on 64 Nodes). CCVSRN128 (Add-on 128 Nodes). CCVSRN256 (Add-on 256 Nodes). CCVSRN512 (Add-on 512 Nodes). CCVSRN1024 (Add-on 1024 Nodes). CCVSRN2048 (Add-on 2048 Nodes). CCVSRAS1 (Archive Server License)
Минимални хардуерни изисквания: To record & stream 20 video sessions: Server Hardware Requirements: - CPU: Intel Xeon D-1527 4 cores 2.2 GHz or equivalent - Memory: 8GB or more - HDD (for CCVSR): 4GB or more - Network: 1Gbps Client Hardware Requirements: - CPU: Intel Core i5-7600 4 cores 3.5 GHz or equivalent - Memory: 6GB or more - Network: 1Gbps
Съдържание на комплекта: 1x CCVSR USB License Key 1x Software CD 1x User Instructions
