1-Local/1-Remote Access 16-Port Multi-Interface Cat 5 Dual Rail LCD KVM over IP Switch

Name: 1-Local/1-Remote Access 16-Port Multi-Interface Cat 5 Dual Rail LCD KVM over IP Switch
Brand: ATEN
SKU: KL1116V

KL1116V

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

KVM Over-IP превключвател с dual rail LCD конзола за 16 сървъра по Cat 5, за един локален и един отдалечен потребител. Разширява се каскадно до 256 компютъра; резолюция до 1920 x 1200 и TLS 1.3.

Характеристики

Exclusive Features
High-grade security – supports TLS 1.3 and an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #4282)
Advanced FPGA graphics processor with HD resolutions up to 1920 x 1200
2x faster virtual media transmission speeds
Hardware
Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions

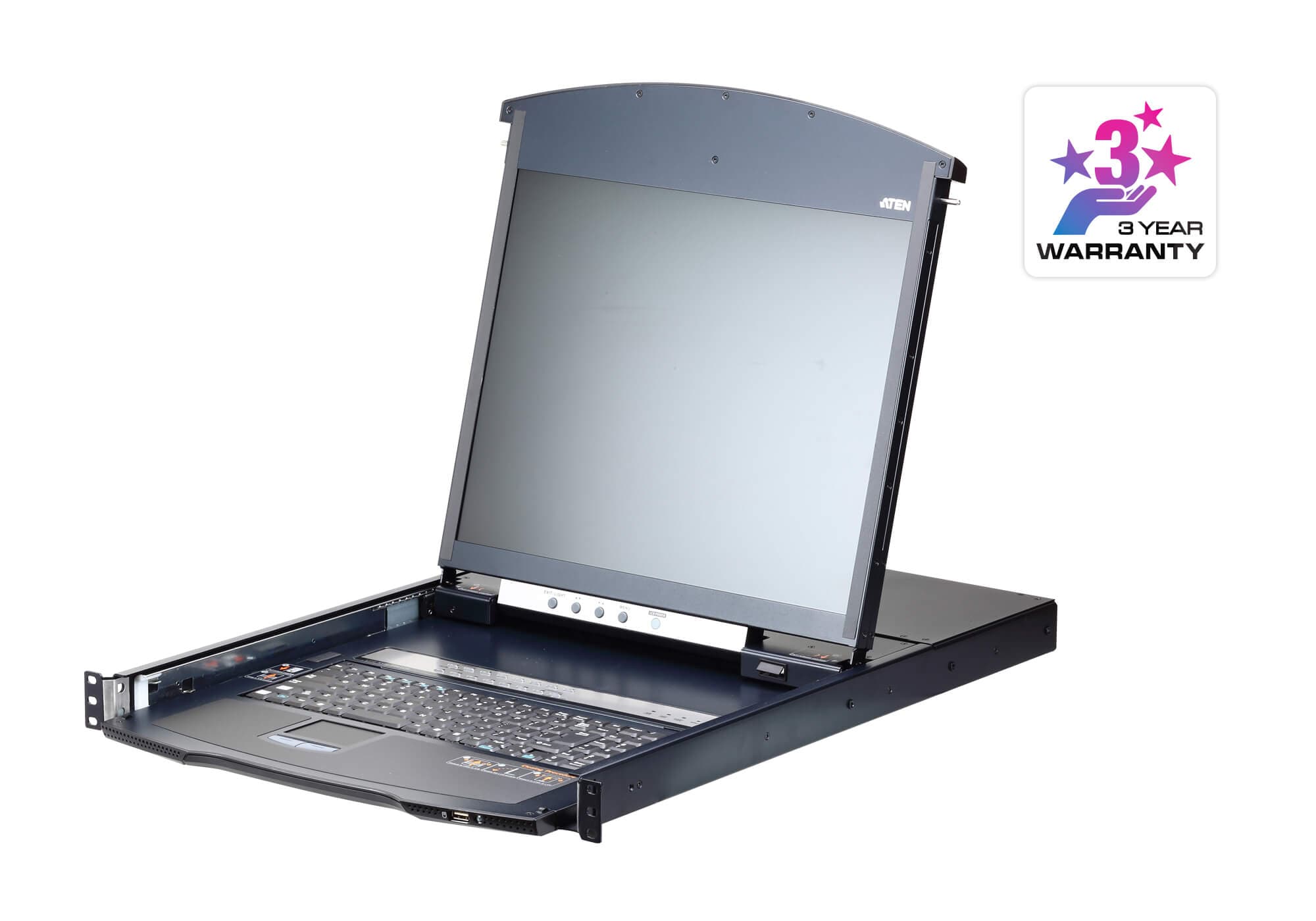

Integrated KVM console with 19” LED-backlit LCD monitor in a dual rail housing
One bus for local and one bus for remote KVM over IP access
Space-saving RJ-45 ports for Cat 5e/6 cable connections
KVM adapter cables with automatic conversion allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
Extra Console Ports – manage computers from the built-in LCD screen or an external console setup (monitor, USB keyboard and mouse)
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Supports external USB mouse
Dual rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
Dual Rail Housing – allows the LCD monitor to slide independently of the keyboard and touchpad
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console lock enables the console drawer to remain securely locked away when not in use
LCD power button saves energy and prolongs the life of the display
High Port Density – RJ-45 connectors provide up to 16 ports in 1U housing
Two 10/100/1000 Mbps NICs for redundant LAN or dual IP operation
Blade server support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
High Video Resolutions – up to 1920 x 1200 @ 60 Hz with 24-bit color depth at the switch’s external local console and on remote displays; up to 1280 x 1024 @ 75 Hz at the switch’s built-in LCD screen
Monitor and control up to 16 computers on a single level or control up to 256 computers in a cascade*
Optional rack mount kits available including easy installation options Note: Cascade-compatible KVM switches include the following: CS1308, CS1316, KH1508A and KH1516A.
Management
Up to 64 user accounts
Up to 32 concurrent logins
End Session Feature – administrators can terminate any remote session
Port Share Mode allows multiple users to gain access to a server simultaneously
Remote power control for attached ATEN PDU devices
Integration with ATEN CC2000 Management Software
Integration with ATEN CCVSR Video Session Recording Software*
Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
Event logging and Windows-based Log Server support
Local Log Event
Firmware upgradeable
IPv6 capable
Critical system event notification via SMTP email; SNMP trap and Syslog support
Customizable events notification
Out-of-Band Access – modem dial-in / dial-out / dial-back support
Adapter ID Function – stores port information, allowing administrators to relocate servers to different ports without having to re-configure adapters or switches Note: Supports recording computer operations accessed via remote sessions.
Easy-to-Use Interface
Easy computer selection via pushbuttons, OSD (On-Screen Display), and Browser-based GUI
Local console, browser, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
ATEN Exclusive Panel Array™ Mode – monitor all ports in a grid display of all desktops at both the local and remote screen
Keyboard/Mouse Broadcast – keyboard and mouse signals can be duplicated across all servers at once
Launch virtual remote desktop sessions to control multiple servers at the same time
Full screen or scalable virtual remote desktop window
Video syncing allows the local console monitor’s EDID information to be stored on the KVM Adapter Cables for display resolution optimization
Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS and Microsoft Active Directory
Supports TLS 1.3 encryption and RSA 2048-bit certificates to secure browser logins
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Configurable user and group permissions for server access and control
Automated CSR creation utility and third-party CA certificate authentication
IP/MAC Filter support for enhanced security protection
Virtual Media
Virtual media enables file application, OS patching, software installations and diagnostic testing
Works with USB-enabled servers at the operating system and BIOS level
Supports DVD/CD drives, USB mass storage devices, hard drives and ISO images
Supports Smart Card/CAC Reader
Virtual Remote Desktop
Video quality can be adjusted to optimize data transfer speeds; color depth, threshold and noise settings reduce data transmission to lower bandwidth
Full screen or scalable window for virtual remote desktop
Message board feature allows logged in users to communicate with each other
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
Exit Macro support
On-screen keyboard with multi-language support
BIOS-level access for troubleshooting More information about "Easy Rack Mounting"...

Спецификация

Функция: KL1116VN

Конзолни връзки

Локално: 1
Отдалечено: 1

Връзки към компютри

Директно: 16
Максимум: 256 (via Cascade)
Избор на порт: OSD, Hotkeys, Pushbuttons

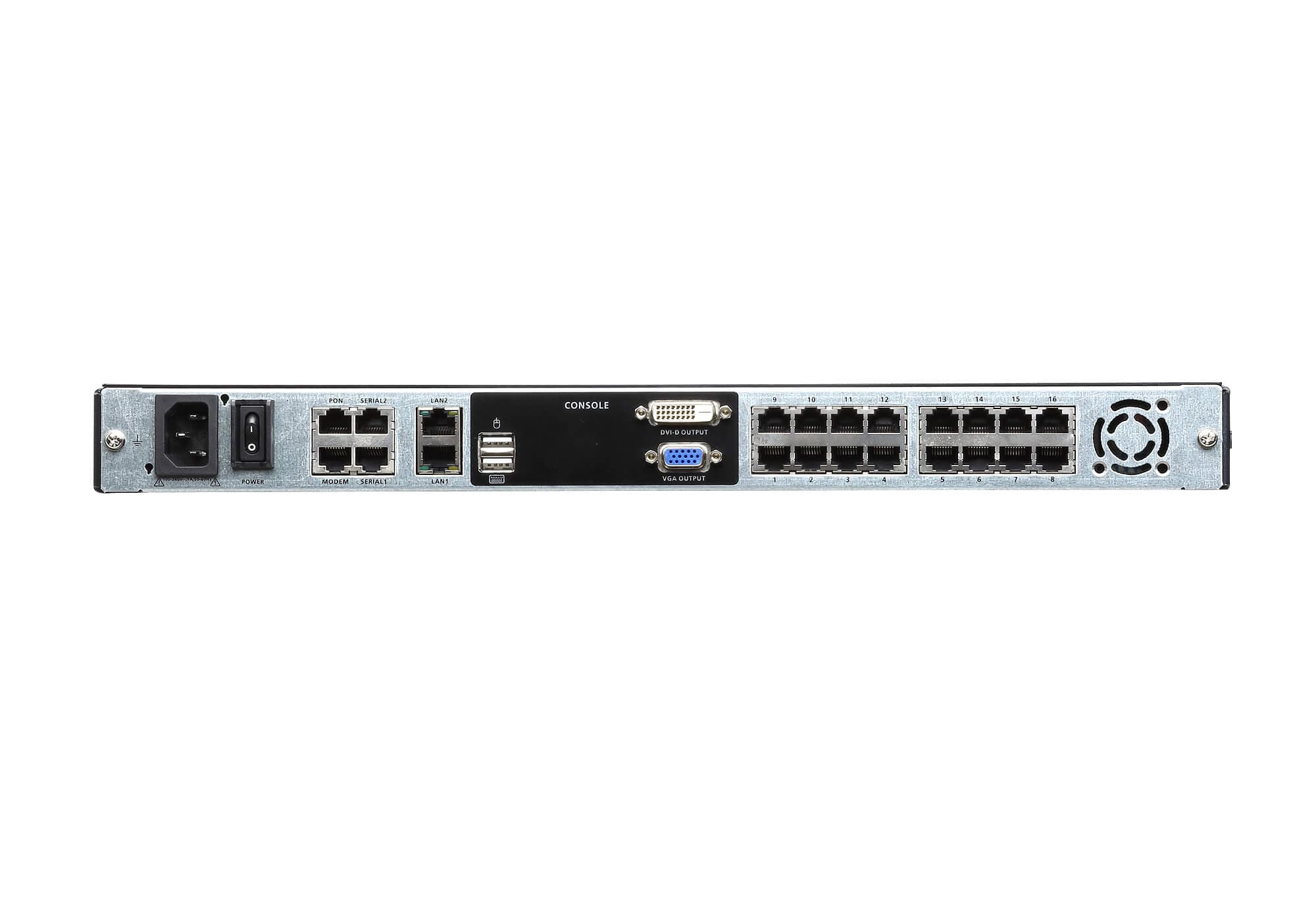

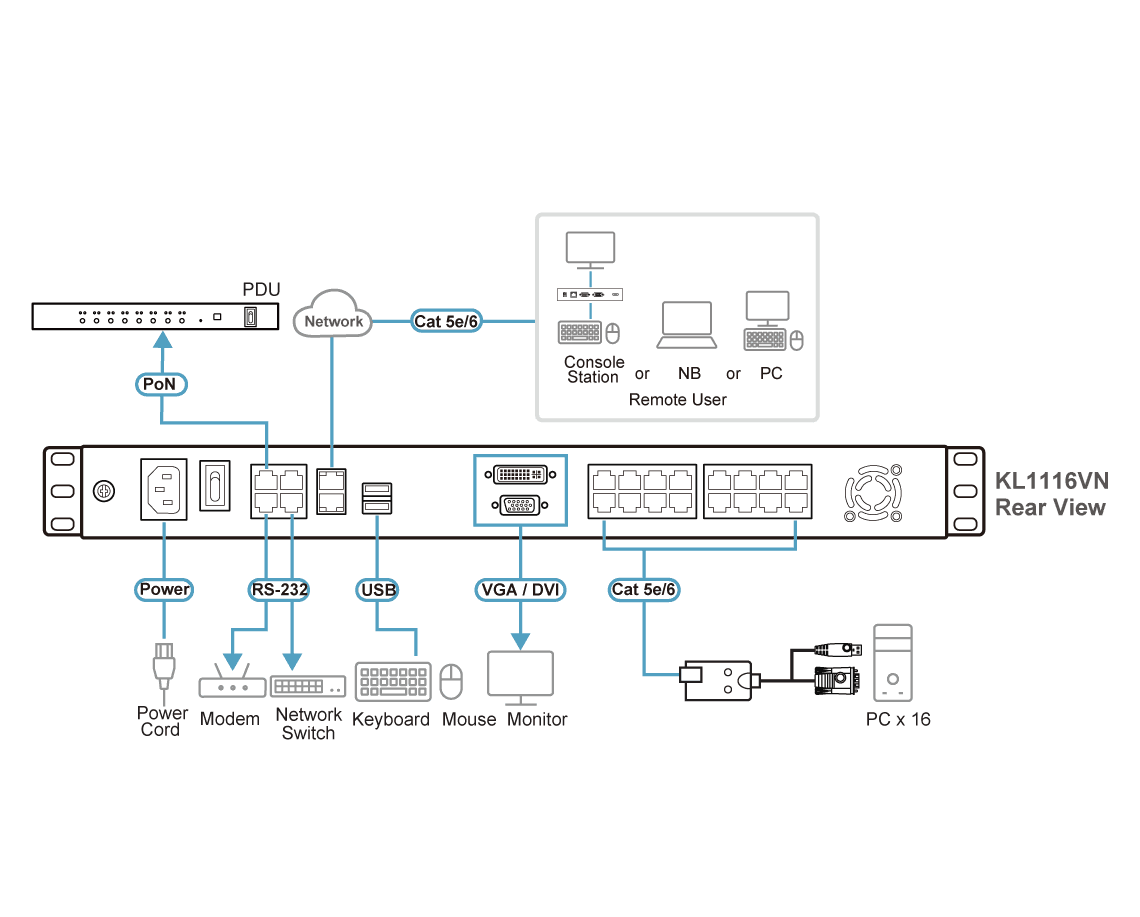

Конектори

Конзолни портове: 2 x USB Type-A Female (White) 1 x DVI-D Female (White) 1 x HDB-15 Female (Blue)
Външен порт за мишка: 1 x USB Type-A Female
KVM портове: 16 x RJ-45 Female
Сериен: 2 x RJ-45 Female
PON: 1 x RJ-45 Female
Модем: 1 x RJ-45 Female
LAN портове: 2 x RJ-45 Female
Захранване: 1 x IEC 60320/C14

Бутони и превключватели

Избор на порт: 16 x Pushbutton
Нулиране: 1 x Semi-recessed Pushbutton
Захранване: 1 x Rocker
Захранване на дисплея: 1 x Pushbutton
Настройка на дисплея: 4 x Pushbutton

Индикатори

Онлайн: 16 (Green)
Избран: 16 (Orange)
10/100/1000 Mbps: 2 (Orange / Orange & Green / Green)
Захранване: 1 (Blue)
Захранване на дисплея: 1 (Orange)
Заключване: 1 x Num Lock(Green) 1 x Caps Lock(Green) 1 x Scroll Lock(Green)

Видео

Отдалечено: 1920 x 1200@60Hz

Панел

LCD модул: 19"
Резолюция: 1280 x 1024 @75Hz
Стъпка на пикселите: 0.294 mm x 0.294 mm
Време за реакция: 5 ms
Зрителен ъгъл: 170° (H), 160° (V)
Контраст: 1000:1
Поддържани цветове: 16.7M colors
Яркост: 250 cd/m²

Емулация

Клавиатура / мишка: PS/2; USB
Интервал на сканиране: 1-255 Sec.
Макс. входна мощност: 100-240V AC; 50-60Hz; 1A
Консумация: AC110V:32.1W:157BTU/h AC220V:32.4W:158BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 40°C
Температура на съхранение: -20 - 60°C
Влажност: 0–80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 15.28 kg ( 33.66 lb )
Размери (Д x Ш x В): 48.00 x 70.12 x 4.40 cm (18.9 x 27.61 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
