1-Local/Remote Shared Access Single Port VGA KVM over IP Switch

Name: 1-Local/Remote Shared Access Single Port VGA KVM over IP Switch
Brand: ATEN
SKU: CN8000A

CN8000A

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

Еднопортово KVM over IP устройство — добавя отдалечен достъп до KVM превключватели без вградена over-IP функция. Видео до 1920 x 1200, виртуална медия и LUC порт за конзола от лаптоп.

Характеристики

Hardware
Provides over-IP capability to KVM switches that do not have built in over-IP functionality
Local console provides PS/2,and USB keyboard and mouse support
Supports multi-platform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media Support
High video resolution – up to 1920 x 1200 @ 60 Hz- 24 bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
Enhanced fps (frames per second) throughput for crisp responsive video display
Management
Laptop USB Console (LUC) – A dedicated USB port directly connects to laptop for easy console operation
Easy configuration through local console OSD
Up to 64 user accounts
Up to 32 users concurrent logins
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Supports instant notification of critical system events via email, SNMP trap, and Syslog
Remote Firmware upgradable
Serial console management – serial terminal access. Access the CN8000A via a built-in serial viewer, or via third party software (such as PuTTY) for Telnet and SSH sessions
PPP mode (modem) dial-in / dial back / dial out support for out-of-band, and low bandwidth operation
Port Share Mode allows multiple users to gain access to a server simultaneously
Local / Remote Share Mode to conveniently grant shared or exclusive console privilege
Integration with ATEN CC2000 Centralized Management Software
Integration with ATEN CCVSR Video Session Recording Software
Power Over the NET integration for remote power control
DDNS (Dynamic Domain Name System)
Export / import user account and configuration settings
Enable / disable browser operation
IPv6 capable
Easy-to-Use Interface
Browser-based and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
Multi-platform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser supports (IE, Chrome, Firefox, Safari, Opera)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
Full-screen or sizable and scalable Virtual Remote Desktop
Magic Panel
Advanced Security
Smart Card /CAC Reader Support
External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
TLS 1.2 encryption to protect password when users log in
Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or system-generated random selection for independent keyboard/mouse, video, and virtual media data encryption
Support for IP/MAC Filter
Supports password protection
Private CA
Virtual Media
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Convenient to use without virtual media cable
Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multilanguage support
Mouse Dynasync
Exit Macros support
BIOS-level access

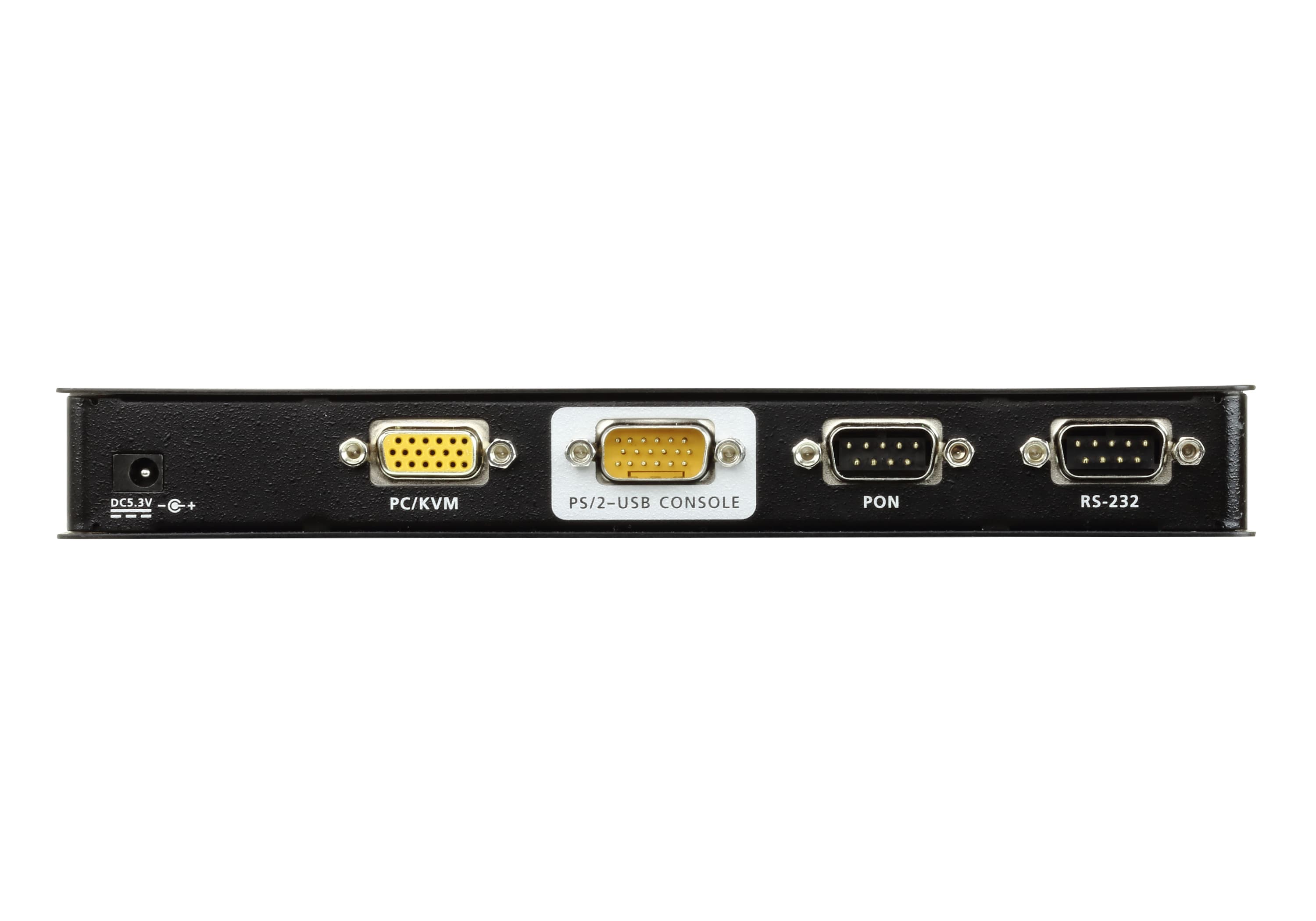

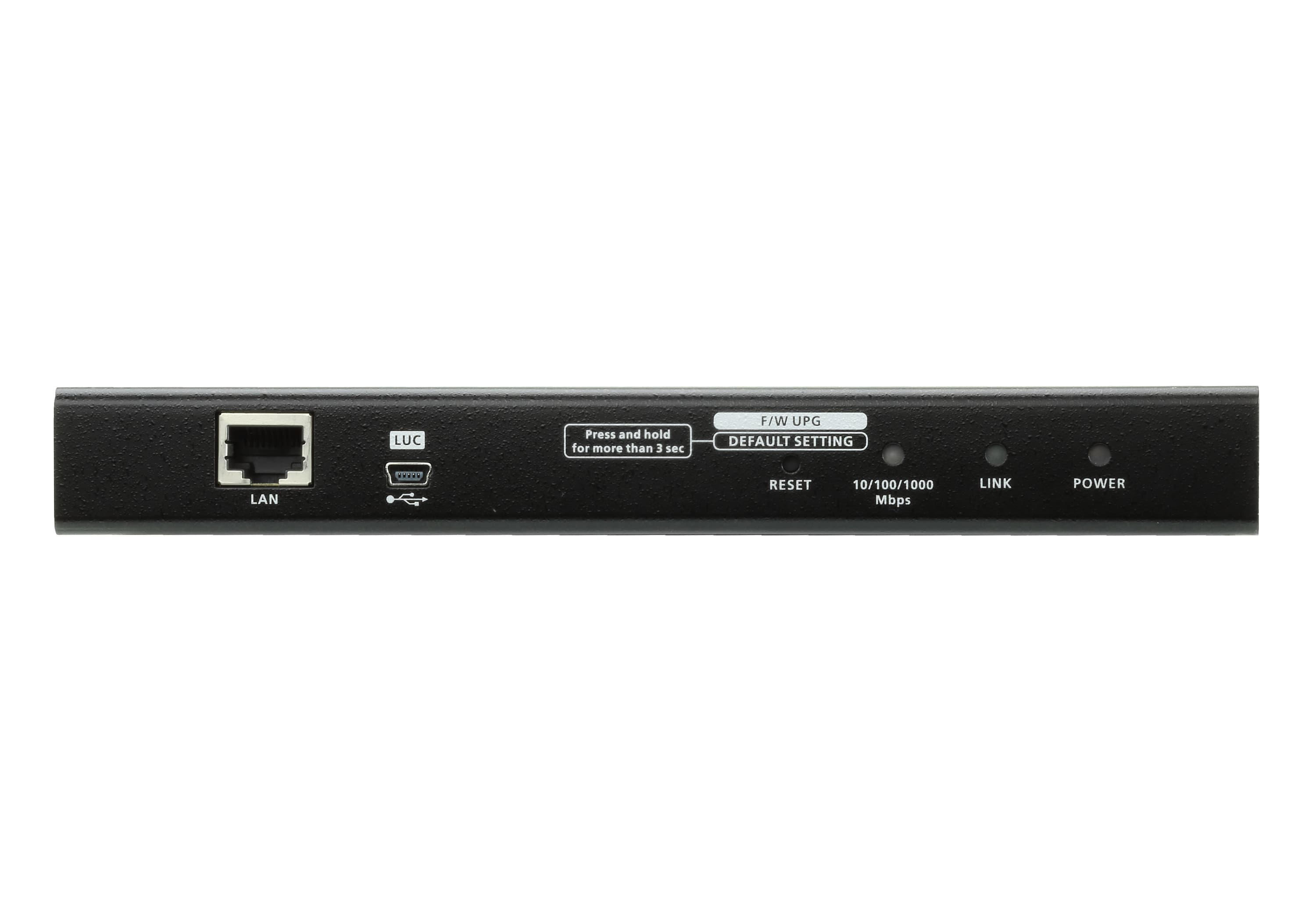

Конектори

Конзолни портове: 1 x SPHD Male (Yellow)
KVM портове (компютри): 1 x SPHD Female (Yellow)
Laptop USB Console (LUC) порт: 1 x USB Mini-B Female
PON: 1 x DB-9 Male
RS-232: 1 x DB-9 Male
LAN портове: 1 x RJ-45 Female
Захранване: 1 x DC Jack

Бутони и превключватели

Нулиране: 1 x Semi-recessed Pushbutton

Индикатори

Захранване: 1 (Orange)
Връзка: 1 (Green)
10/100/1000 Mbps: 1 (Orange / Orange+Green /Green)

Емулация

Клавиатура / мишка: USB; PS/2
Видео: Up to 1920 x 1200 @ 60 Hz; DDC2B
Консумация: DC5.3V:4.79W:31BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 50°C (CN8000A) 0 - 40°C (Power Adapter)
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 0.49 kg ( 1.08 lb )
Размери (Д x Ш x В): 20.00 x 8.14 x 2.50 cm (7.87 x 3.2 x 0.98 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
