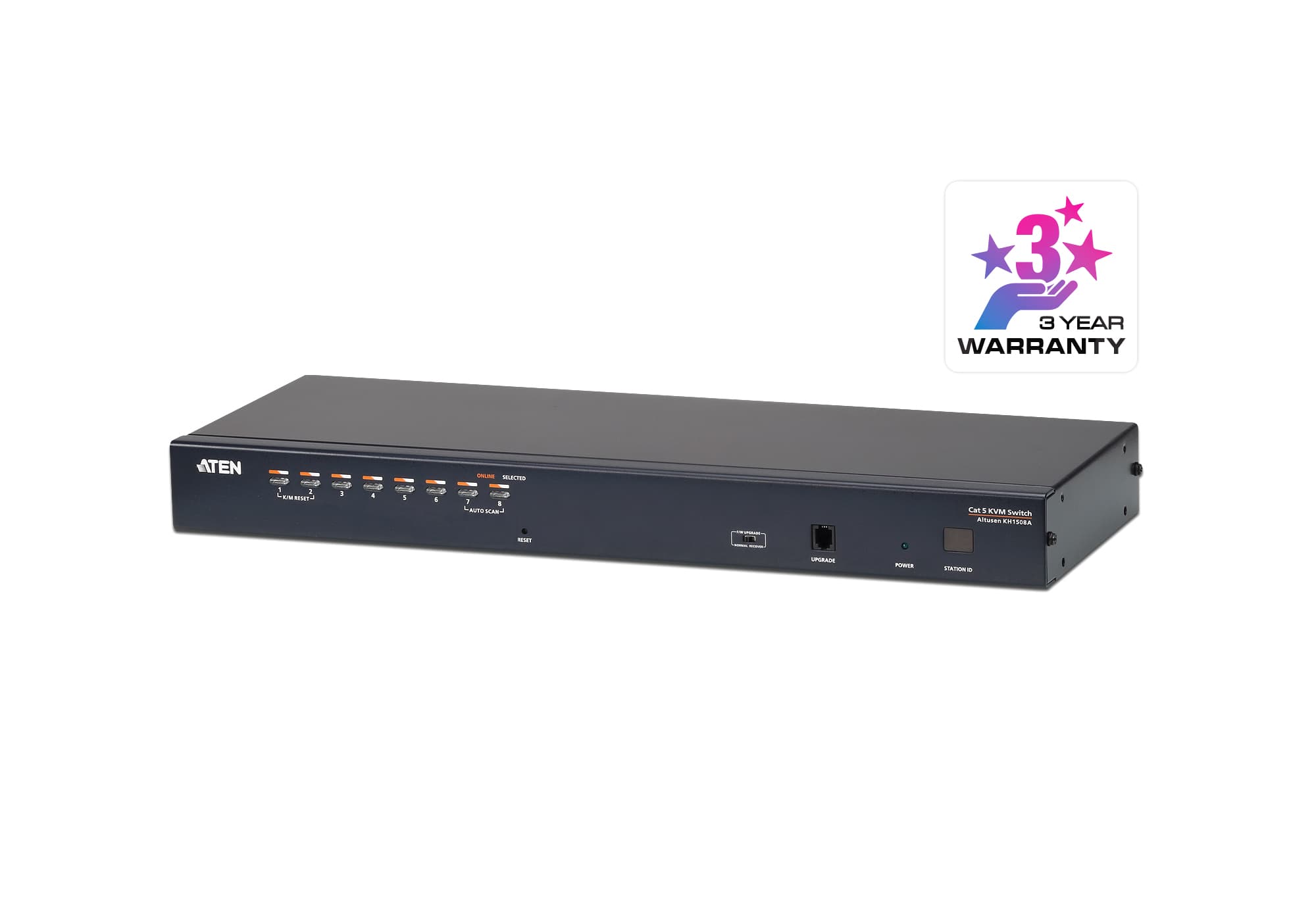

8-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch

Name: 8-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch
Brand: ATEN
SKU: KH1508A

KH1508A

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

KVM превключвател за 8 компютъра по Cat 5e/6 кабели с RJ-45 портове; през адаптерни кабели поддържа DisplayPort, HDMI, DVI и VGA. С daisy-chain на до 31 допълнителни устройства управлява 256 компютъра.

Характеристики

One KVM console control up to 8 directly connected computers
Space-Saving RJ-45 connectors and Cat 5e/6 cabling

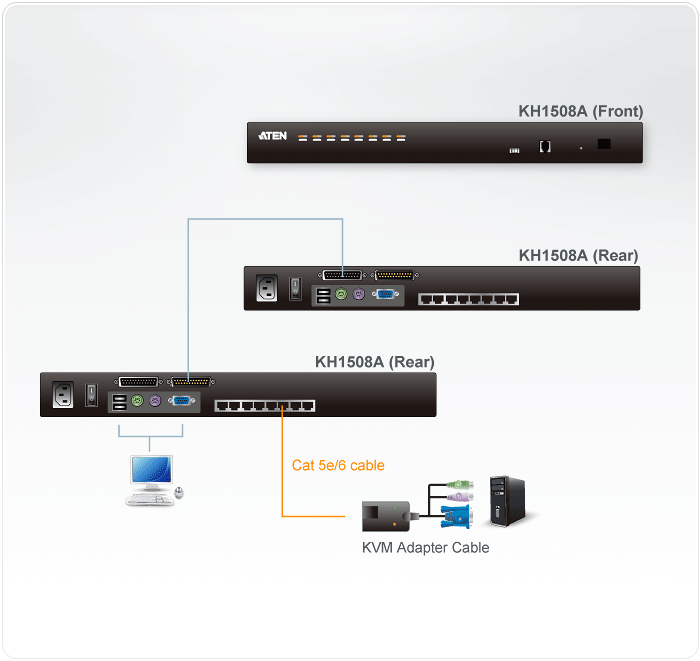

By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters*, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters
Configue port access rights for users on a port - by - port basis
Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
Multiplatform support – Windows, Linux, Mac and Sun
Compatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types
Multiple User Accounts - Supports up to 10 user and 1 administrator accounts
Two-Level Password Security - Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
Adapter ID
Firmware Upgradeable *For video resolution 1920 x 1200 @ 60Hz, a KA71XX or KA75XX series KVM adapter is required.

Връзки към компютри

Директно: 8
Максимум: 256 (via Daisy-chain)
Избор на порт: OSD, Hotkey, Pushbutton

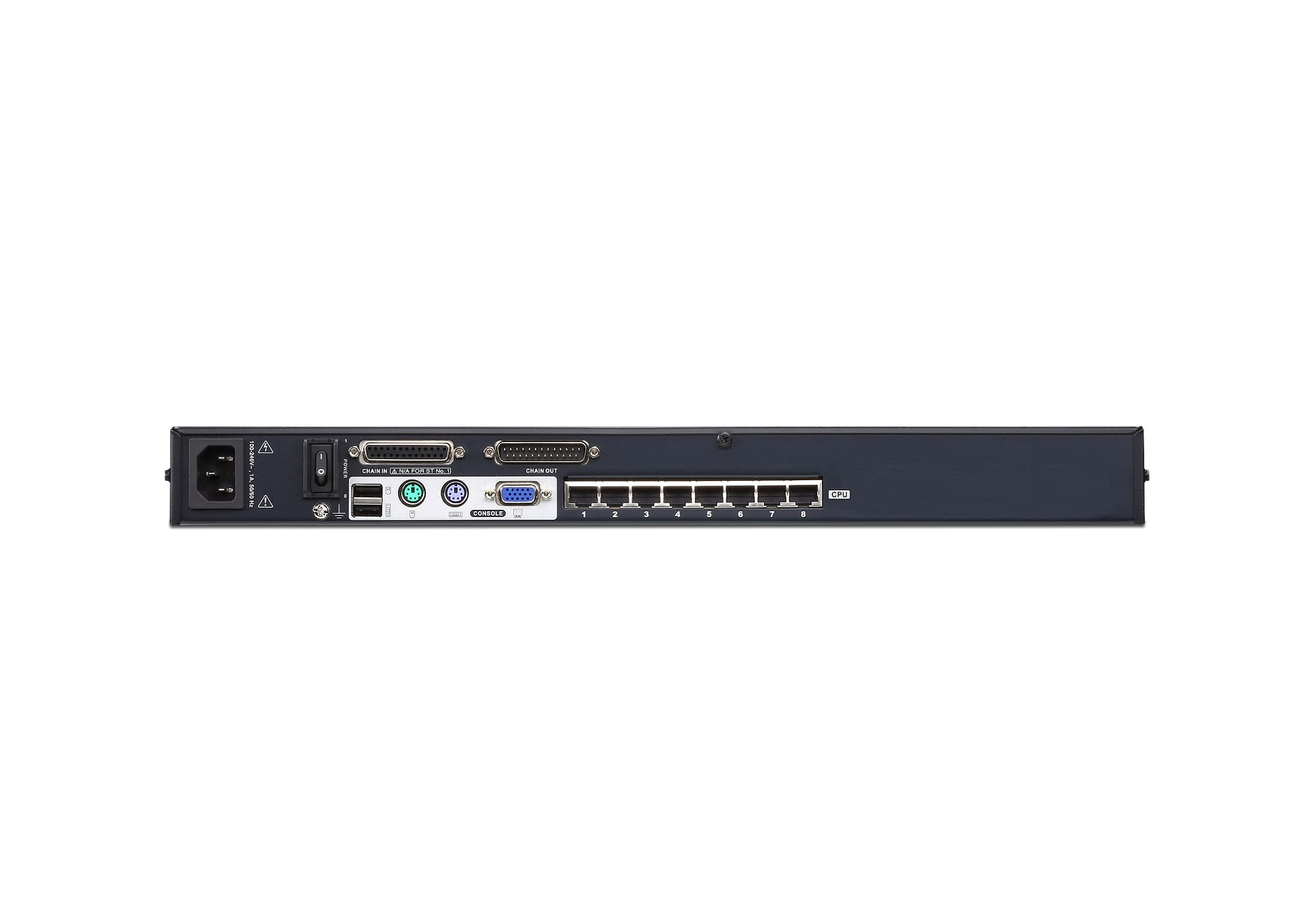

Конектори

Конзолни портове: 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
KVM портове: 8 x RJ-45 Female
Daisy Chain портове: 1 x DB-25 Female (Black) 1 x DB-25 Male (Black)
Обновяване на фърмуера: 1 x RJ-11 Female (Black)
Захранване: 1 x IEC 60320/C14

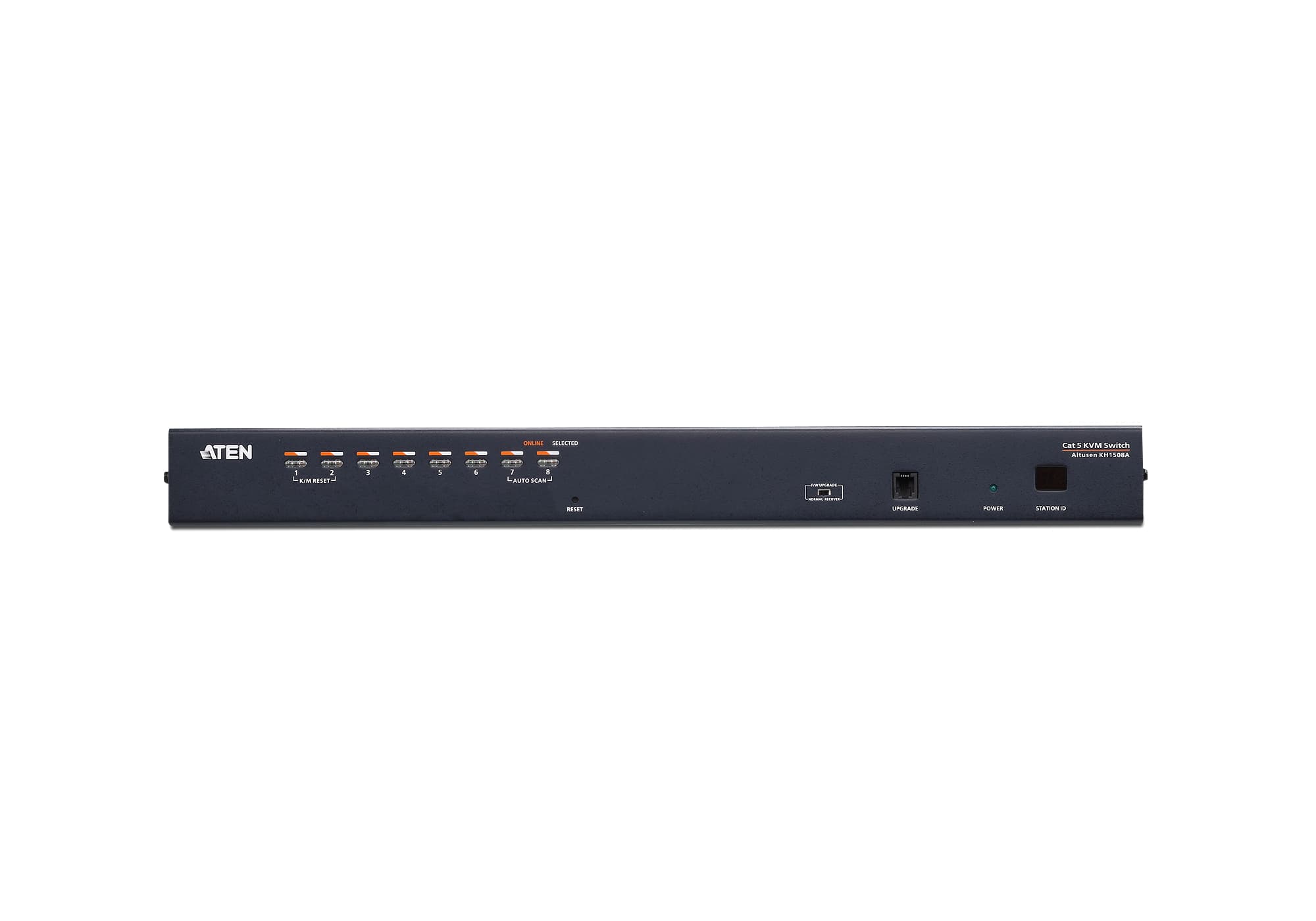

Бутони и превключватели

Избор на порт: 8 x Pushbutton
Нулиране: 1 x Semi-recessed Pushbutton
Обновяване на фърмуера: 1 x Slide
Захранване: 1 x Rocker

Индикатори

Онлайн: 8 (Green)
Избран: 8 (Orange)
Захранване: 1 (Blue)
ID на станция: 1 x 2 Digit 7-segment (Orange)

Емулация

Клавиатура / мишка: PS/2; USB
Интервал на сканиране: 1–255 sec.
Видео: 1920 x 1200 @ 60 Hz (30 m); 1600 x 1200 @ 60 Hz (40 m); 1280 x 1024 @ 75 Hz (50 m)
Макс. входна мощност: 100–240V AC; 50/60 Hz; 1A
Консумация: AC110V:5.1W:32BTU/h AC220V:5.1W:32BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 50°C
Температура на съхранение: -20 - 60°C
Влажност: 0–80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 2.65 kg ( 5.84 lb )
Размери (Д x Ш x В): 43.72 x 16.36 x 4.40 cm (17.21 x 6.44 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
