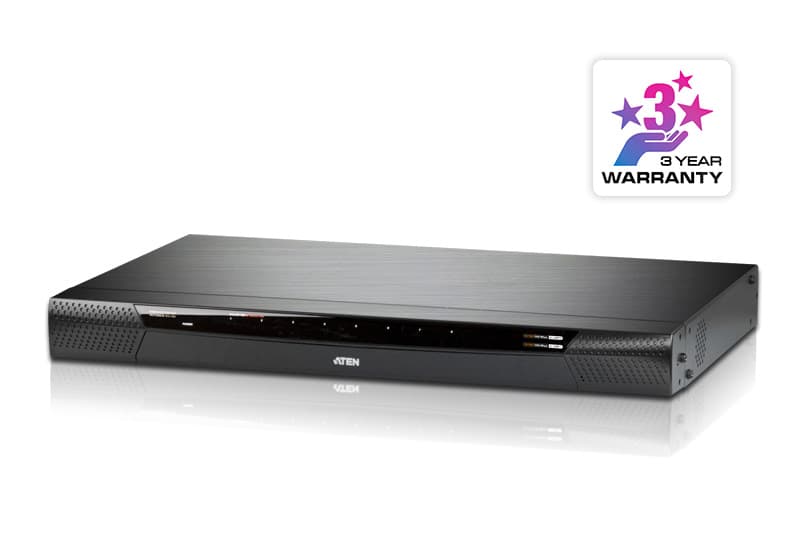

1-Local/1-Remote Access 8-Port Cat 5 KVM over IP Switch (1920 x 1200)
KN1108VСнет от производство
Cat 5 KVM over IP превключвател с 8 порта в 1U — 1 локален и 1 отдалечен потребител, видео 1920 x 1200, каскадно до 128 сървъра. Отделен USB порт за конзола от лаптоп.
Характеристики
- Hardware
- High port density – RJ-45 connectors for up to 8 ports in a 1U housing
- Laptop USB Console (LUC) - A dedicated USB port directly connects to a laptop for easy Console operation
- Two separate buses for one local console access and one remote KVM over IP access
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
- Blade server support
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides PS/2 and USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Audio enabled
- Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server
- Dual Power Supply
- High video resolution - up to 1920 x 1200 @ 60Hz(30m) /1280 x 1024 @ 75Hz(50m) for local and remote sessions
- Monitor and control up to 8 computers on a single level, or control up to 128 computers in a two-level cascade **. * 1920 x 1200 (Reduced blanking) only supported by KA7166, KA7168, KA7169, KA7175, KA7176 and KA7177 ** Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, andKH1516A
- Management
- Up to 64 user accounts
- Up to 32 concurrent logins
- End session feature - administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Critical system event notification via SMTP email; SNMP trap and Syslog support
- Firmware upgradeable
- Out-of-Band Access-Modem dial-in/dial out/dial back support
- Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports,without having to re-configure the adapters and switches
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ATEN CC2000 Management Software
- Integration with ATEN CCVSR Video Session Recording Software*
- Power Association enables the switch´s KVM ports to be associated with an ATEN/ALTUSEN´S PDUs power outlets for remote power management of the servers from the switch´s interface
- Power Over the NET™ integration for remote power control, plus support for 3rd party power distribution units (PDUs)
- Manage browser access methods (Browser, http, https)
- IPv6 capable *Supports recording computer operations accessed via remote sessions.
- Ease-to-Use Interface
- Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize the user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
- Magic Panel - a special hideaway control panel with configurable function icon
- Full-screen or sizable and scalable Virtual Remote Desktop
- Panel Array Mode available to both local console operators and remote access users
- Keyboard/Mouse Broadcast - keyboard and mouse inputs can be duplicated on all the attached servers
- Video syncing with the local console - local console monitor´s EDID information stored on the KVM Adapter Cables for display resolution optimization
- Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
- Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
- IP/MAC Filter for enhanced security protection
- Configurable user and group permissions for server access and control
- Automated CSR creation utility and third party CA certificate authentication
- Virtual Media
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB enabled servers in operating system and BIOS level
- Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
- Keyboard pass through support
- Exit Macros support
- On-screen keyboard with multilanguage support
- BIOS-level access
Конзолни връзки
- Локално
- 1
- Отдалечено
- 1
Връзки към компютри
- Директно
- 8
- Максимум
- 128 (via Cascade)
- Избор на порт
- Pushbuttons, GUI, Hotkeys

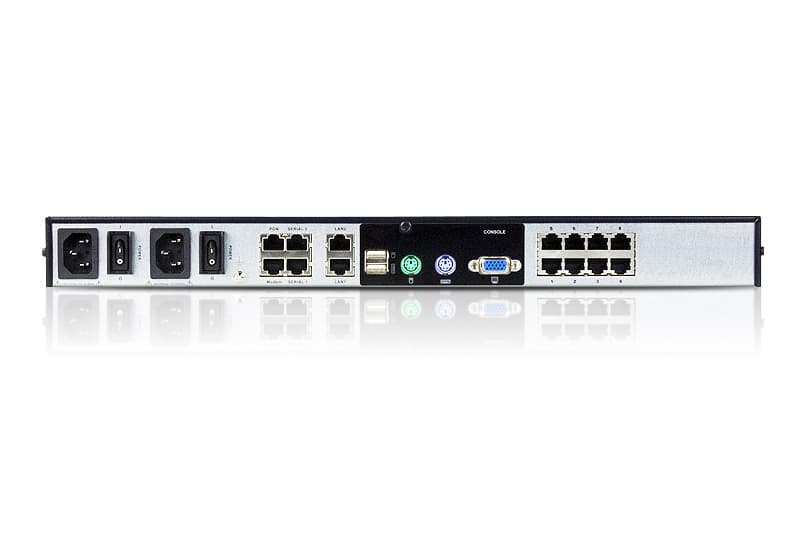

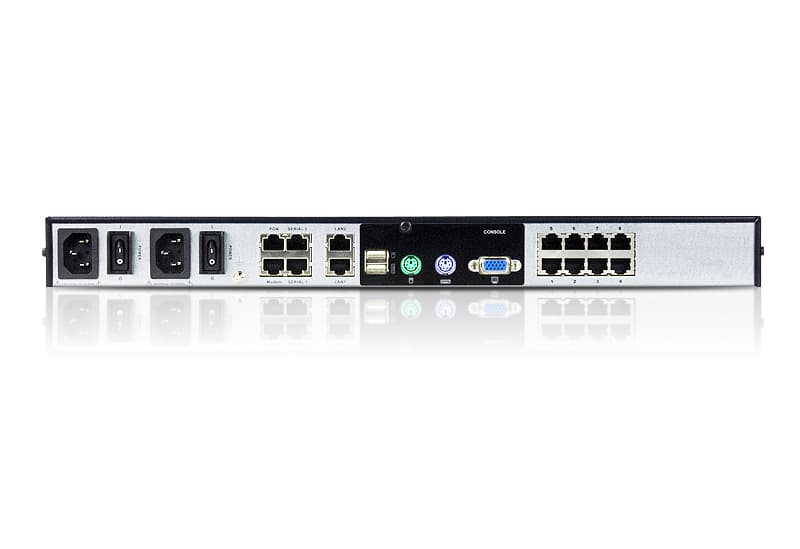

Конектори
- Конзолни портове
- 2 x USB Type-A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
- USB порт
- 3 x USB Type-A Female
- Аудио
- 2 x Audio Jack Female
- Laptop USB Console (LUC) порт
- 1 x USB Mini-B Female
- KVM портове
- 8 x RJ-45 Female
- Сериен
- 2 x RJ-45 Female
- PON
- 1 x RJ-45 Female
- Модем
- 1 x RJ-45 Female
- LAN портове
- 2 x RJ-45 Female
- Захранване
- 2 x IEC 60320/C14
Бутони и превключватели
- Избор на порт
- 2 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Захранване
- 2 x Rocker
Индикатори
- Онлайн
- 8 (Green)
- Връзка 10/100/1000 Mbps
- 2 (Red/Orange/Green)
- Захранване
- 1 (Blue)
Емулация
- Клавиатура / мишка
- PS/2 / USB
Видео
- Локално
- 1920 x 1200@60 Hz
- Отдалечено
- 1920 x 1200@60 Hz
- Интервал на сканиране
- 1-255 Seconds
- Макс. входна мощност
- 100-240VAC; 50-60Hz; 1A
- Консумация
- 120V/17W; 230V/17W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50˚C
- Температура на съхранение
- -20 - 60˚C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 3.57 kg ( 7.86 lb )
- Размери (Д x Ш x В)
- 43.84 x 28.78 x 4.40 cm (17.26 x 11.33 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
