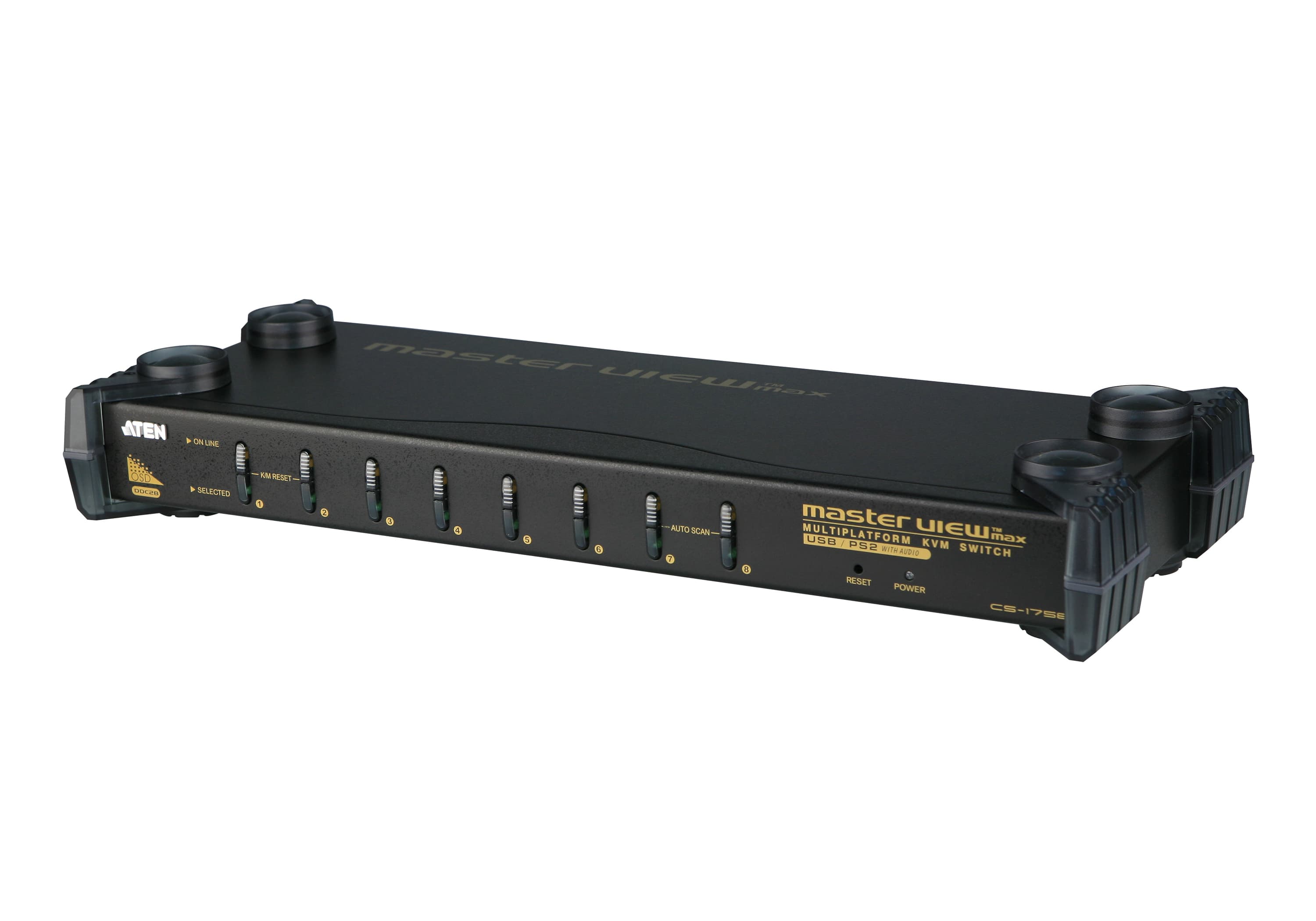

8-Port PS/2-USB VGA/Audio KVM Switch
CS1758Снет от производство
KVM превключвател за 8 компютъра с PS/2 или USB клавиатура и мишка, с аудио. Чрез каскада на 3 нива управлява до 512 машини; превключване с OSD, горещи клавиши или бутони.
Характеристики
- One USB console controls 8 computers.
- Cascadable up to 3 levels - provides up to 512 computers.
- Dual interface supports with computers with PS/2 or USB keyboards and mice.
- Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.
- Auto PS/2 and USB interface detection.
- Buzzer On/Off via hotkey and OSD.
- Computer selection via front panel pushbuttons, hotkeys and OSD.
- Superior video quality - up to 2048 x 1536; DDC2B.
- Firmware upgradable.
- With speaker and microphone support.
- ATEN USB ASIC inside.
- Available in silver and black.
- Rack mountable in 19" system rack.
- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.
- For more information about KVMs which can connect to CS1758, see Compatible KVM Table.

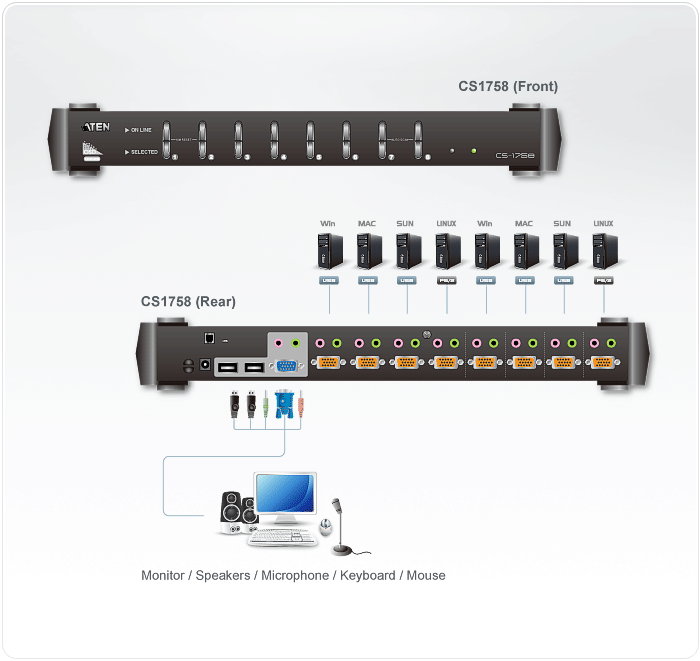

Връзки към компютри
- Директно
- 8
- Максимум
- 512 (via Cascade)
- Избор на порт
- OSD, Hotkey, Pushbutton

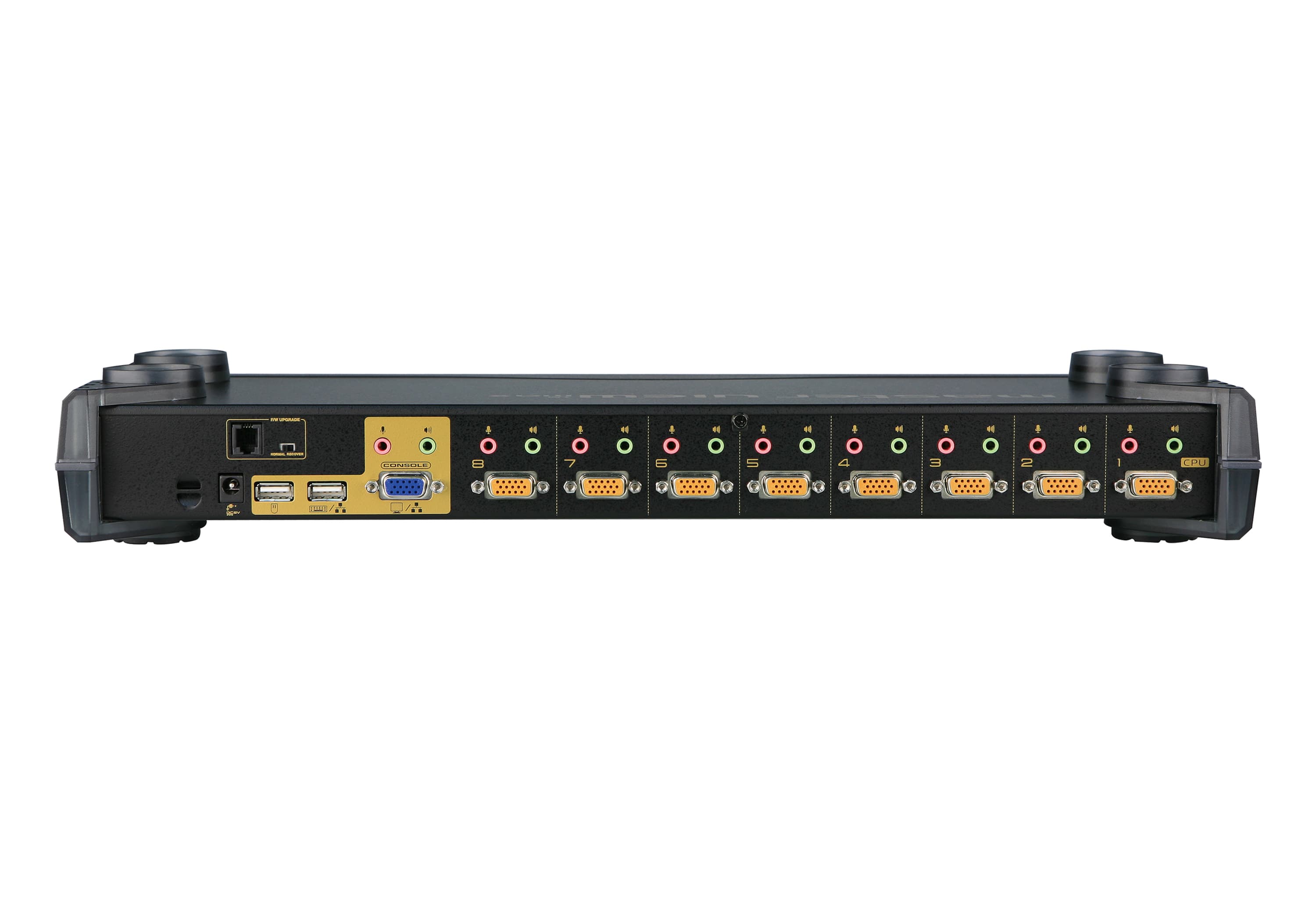

Конектори
- Конзолни портове
- 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
- KVM портове
- 8 x SPHD-15 Female (Yellow) 8 x 3.5mm Audio Jack Female (Green) 8 x 3.5mm Audio Jack Female (Pink)
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Захранване
- 1 x DC Jack (Black)

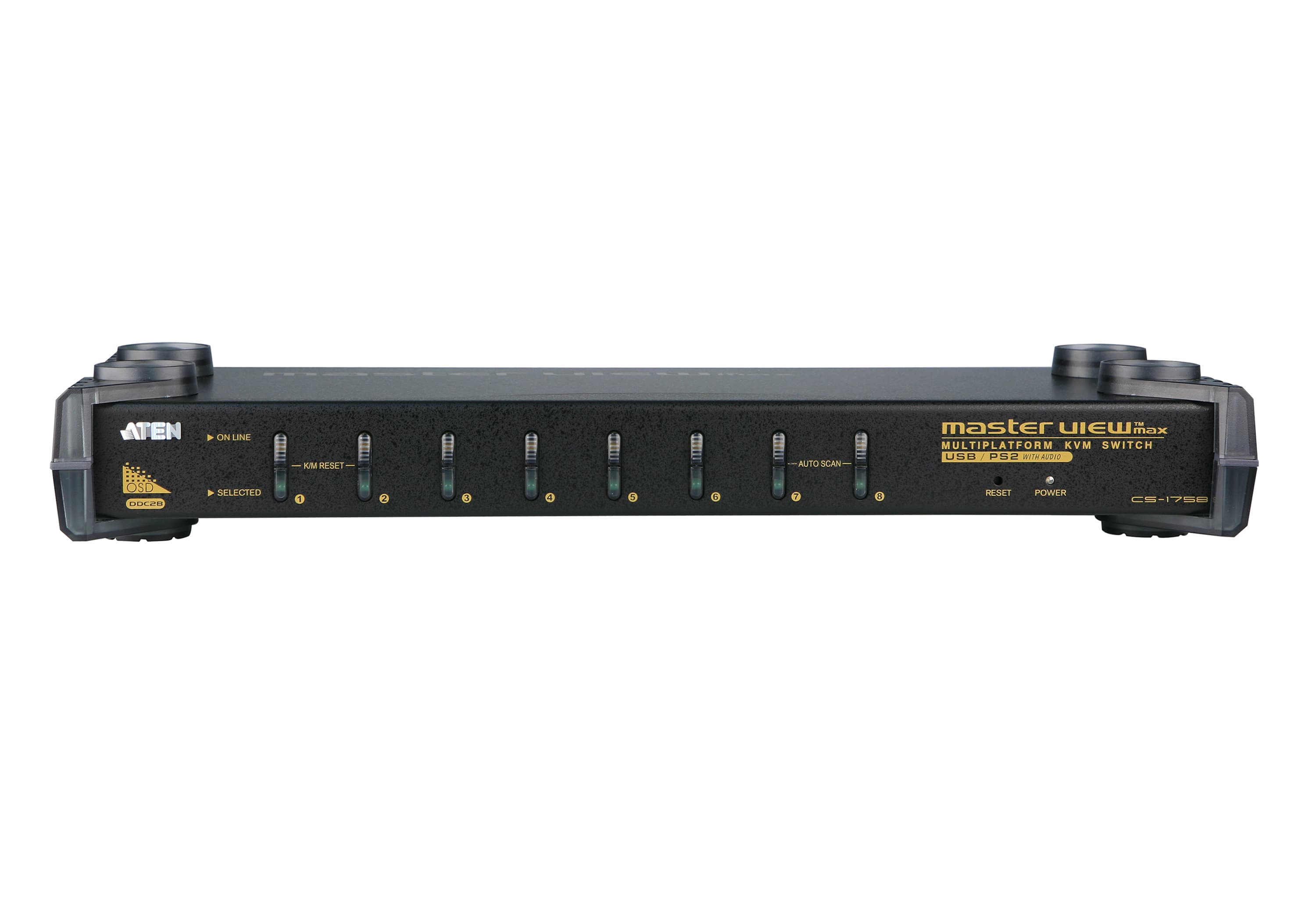

Бутони и превключватели
- Портове
- 4 x Pushbutton
- Обновяване на фърмуера
- 1 x Slide
- Нулиране
- 1 x Semi-recessed Pushbutoon
Индикатори
- Онлайн
- 8 (Orange)
- Избран
- 8 (Green)
- Захранване
- 1 (Blue)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 2048 x 1536; DDC2B
- Интервал на сканиране
- 1-255 seconds (default: 5 secs.)
- Консумация
- DC5V:2.32W:15BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50˚C
- Температура на съхранение
- -20-60˚C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.72 kg ( 5.99 lb )
- Размери (Д x Ш x В)
- 43.72 x 16.10 x 4.40 cm (17.21 x 6.34 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
