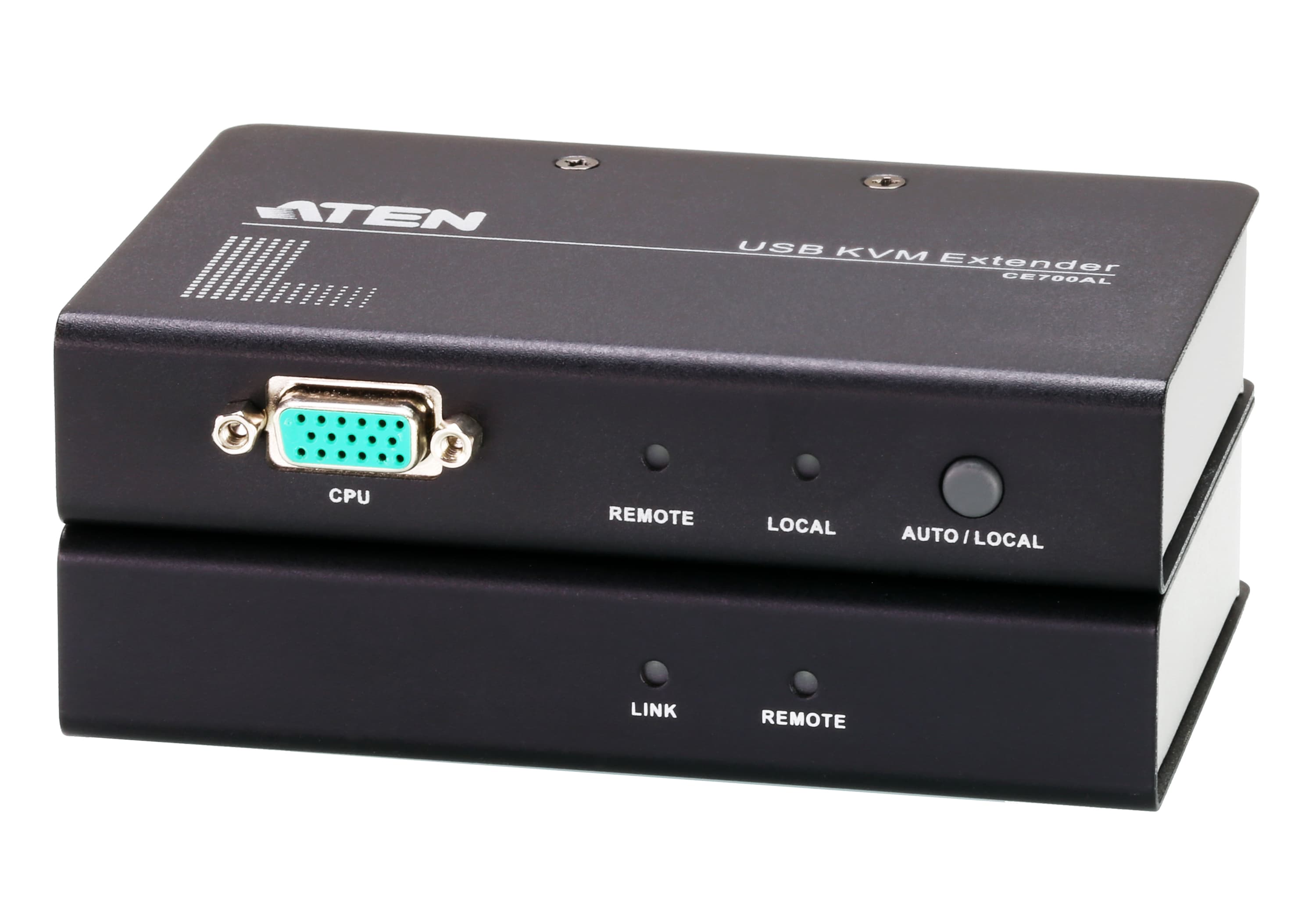

USB VGA Cat 5 KVM Extender (1280 x 1024@150m)

Name: USB VGA Cat 5 KVM Extender (1280 x 1024@150m)
Brand: ATEN
SKU: CE700A

CE700A

KVM удължител за USB и VGA — свързва локален и отдалечен модул на до 150 m по Cat 5e, при 1280 x 1024, с ESD и защита от пренапрежение.

Характеристики

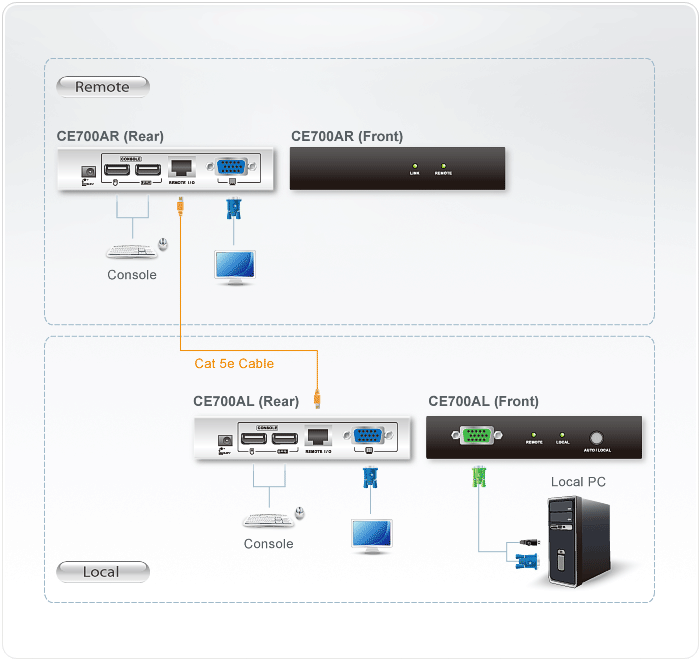

Cat 5e cable connects the Local and Remote Units - up to 150m apart
Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC)
USB Keyboard and USB Mouse Ports
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
Automatic gain control - adjusts signal strength to compensate for distance
High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
Supports Wide Screen formats *
Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
Rack mountableEasy to install - no software required - connecting cables to the devices is all it takes
Multiplatform support - Windows, Linux * The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.

Клавиатура / мишка: USB
Клавиатура / мишка: USB
Консумация: DC5.3V:2.17W:14BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Консумация: DC5.3V:1.59W:12BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Видео: 1920 x 1200 @ 60Hz (30m) 1600 x 1200 @ 60Hz (100m) 1280 x 1024 @ 60Hz (150m)
Видео: 1920 x 1200 @ 60Hz (30m) 1600 x 1200 @ 60Hz (100m) 1280 x 1024 @ 60Hz (150m)

Корпус: Metal
Корпус: Metal
Тегло: 0.33 kg ( 0.73 lb )
Тегло: 0.32 kg ( 0.7 lb )
Размери (Д x Ш x В): 12.70 x 8.65 x 2.50 cm (5 x 3.41 x 0.98 in.)
Размери (Д x Ш x В): 12.70 x 8.14 x 2.50 cm (5 x 3.2 x 0.98 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
