8-Port PS/2-USB VGA Single Rail LCD KVM Switch
CL5708
LCD KVM превключвател за 8 компютъра с PS/2 или USB, с вграден панел 17, 17.3 или 19 инча в плъзгащ се корпус. Разширение до 256 машини чрез daisy-chain.
Характеристики

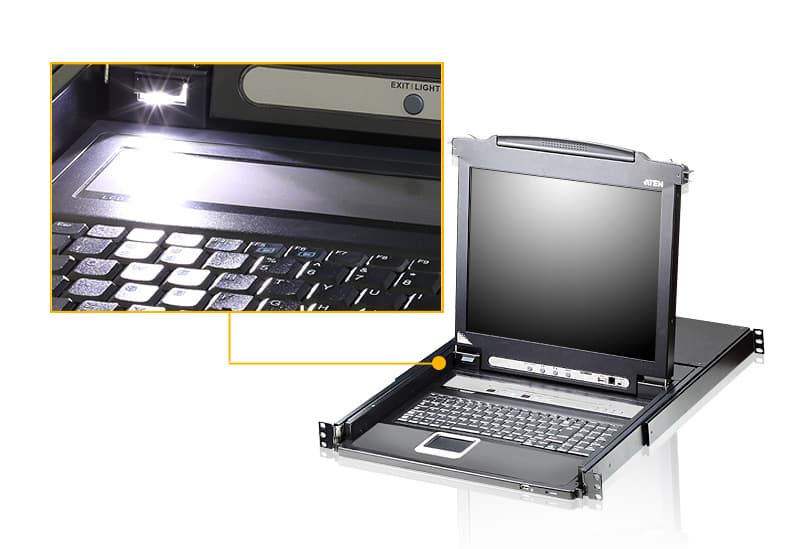

- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions

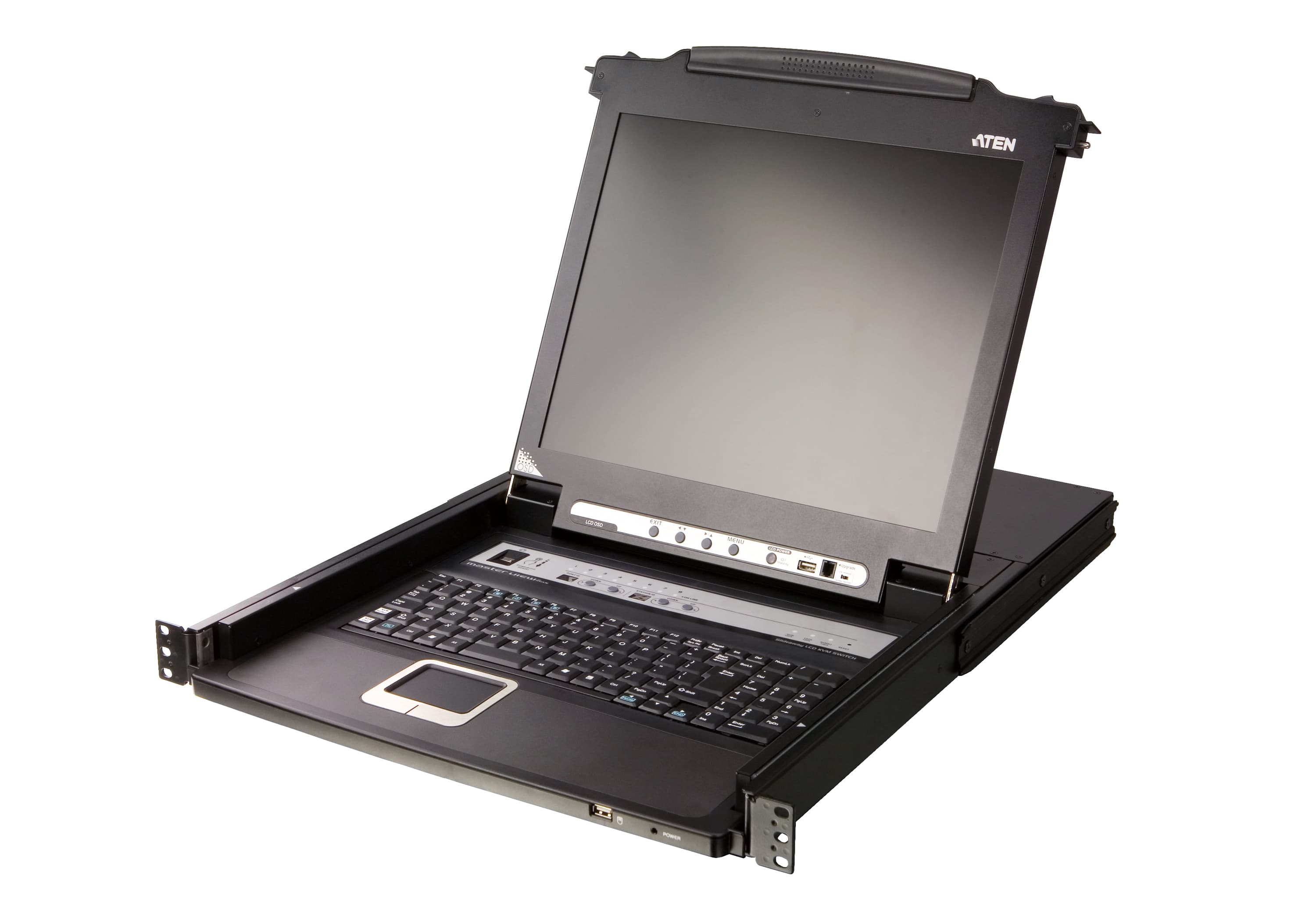

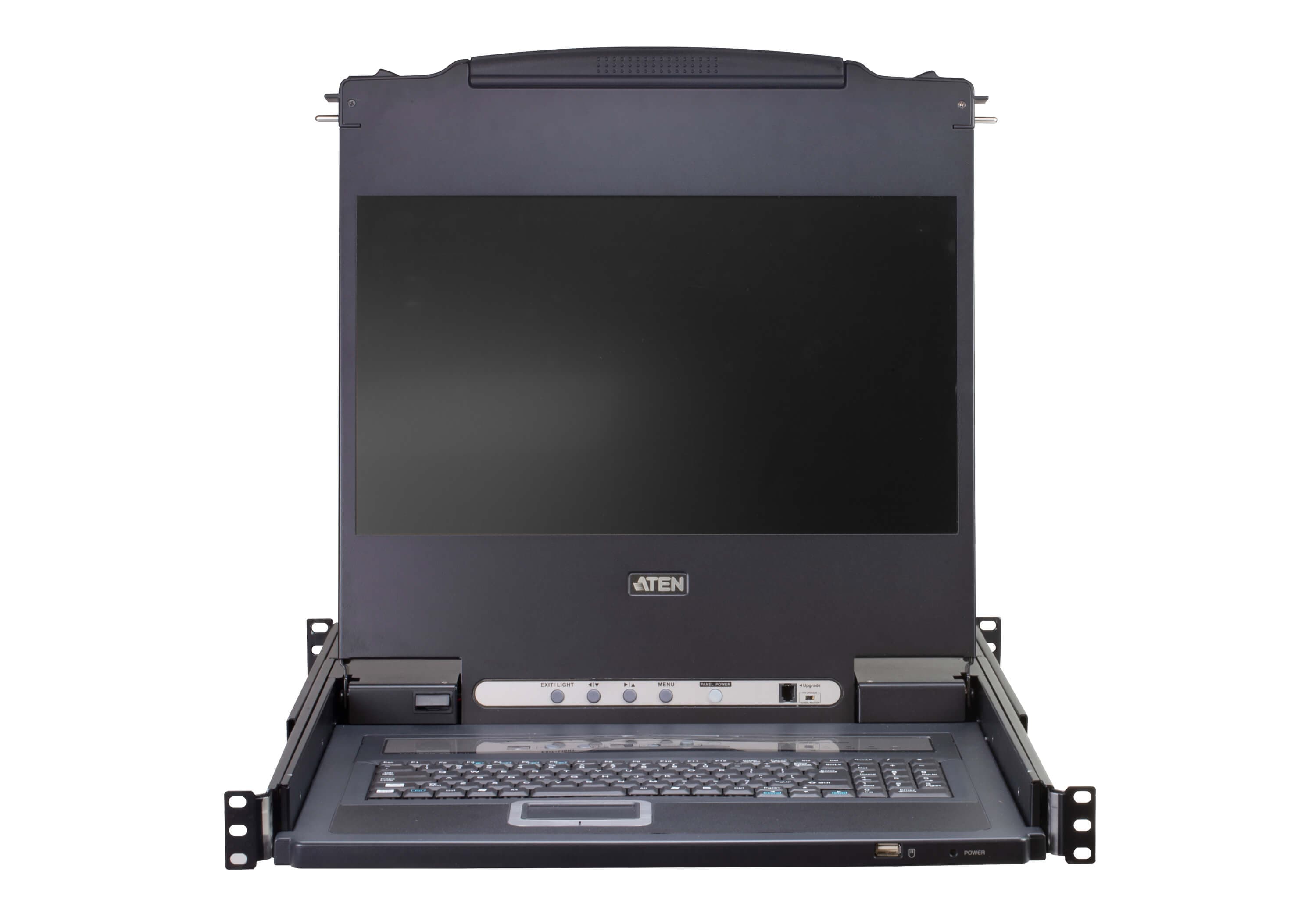

- Integrated KVM console with 17”, 17.3”or 19“ LED-backlit LCD monitor in a Slideaway™ housing
- Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers
- Daisy-chain up to 31 additional units – controls up to 256 computers from a single console
- Dual interface – supports computers and console with PS/2 or USB keyboards and mice
- USB port allows each computer to access USB peripherals* (inapplicable to CL5708MW)
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
- Superior video quality – supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5708M / CL5708N) and 1920 x 1080 @ 60 Hz (CL5708MW)
- No software required –convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel LED indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security – only authorized users can view and control computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast supports – commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable
- Beeper on / off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
- Optional rack mount kits available including easy installation options
- Keyboard Language supports: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Traditional Chinese and Turkish Note: The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections (inapplicable to CL5708MW). More information about "Easy Rack Mounting"...
Връзки към компютри
- Директно
- 8
- Директно
- 8
- Директно
- 8
- Максимум
- 256 (via Daisy-chain)
- Максимум
- 256 (via Daisy-chain)
- Максимум
- 256 (via Daisy-chain)
- Избор на порт
- OSD, Hotkey, Pushbutton
- Избор на порт
- OSD, Hotkey, Pushbutton
- Избор на порт
- OSD, Hotkey, Pushbutton

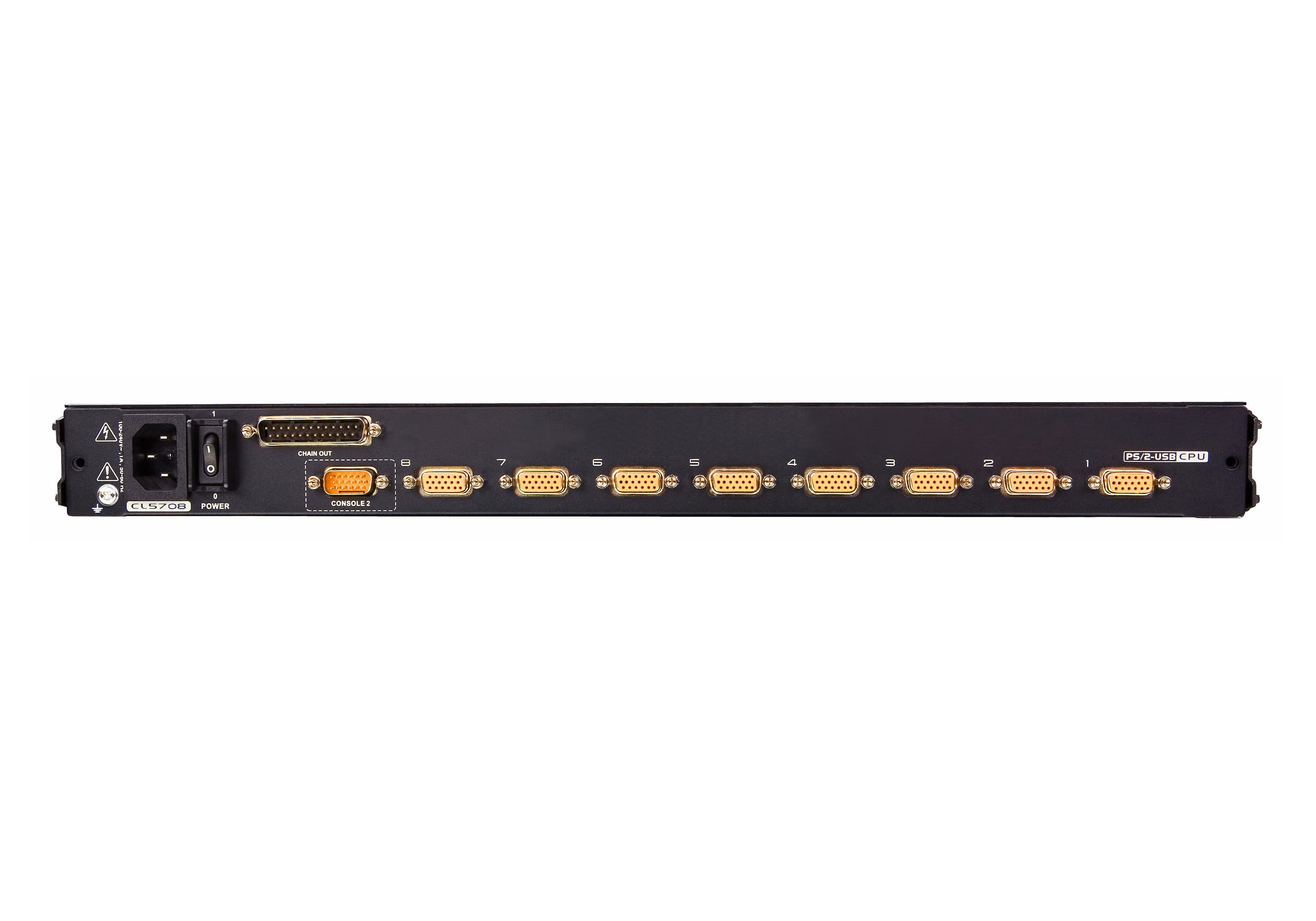

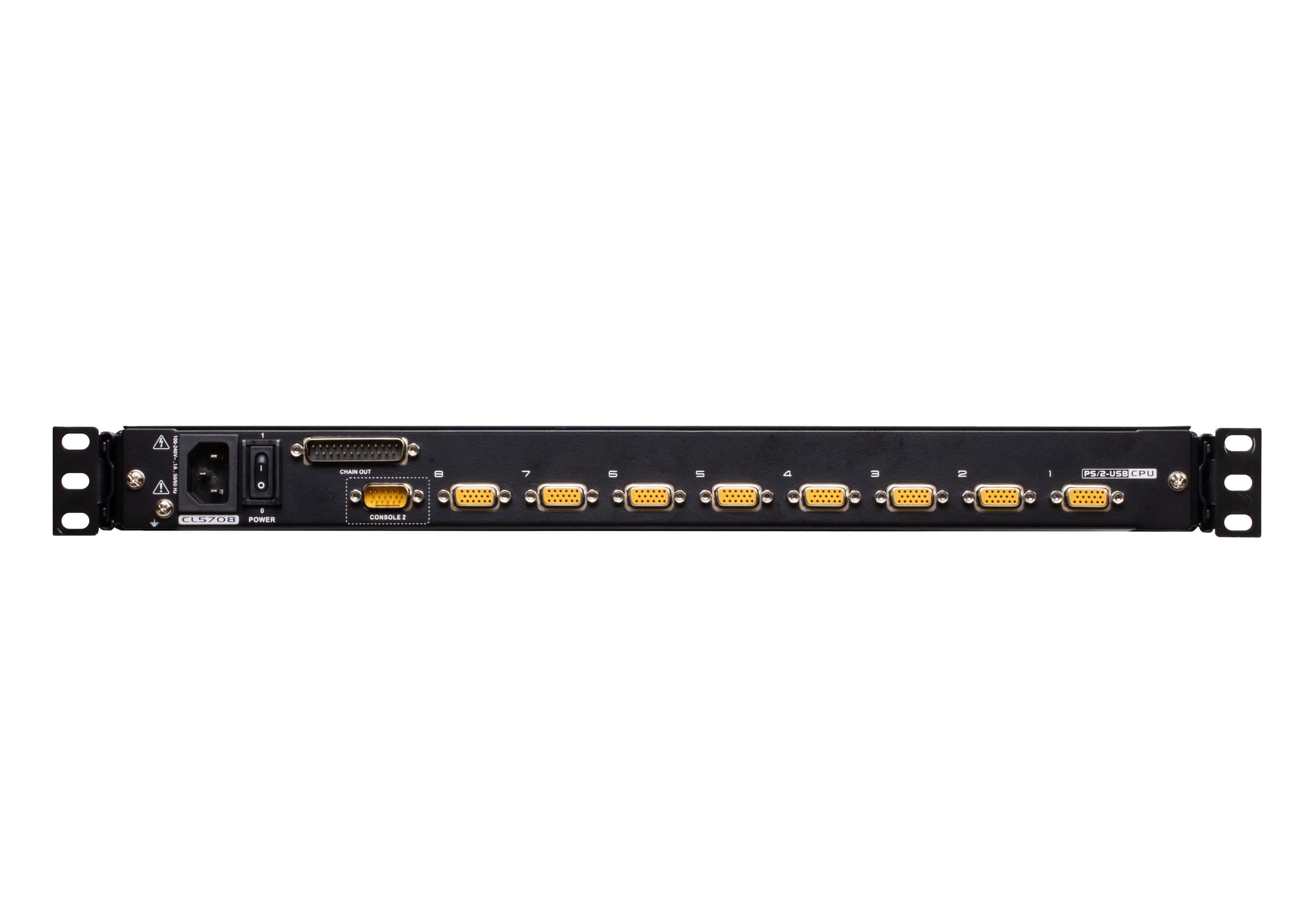

Конектори
- KVM портове
- 8 x SPHD Female (Yellow)
- KVM портове
- 8 x SPHD Female (Yellow)
- KVM портове
- 8 x SPHD Female (Yellow)
- Daisy Chain портове
- 1 x DB-25 Male
- Daisy Chain портове
- 1 x DB-25 Male
- Daisy Chain портове
- 1 x DB-25 Male
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Захранване
- 1 x IEC 60320/C14
- Захранване
- 1 x IEC 60320/C14
- Захранване
- 1 x IEC 60320/C14
- Външни конзолни портове
- 1 x SPHD Male (Yellow)
- Външни конзолни портове
- 1 x SPHD Male (Yellow)
- Външни конзолни портове
- 1 x SPHD Male (Yellow)
- Външен порт за мишка
- 1 x USB Type A Female (Front)
- Външен порт за мишка
- 1 x USB Type A Female (Front)
- Външен порт за мишка
- 1 x USB Type A Female (Front)
- USB порт
- 1 x USB Type A Female
- USB порт
- N/A
- USB порт
- 1 x USB Type A Female
Бутони и превключватели
- Избор на порт
- 2 x Pushbutton
- Избор на порт
- 2 x Pushbutton
- Избор на порт
- 2 x Pushbutton
- Избор на станция
- 2 x Pushbutton
- Избор на станция
- 2 x Pushbutton
- Избор на станция
- 2 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
- Обновяване на фърмуера
- 1 x Slide Switch
- Захранване
- 1 x Rocker Switch
- Захранване
- 1 x Rocker Switch
- Захранване
- 1 x Rocker Switch
- Управление на дисплея
- 4 x Pushbutton
- Управление на дисплея
- 4 x Pushbutton
- Управление на дисплея
- 4 x Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
Индикатори
- Онлайн
- 8 (Orange)
- Онлайн
- 8 (Orange)
- Онлайн
- 8 (Orange)
- ID на порт
- 2 x 7-segment LED Display (Orange)
- ID на порт
- 2 x 7-segment LED Display (Orange)
- ID на порт
- 2 x 7-segment LED Display (Orange)
- ID на станция
- 2 x 7-segment LED Display (Orange)
- ID на станция
- 2 x 7-segment LED Display (Orange)
- ID на станция
- 2 x 7-segment LED Display (Orange)
- Захранване
- 1 (Dark Green)
- Захранване
- 1 (Dark Green)
- Захранване
- 1 (Dark Green)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- LED осветление
- 1 x LED Illumination Light
- LED осветление
- 1 x LED Illumination Light
- LED осветление
- 1 x LED Illumination Light
Панел
- LCD модул
- 17" TFT-LCD
- LCD модул
- 17.3" TFT-LCD
- LCD модул
- 19" TFT-LCD
- Резолюция
- 1280 x 1024 @ 75 Hz
- Резолюция
- 1920 x 1080 @ 60 Hz
- Резолюция
- 1280 x 1024 @ 75 Hz
- Време за реакция
- 5 ms
- Време за реакция
- 16 ms
- Време за реакция
- 5 ms
- Зрителен ъгъл
- 170° (H), 160° (V)
- Зрителен ъгъл
- 170° (H), 170° (V)
- Зрителен ъгъл
- 170° (H), 160° (V)
- Стъпка на пикселите
- 0.264 mm x 0.264 mm
- Стъпка на пикселите
- 0.1989 mm x 0.1989 mm
- Стъпка на пикселите
- 0.294 mm x 0.294 mm
- Поддържани цветове
- 16.77M colors
- Поддържани цветове
- 16.77M colors
- Поддържани цветове
- 16.77M colors
- Контраст
- 1000 : 1
- Контраст
- 800 : 1
- Контраст
- 1000 : 1
- Яркост
- 250 cd/m²
- Яркост
- 250 cd/m²
- Яркост
- 250 cd/m²
Видео
- Входна видео резолюция
- up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B
- Входна видео резолюция
- up to 1920 × 1200 @ 60 Hz (all resolution @ 60Hz only); 1920 × 1080 @ 60 Hz, DDC2B
- Входна видео резолюция
- up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B
- Интервал на сканиране
- 1-255 seconds
- Интервал на сканиране
- 1-255 seconds
- Интервал на сканиране
- 1-255 seconds
Емулация
- Клавиатура / мишка
- PS/2, USB
- Клавиатура / мишка
- PS/2, USB
- Клавиатура / мишка
- PS/2, USB
- Макс. входна мощност
- 100-240V AC, 50/60Hz, 1A
- Макс. входна мощност
- 100-240V AC, 50/60Hz, 1A
- Макс. входна мощност
- 100-240V AC, 50/60Hz, 1A
- Консумация
- AC110V:23.9W:125BTU/h AC220V:25.1W:130BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- AC110V:14.5W:79BTU/h AC220V:15.4W:83BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- AC110V:26.1W:135BTU/h AC220V:27.2W:140BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Работна температура
- 0-40°C
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Температура на съхранение
- -20-60°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-85% RH, Noncondensing
- Влажност
- 0-85% RH, Noncondensing
- Влажност
- 0-85% RH, Noncondensing
Физически характеристики
- Корпус
- Metal + Plastic
- Корпус
- Metal + Plastic
- Корпус
- Metal + Plastic
- Тип релси
- Single Rail
- Тип релси
- Single Rail
- Тип релси
- Single Rail
- Тегло
- 13.47 kg ( 29.67 lb )
- Тегло
- 13.39 kg ( 29.49 lb )
- Тегло
- 13.39 kg ( 29.49 lb )
- Размери (Д x Ш x В)
- 48.00 x 64.27 x 4.40 cm (18.9 x 25.3 x 1.73 in.)
- Размери (Д x Ш x В)
- 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)
- Размери (Д x Ш x В)
- 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
