USB VGA Cat 5 Mini KVM Extender (1280 x 1024@100m)
CE100
Мини KVM удължител за USB и VGA — извежда конзолата на до 100 m по Cat 5e кабел при 1280 x 1024, с вградена ESD защита.
Характеристики
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
- Easily add or remove computers connected to the installation
- Supports real time DDC communication
- Superior video quality – up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- No external power supply needed for local unit
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Wall mountable

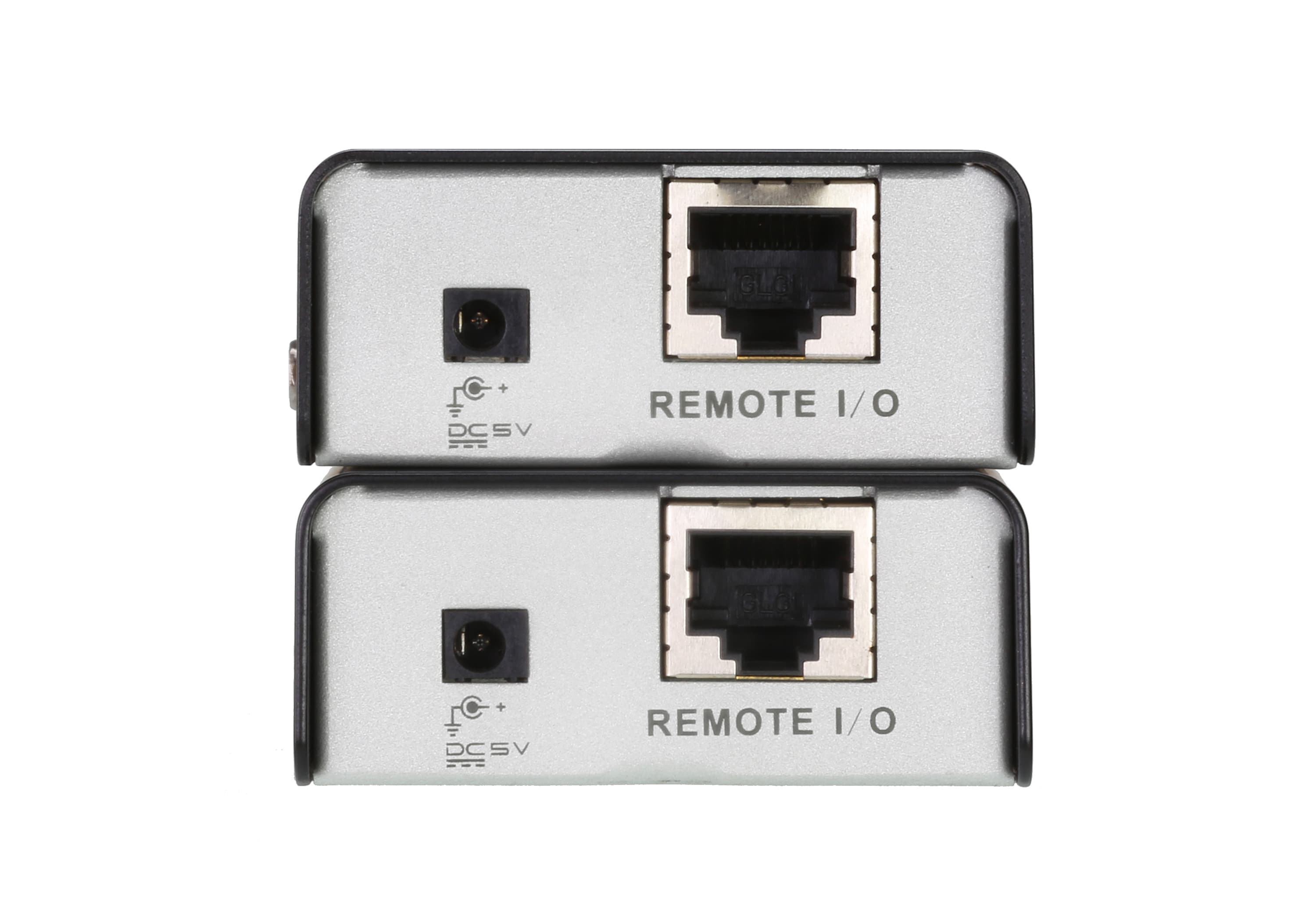

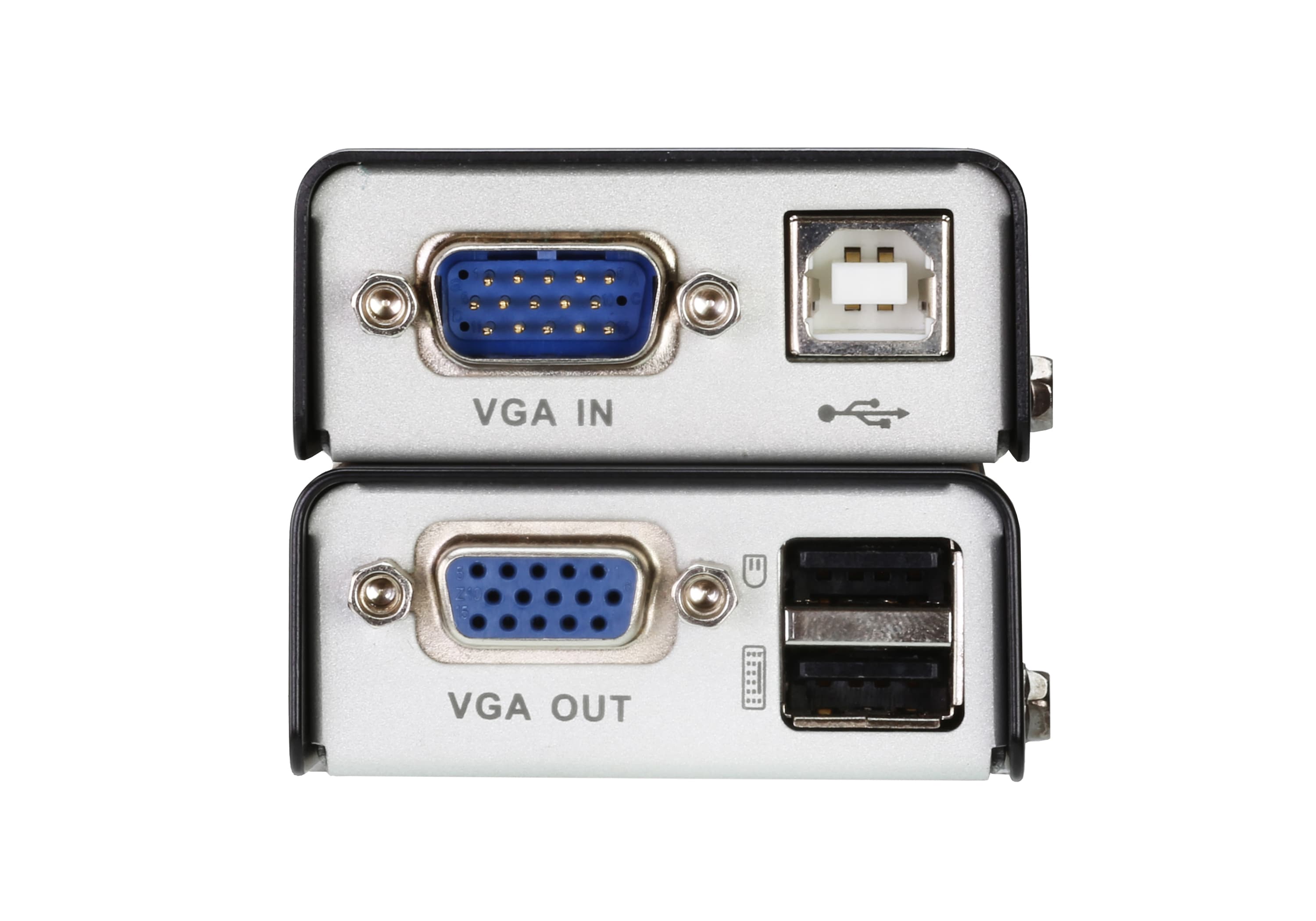

Конектори
- Конзолни портове
- N/A
- Конзолни портове
- 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue)
- KVM портове
- 1 x USB Type B Female (White) 1 x HDB-15 Male (Blue)
- KVM портове
- N/A
- Захранване
- 1 x DC Jack
- Захранване
- 1 x DC Jack
- Между устройства
- 1 x RJ-45 Female (Black)
- Между устройства
- 1 x RJ-45 Female (Black)
- Превключватели
- N/A
- Превключватели
- 1 x Knob
Индикатори
- Връзка
- 1 (Blue)
- Връзка
- 1 (Blue)
- Захранване
- 1 (Green)
- Захранване
- 1 (Green)
- Видео
- 1920 x 1200 @ 60 Hz (30 m); 1280 x 1024 @ 60 Hz (100 m)
- Видео
- 1920 x 1200 @ 60 Hz (30 m); 1280 x 1024 @ 60 Hz (100 m)
- Консумация
- DC5V:0.68W:7BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5V:0.99W:9BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–50°C
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.17 kg ( 0.37 lb )
- Тегло
- 0.17 kg ( 0.37 lb )
- Размери (Д x Ш x В)
- 9.10 x 5.74 x 2.40 cm (3.58 x 2.26 x 0.94 in.)
- Размери (Д x Ш x В)
- 9.10 x 5.74 x 2.40 cm (3.58 x 2.26 x 0.94 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
