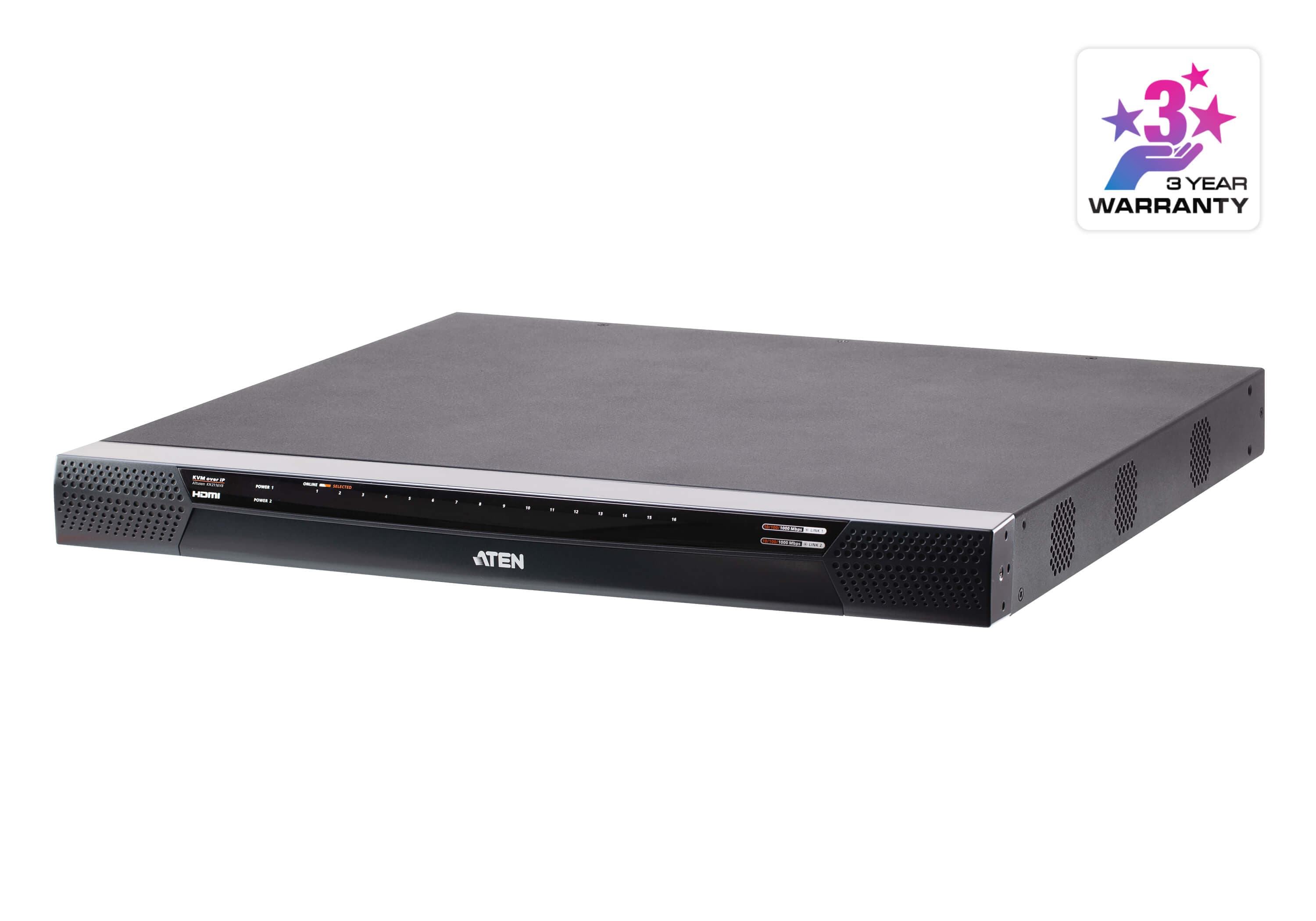

1-Local/2-Remote Access 16-Port Multi-Interface Cat 5 KVM over IP Switch

Name: 1-Local/2-Remote Access 16-Port Multi-Interface Cat 5 KVM over IP Switch
Brand: ATEN
SKU: KN2116VB

KN2116VB

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

KVM over IP комутатор с 16 RJ-45 порта в 1U корпус, със свързване по Cat 5e/6. Осигурява 1 локален достъп и 2 отдалечени сесии по независими шини; каскадно управлява до 512 компютъра.

Характеристики

High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 16 ports in 1U housing
Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
2 separate buses for remote KVM over IP access (varies by different models)
Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
Blade server support
Supports PS/2, USB, Sun Legacy and serial (RS-232) connectivity
Multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Audio enabled
Dual power supply
Superior video quality – video resolution up to 1920 x 1200 @ 60 Hz, 24-bit color depth; transmission distance of up to 50m
Cascadable – controls up to 512 computers
Simultaneously share 1 local console and 2 independent connection to the attached servers
End session feature – administrators can terminate running sessions
Integrated with ATEN CC2000 Centralized Management Software and CCVSR Video Session Recording Software
Supports 64 user accounts and up to 32 users can be logged in at the same time for management
Green IT Fan – auto-fan-speed adjustment responding to temperature
Event logging and Windows-based log server
Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
Event destination – event logs will be saved to Log server, Syslog server, and USB drive
Firmware upgradeable
Out-of-Band access – modem dial-in / dial-out / dial-back support
Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
Port share mode – allows multiple users to gain access to a server simultaneously
Supports ATEN KVM over IP console station (KA82xx series)
Power association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
Supports IPv4, IPv6
Supports PadClient application on an iPad for mobile management
Panel Array Mode™ – monitors all ports in a grid display (both local and remote screens)
Local console, browser-based, and AP GUIs offer a unified multi-language interface to minimize the user training time and increase productivities
Multiplatform client support (Windows, Mac OS X, Linux, and Sun)
Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera, and Netscape
Browser-based GUI in pure Web technology – allows administrators to perform administrative tasks without pre-installed software. (e.g. Java)
Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
Full-screen or sizable and scalable virtual remote desktop
Keyboard / mouse broadcast – keyboard and mouse signals can be duplicated across all servers simultaneously
Video syncing with the local console – local console monitor’s EDID information stored on the KVM adapter for display resolution optimization
High-grade security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports TLS 1.2 with 128-bit SSL, 256-bit AES encryption algorithms, along with 2048-bit RSA certification, ensuring secure data transmission during browser login
Support for IP / MAC filter
Configurable user and group permissions for server access and control
Automated CSR creation utility and third party CA certificate authentication
Virtual media enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Supports USB2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
Message Board for communication among remote users
Video quality such as monochrome color depth, threshold and noise settings, bandwidth increment / reduction can be adjusted for optimizing data transfer speed
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
On-screen keyboard with multi-language support
BIOS-level access for troubleshooting

Конзолни връзки

Локално: 1
Отдалечено: 2

Връзки към компютри

Директно: 16
Максимум: 512 (via Cascade)
Избор на порт: Pushbuttons, Hotkeys, GUI

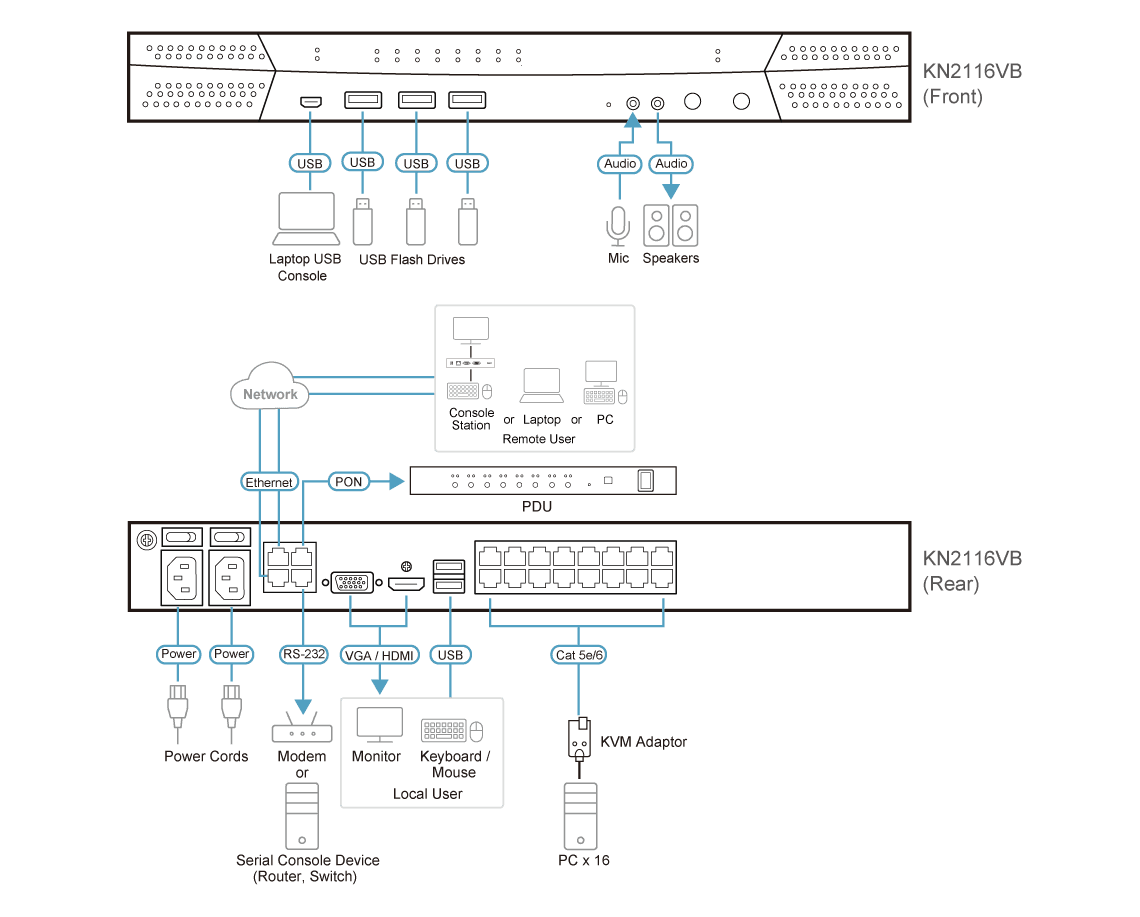

Конектори

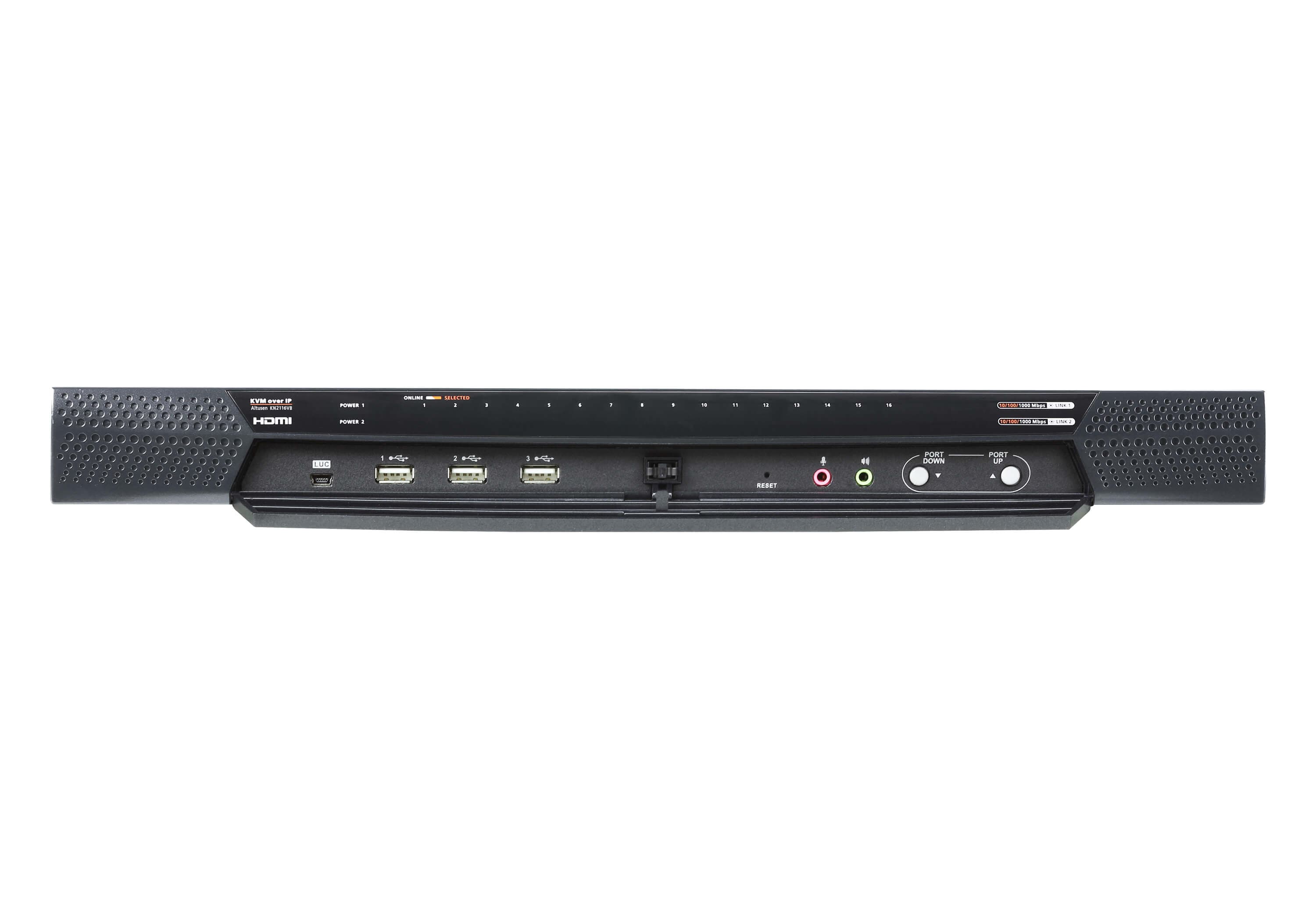

Конзолни портове: 2 x USB Type-A Female (White) 1 x HDMI Female (Black) 1 x VGA HDB-15 (Blue)
USB порт: 3 x USB Type-A Female
Аудио: 2 x Audio Jack Female
Laptop USB Console (LUC) порт: 1 x USB Mini-B Female

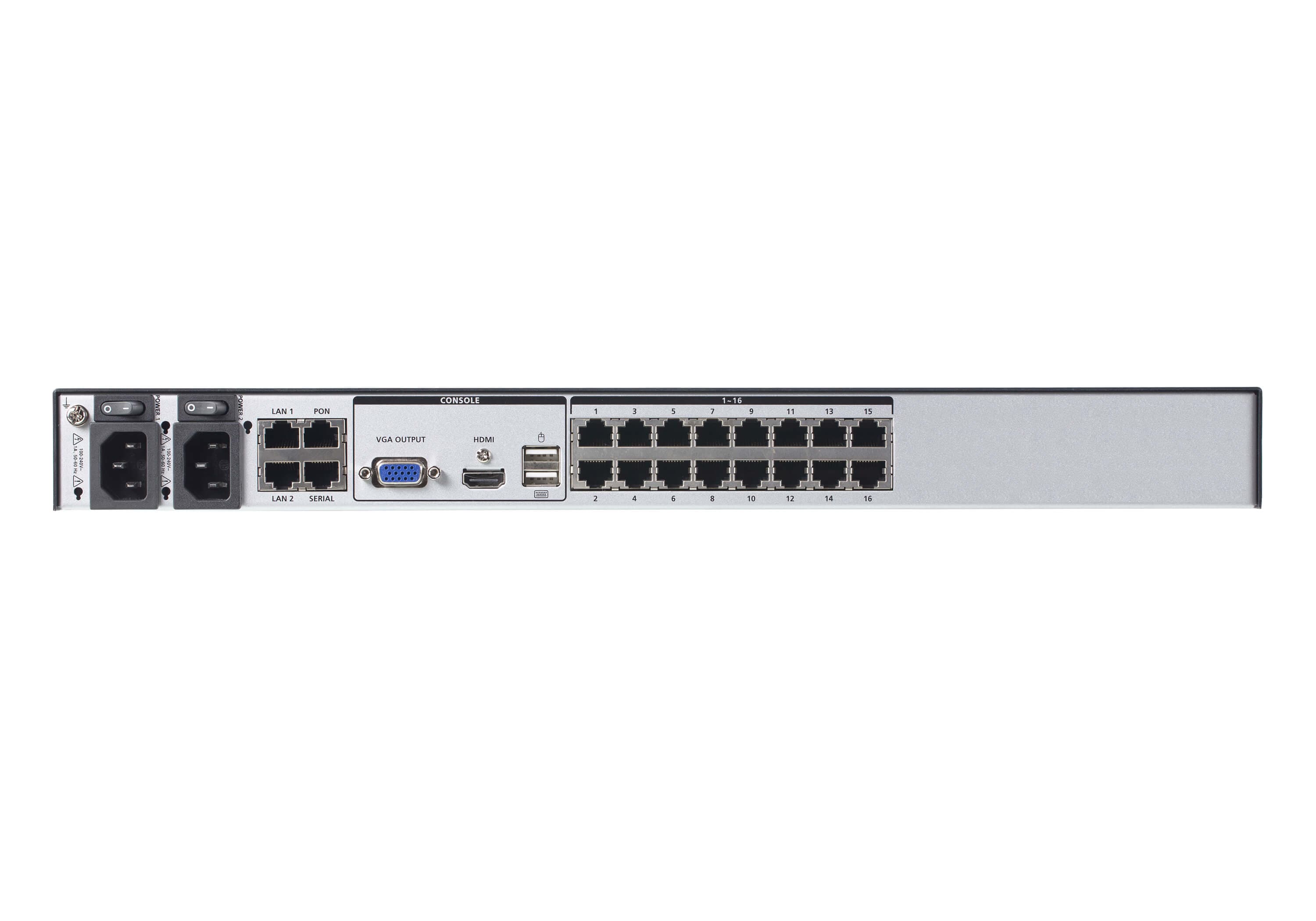

KVM портове: 16 x RJ-45 Female
Сериен: 1 x RJ-45 Female
LAN портове: 2 x RJ-45 Female
PON: 1 x RJ-45 Female
Захранване: 2 x IEC 60320/C14

Бутони и превключватели

Избор на порт: 2 x Pushbuttons
Нулиране: 1 x Semi-recessed Pushbutton
Захранване: 2 x Rocker Switches

Индикатори

Онлайн / избран: 16 (Green/Orange)
Връзка 10/100/1000 Mbps: 2 (Red/Orange/Green)
Захранване: 2 (Green)

Емулация

Клавиатура / мишка: PS/2; USB

Видео

Локално: 1920 x 1200 @ 60Hz
Отдалечено: 1920 x 1200 @ 60Hz
Интервал на сканиране: 1 – 255 Sec
Макс. входна мощност: 100–240V~ ; 50-60Hz; 1A
Консумация: AC110V:31.4W:201BTU/h AC220V:31.7W:196BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 40˚C
Температура на съхранение: -20 - 60˚C
Влажност: 0 - 80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 5.18 kg ( 11.41 lb )
Размери (Д x Ш x В): 43.36 x 41.21 x 4.40 cm (17.07 x 16.22 x 1.73 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
