1-Local/Remote Share Access Single Port DVI KVM over IP Switch (1920 x 1200)

Name: 1-Local/Remote Share Access Single Port DVI KVM over IP Switch (1920 x 1200)
Brand: ATEN
SKU: CN8600

CN8600Снет от производство

Заяви оферта Datasheet PDF Ръководство Бърз старт CAD чертеж

Устройство за KVM достъп през IP до един компютър — DVI видео до 1920 x 1200, аудио и виртуална медия. Добавя Over-IP функция към DVI KVM превключватели без такава.

Характеристики

Hardware
Provides over-IP capability to DVI KVM switches that do not have built-in over-IP functionality*
Local console provides USB keyboard and mouse support**
A mini USB port in the rear panel serves as a Virtual Media USB port, as well as a Laptop USB Console (LUC) port
Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
Dual Power Supply for power backup
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media Support***
High video resolution – up to 1920 x 1200 @ 60Hz RB for both local and remote consoles
Enhanced fps (frames per second) throughput for crisp responsive video display
Audio Support – microphone and speakers are supported on the local and remote console * Compatible KVM Switch: ATEN DVI Single Link KVM Switches ** Since there are a large number of keyboards/mouses with functions specifically designed for OS other than Windows, they may not be adapted and may have compatibility issue. *** Some of the CN8600's features may not be supported, depending on the functionality of the cascaded KVM switch. (For example,some switches do not support virtual media.)
Management
Up to 64 user accounts
Up to 32 concurrent logins
Console access right management
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Event Logging – the CN8600 can record all events that take place on it and write them to a searchable database.
Critical system events sent by email and SNMP trap; and Syslog support
Firmware upgradable via remote access
Access the CN8600 via a built-in serial viewer, or via third-party software (such as PuTTY) for Telnet and SSH sessions
Out of Band Support – access the CN8600 through its serial port using a dial-up connection
Port Share Mode allows multiple users to gain access to a server simultaneously
Local/Remote Share Mode conveniently grants shared or exclusive console privilege
Integration with ATEN CC2000 Management Software
Integration with ATEN CCVSR Video Session Recording Software*
PON support to control PN0108
DDNS–allows mapping of a dynamic IP address assigned by a DHCP server to a host name
Export/import user account and configuration settings
Enable/disable browser operation
IPv6 capable
Console Lock – Flexible Console access right management *Supports recording computer operations accessed via remote sessions.
Easy-to-Use Interface
Browser-based and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OX X, Linux, Sun)
Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
Full-screen or sizable and scalable Virtual Remote Desktop
Magic Panel with configurable function for quick launch
Advanced Security
Smart Card /CAC Reader Support
External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory
Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure user slogging in from browsers
Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or system-generated random selection for independent keyboard/mouse, video, and virtual media data encryption
Supports IP/MAC Filter
Supports password protection
Private CA
Virtual Media
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB-enabled servers at OS and BIOS level
Supports USB 1.1 and USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth, threshold and noise settings can be adjusted for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multilanguage support
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
Supports Exit Macros
BIOS-level access

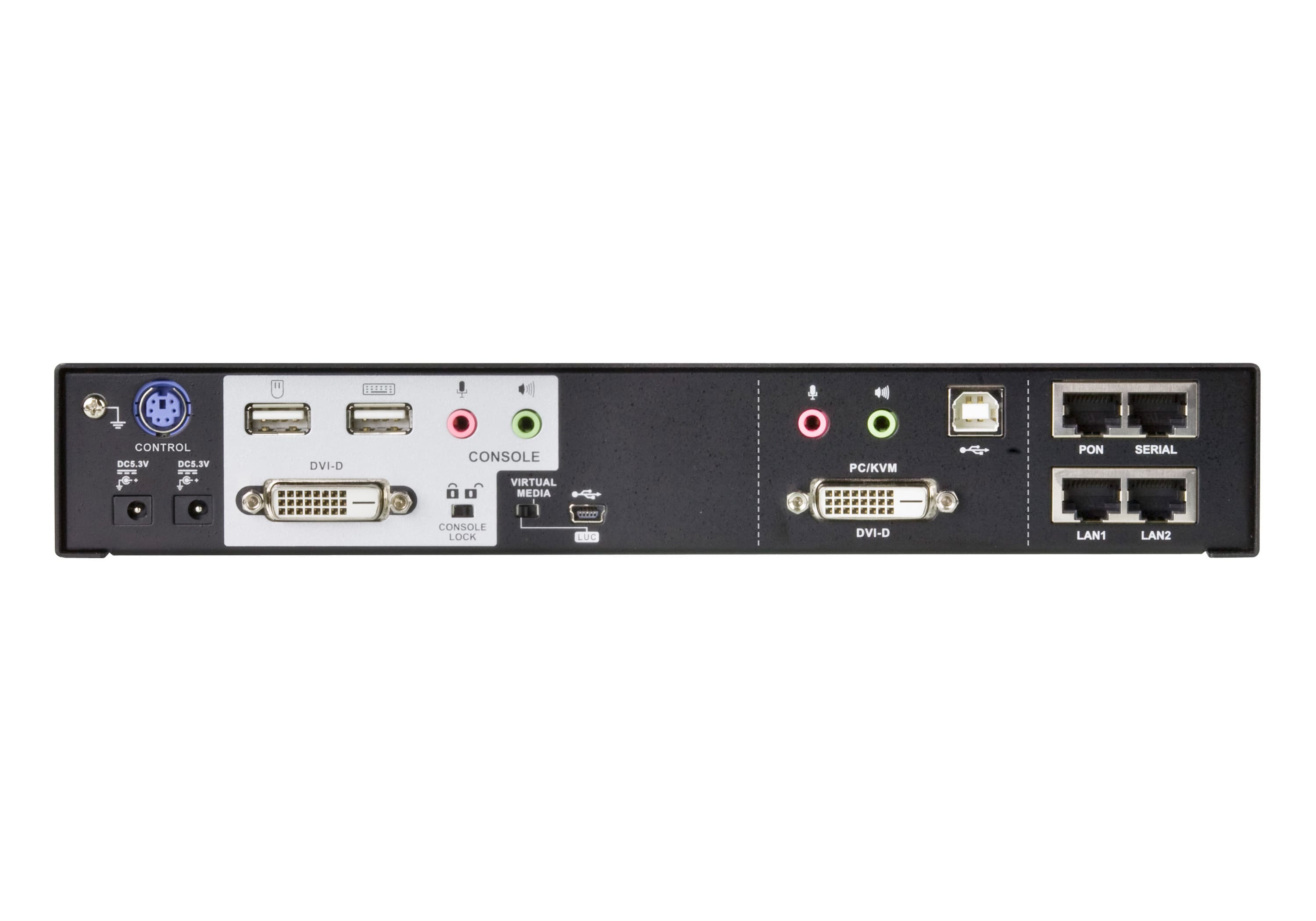

Конектори

Конзолни портове: 2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM портове: 1 x USB Type B Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
LAN портове: 2 x RJ-45 Female
Виртуална медия: 1 x USB Mini-B Female
Захранване: 2 x DC Jack
PON: 1 x RJ-45 Female
Сериен: 1 x RJ-45 Female
Управление: 1x PS/2 Female

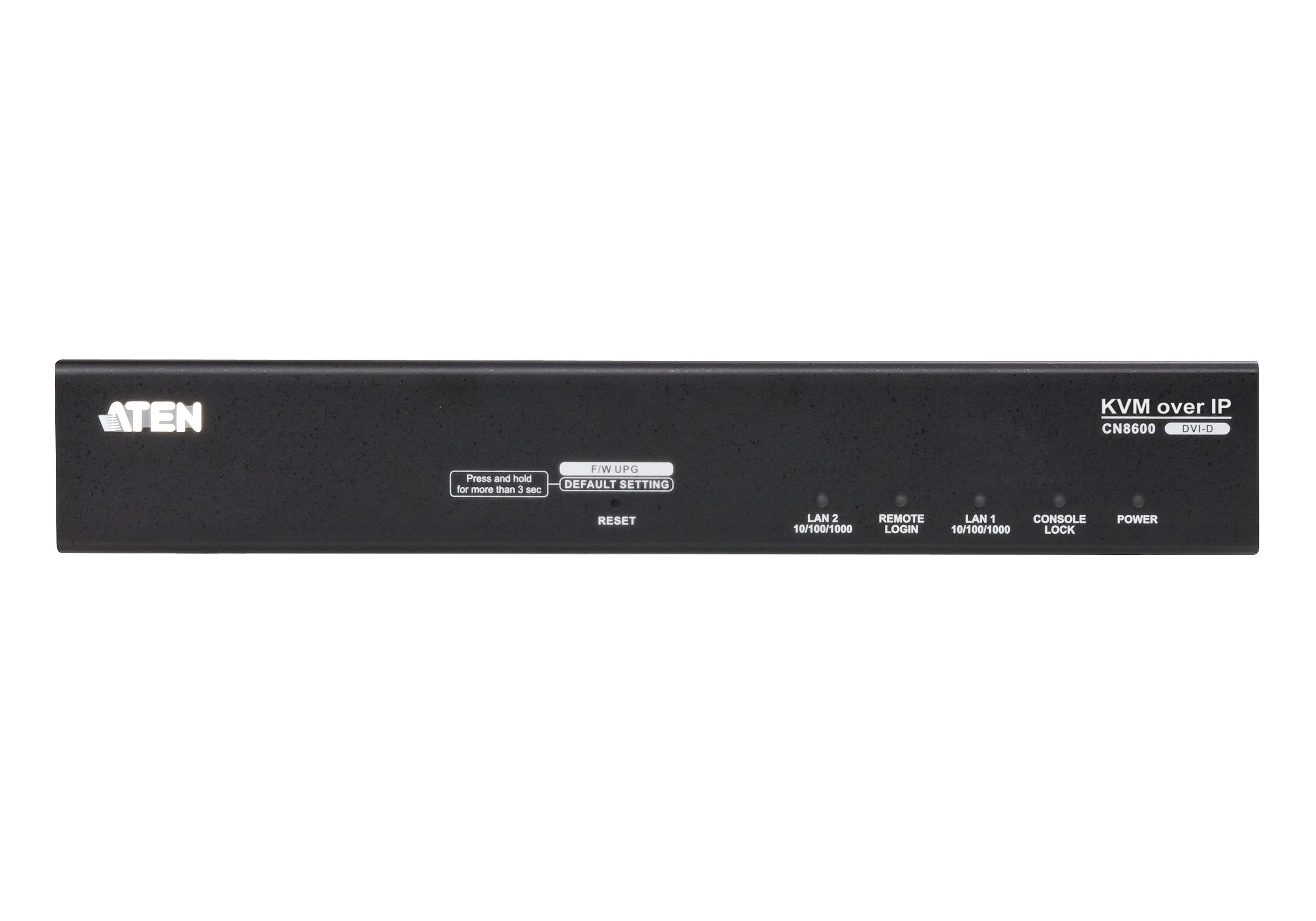

Бутони и превключватели

Нулиране: 1 x Semi-recessed pushbutton (Black)
Избор на USB функция: 1 x Slide switch (Black)
Заключване на конзолата: 1 x Slide switch (Black)

Индикатори

Състояние на конзолата: 1 (Green)
10/100/1000 Mbps: 2 (Orange/ Orange+Green /Green)
Отдалечен вход: 1 (Green)
Захранване: 1 (Green)

Емулация

Клавиатура / мишка: USB
Видео: Local console - 1920 x 1200 @ 60 Hz RB Remote - 1920 x 1200 @ 60 Hz RB
Консумация: DC5.3V:5.56W:30BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Работна среда

Работна температура: 0 - 50˚C
Температура на съхранение: -20 - 60°C
Влажност: 0 - 80% RH, Non-condensing

Физически характеристики

Корпус: Metal
Тегло: 0.88 kg ( 1.94 lb )
Размери (Д x Ш x В): 26.00 x 7.64 x 4.20 cm (10.24 x 3.01 x 1.65 in.)
Забележка: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
