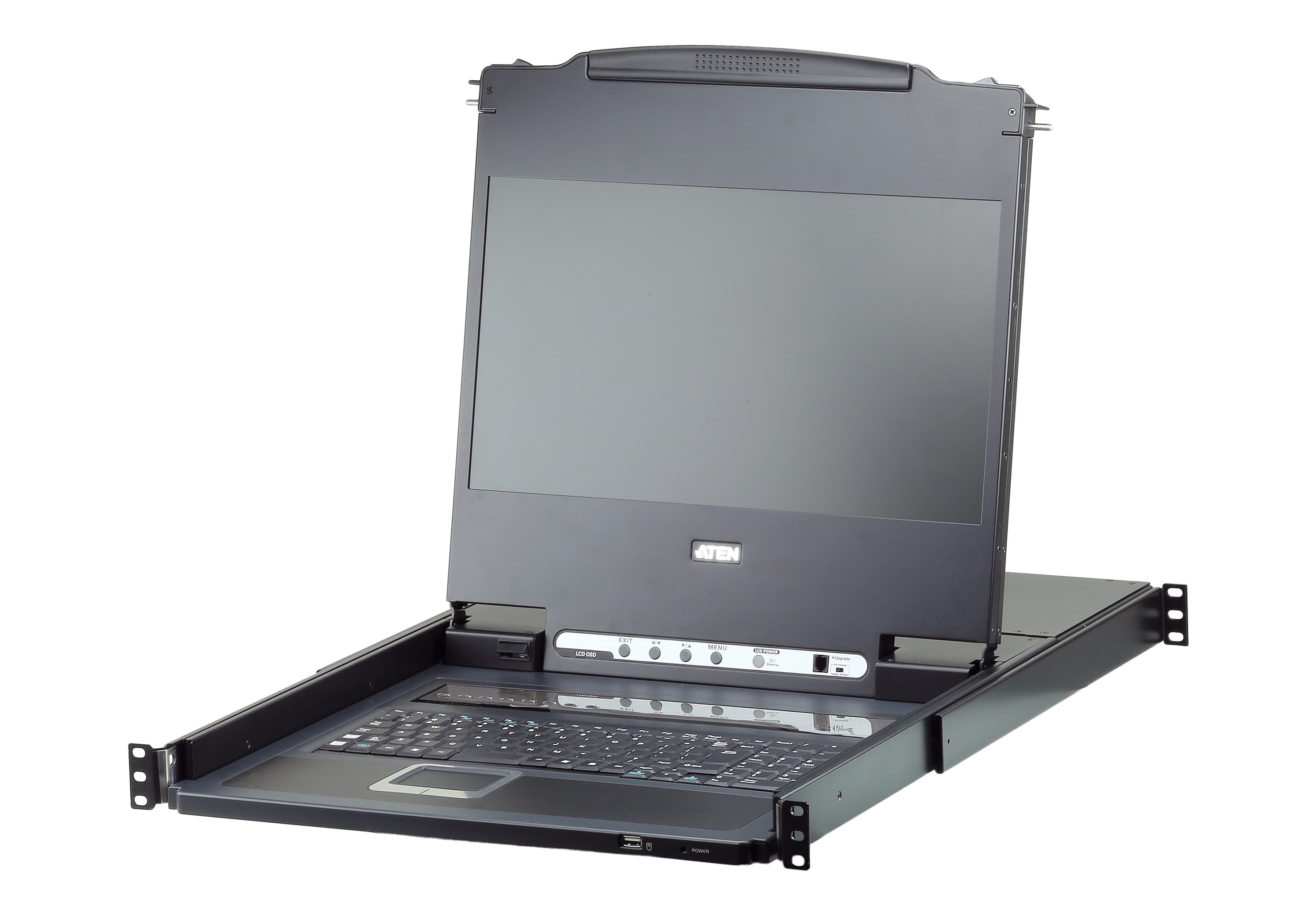

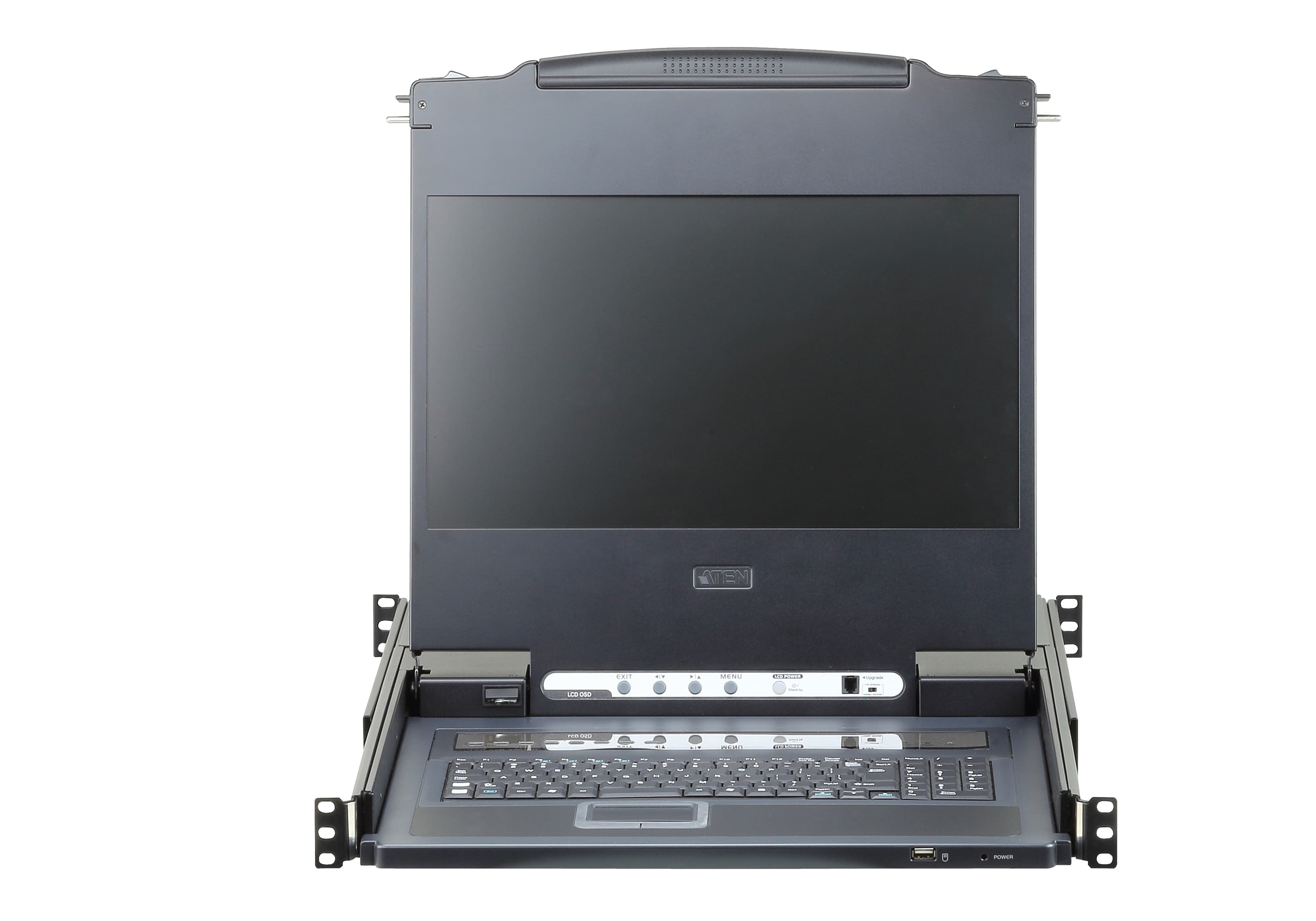

8-Port USB DVI Single Rail WideScreen LCD KVM Switch
CL6708MW
LCD KVM конзола със 17.3-инчов widescreen Full HD монитор за 8 компютъра с DVI и USB. Каскадно управлява до 64 машини; плъзгащият се корпус заема 1U в шкафа и поддържа външна DVI конзола.
Характеристики
- Integrated KVM with a 17.3"widescreen DVI Full HD LCD monitor
- Single rail, sliding housing with top and bottom clearance for smooth operation with a 1U rack
- Controls 8 Single Link DVI computers
- Supports an external console with DVI video port
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
- Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
- KVM port extendable via one-level cascade (up to 8 additional CS1768 8-port KVM switches)
- Computer selection via the front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Broadcast mode – allows users to send commands from the console to all computers to perform operations simultaneously
- Firmware upgradable
- Supports YUV video format for greater compatibility
- DVI monitor support – fully compliant with DVI specifi cations
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes responsiveness when switching between ports Note: Video DynaSync™ only works with digital video sources
- HDCP-compatible for hassle-free content-protected media playback
- Superior video quality – 1920 x 1080 @ 60 Hz; DDC2B
- Audio support for connecting speakers
- Auto Scan Mode for monitoring all computers
- Multiplatform support – Windows, Linux, Mac, and Sun
- Console lock – enables the console drawer to remain securely locked away in position when not in use More information about "Easy Rack Mounting"...
Спецификация
- Функция
- CL6708MW
Връзки към компютри
- Директно
- 8
- Максимум
- 64 (via Cascade)
- Избор на порт
- OSD, Hotkey, Pushbutton

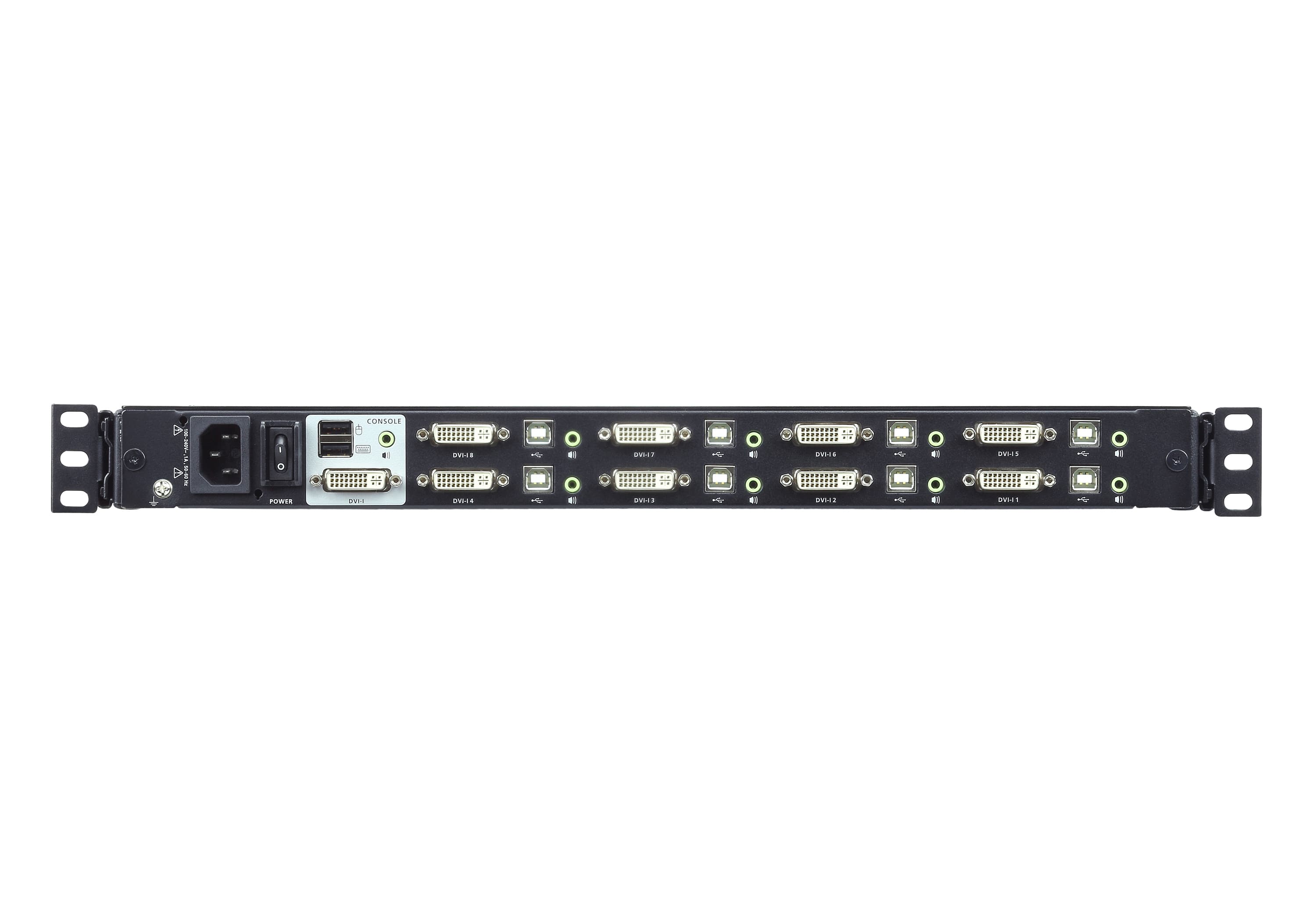

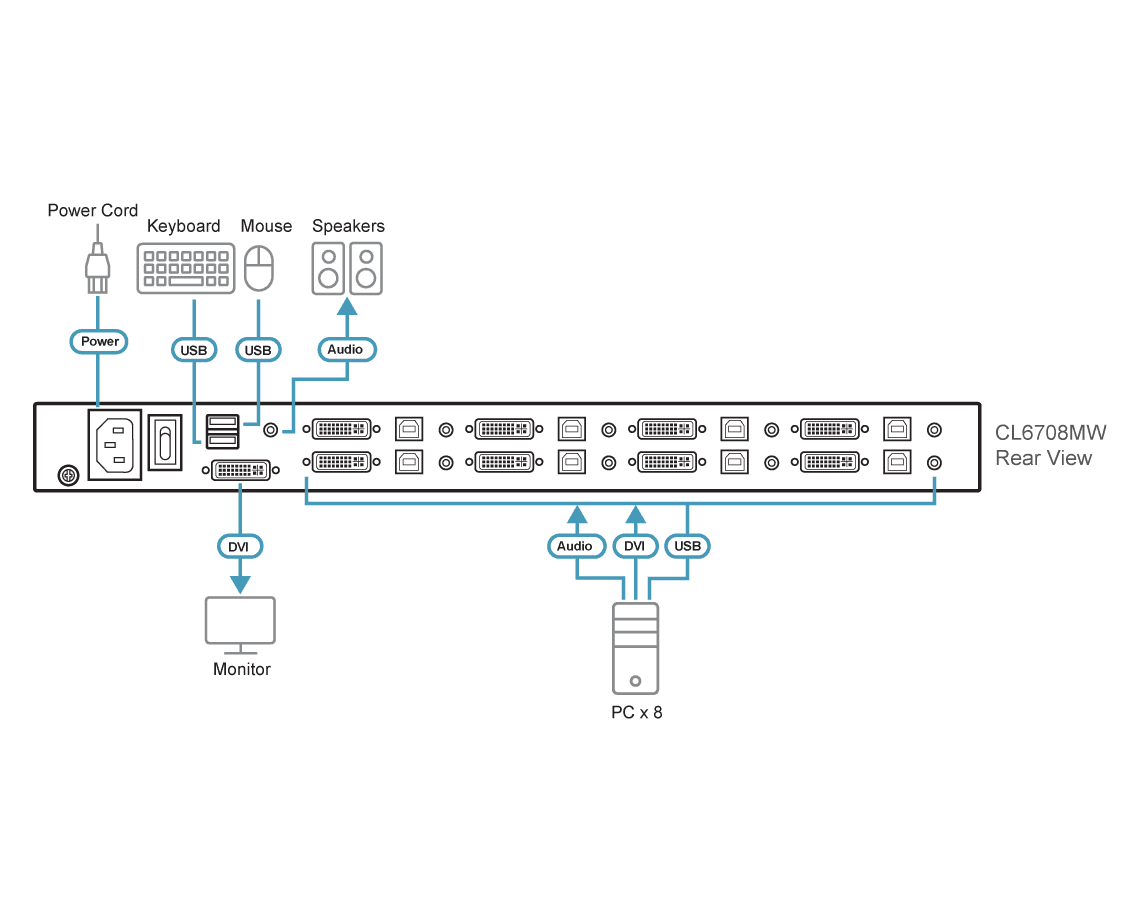

Конектори
- KVM портове
- 8 x DVI-I Female (White) 8 x USB Type B Female 8 x 3.5mm Audio Jack Female (Green)
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Захранване
- 1 x IEC 60320/C14
- Външни конзолни портове
- 1 x DVI-I Female (White) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green)
- Външна мишка / периферия
- 1 x USB Type A Female (Front)
Бутони и превключватели
- Избор на порт
- 8 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
- Захранване
- 1 x Rocker Switch
- Управление на дисплея
- 4 x Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
Индикатори
- Онлайн
- 8 (Orange)
- Избран
- 8 (Green)
- Захранване
- 1 x KVM Power(Dark Green) 1 x LCD Power(Orange)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- LED осветление
- 1 x LED Illumination Light
Панел
- LCD модул
- 17.3" TFT-LCD
- Резолюция
- 1920 x 1080 @ 60 Hz
- Време за реакция
- 16 ms
- Зрителен ъгъл
- 170° (H), 170° (V)
- Стъпка на пикселите
- 0.1989 mm x 0.1989 mm
- Поддържани цветове
- 16.77M colors
- Контраст
- 800:1
- Яркост
- 250 cd/m²
Видео
- Входна видео резолюция
- up to 1920 × 1200 @ 60 Hz (all resolution @ 60Hz only); 1920 × 1080 @ 60 Hz, DDC2B
- Интервал на сканиране
- 1–255 seconds
Емулация
- Клавиатура / мишка
- USB
- Макс. входна мощност
- 100–240 V AC, 50/60 Hz, 1 A
- Консумация
- AC110V:23.3W:116BTU/h AC220V:23.3W:116BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal + Plastic
- Тип релси
- Single Rail
- Тегло
- 12.70 kg ( 27.97 lb )
- Размери (Д x Ш x В)
- 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
