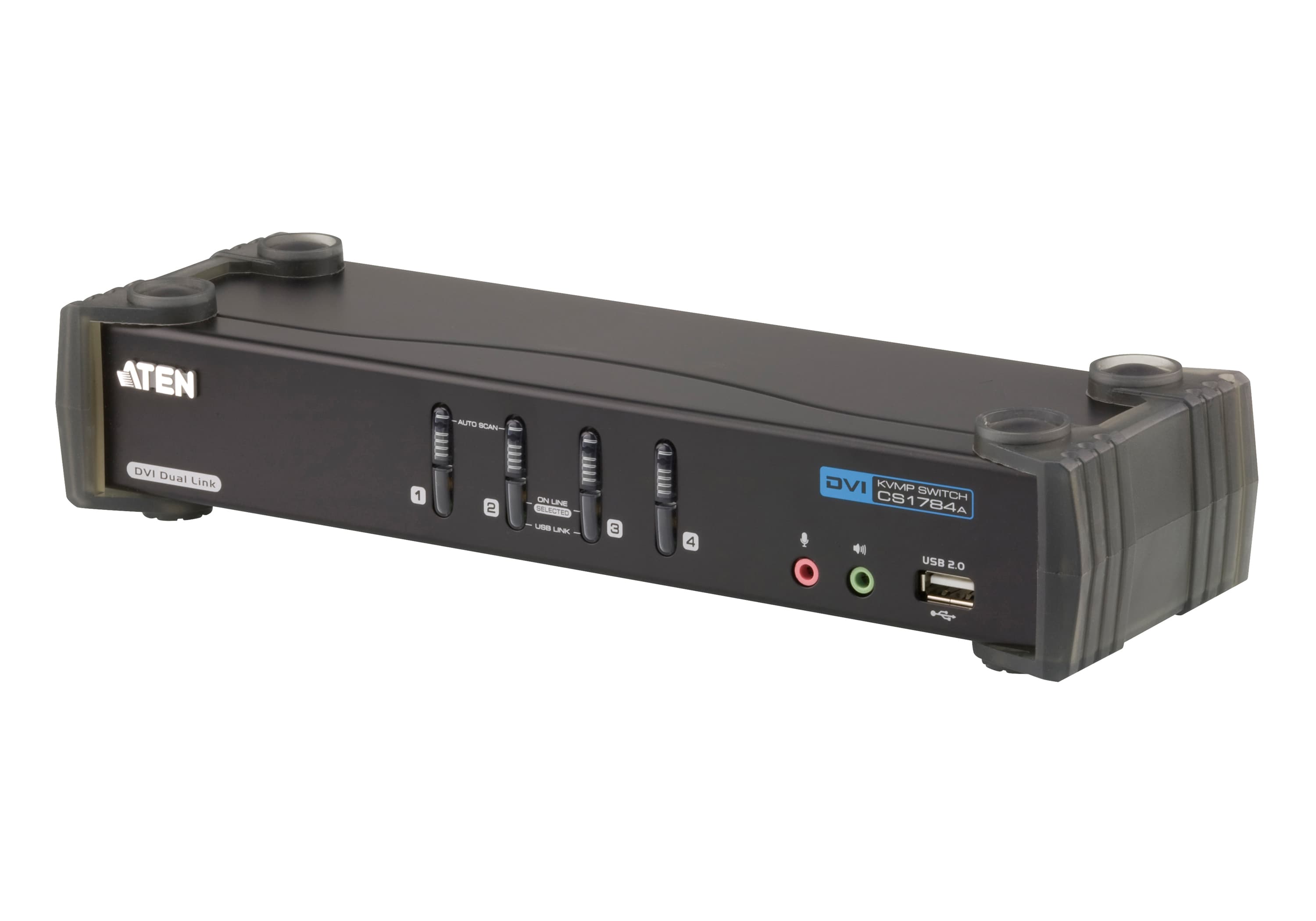

4-Port USB DVI Dual Link/Audio KVMP™ Switch
CS1784A
DVI Dual Link KVMP превключвател — една USB конзола управлява 4 компютъра и две допълнителни USB устройства. Вграден 2-портов USB 2.0 хъб и 2.1 съраунд аудио.
Характеристики
- 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio

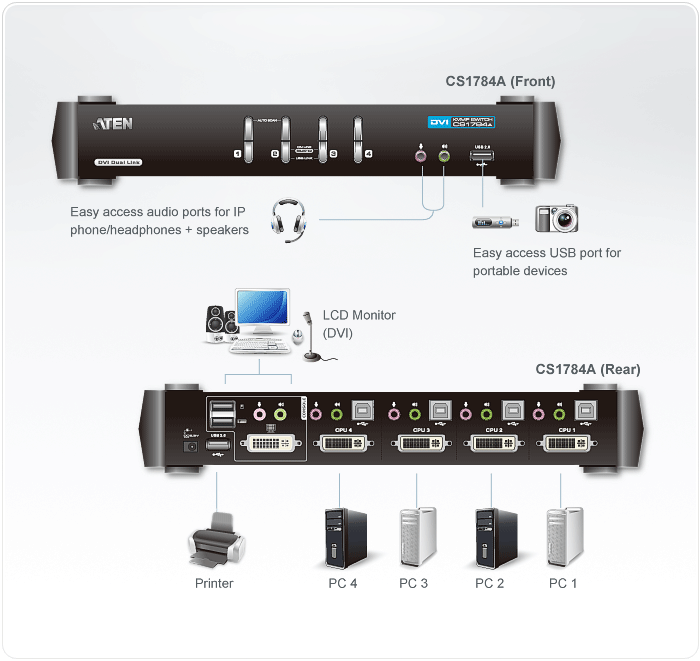

- One USB console controls four computers and two additional USB devices
- 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
- Full bass response for high quality 2.1 channel surround sound systems

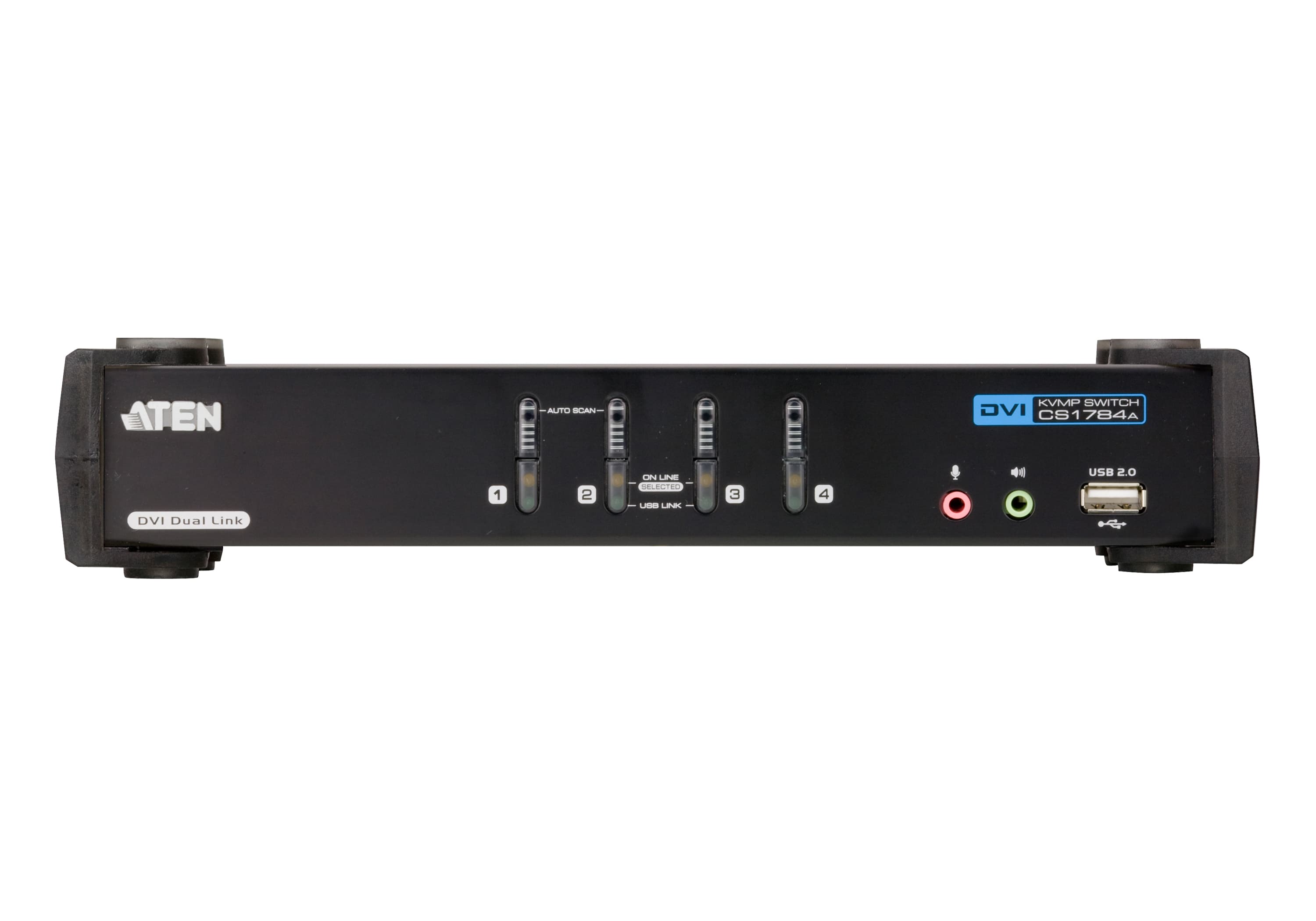

- Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
- Multiplatform support – Windows, Linux, Mac, and Sun*
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
- nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
- HDCP compatible
- Support widescreen resolutions
- Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
- Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
- Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping – supports English, Japanese, and French keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable * PC keyboard combinations emulate Mac/Sun keyboards Mac/Sun keyboard work only with their own
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Hotkey, Pushbutton, Mouse

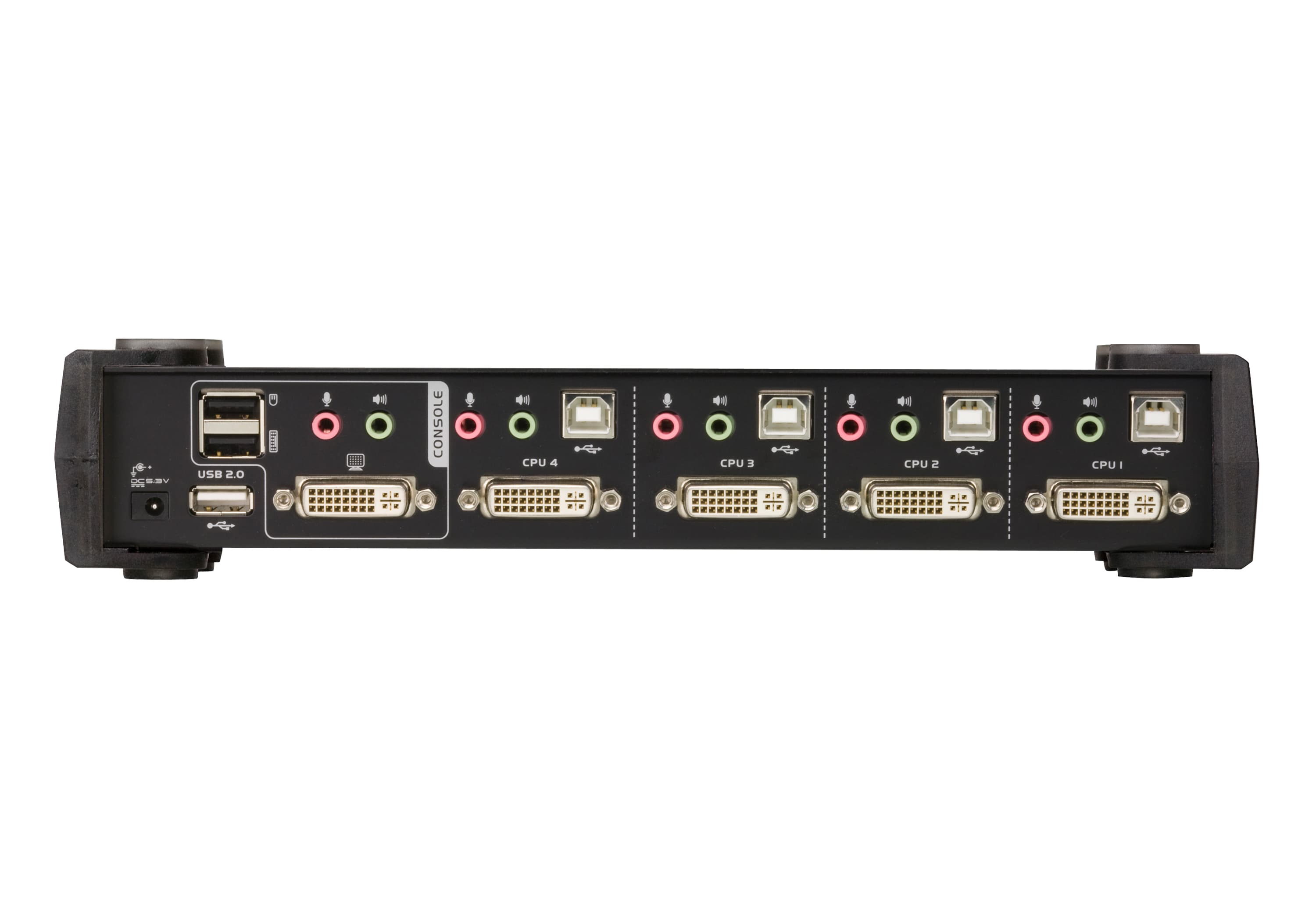

Конектори
- Конзолни портове
- 1 x DVI-I Female (White) 2 x USB Type A Female (rear panel) 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel) 2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear panel)
- KVM портове
- 4 x DVI-I Female (White) 4 x USB Type B Female 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
- Захранване
- 1 x DC Jack
- USB хъб
- 2 x USB Type A Female (1 x front panel, 1 x rear panel)
Бутони и превключватели
- Избор на захранване
- 4 x Pushbutton
Индикатори
- USB връзка
- 4 (Green)
- Онлайн / избран
- 4 (Orange)
Емулация
- Клавиатура / мишка
- USB
- Видео
- DVI Dual Link: 2560 x 1600 @ 60Hz; DVI Single Link: 1920 x 1200 @ 60Hz
- Интервал на сканиране
- 1–99 seconds (default: 5 secs.)
- Консумация
- DC5.3V:5.91W:53BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 -50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.93 kg ( 2.05 lb )
- Размери (Д x Ш x В)
- 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
