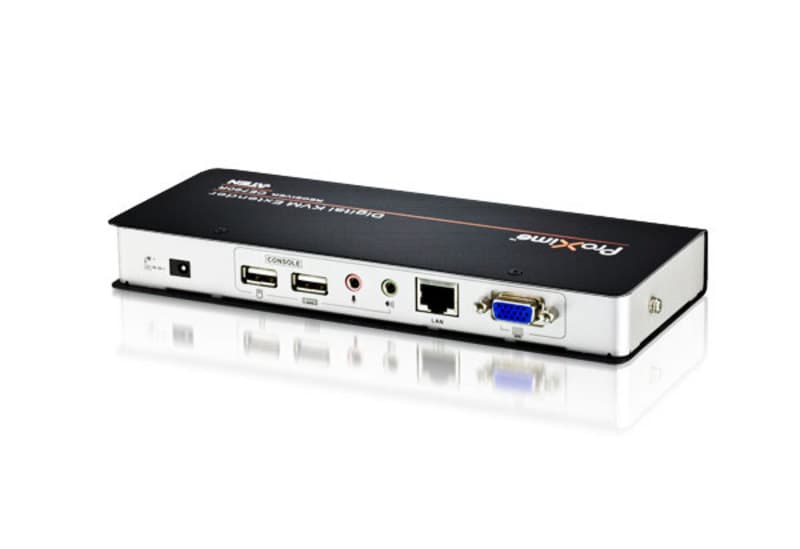

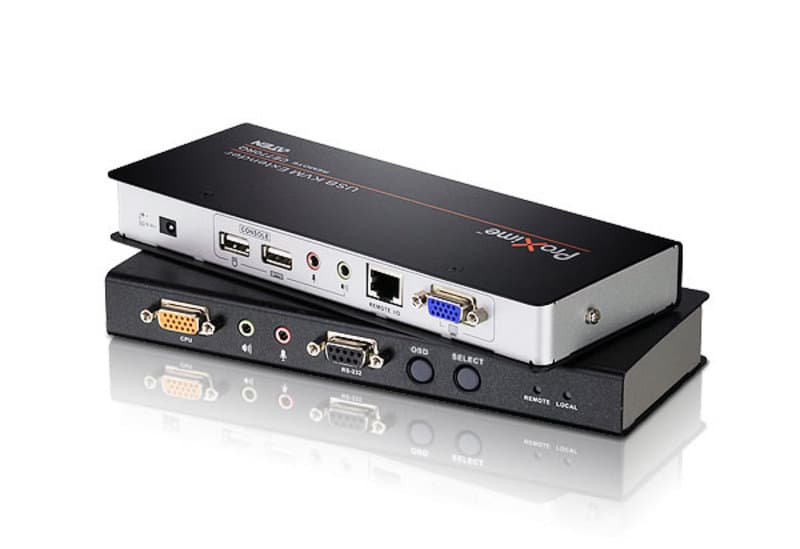

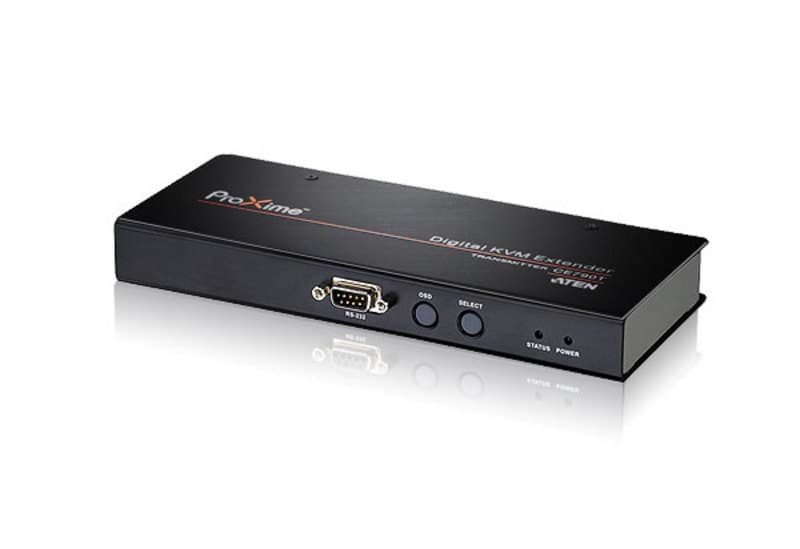

USB VGA Over IP KVM Extender (1920 x 1080@Unlimited Distance)
CE790Снет от производство
KVM удължител през IP мрежа — достъп до компютър от отдалечена USB конзола с VGA до 1920 x 1080 и RS-232. Работа от двете конзоли, OSD на предавателя и приемника.
Характеристики
- Remotely access computers on your KVM installation via intranet
- Dual console operation - control your system from both the transmitter and receiver USB consoles
- OSD (On Screen Display) on both the transmitter and receiver units
- Supports GUI operation*
- No software required - an HTTP server is embedded in both units
- Built-in ASIC for greater reliability and compatibility
- USB Keyboard and USB Mouse Ports
- RS-232 serial ports** - allows you to connect to a serial terminal for configuration, or serial devices such as touchscreens and barcode scanners
- Audio enabled
- USB overcurrent detection and prevention
- High resolution video - up to 1920 x 1080
- Supports widescreen formats
- Ultra-High quality video mode
- Hot pluggable
- Rack mountable
- Firmware upgradable
- Auto-MDIX - automatically detects cable type Note: * The CE790 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com). ** RS-232 serial ports support Tx/Rx signals only.
Конектори
- Конзолни портове
- 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- Конзолни портове
- 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- KVM портове
- N/A
- KVM портове
- 1 x SPHD-17 Female (Yellow) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink)
- RS-232
- 1 x DB-9 Male (Black)
- RS-232
- 1 x DB-9 Female (Black)
- Захранване
- 1 x DC Jack (Black)
- Захранване
- 1 x DC Jack (Black)
- LAN портове
- 1 x RJ-45 Female (Black)
- LAN портове
- 1 x RJ-45 Female (Black)
Бутони
- OSD
- 1 x Pushbutton
- OSD
- 1 x Pushbutton
- Избор
- 1 x Pushbutton
- Избор
- 1 x Pushbutton
Индикатори
- Състояние
- 1 (Green / Orange)
- Състояние
- 1 (Green / Orange)
- Захранване
- 1 (Green / Red)
- Захранване
- 1 (Green / Red)
Емулация
- Клавиатура / мишка
- USB
- Клавиатура / мишка
- USB
- Консумация
- DC5.3V:6.86W:36BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC5.3V7.49W:39BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Видео
- Up to 1920 x 1080
- Видео
- Up to 1920 x 1080
Работна среда
- Работна температура
- 0 - 50°C
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0-80% RH, Non-condensing
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.50 kg
- Тегло
- 0.50 kg
- Размери (Д x Ш x В)
- 20.20 x 8.64 x 2.50 cm
- Размери (Д x Ш x В)
- 20.20 x 8.64 x 2.50 cm
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
