16-Port PS/2-USB VGA Single Rail WideScreen LCD KVM Switch
CL3116
Конзола с 18.5-инчов widescreen LCD монитор и KVM превключвател за 16 компютъра с PS/2-USB и VGA, каскадно до 256 машини. Късият корпус е удобен за плитки rack шкафове.
Характеристики
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

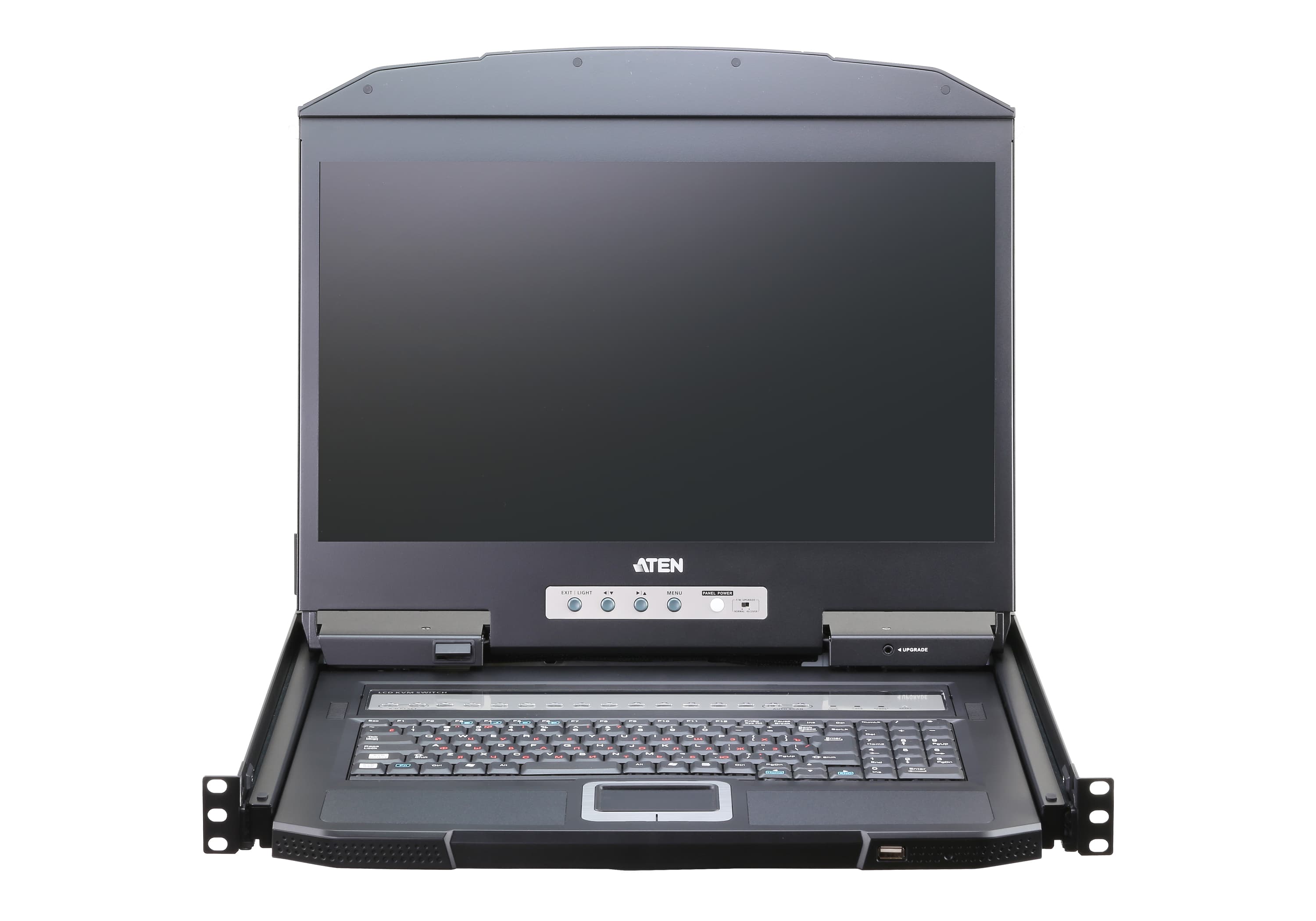

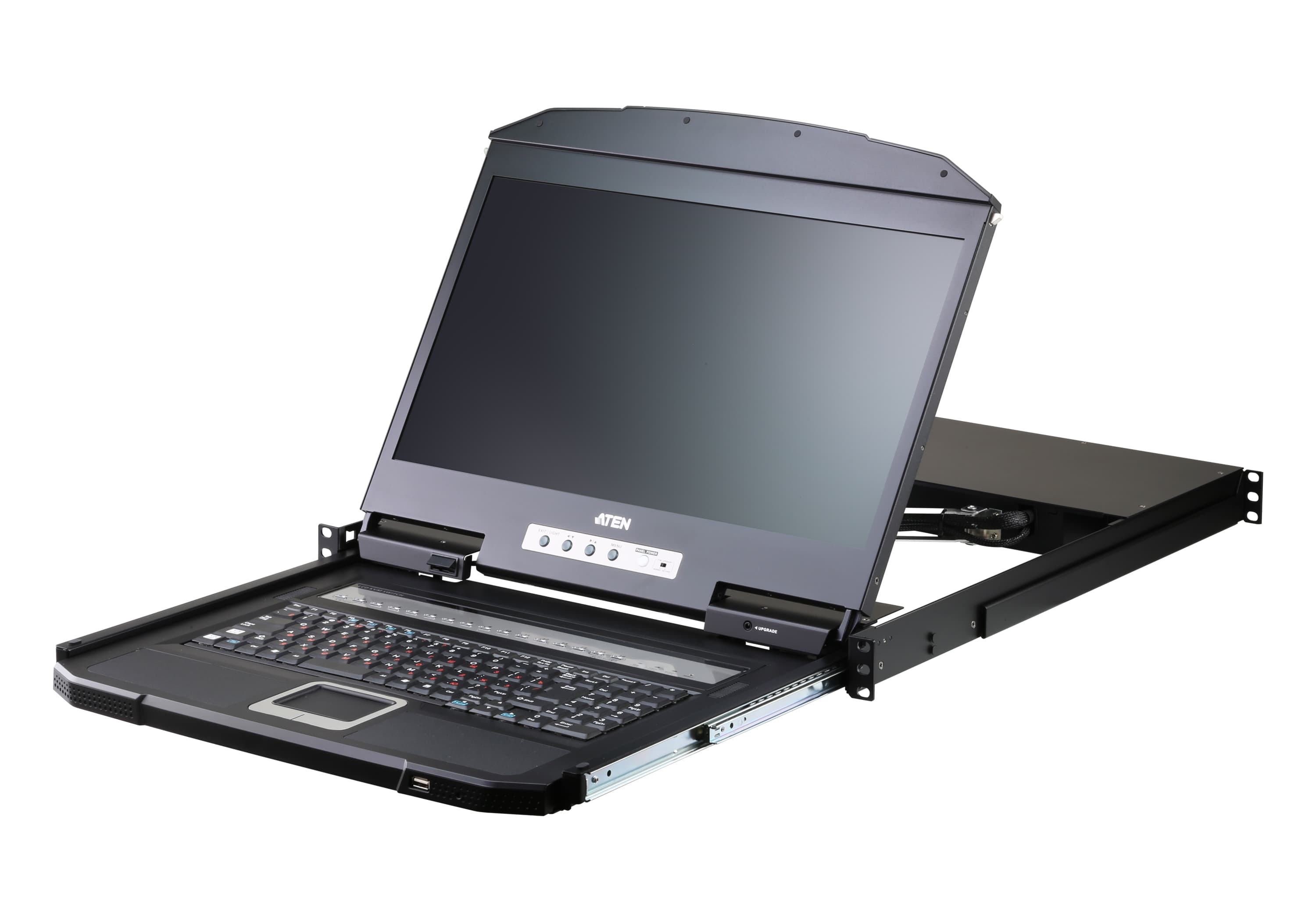

- Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
- Console lock – enables the console drawer to remain securely locked away in position when not in use
- Superior video quality - up to 1366 x 768 @60Hz; DDC2B
- Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console (With compatible KVM Switches: CS1308/CS1316)
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
- Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
- Two level password security – only authorized users can view and control computers
- Auto Scan mode – enables continuous monitoring of user-selected computers
- Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish.
- Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse
- Standard rack mount kit included
- Optional rack mount kits available including easy installation options*
- No software required
- Firmware upgradable
- Supports hot-plugging More information about "Easy Rack Mounting"...
Спецификация
- Функция
- CL3116NX

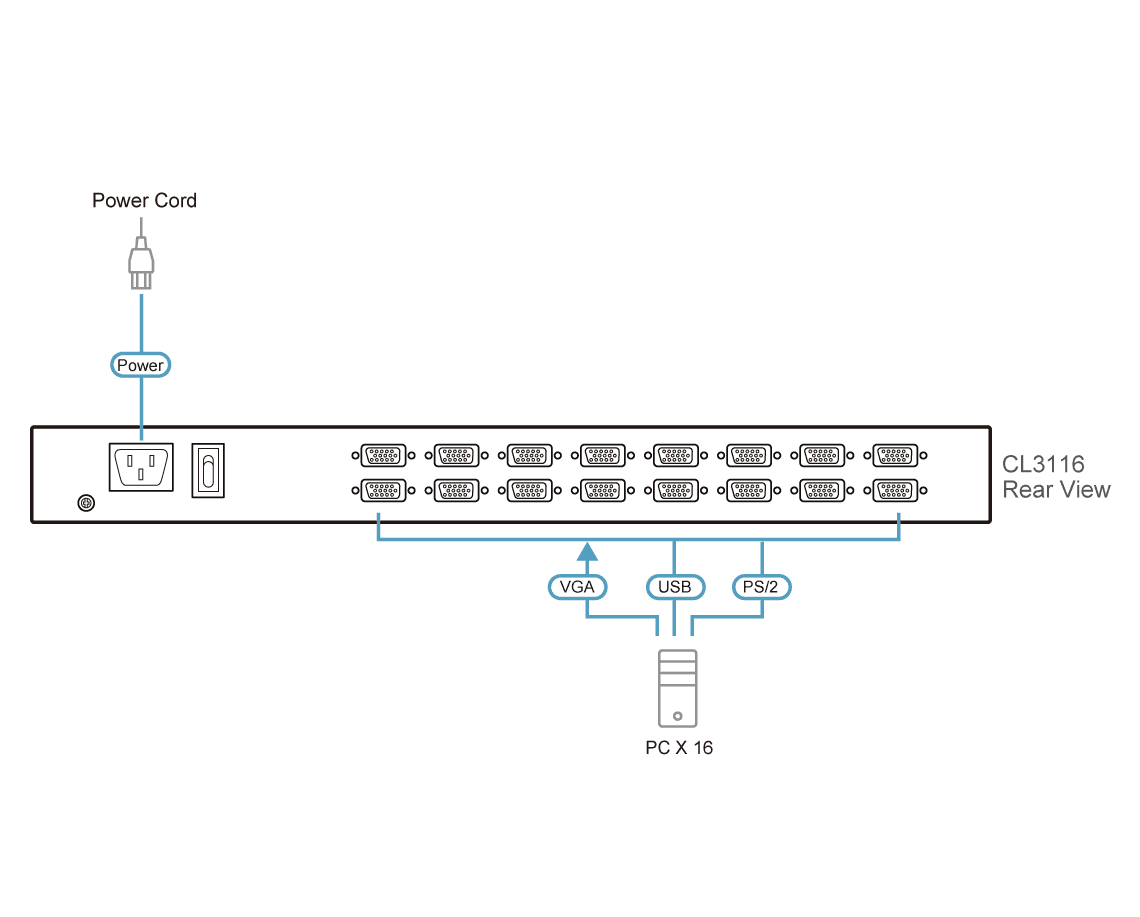

Връзки към компютри
- Директно
- 16
- Максимум
- 256 (via Cascade)
- Избор на порт
- OSD, Hotkey, Pushbutton
Конектори

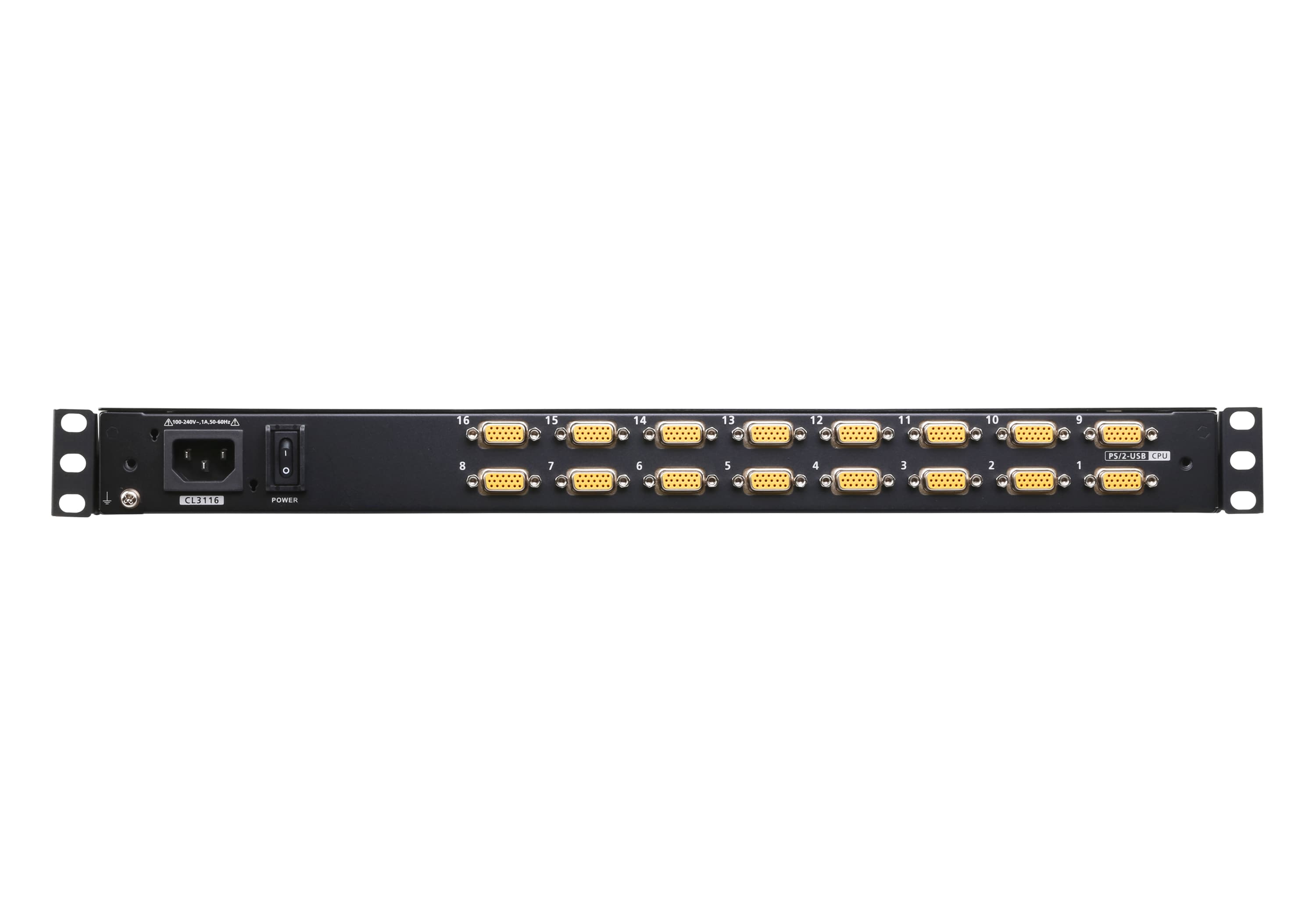

- KVM портове
- 16 x SPHD Female (Yellow)
- Обновяване на фърмуера
- 1 x 3.5mm Audio Jack Female (Black)
- Захранване
- 1 x IEC 60320/C14
- Външен порт за мишка
- 1 x USB Type A Female (Front)
Бутони и превключватели
- Избор на порт
- 16 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
- Захранване
- 1 x Rocker Switch
- Управление на дисплея
- 4 x Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
Индикатори
- Онлайн
- 16 (Orange)
- Избран
- 16 (Green)
- Захранване
- 1 x KVM Console (Dark Green) 1 x LCD (Orange)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- LED осветление
- 1 x LED Illumination Light
Панел
- LCD модул
- 18.5" TFT-LCD
- Резолюция
- 1366 x 768 @ 60 Hz
- Време за реакция
- 5 ms
- Зрителен ъгъл
- 170° (H), 160° (V)
- Стъпка на пикселите
- 0.3 mm x 0.3 mm
- Поддържани цветове
- 16.77M colors
- Контраст
- 1000 : 1
- Яркост
- 450 cd/m²
Видео
- Входна видео резолюция
- up to 1920 × 1200 @ 60 Hz; 1366 × 768 @ 60 Hz, DDC2B
- Интервал на сканиране
- 1-255 seconds
Емулация
- Клавиатура / мишка
- PS/2, USB
- Макс. входна мощност
- 100–240 V AC, 50-60 Hz, 1 A
- Консумация
- AC110V:14.1W:70BTU/h AC220V:14.9W:74BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal + Plastic
- Тип релси
- Single Rail
- Тегло
- 10.60 kg ( 23.35 lb )
- Размери (Д x Ш x В)
- 48.06 x 63.10 x 4.28 cm (18.92 x 24.84 x 1.69 in.)
- Размери на корпуса (Д x Ш x В)
- 44.92 x 58.4 x 4.28 cm (17.69 x 22.99 x 1.69 in.)
- Забележка
- Body Dimensions exclude I/O ports, handles, and mounting brackets.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
