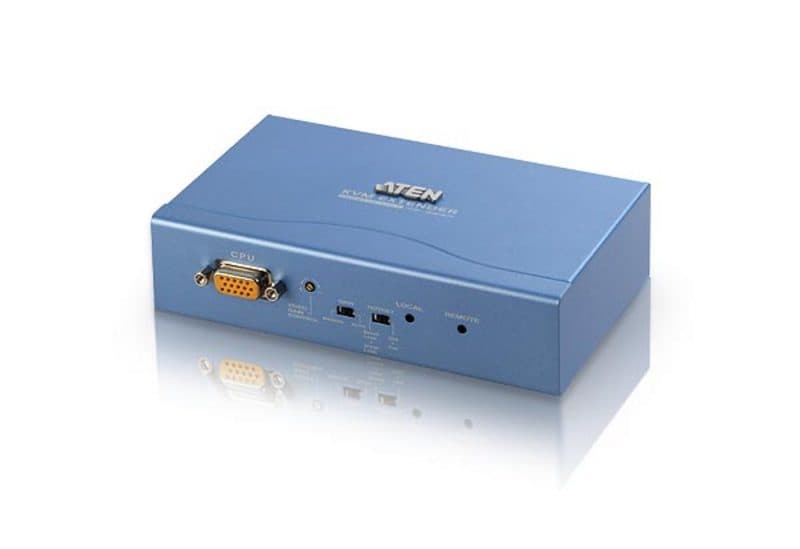

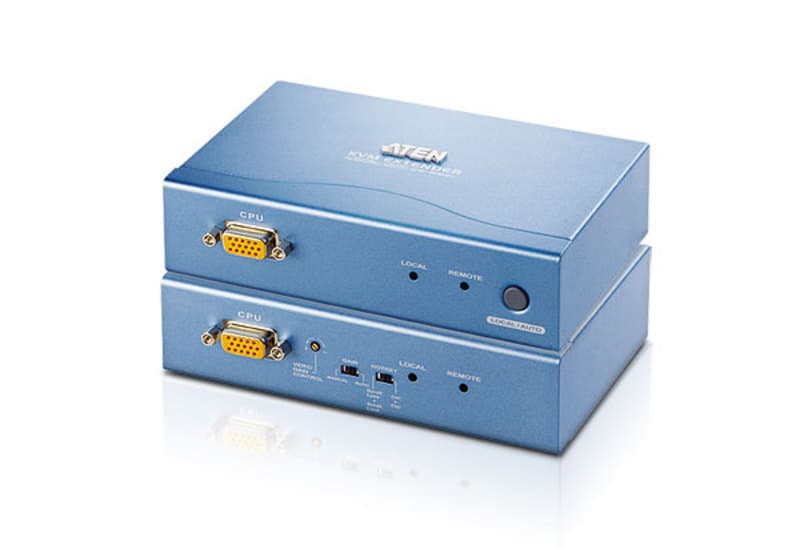

PS/2 VGA Cat 5 KVM Extender with Extra Remote PC (1024 x 768@300m)
CE252Снет от производство
KVM удължител за PS/2 конзола с VGA — до 300 m по Cat 5e. Управление от двете конзоли, а към отдалечения модул може да се свърже допълнителен компютър.
Характеристики

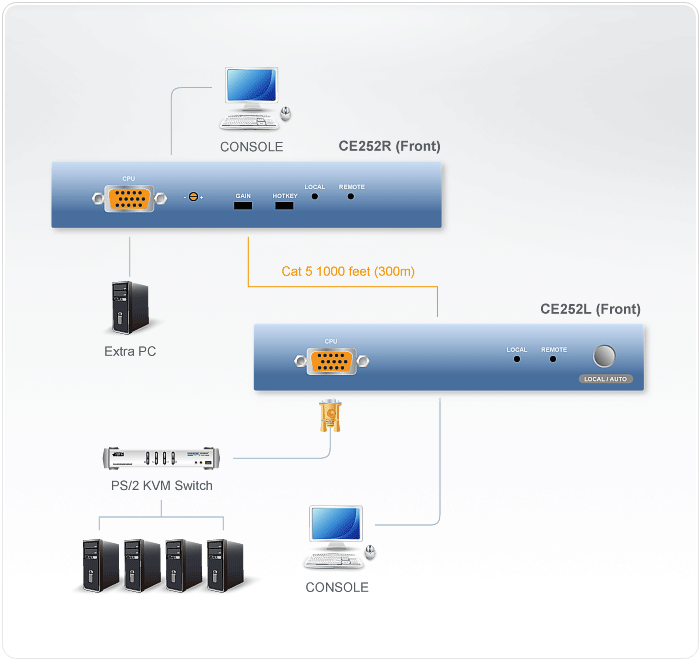

- Uses Cat 5e cable to connect the local and remote units (up to 300m apart)
- Dual Console Operation - control your system from both the local and remote PS/2 keyboard, mouse and monitor consoles
- Additional PC connection allowed for the remote unit
- Pushbutton selection - sequential selection between local and auto mode
- Two gain control modes provided for the sharpest video quality-adjustable or automatic
- Adjustable gain control - manually adjusts signal strength to compensate for distance
- Automatic Gain Control - automatically adjusts signal strength to compensate for distance
- High video resolution - up to 1600 x 1200
- Supports DDC2B for local monitor (display data channel for communication between graphic card and monitor)
- Supports VGA, SVGA, and Multisync Monitors
- Built-in 8KV ESD protection and 2KV surge protection
- Local unit takes its power from the computer - external power is only required when the power from the local computer/computers in the KVM installation is insufficient
- Multiplatform support: Windows 2000/XP/Vista.
Конектори
- Конзолни портове
- 1 x 6-pin Mini-DIN female (Purple) 1 x 6-pin Mini-DIN female (Green) 1 x HDB-15 Female (Blue)
- Конзолни портове
- 1 x 6-pin Mini-DIN female (Purple) 1 x 6-pin Mini-DIN female (Green) 1 x HDB-15 Female (Blue)
- KVM портове
- 1 x SPHD-15 Female (Yellow)
- KVM портове
- 1 x SPHD-15 Female (Yellow)
- Връзка
- 1 x RJ-45 Female
- Връзка
- 1 x RJ-45 Female
- Захранване
- 1 x DC Jack
- Захранване
- 1 x DC Jack
Индикатори
- Локално
- 1 (Green)
- Локално
- 1 (Green)
- Отдалечено
- 1 (Green)
- Отдалечено
- 1 (Green)
Бутони и превключватели
- Режим на избор
- 1 x Pushbutton
- Режим на избор
- N/A
- Ръчен контрол на усилването (отдалечено)
- N/A
- Ръчен контрол на усилването (отдалечено)
- 1 x Knob
- Избор с клавишна комбинация (отдалечено)
- N/A
- Избор с клавишна комбинация (отдалечено)
- 1 x Slide
Емулация
- Клавиатура / мишка
- PS/2
- Клавиатура / мишка
- PS/2
- Видео
- 1600 x 1200 @ 60Hz, 150m 1024 x 768 @ 60Hz, 300m
- Видео
- 1600 x 1200 @ 60Hz, 150m 1024 x 768 @ 60Hz, 300m
- Консумация
- DC 5.3V, 2.6W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC 5.3V, 2.6W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50˚C
- Работна температура
- 0 - 50˚C
- Температура на съхранение
- -20 - 60˚C
- Температура на съхранение
- -20 - 60˚C
- Влажност
- 0 - 80% RH, Non-condensing
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.37 kg ( 0.81 lb )
- Тегло
- 0.37 kg ( 0.81 lb )
- Размери (Д x Ш x В)
- 13.90 x 8.78 x 3.61 cm (5.47 x 3.46 x 1.42 in.)
- Размери (Д x Ш x В)
- 13.90 x 8.78 x 3.61 cm (5.47 x 3.46 x 1.42 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
