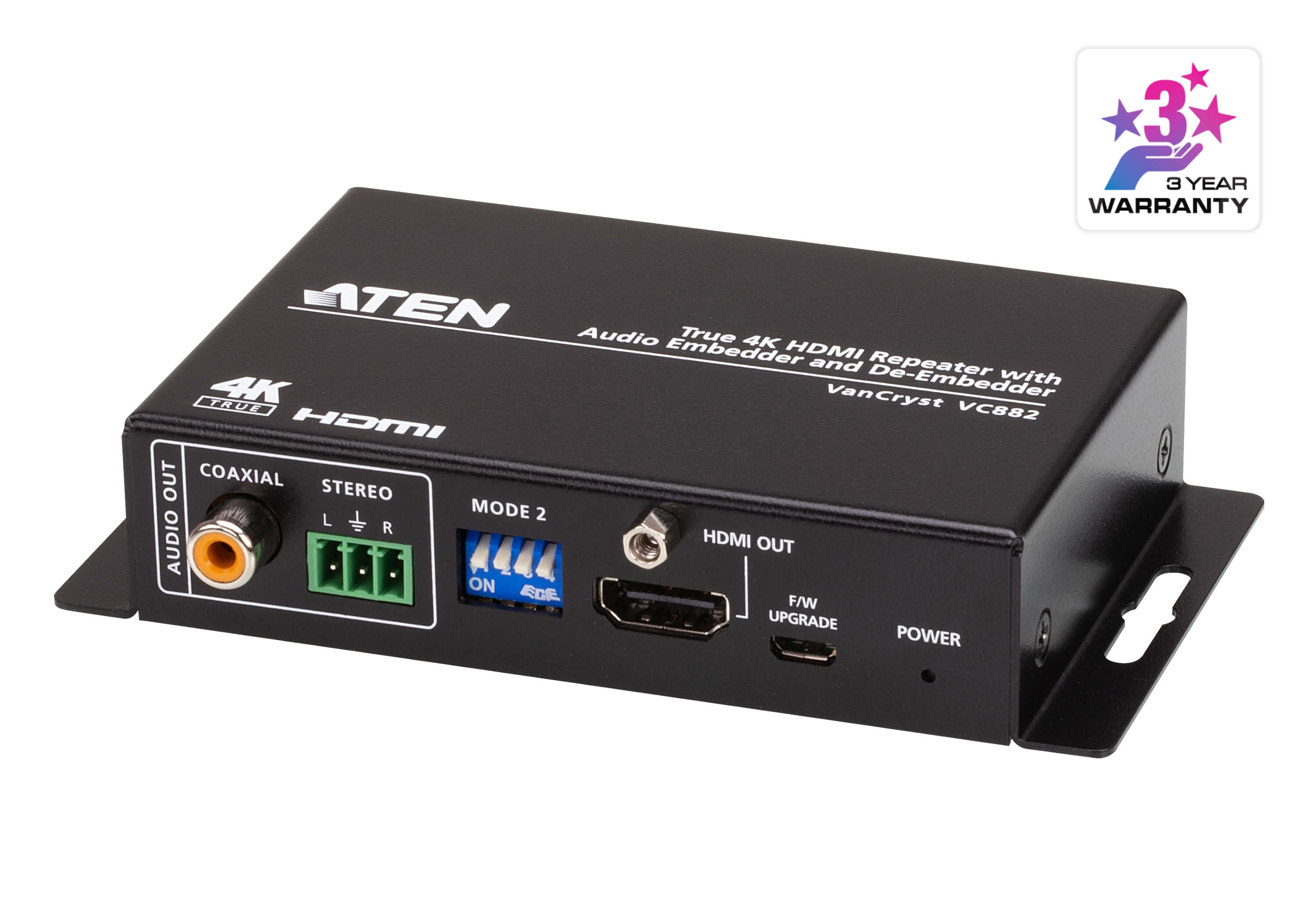

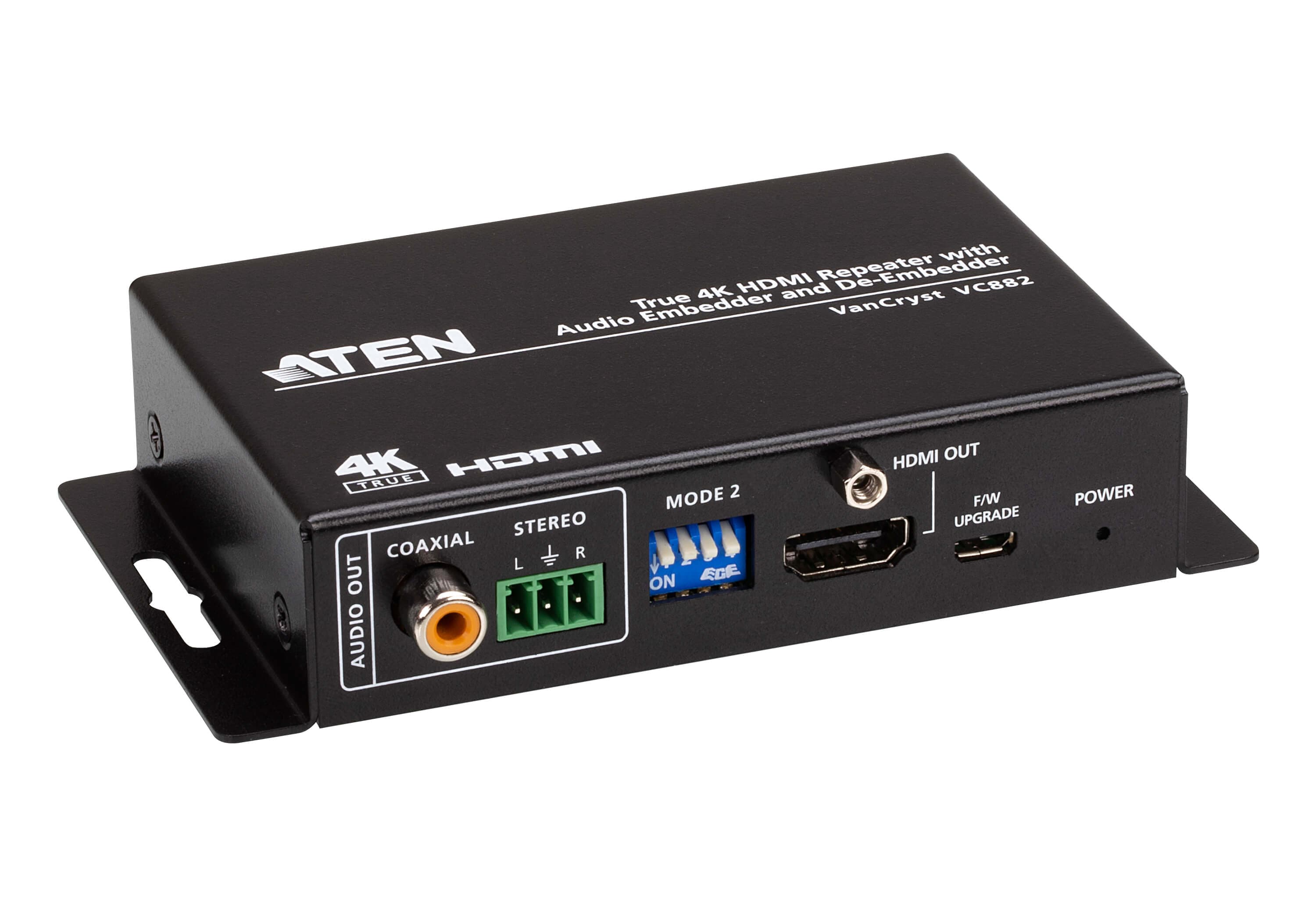

True 4K HDMI Repeater with Audio Embedder and De-Embedder

Name: True 4K HDMI Repeater with Audio Embedder and De-Embedder
Brand: ATEN
SKU: VC882

VC882

Request a quote Datasheet PDF Manual Quick start guide

HDMI repeater that embeds audio into or extracts it from an HDMI signal while passing True 4K video up to 4096 x 2160 @ 60 Hz (4:4:4). DIP-switch mode selection; HDCP 2.2 compliant.

Features

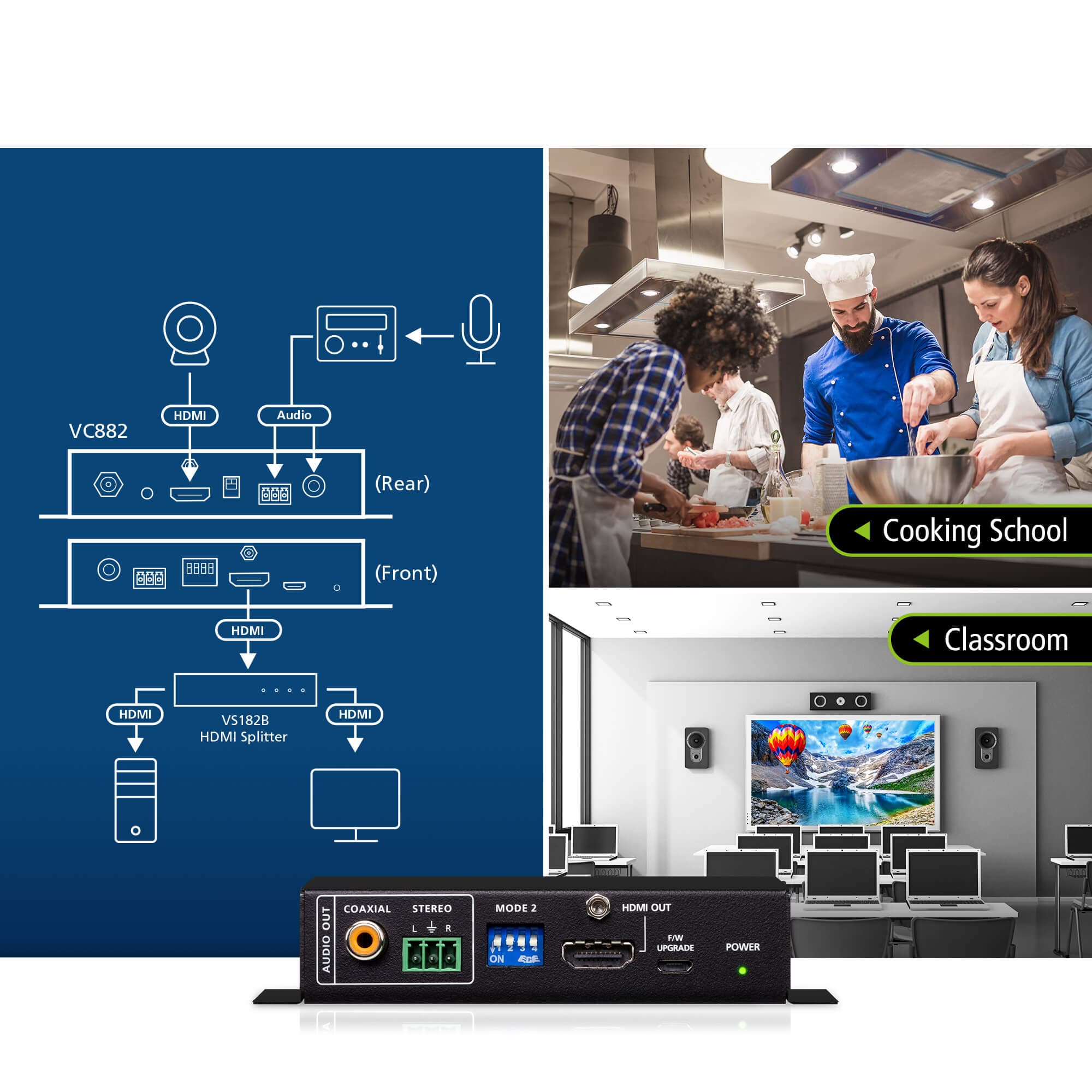

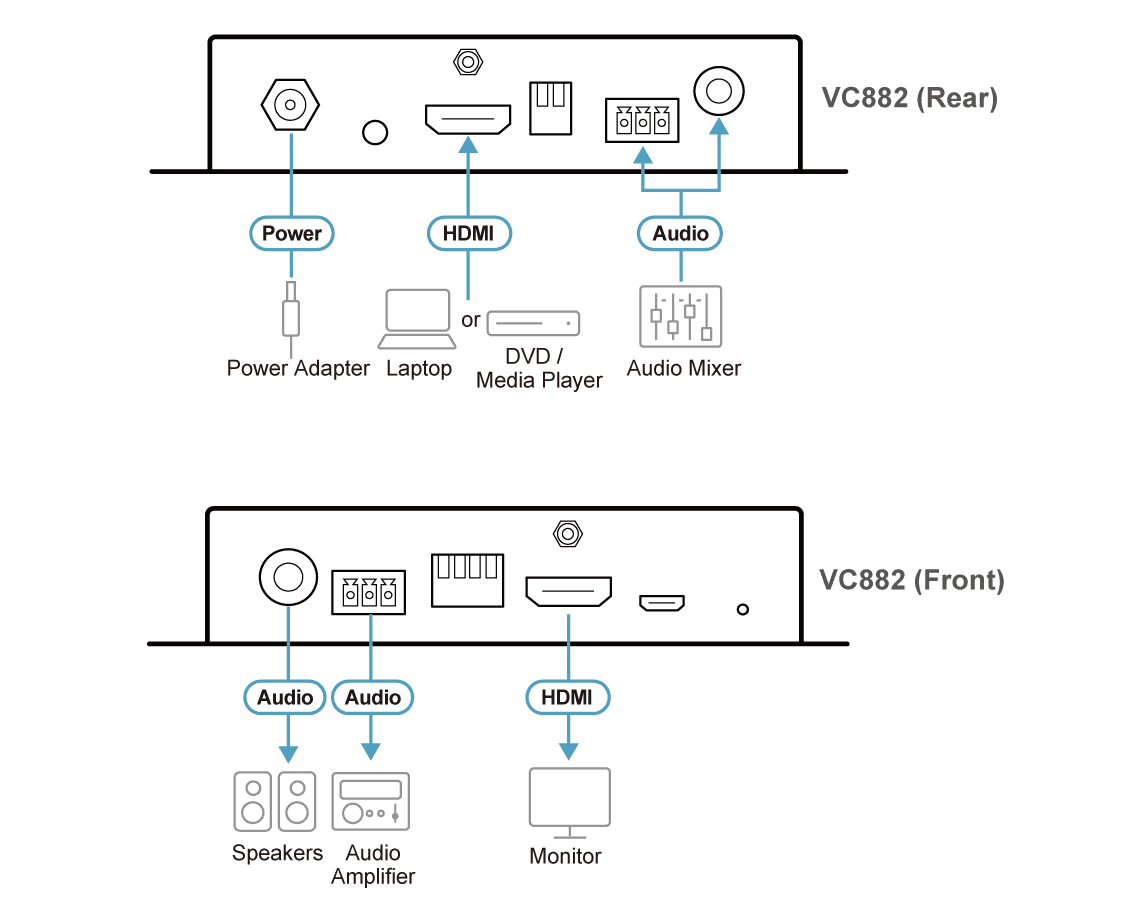

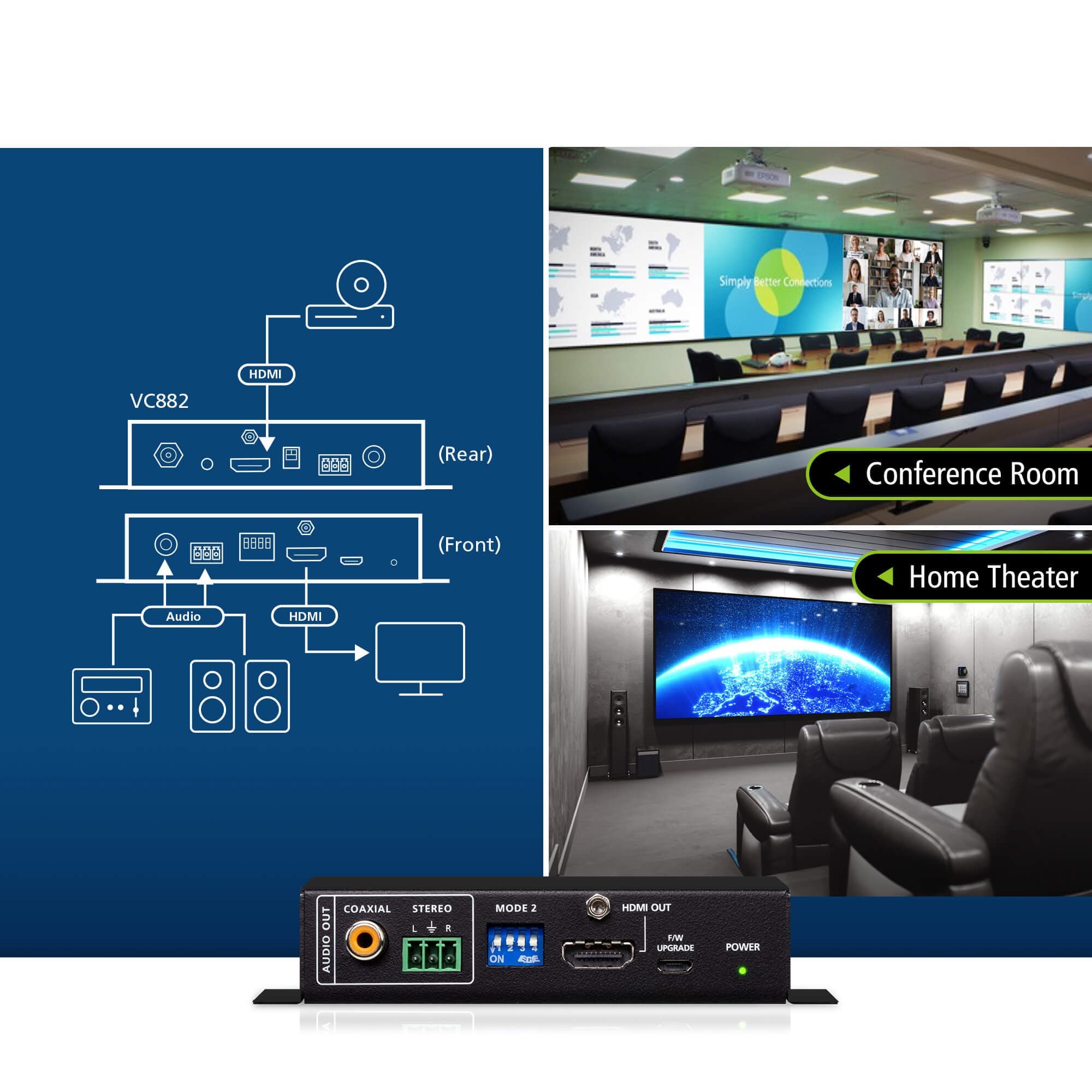

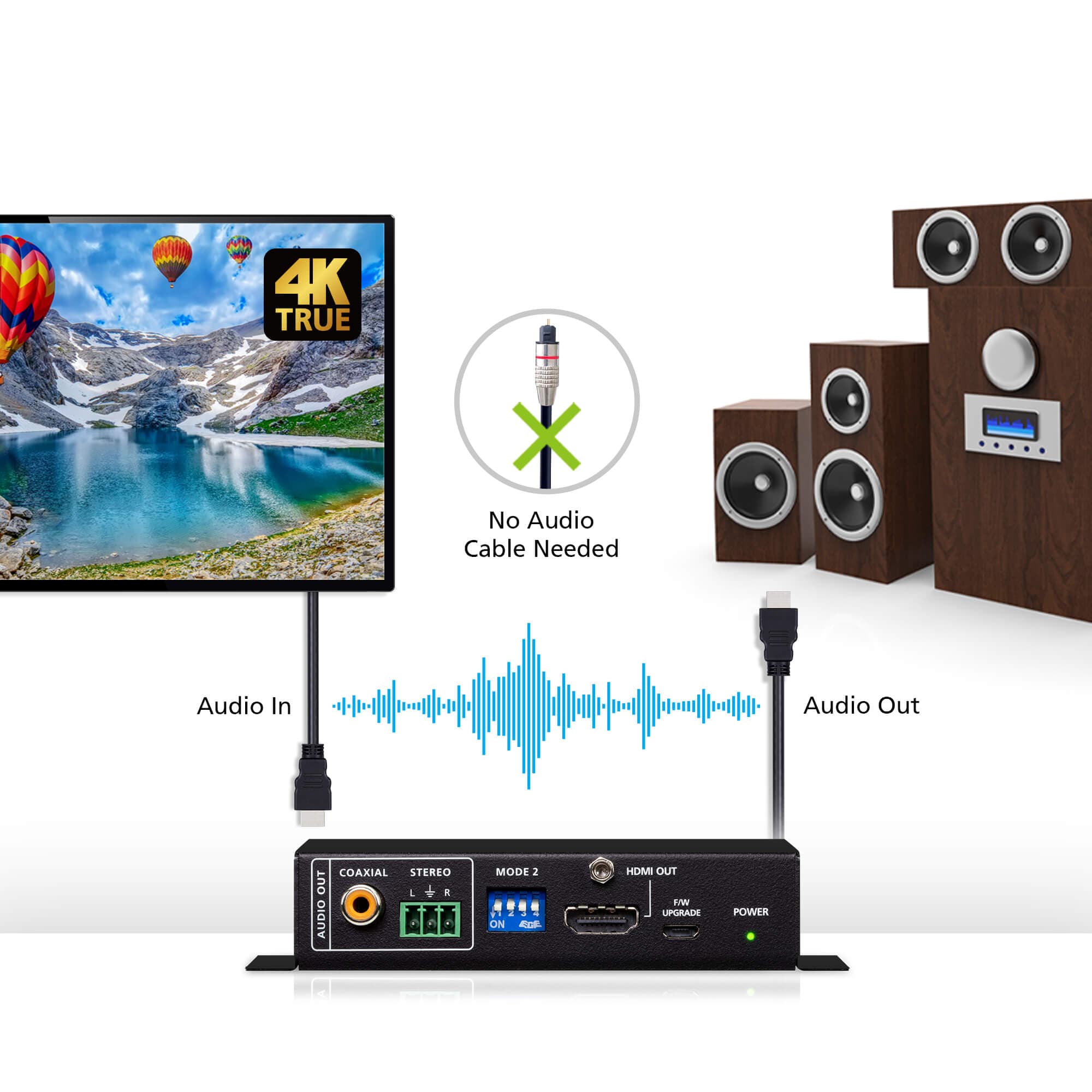

Embeds audio to the HDMI output or de−embeds audio from the HDMI signal and outputs the extracted signal through an alternative audio system
Easy embedding / de-embedding mode selection via 2 / 4-pin DIP switches
HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
True 4K video quality – supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
Supports True 4K / HDR formats – HDR10, HDR10+, Dolby Vision and Hybrid Log-Gamma (HLG)
Supports HDMI audio formats – LPCM 2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital 5.1

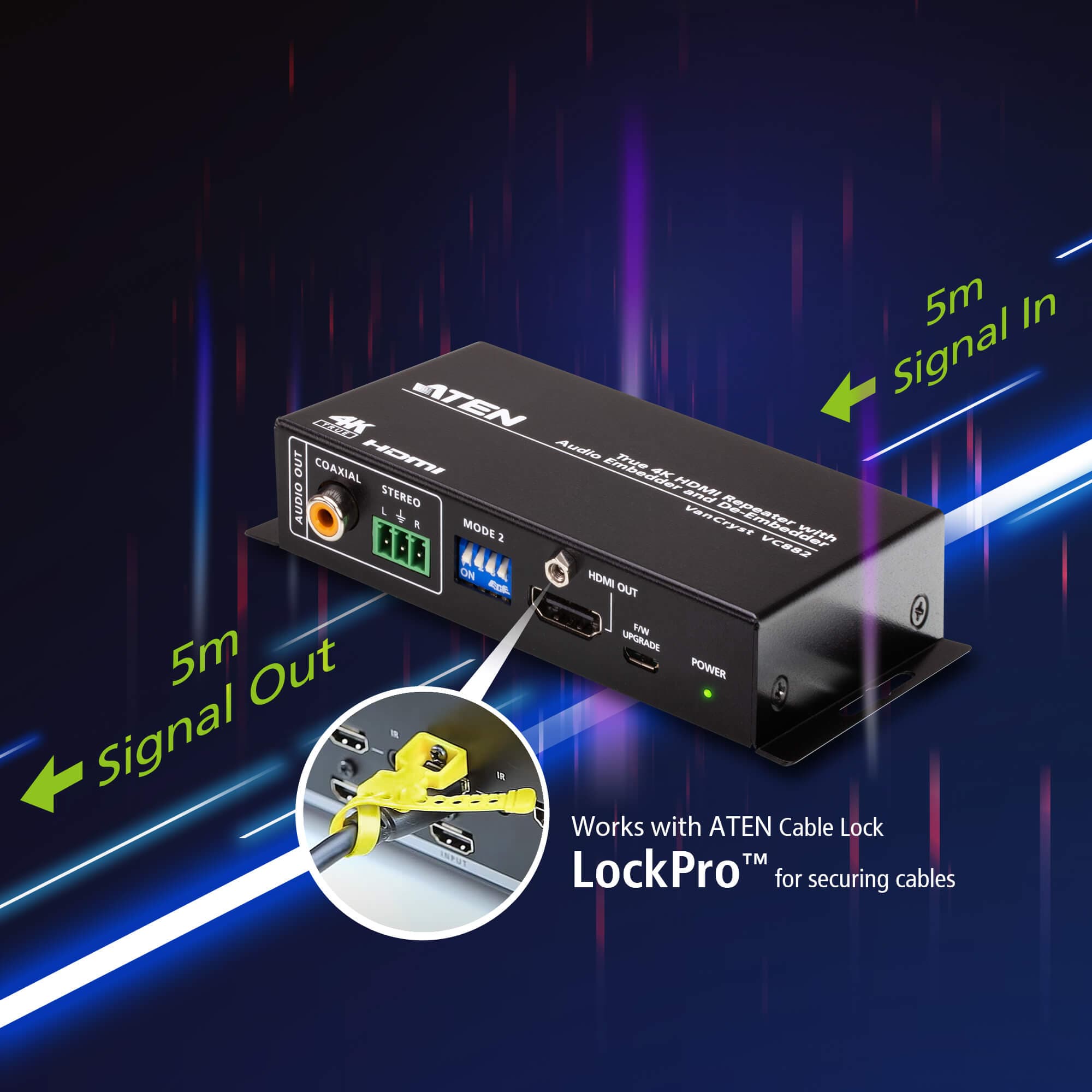

Compact, portable metal enclosure designed for HDMI Lock-pro
Firmware upgradable

LEDs

Power: LED (blue) x1
Reset Button: Push button x1 (to activate mode configuration)

Switches

Mode Selection: MODE 1 (2-PIN) PIN#1 (Enable / Disable Audio Embedder Function) PIN#2 (Audio embed from Coaxial / Stereo) MODE 2 (4-PIN) PIN#1 (Enable / Disable Audio Extractor Function) PIN#2 (Enable / Disable ARC function) PIN#3&4 (EDID mode selection: Bypass, 5.1 CH, 2 CH, Learn)

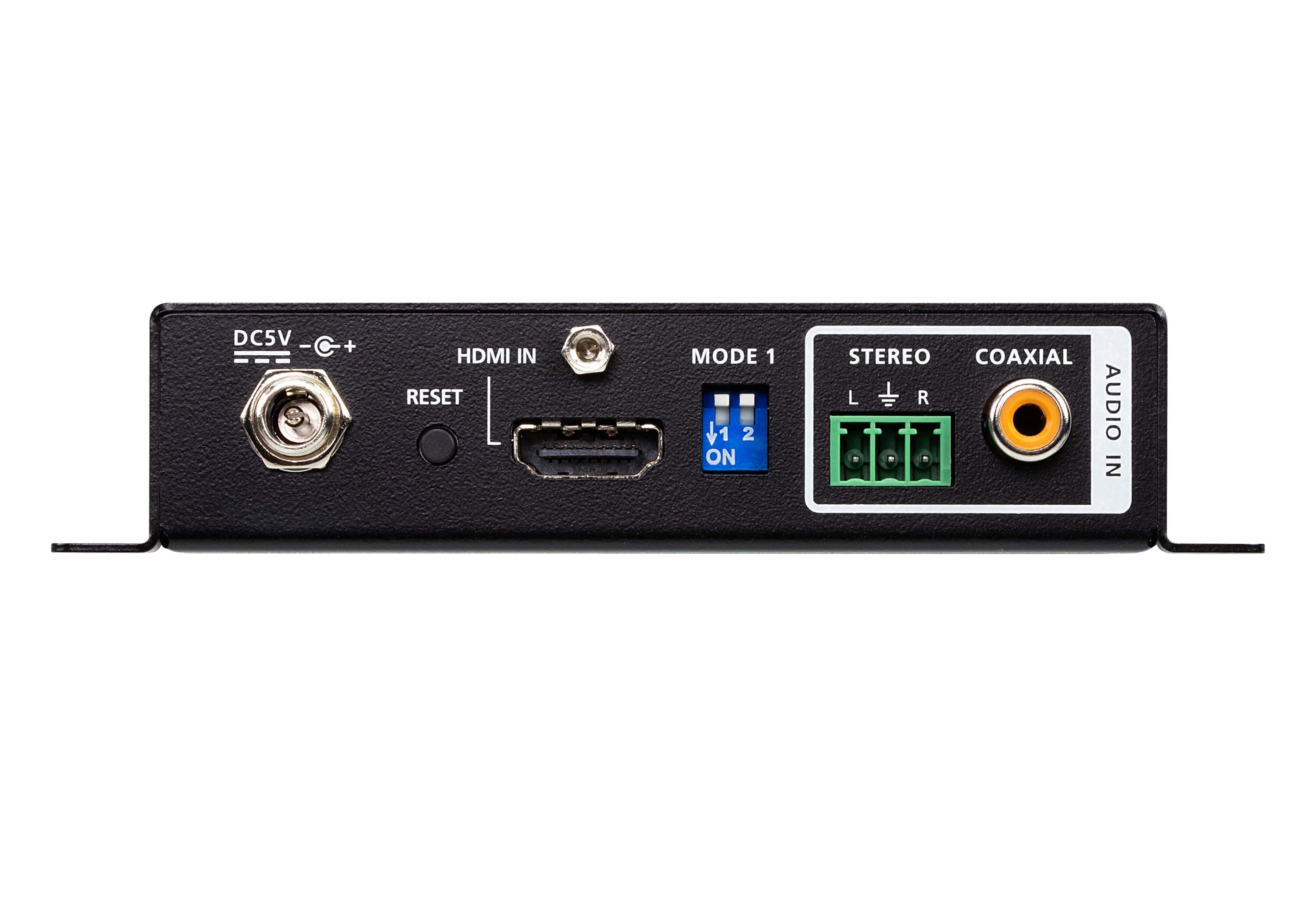

Video Input

Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 Ω
Max. Distance: 5 meters

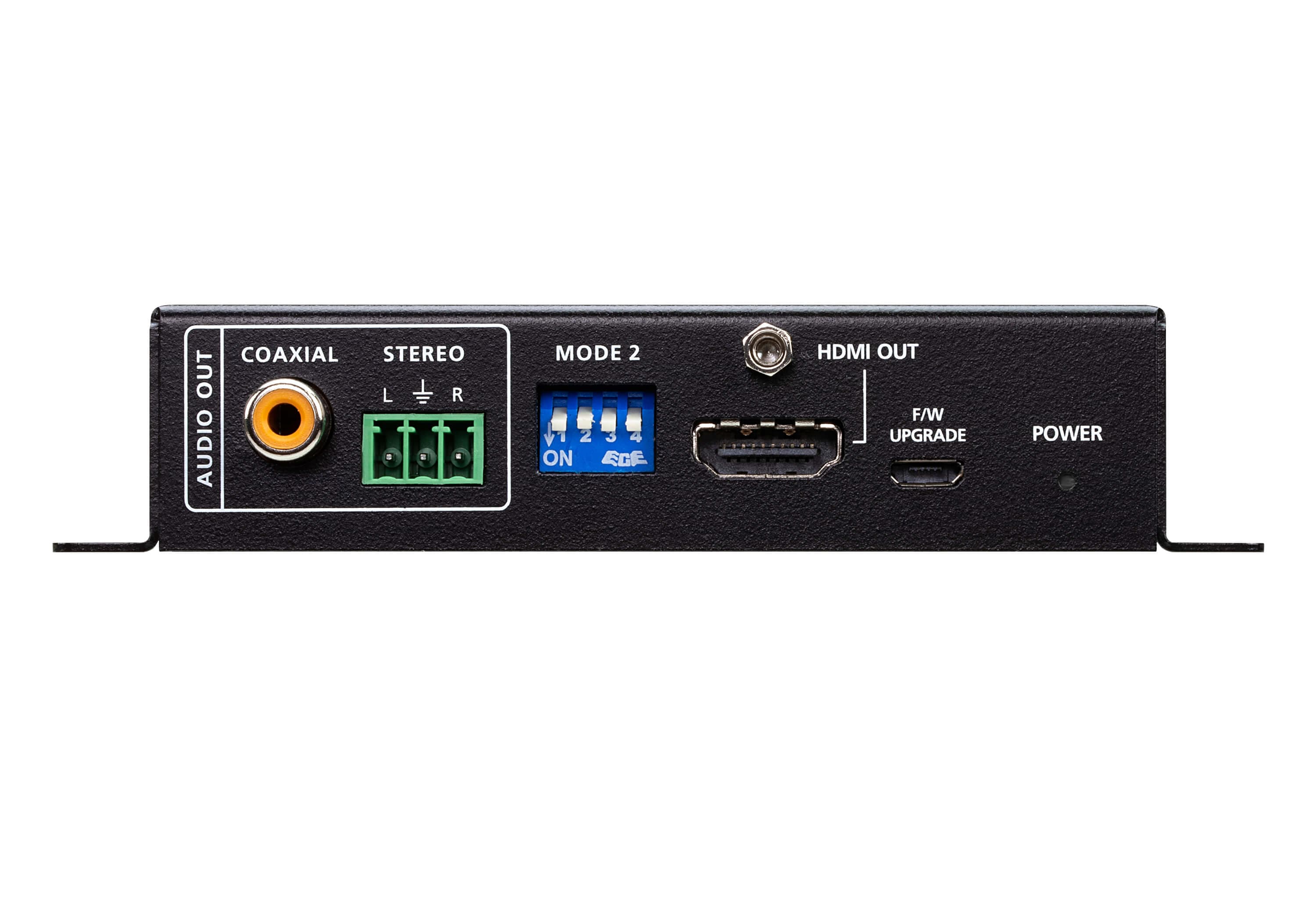

Video Output

Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 Ω
Max. Distance: 5 meters

Video

Max. Data Rate: 18 Gps
Max. Pixel Clock: 600 MHz
Compliance: HDMI 2.0 (3D, Deep Color) HDCP 2.2
Max. Resolution: 4096 X 2160@60Hz(4:4:4) 8 bit

Audio

Output: Coaxial x1 Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1 3-pin terminal block x 1 Format: Analog, stereo, unbalanced, LPCM2.0
Input: Coaxial x1 Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1 3-pin terminal block x 1 Format: Analog, stereo, unbalanced, LPCM2.0

Connectors

Power: 1 x DC Jack, 5V 1A, Lockable
Firmware Upgrade: 1 x Micro USB
Power Consumption: DC5V:2.905W:9.92BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature: 0 - 40 ºC
Storage Temperature: -20 - 60 ºC
Humidity: 0 - 80% RH, Non-Condensing

Physical Properties

Housing: Metal
Weight: 0.24 kg ( 0.53 lb )
Dimensions (L x W x H): 12.22 x 8.22 x 2.50 cm (4.81 x 3.24 x 0.98 in.)
Carton Lot: 5 pcs
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
