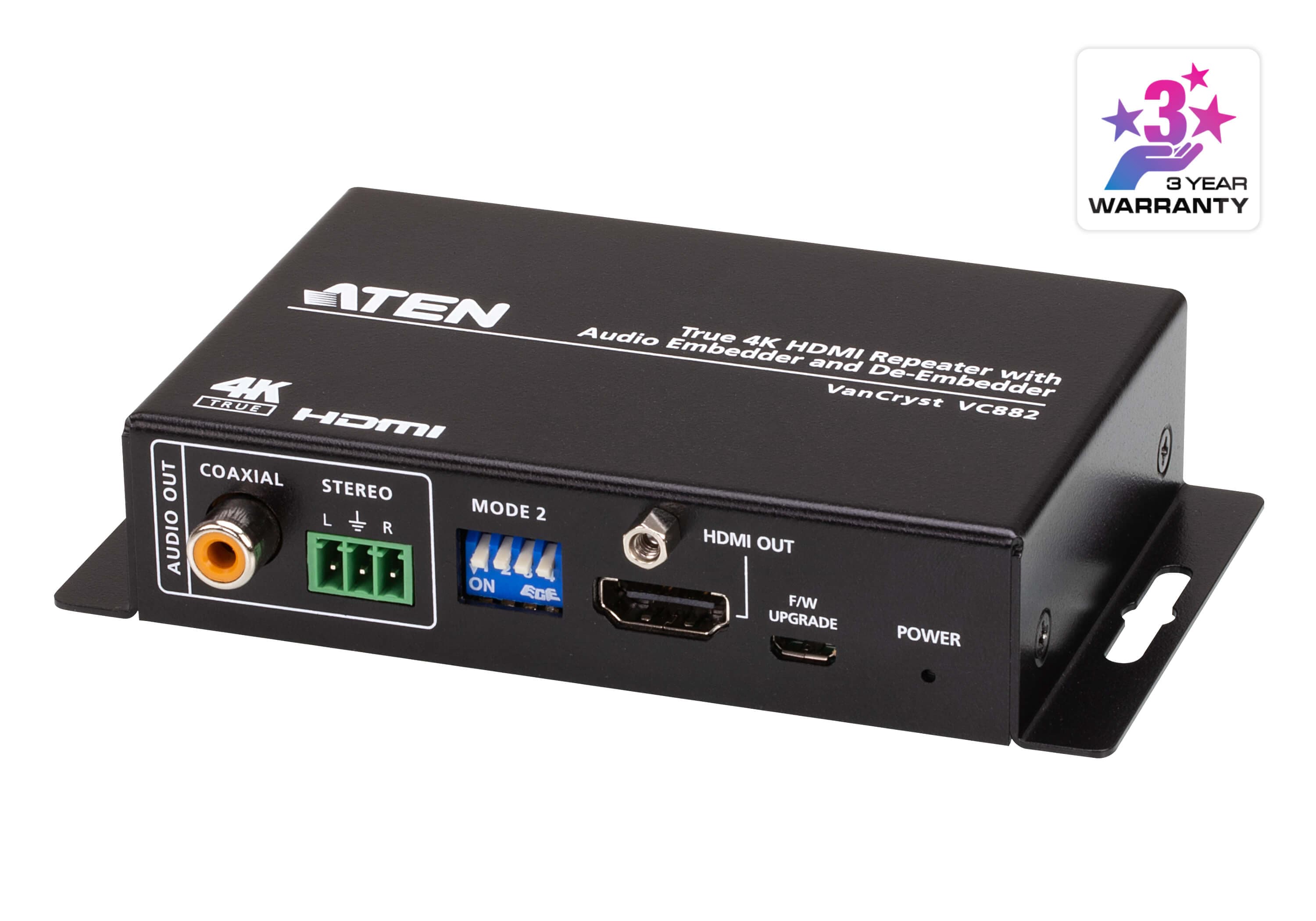

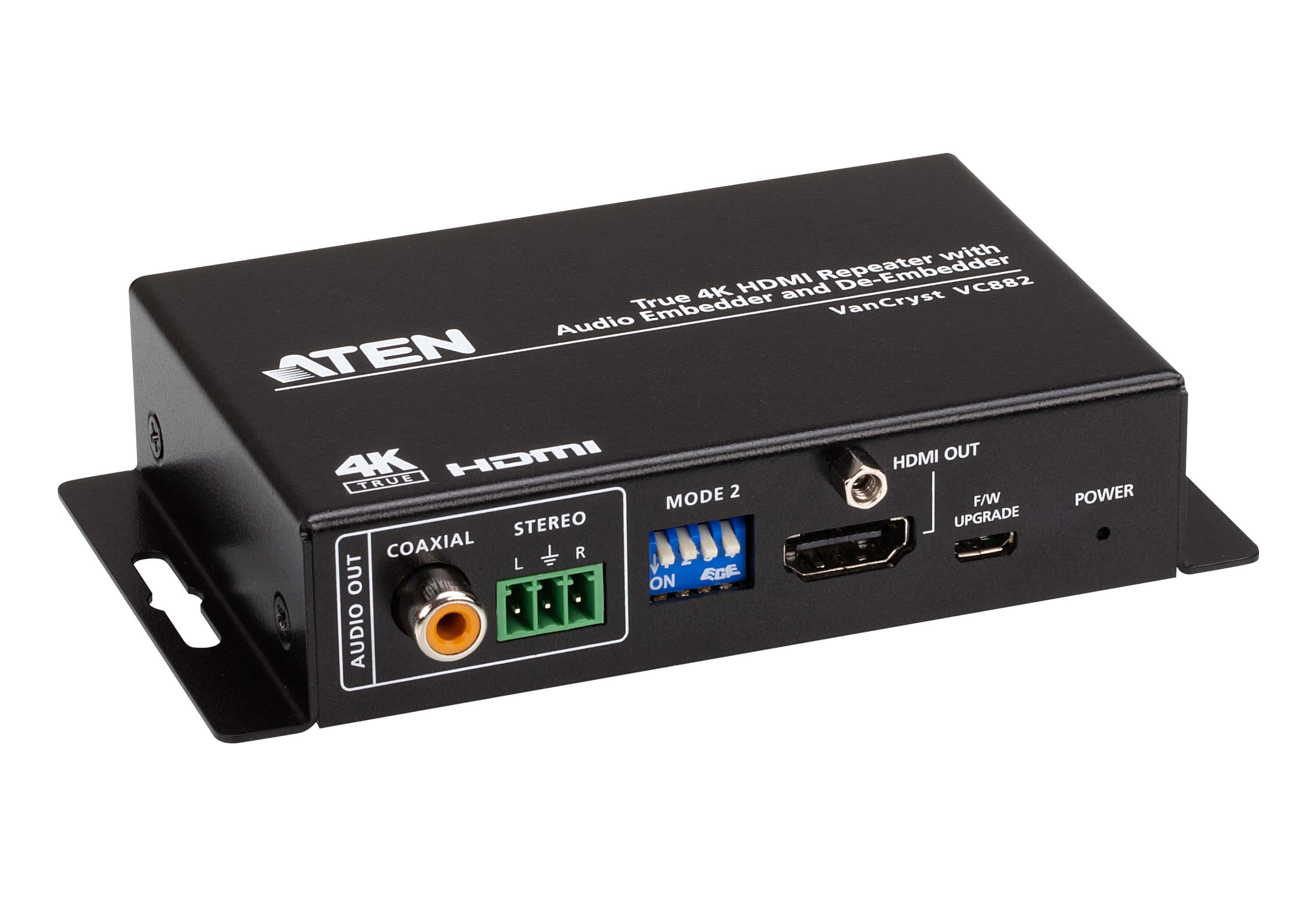

True 4K HDMI Repeater with Audio Embedder and De-Embedder
VC882
HDMI повторител, който вгражда аудио в HDMI сигнала или извлича звука от него към отделен изход. Работи при True 4K до 4096x2160@60Hz (4:4:4); режимът се избира с DIP превключватели.
Характеристики

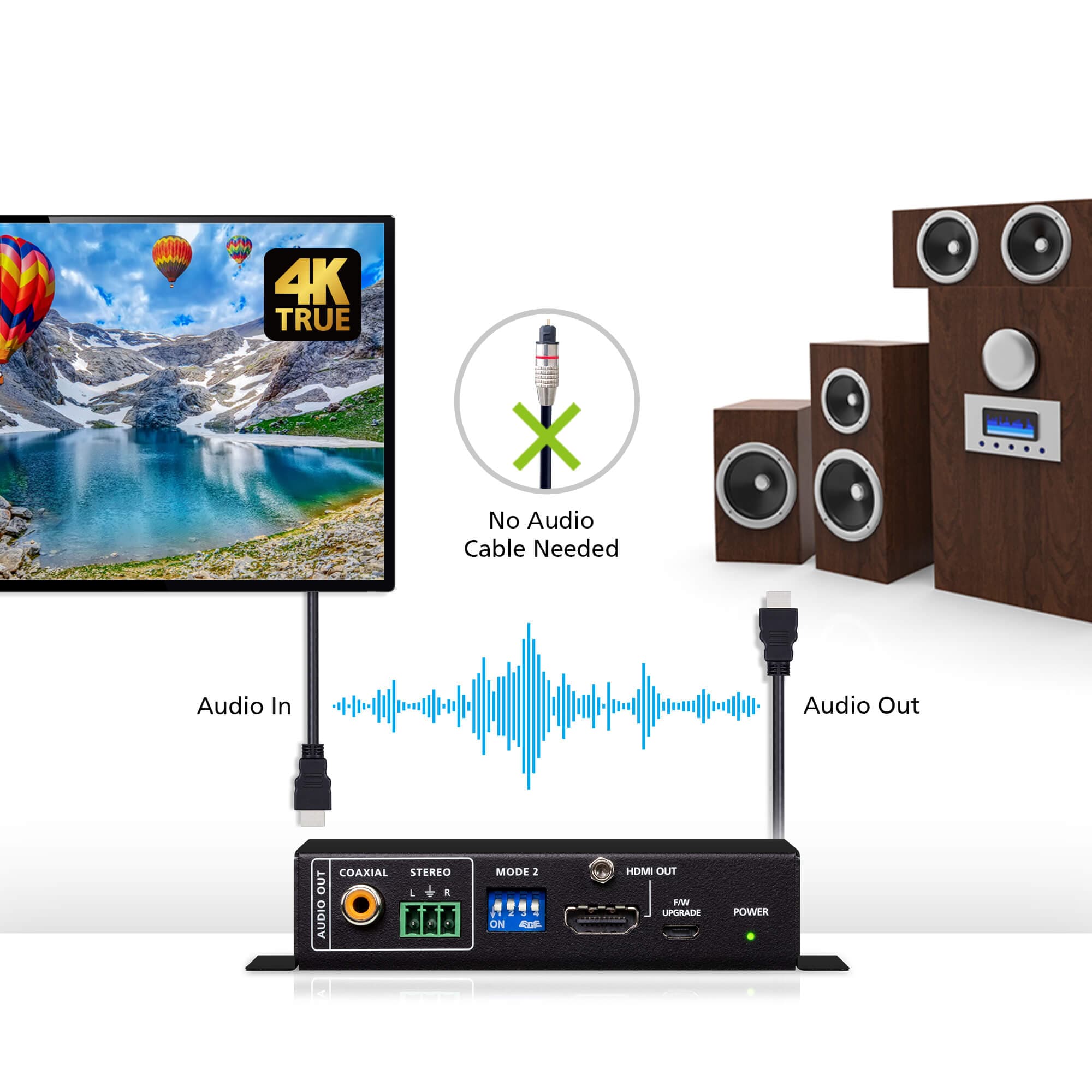

- Embeds audio to the HDMI output or de−embeds audio from the HDMI signal and outputs the extracted signal through an alternative audio system
- Easy embedding / de-embedding mode selection via 2 / 4-pin DIP switches
- HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
- True 4K video quality – supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Supports True 4K / HDR formats – HDR10, HDR10+, Dolby Vision and Hybrid Log-Gamma (HLG)
- Supports HDMI audio formats – LPCM 2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital 5.1

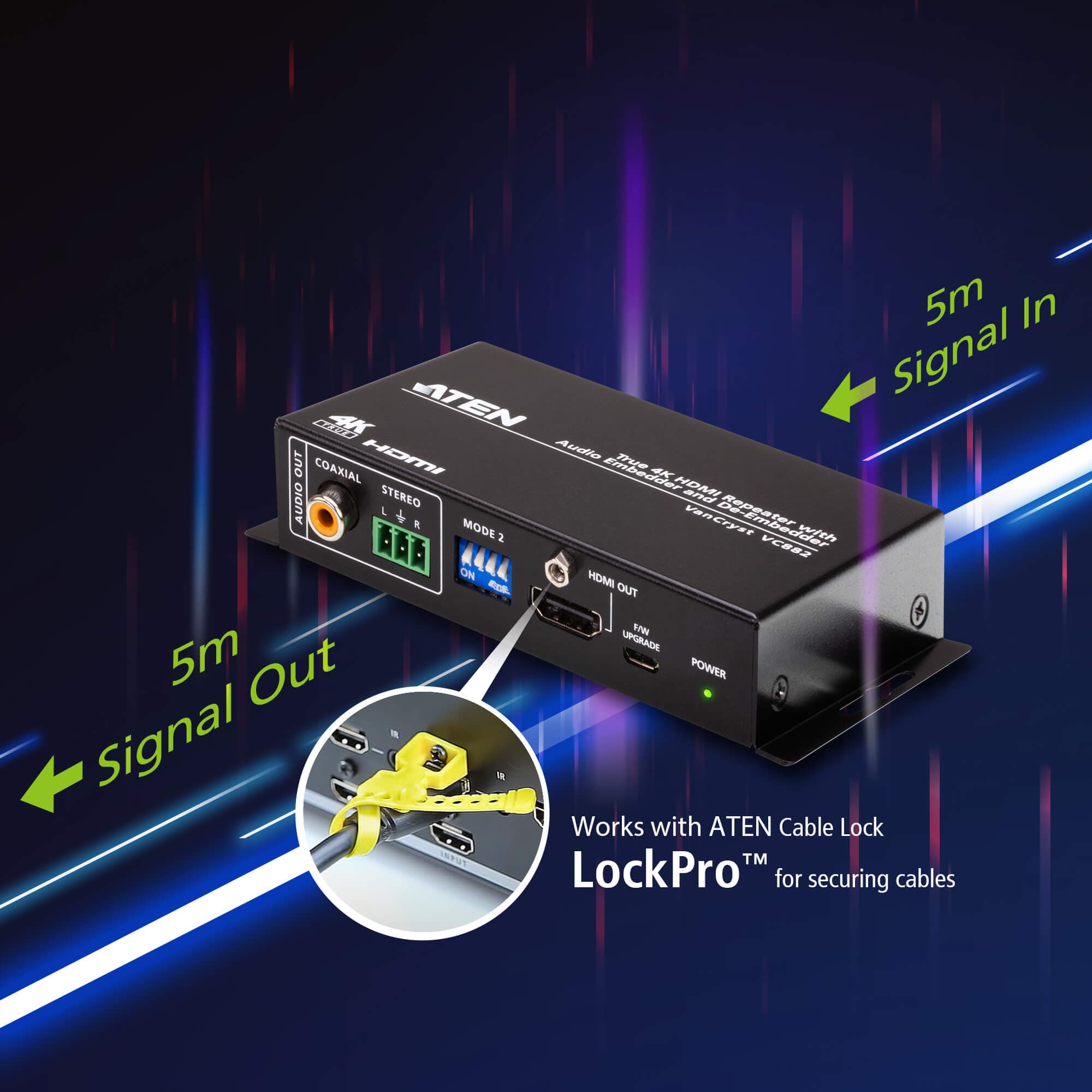

- Compact, portable metal enclosure designed for HDMI Lock-pro
- Firmware upgradable
Индикатори
- Захранване
- LED (blue) x1
- Бутон за нулиране
- Push button x1 (to activate mode configuration)
Бутони и превключватели
- Избор на режим
- MODE 1 (2-PIN) PIN#1 (Enable / Disable Audio Embedder Function) PIN#2 (Audio embed from Coaxial / Stereo) MODE 2 (4-PIN) PIN#1 (Enable / Disable Audio Extractor Function) PIN#2 (Enable / Disable ARC function) PIN#3&4 (EDID mode selection: Bypass, 5.1 CH, 2 CH, Learn)
Видео вход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5 meters
Видео изход
- Интерфейси
- 1 x HDMI Type A Female (Black)
- Импеданс
- 100 Ω
- Макс. разстояние
- 5 meters
Видео
- Макс. скорост на данните
- 18 Gps
- Макс. пикселна честота
- 600 MHz
- Съответствие
- HDMI 2.0 (3D, Deep Color) HDCP 2.2
- Макс. резолюция
- 4096 X 2160@60Hz(4:4:4) 8 bit
Аудио
- Изход
- Coaxial x1 Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1 3-pin terminal block x 1 Format: Analog, stereo, unbalanced, LPCM2.0
- Вход
- Coaxial x1 Format: LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital 5.1 3-pin terminal block x 1 Format: Analog, stereo, unbalanced, LPCM2.0
Конектори
- Захранване
- 1 x DC Jack, 5V 1A, Lockable
- Обновяване на фърмуера
- 1 x Micro USB
- Консумация
- DC5V:2.905W:9.92BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 40 ºC
- Температура на съхранение
- -20 - 60 ºC
- Влажност
- 0 - 80% RH, Non-Condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.24 kg ( 0.53 lb )
- Размери (Д x Ш x В)
- 12.22 x 8.22 x 2.50 cm (4.81 x 3.24 x 0.98 in.)
- Брой в кашон
- 5 pcs
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
