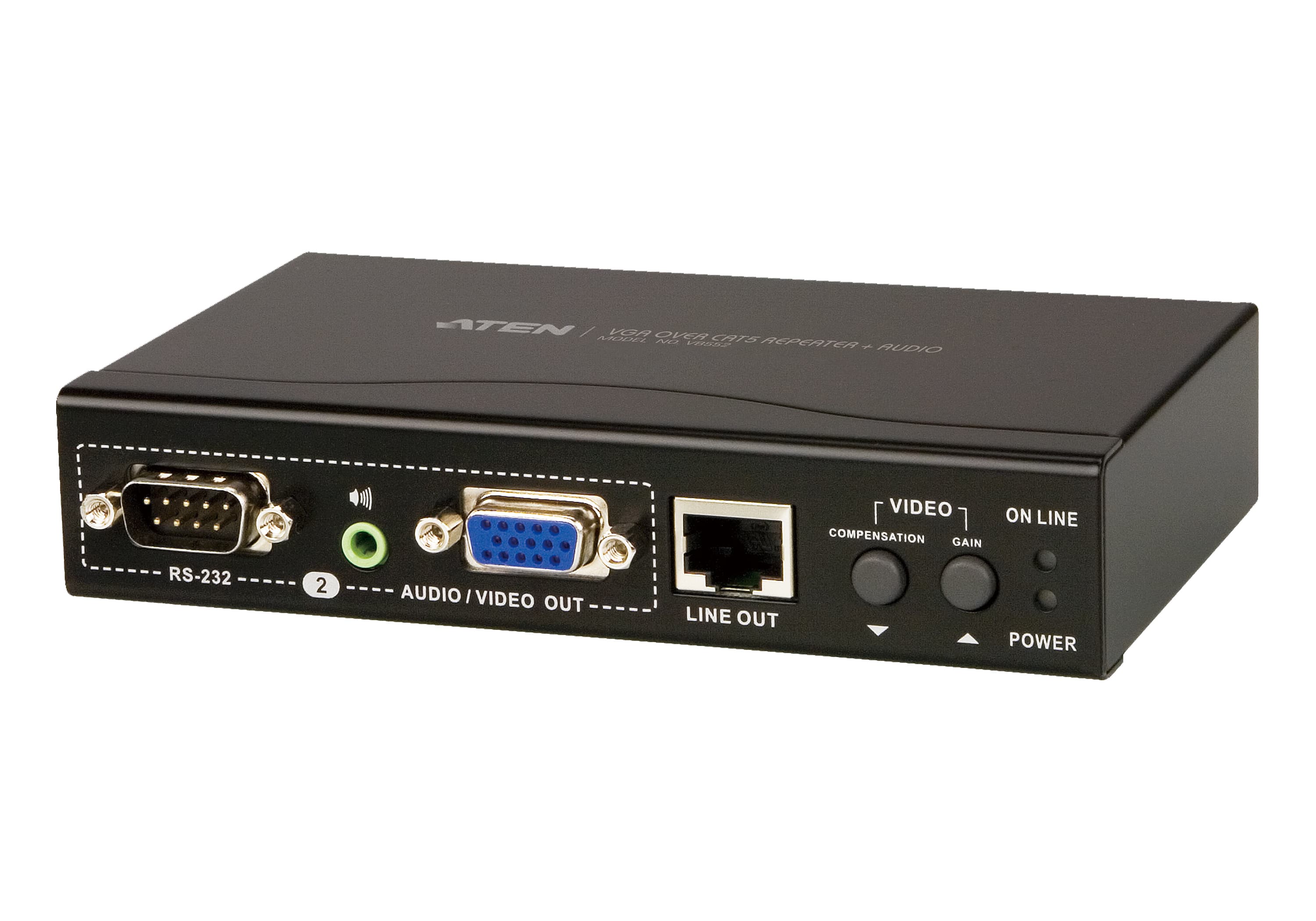

VGA/Audio/RS-232 Cat 5 Repeater with Dual Output (1600 x 1200@150m)
VB552Discontinued
The VB552 VGA Over Cat 5 Repeater +Audio is an audio/video signal extension device which is compatible with ATEN Cat 5 Audio/Video splitters. The VB552 extends the audio/video transmission range
Features
- Uses Cat 5e cable to extend audio/video signal
- Extends the transmission range an extra 150m
- High-quality video - up to 1920x1200@60Hz at 30m, 1600x1200@60Hz at 150m, 1280x1024@60Hz at 200m
- Audio and serial enabled
- Two gain control modes for sharpest picture quality
- Video gain and compensation adjustable via OSD
- IR receiver for quick and easy video quality adjustment
- IR remote control for screen on/off and video adjustment at remote site
- Provide a RS-232 channel for selection*
- Follows VESA FDMI mount standard
- Supports DDC for the local monitor
- Supports VGA, SVGA, XGA, SXGA, UXGA and multisync monitors

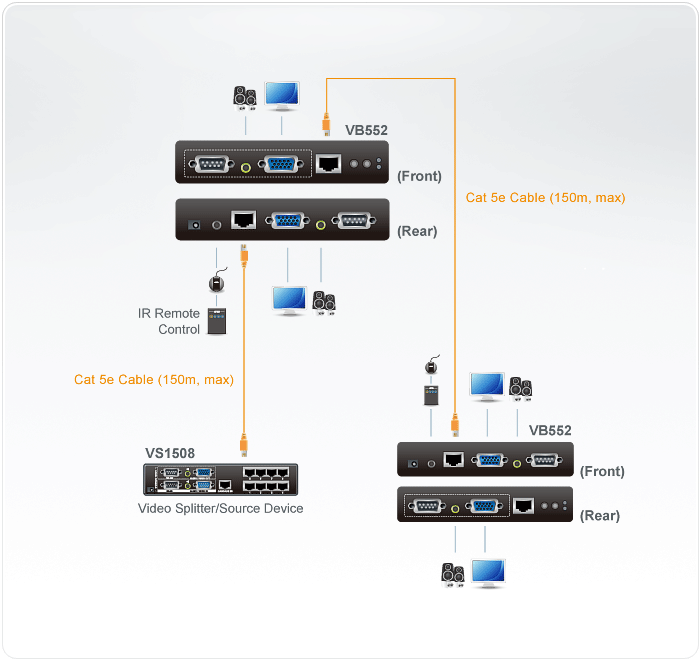

- For use in combination with VS1504/VS1508 Audio/ Video splitter * Only one RS-232 channel can be selected at a time
Video Output
- Interfaces
- 2 x HDB-15 Female (Blue)
- Impedance
- 75 Ω
- Max. Distance
- 1.8 m
Video
- Max. Bandwidth
- 300 MHz
- Max. Resolutions / Distance
- Up to 1920 x 1200@60Hz@30m; 1600 x 1200@60Hz@150m
Audio Outputs
- Interfaces
- 2 x Mini Stereo Jack Female (Green)
Control
- RS-232
- Connector: 2 x DB-9 Male (Black)
Connectors
- Power
- 1 x DC Jack (Black)
- Power Consumption
- DC5.3V:4.92W:23BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
- Operating Temperature
- 0 - 50°C
- Storage Temperature
- -20 - 60°C
- Humidity
- 0 - 80% RH, Non-Condensing
Physical Properties
- Housing
- Metal
- Weight
- 0.35 kg ( 0.77 lb )
- Dimensions (L x W x H)
- 13.90 x 8.80 x 2.86 cm (5.47 x 3.46 x 1.13 in.)
- Carton Lot
- 5 pcs
- Note
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
